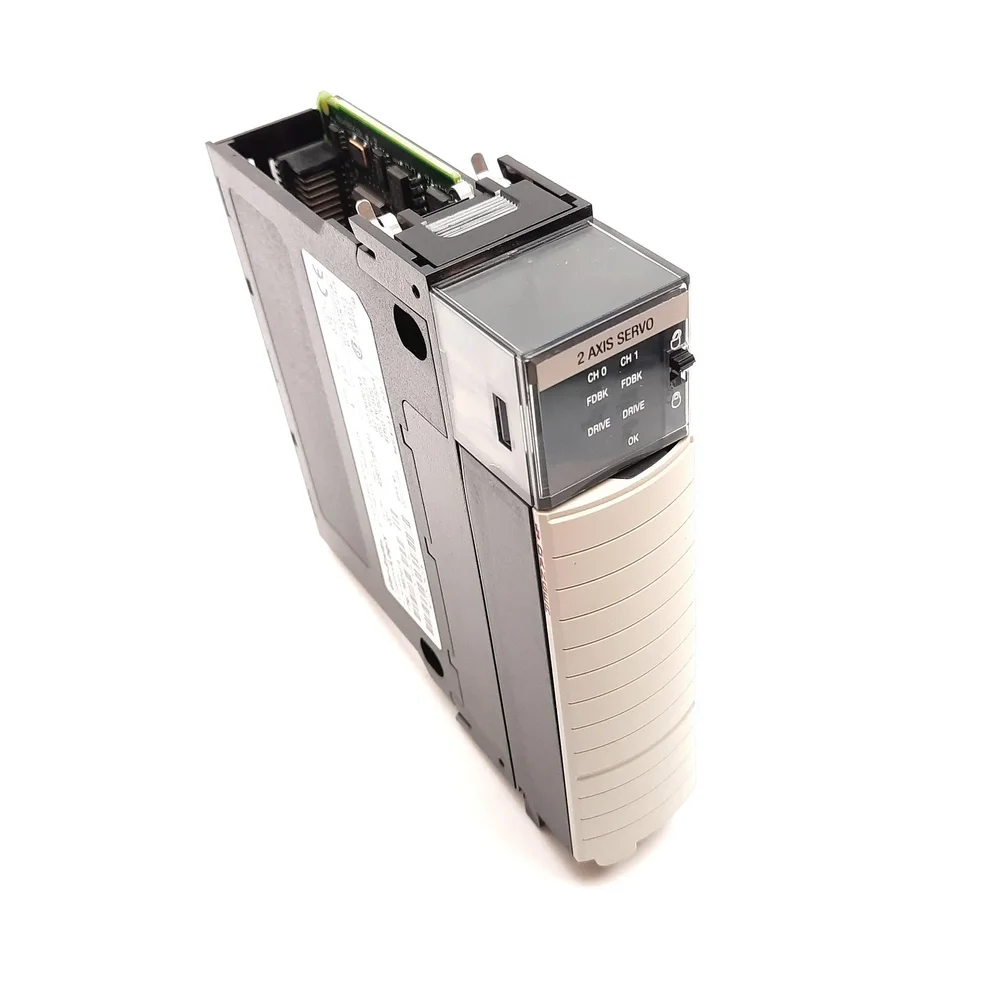

Allen-bradley 1756-M02as Control Logix 2-Axis Analog Ssi Servo Module — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹3,58,885/piece, MOQ 1 piece.
Product Overview
Allen-Bradley 1756-M02AS Control Logix 2-Axis Analog SSI Servo Module, sourced for industrial automation and motion control applications. This module is supplied for system integrators and institutional buyers requiring precise analog SSI servo control.
Detailed Description
The Allen-Bradley 1756-M02AS ControlLogix 2-Axis Analog SSI Servo Module is a chassis-based motion control unit, precisely engineered for integrated automation systems. This module provides two axes of control, supporting both analog voltage for motion commands (±10 V DC with 16-bit resolution) and SSI (Synchronous Serial Interface) for absolute position feedback. It handles 32-bit absolute position ranges up to 4,294,967,296 counts, with configurable update rates including 500 Hz, 666.7 Hz, 1 kHz, 2 kHz, and 4 kHz. The servo loop features position PID with velocity/acceleration feed-forward for velocity/hydraulic applications and position PID with velocity feed-forward for torque drives, all with 32-bit floating-point gain resolution. Discrete outputs are solid-state isolated relay contacts at 24 V DC nominal, complemented by optically isolated, current-sinking registration inputs. Operating within a 0 to 60°C temperature range, this module is sourced for industrial environments requiring robust and precise motion control. It is particularly suited for applications in packaging lines, material handling systems, robotics, and specialized manufacturing equipment that demand high precision and synchronous motion. Institutional buyers in sectors like automotive, pharmaceuticals, and food processing will find this module integral for upgrading their production lines, ensuring consistent performance and reduced downtime. Its compatibility with 1756 ControlLogix chassis and terminal blocks (1756-TBCH / 1756-TBS6H) simplifies integration into existing Rockwell Automation infrastructures, making it a reliable component traded across markets for complex control systems. Each Allen-Bradley 1756-M02AS module is verified with IEC certification, ensuring compliance with international standards for electrical and electronic products. This certification underscores its suitability for deployment in demanding industrial settings where safety and performance are paramount.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | Motion Controllers |
| Price | ₹3,58,885 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Sourced Allen-Bradley 1756-M02AS ControlLogix 2-Axis Analog SSI Servo Module.
- Provides two axes of control with analog voltage (±10 V DC, 16-bit resolution) and SSI feedback.
- Handles 32-bit absolute position ranges up to 4,294,967,296 counts.
- Configurable update rates include 500 Hz, 666.7 Hz, 1 kHz, 2 kHz, and 4 kHz.
- Features position PID with velocity/acceleration feed-forward for diverse applications.
- Equipped with solid-state isolated relay contacts (24 V DC) and optically isolated registration inputs.
- Operates within a 0 to 60°C temperature range, suitable for industrial environments.
- IEC certified, ensuring compliance with international standards for electrical products.
Applications & Use Cases
- Packaging Lines: For precise and synchronous motion control in high-speed operations.
- Material Handling Systems: Integral for automated sorting, conveying, and positioning equipment.
- Robotics: Essential for upgrading production lines requiring high precision and consistent performance.
- Automotive Sector: Used by institutional buyers for enhancing assembly and manufacturing processes.
- Pharmaceutical and Food Processing: Critical for maintaining consistent performance and reducing downtime in regulated environments.
Technical Specifications
| Brand | Allen-Bradley |
|---|---|
| Series | ControlLogix |
| Weight | Approx. 0.26 kg |
| Mounting | 1756 ControlLogix chassis |
| Condition | New |
| Enclosure | Open-style |
| Parameter | Specification |
| I/o Points | 100 |
| Module Type | Chassis-based ControlLogix |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 1756-M02AS |
| Product Type | 2-Axis Analog/SSI Servo Motion Module |
| Update Rates | 500 Hz, 666.7 Hz, 1 kHz, 2 kHz, 4 kHz |
| Mounting Type | DIN Rail Mount |
| Catalog Number | 1756-M02AS |
| Motion Command | Analog voltage |
| Number Of Axes | 2 axes/module |
| Gain Resolution | 32-bit floating point |
| Terminal Blocks | 1756-TBCH / 1756-TBS6H |
| Discrete Outputs | Solid-state isolated relay contacts |
| Isolation Voltage | 30 V continuous, user-to-system |
| Position Feedback | SSI absolute position feedback |
| Power Dissipation | Approx. 6.2 W |
| Relative Humidity | Up to 95%, non-condensing |
| Feedback Interface | SSI (Synchronous Serial Interface) |
| Registration Input | Optically isolated, current-sinking |
| Storage Temperature | −40 to 85°C |
| Thermal Dissipation | 18.77 BTU/hr |
| Analog Command Range | ±10 V DC |
| Power Supply Voltage | 24 V |
| Operating Temperature | 0 to 60°C |
| Communication Protocol | Modbus RTU, EtherNet/IP |
| Absolute Position Range | 32-bit / 2³² counts |
| Discrete Output Voltage | 24 V DC nominal |
| Maximum Position Counts | 4,294,967,296 counts |
| Analog Output Resolution | 16-bit |
| Backplane Current @ 24 V | 2.5 mA |
| Backplane Current @ 5.1 V | 700 mA |
| Maximum Axes Per Controller | 32 axes |
| Servo Loop – Torque Drive | Position PID + velocity feed-forward; velocity PI + acceleration feed-forward |
| Servo Loop – Velocity/hydraulic | Position PID with velocity/acceleration feed-forward |
