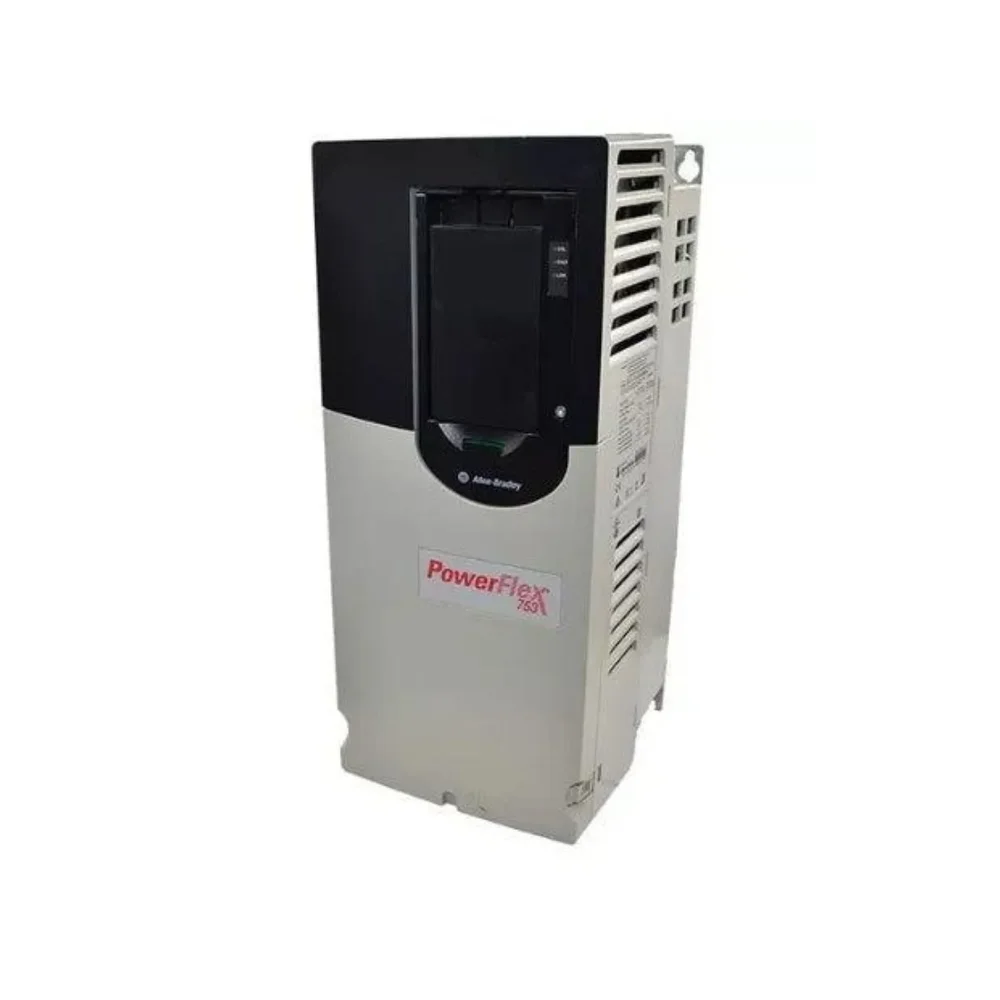

Allen Bradley 20F11gc8p7jaonnnnn Vfd, ₹85,730/piece | Tradoi
Electronics & Electrical › Motors & Drives
Allen Bradley 20F11gc8p7jaonnnnn Vfd — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹85,730/piece, MOQ 1 piece.
Product Overview
Allen Bradley 20F11GC8P7JAONNNNN VFD, sourced for industrial automation and motor control applications. This specific VFD model is traded across markets to meet the demands of institutional buyers and export houses requiring precise variable frequency drive solutions.
Detailed Description
The Allen-Bradley 20F11GC8P7JA0NNNNN PowerFlex 753 AC Variable Frequency Drive is sourced for industrial applications requiring precise motor control. This 3-phase AC VFD operates with an input voltage range of 380–480 VAC, with a nominal input of 415 VAC, and delivers an output current of 8.7 A. It features a 4.0 kW rating for both normal and heavy-duty operation, housed in a Frame 2 enclosure with IP54 / NEMA Type 12 protection and forced air cooling. Key specifications include embedded I/O with 1 analog input, 1 analog output, 3 digital inputs, 2 digital outputs, and a PTC input. The drive integrates an EMC filter, comes with a CM Jumper installed, and includes a built-in dynamic braking transistor, though a braking resistor is not included. Control options span V/Hz, Sensorless Vector, and Vector with FORCE technology, alongside PID functionality, supporting a maximum output frequency of up to 590 Hz. This VFD is supplied to meet the demands of system integrators, industrial automation solution providers, and maintenance departments within manufacturing facilities, particularly those involved in material handling, pumping, and fan applications. It is also traded across markets for use in institutional projects requiring robust motor control, such as water treatment plants, HVAC systems in large commercial complexes, and process control in food and beverage production lines. The wall/panel mount configuration and AC input with precharge / DC terminals offer flexibility for various installation environments, making it suitable for upgrades or new deployments in facilities adhering to 50/60 Hz mains frequency standards.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Motors & Drives |
| Product Type | Variable Frequency Drives |
| Price | ₹85,730 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Allen-Bradley PowerFlex 753 AC VFD, 4.0 kW, 3-Phase, 380–480 VAC input, sourced for industrial motor control.
- Features embedded I/O: 1 analog in, 1 analog out, 3 digital in, 2 digital out, plus PTC input.
- Equipped with an integrated EMC filter and a CM Jumper, ensuring robust electrical performance.
- Includes a built-in dynamic braking transistor for enhanced control, braking resistor not included.
- Supports V/Hz, Sensorless Vector, and Vector with FORCE technology control modes, up to 590 Hz output.
- Housed in a Frame 2 enclosure with IP54 / NEMA Type 12 protection and forced air cooling.
- Offers wall/panel mount configuration with AC input (precharge) and DC terminals for installation flexibility.
- IEC certified, supplied by a Mohali, Punjab-based trader for cross-market distribution.
Applications & Use Cases
- System Integrators: For integrating precise motor control solutions in diverse industrial setups.
- Industrial Automation Solution Providers: Deploying robust VFDs in material handling, pumping, and fan systems.
- Maintenance Departments: Upgrading or replacing motor control units in manufacturing facilities.
- Institutional Projects: Utilized in water treatment plants, large commercial HVAC systems, and food & beverage production lines.
- Export Markets: Traded across UAE, Saudi Arabia, USA, and 9 other countries for various industrial and institutional needs.
Technical Specifications
| Pid | Yes |
|---|---|
| Brand | Allen Bradley |
| Output | 3-Phase AC |
| Series | PowerFlex 753 |
| Control | V/Hz, Sensorless Vector, Vector with FORCE technology |
| Cooling | Forced Air / Air Cooled |
| Mounting | Wall / panel mount |
| Cm Jumper | Installed |
| Enclosure | IP54 / NEMA Type 12 |
| Ptc Input | 1 |
| Parameter | Specification |
| Emc Filter | Integrated / Filtered |
| Frame Size | Frame 2 |
| Application | Pump, Conveyor, Fan |
| Input Phase | 3 Phase |
| Motor Power | 2 HP |
| Control Mode | Closed Loop Vector, V/F Control, Sensorless Vector |
| Embedded I/o | Yes |
| Him / Keypad | Blank — No HIM |
| Input Supply | 3-Phase AC |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 20F11GC8P7JAONNNNN |
| Power Rating | 4.0 kW |
| Product Type | AC Variable Frequency Drive / VFD |
| Analog Inputs | 1 |
| Input Voltage | 380–480 VAC |
| Voltage Class | 400 VAC |
| Analog Outputs | 1 |
| Catalog Number | 20F11GC8P7JA0NNNNN |
| Digital Inputs | 3 |
| Output Current | 8.7 A |
| Digital Outputs | 2 |
| Dynamic Braking | Built-in DB transistor |
| Mains Frequency | 50/60 Hz |
| Braking Resistor | Not included |
| Heavy Duty Rating | 4.0 kW |
| Normal Duty Rating | 4.0 kW |
| Input Configuration | AC input with precharge / DC terminals |
| Nominal Input Voltage | 415 VAC |
| Maximum Output Frequency | Up to 590 Hz |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Allen Bradley 20F11gc8p7jaonnnnn Vfd?
The minimum order quantity (MOQ) for Allen Bradley 20F11gc8p7jaonnnnn Vfd is 1 piece.
Who supplies Allen Bradley 20F11gc8p7jaonnnnn Vfd?
Allen Bradley 20F11gc8p7jaonnnnn Vfd is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Allen Bradley 20F11gc8p7jaonnnnn Vfd?
Available payment terms for Allen Bradley 20F11gc8p7jaonnnnn Vfd: Full Advance.
What is the price of Allen Bradley 20F11gc8p7jaonnnnn Vfd?
Allen Bradley 20F11gc8p7jaonnnnn Vfd is priced at ₹85,730 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
