Allen-bradley Mpl-b540k-mj22aa Ac Servo Motor | Tradoi
Electronics & Electrical › Motors & Drives
Allen-bradley Mpl-b540k-mj22aa Ac Servo Motor — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹1,84,307/piece, MOQ 1 piece.
Product Overview
Allen-Bradley MPL-B540K-MJ22AA AC Servo Motor, sourced for industrial automation and precise motion control applications. Traded across markets for system integrators and MRO buyers seeking reliable AC servo solutions.
Detailed Description

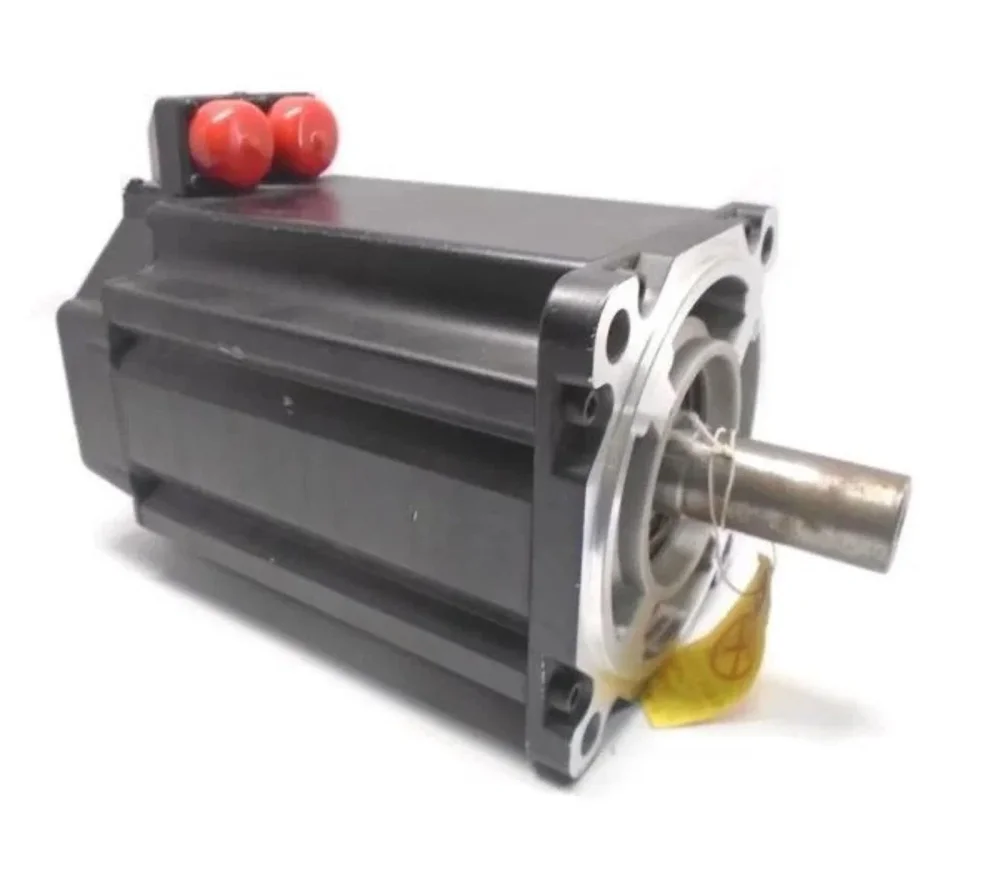

The Allen-Bradley MPL-B540K-MJ22AA AC Servo Motor is a 3-phase, 460 VAC / 400 V class premium permanent magnet rotary servo motor. Sourced for industrial automation applications, this low inertia MPL series motor delivers approximately 5.5 kW / 7.2 HP at a rated speed of 4000 RPM. It features a 165 mm frame size, 4.0 inch / 101.6 mm magnet stack length, and provides a continuous stall torque of 19.4 Nm. Feedback is managed via a multi-turn high-resolution encoder, with power and signal connections handled by circular bayonet connectors facing the shaft. The motor is equipped with a shaft key for mounting and housed in an IP65 enclosure, designed for robust performance. Its specifications make it suitable for applications requiring precise motion control and high dynamic response, such as robotics, packaging machinery, material handling systems, and CNC equipment. The IEC metric flange mounting ensures compatibility across a range of industrial setups, facilitating integration into existing or new production environments. This Allen-Bradley MPL-B540K-MJ22AA AC Servo Motor is sourced with verified IEC certification, assuring adherence to international standards for electrical and electronic products.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Motors & Drives |
| Product Type | Servo Motors |
| Price | ₹1,84,307 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Allen-Bradley MPL-B540K-MJ22AA AC Servo Motor, premium permanent magnet rotary type.
- Delivers approx. 5.5 kW / 7.2 HP at a rated speed of 4000 RPM.
- Features a 165 mm frame size and 4.0 inch / 101.6 mm magnet stack length.
- Provides a continuous stall torque of 19.4 Nm for robust operation.
- Equipped with a multi-turn high-resolution encoder for precise feedback.
- Designed with circular bayonet connectors facing the shaft for power and signal.
- Housed in an IP65 enclosure, suitable for demanding industrial environments.
- Sourced with verified IEC certification, assuring international standards adherence.
Applications & Use Cases
- Robotics: For precise motion control and high dynamic response in automated systems.
- Packaging Machinery: Suitable for high-speed and accurate operations in packaging lines.
- Material Handling Systems: Integrates into conveyors and automated storage/retrieval systems.
- CNC Equipment: Ensures accurate and repeatable movements in computer numerical control machines.
Technical Specifications
| Brake | No brake |
|---|---|
| Phase | 3 Phase |
| Power | Approx. 5.5 kW / 7.2 HP |
| Shaft | Shaft key |
| Speed | 4000 RPM |
| Series | MPL |
| Feedback | Multi-turn High-Resolution Encoder |
| Model No | MPL-B540K-MJ22AA |
| Mounting | IEC Metric flange |
| Enclosure | IP65 housing |
| IP Rating | IP65 |
| Brand Name | Allen-Bradley |
| Connectors | Circular bayonet connectors, facing shaft |
| Frame Size | 165 mm |
| Motor Type | Premium Permanent Magnet Rotary Servo Motor |
| Shaft Seal | No shaft seal |
| Part Number | MPL-B540K-MJ22AA |
| Rated Speed | 4000 RPM |
| Series Type | Low Inertia |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Type | AC Servo Motor |
| Specification | Details |
| Voltage Class | 460 VAC / 400 V class |
| Approx. Weight | 15 kg / 33 lb |
| Magnet Stack Length | 4.0 inch / 101.6 mm |
| Continuous Stall Torque | 19.4 Nm |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Allen-bradley Mpl-b540k-mj22aa Ac Servo Motor?
The minimum order quantity (MOQ) for Allen-bradley Mpl-b540k-mj22aa Ac Servo Motor is 1 piece.
Who supplies Allen-bradley Mpl-b540k-mj22aa Ac Servo Motor?
Allen-bradley Mpl-b540k-mj22aa Ac Servo Motor is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Allen-bradley Mpl-b540k-mj22aa Ac Servo Motor?
Available payment terms for Allen-bradley Mpl-b540k-mj22aa Ac Servo Motor: Full Advance.
What is the price of Allen-bradley Mpl-b540k-mj22aa Ac Servo Motor?
Allen-bradley Mpl-b540k-mj22aa Ac Servo Motor is priced at ₹1,84,307 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
