Allen-bradley Powerflex 400 22C-d105a103 Vfd — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹2,51,852/piece, MOQ 1 piece.
Product Overview

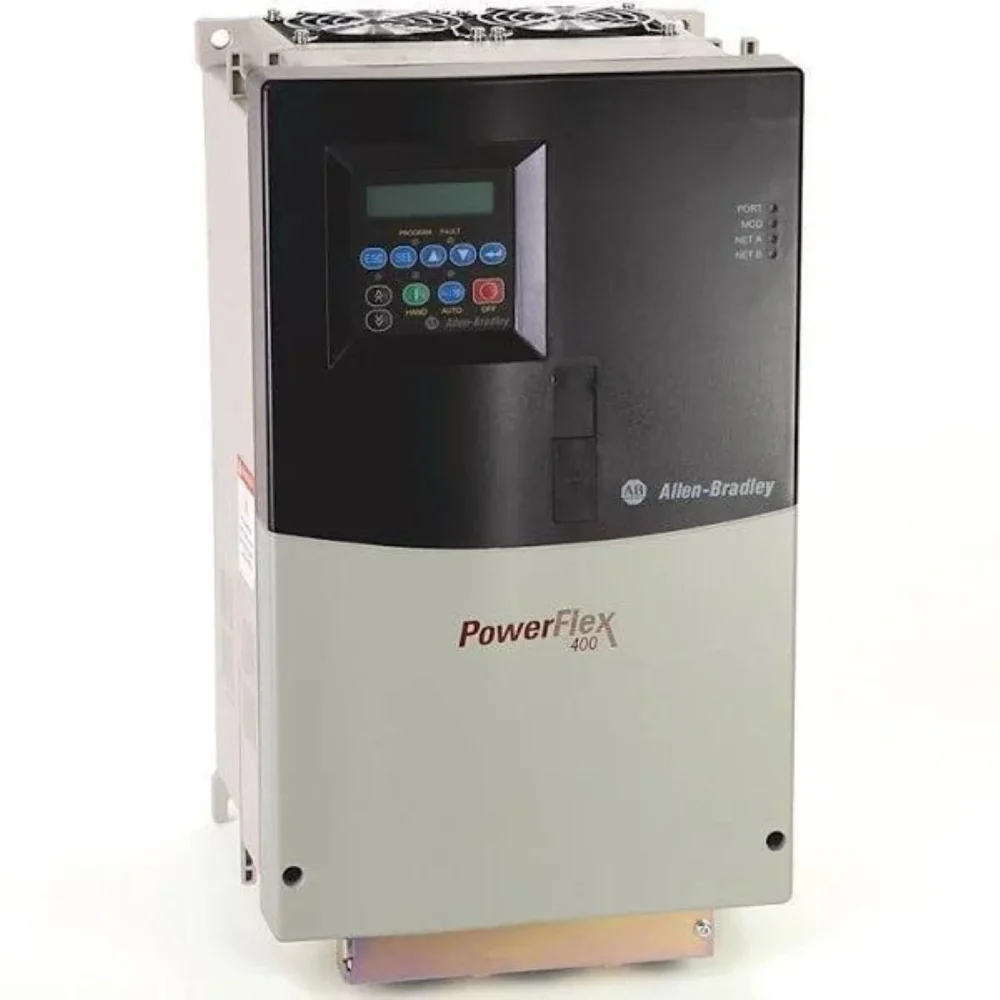

Allen-Bradley PowerFlex 400 22C-D105A103 VFD, sourced for industrial automation and motor control applications. This variable frequency drive is traded across markets to meet the demands of institutional buyers and export houses.
Detailed Description
The Allen-Bradley PowerFlex 400 22C-D105A103 adjustable frequency AC drive (VFD) is sourced for industrial applications requiring precise motor control. This 3-phase unit operates with an input voltage range of 380–480 V AC and delivers an output voltage of 0–480 V AC. Rated for 55 kW (75 HP) and an output current of 105 A, it features a Frame E enclosure with IP30 / NEMA Type 1 / UL Type 1 protection and forced-air cooling. Control is managed via an integrated fixed keypad and supports RS-485 communication. The VFD incorporates built-in PID control and uses Volts/Hertz (V/Hz) sinusoidal PWM for motor regulation. It is designed for panel mounting and operates effectively between -10 to +45°C (with derating at higher temperatures) in 5–95% non-condensing humidity. Its specifications make it suitable for upgrading existing control systems in water treatment plants, HVAC installations in large commercial buildings, and material handling systems that demand reliable speed and torque management. The unit's robust design and standard communication protocols facilitate integration into diverse industrial automation architectures, serving the needs of export houses and institutional buyers focused on operational efficiency and energy savings in their machinery. Each Allen-Bradley PowerFlex 400 22C-D105A103 VFD is traded across markets with verified IEC certification, ensuring compliance with international electrical safety standards.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Motors & Drives |
| Product Type | Variable Frequency Drives |
| Price | ₹2,51,852 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Sourced Allen-Bradley PowerFlex 400 22C-D105A103 VFD for industrial motor control.
- Operates on 380–480 V AC input, delivering 0–480 V AC output for 55 kW (75 HP) motors.
- Rated for 105 A output current, featuring a robust Frame E enclosure with IP30 / NEMA Type 1 protection.
- Integrated fixed keypad and RS-485 communication support precise control.
- Incorporates built-in PID control and Volts/Hertz (V/Hz) sinusoidal PWM for motor regulation.
- Designed for panel mounting, functioning reliably in -10 to +45°C environments.
- Traded across markets with verified IEC certification, ensuring international electrical safety standards.
Applications & Use Cases
- Water Treatment Plants: Upgrading existing control systems for pumps and fans.
- HVAC Installations: Reliable speed and torque management in large commercial buildings.
- Material Handling Systems: Precise motor control for operational efficiency.
- Institutional Buyers: Integration into diverse industrial automation architectures.
- Export Houses: Supplying machinery components for international projects.
Technical Specifications
| Hmi | Integrated Fixed Keypad |
|---|---|
| Brand | Allen-Bradley |
| Series | PowerFlex 400 |
| Weight | Approx. 37.2 kg net |
| Cooling | Forced-air |
| Humidity | 5–95%, non-condensing |
| Mounting | Panel mount |
| Enclosure | IP30 / NEMA Type 1 / UL Type 1 |
| Parameter | Specification |
| Brake Igbt | Not included |
| Emc Filter | No / not filtered |
| Frame Size | Frame E |
| Horsepower | 75 HP |
| Application | Fan & Pump |
| Input Phase | 3-Phase |
| Motor Power | 75HP |
| Pid Control | Built-in |
| Rated Power | 55 kW |
| Control Mode | Closed Loop Vector, Sensorless Vector, V/F Control |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 22C-D105A103 |
| Power Rating | 55 KW |
| Product Type | Adjustable Frequency AC Drive / VFD |
| Communication | RS-485 |
| Input Voltage | 480 V AC |
| Catalog Number | 22C-D105A103 |
| Control Method | Volts/Hertz (V/Hz), sinusoidal PWM |
| Output Current | 105 A |
| Output Voltage | 0–480 V AC |
| Input Voltage Range | 380–480 V AC |
| Operating Temperature | −10 to +45°C (typical rating; derating applies at higher temperature) |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Allen-bradley Powerflex 400 22C-d105a103 Vfd?
The minimum order quantity (MOQ) for Allen-bradley Powerflex 400 22C-d105a103 Vfd is 1 piece.
Who supplies Allen-bradley Powerflex 400 22C-d105a103 Vfd?
Allen-bradley Powerflex 400 22C-d105a103 Vfd is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Allen-bradley Powerflex 400 22C-d105a103 Vfd?
Available payment terms for Allen-bradley Powerflex 400 22C-d105a103 Vfd: Full Advance.
What is the price of Allen-bradley Powerflex 400 22C-d105a103 Vfd?
Allen-bradley Powerflex 400 22C-d105a103 Vfd is priced at ₹2,51,852 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
