Allen Bradley Powerflex 753 20F11gc030jaonnnnn Vfd | Tradoi

Product Overview

Allen Bradley PowerFlex 753 20F11GC030JAONNNNN VFD, sourced for industrial automation and motor control applications. This specific model is traded across markets for institutional buyers and export houses requiring precise variable frequency drive solutions.

Detailed Description

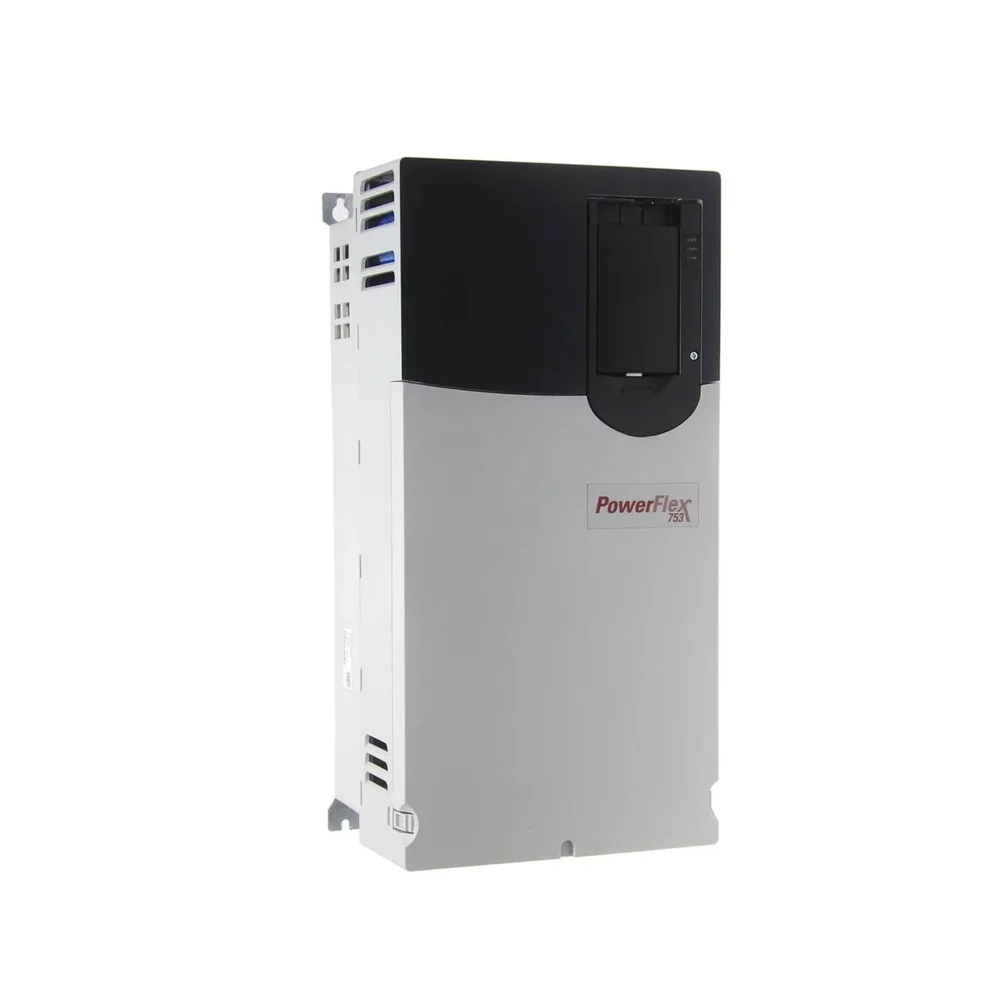

The Allen-Bradley PowerFlex 753 20F11GC030JAONNNNN VFD is a 3-phase AC variable frequency drive, sourced for industrial motor speed and process control applications. This specific model operates within a 380–480 V AC input voltage range, falling under the 400 V AC voltage class. It provides a normal duty rating of 15 kW and a heavy duty rating of 11 kW, with an output current of 30 A. The unit features a Frame 3 size and an IP54 / NEMA Type 12 enclosure, utilizing forced air cooling. Embedded I/O is standard, with AC input and DC terminals, along with built-in dynamic braking via a DB transistor. This PowerFlex 750-Series control platform unit is supplied with EMC filtering installed and a CM Jumper in place, without a Human Interface Module (HIM). This AC drive is typically supplied to institutional buyers, system integrators, and export houses engaged in projects requiring precise motor control for machinery across manufacturing, material handling, and HVAC systems. It is also traded across markets to e-commerce resellers and industrial equipment stockists who cater to maintenance, repair, and operations (MRO) requirements for existing Allen-Bradley installations. Its panel/cabinet mounting design makes it suitable for integration into industrial control panels for applications demanding robust and reliable motor performance. This Allen-Bradley PowerFlex 753 VFD is supplied with IEC certification, ensuring compliance with international electrical standards for safety and performance in industrial environments.

Product Details

Key Features

• Allen-Bradley PowerFlex 753 VFD, 380–480 V AC input, 400 V AC voltage class.
• Normal duty 15 kW / heavy duty 11 kW power rating with 30 A output current.
• Features Frame 3 size and IP54 / NEMA Type 12 enclosure with forced air cooling.
• Includes embedded I/O, AC/DC terminals, and built-in dynamic braking via DB transistor.
• Supplied with EMC filtering installed and CM Jumper, without a Human Interface Module.
• IEC certified, ensuring compliance with international electrical standards.
• Sourced from Mohali, Punjab, for distribution across India and export markets.

Applications & Use Cases

• Institutional Buyers: For precise motor control in large-scale industrial machinery.
• System Integrators: For integration into industrial control panels demanding robust motor performance.
• Export Houses: For projects requiring reliable AC drives in international markets like UAE and USA.
• E-commerce Resellers & Industrial Stockists: For MRO requirements of existing Allen-Bradley installations.

Technical Specifications
