Caml 125kW/261kWh All-in-One BESS — distributed from Bangalore, Karnataka by Sra Electricals. Tradoi-verified distributor at ₹50,82,000/piece, MOQ 1 piece, lead time 4 days.
Product Overview

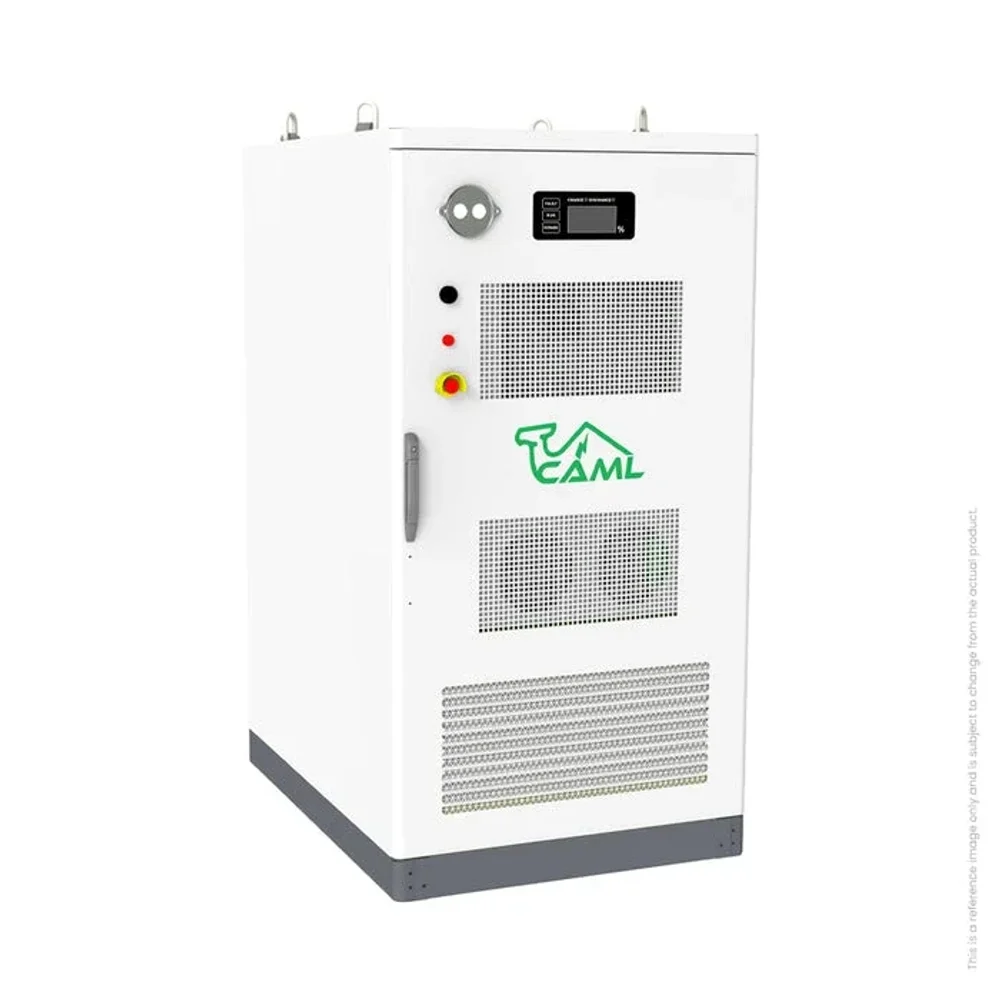

The Caml 125kW/261kWh All-in-one BESS is engineered for C&I applications, offering a robust energy storage solution with a nominal output power of 125kW and an energy capacity of 261kWh, designed for reliable performance in demanding commercial and industrial environments.
Detailed Description
The Caml 125kW/261kWh All-in-one BESS provides a comprehensive battery energy storage solution, featuring a nominal output power of 125kW and an energy capacity of 261kWh. This system is configured with LFP3.2V/314Ah cells in a 1P260S arrangement, ensuring stable and efficient power delivery. It supports a maximum charge/discharge power of 150kW and operates with an AC nominal voltage of 400V at 50Hz/60Hz, making it suitable for integration into various grid infrastructures. The unit is designed for durability with a protection level temperature range of -25°C to +50°C and employs an aerosol cooling method for optimal thermal management. This BESS is ideally suited for commercial and industrial (C&I) applications, including peak shaving, demand charge management, backup power for critical loads, and renewable energy integration in factories, large office complexes, data centers, and agricultural facilities. It supports both on-grid and off-grid operations with a rapid switching time of less than 20mS, ensuring seamless power continuity. The system's robust design and high cycle life of over 6000 times make it a reliable investment for businesses seeking to optimize energy consumption and enhance grid stability. The integrated MPPT modules, with a nominal power of 4*15kW, allow for efficient solar PV integration, maximizing energy harvest from renewable sources. The system's ability to operate at altitudes up to 4000m (with derating above 2000m) and its wide battery voltage range of 728V-936V underscore its adaptability to diverse operational conditions and infrastructure requirements.
Product Details
| Category | Energy & Power |
|---|---|
| Sub-Category | Energy Storage Systems |
| Product Type | Battery Energy Storage Systems |
| Price | ₹50,82,000 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Lead Time | 4 days |
| HSN/SAC Code | 85076000 |
| Country of Origin | India |
| Warranty | 1 |
Key Features
- Nominal Output Power: 125kW AC nominal power, providing substantial energy for commercial and industrial operations.
- Energy Capacity: 261kWh nominal capacity, ensuring extended backup or load shifting capabilities.
- Battery Cycle Life: Over 6000 cycles (>45°C), indicating long-term durability and reduced replacement frequency.
- Operating Temperature Range: -25°C to +50°C, suitable for diverse environmental conditions with derating above 45°C.
- Cooling Method: Aerosol cooling system, maintaining optimal operating temperatures for enhanced performance and longevity.
- Dimensions & Weight: Compact footprint of 1100*1500*2100mm and a weight of ~2800kg, designed for industrial installation.
- AC Grid Compatibility: 400V AC nominal voltage with 50Hz/60Hz frequency, compatible with standard industrial power grids.
- Overload Capacity: 1.1 times for long term and 1.2 times for 1 minute, providing resilience against temporary power surges.
- Cell Type: LFP3.2V/314Ah cells, known for their safety, stability, and long lifespan in energy storage applications.
- On-Grid/Off-Grid Switching: Less than 20mS switching time, ensuring minimal disruption during power transitions.
Applications & Use Cases
- Commercial & Industrial Facilities: For peak shaving, demand charge reduction, and energy cost optimization.
- Data Centers & Critical Infrastructure: Providing reliable backup power and ensuring continuous operation.
- Renewable Energy Integration: Storing excess solar or wind energy for later use, enhancing grid stability.
- Microgrids & Remote Sites: Delivering stable power in areas with unreliable grid access or for off-grid operations.
- Manufacturing Plants: Supporting heavy machinery and maintaining production continuity during power fluctuations.
- Agricultural Operations: Powering irrigation systems, cold storage, and other essential equipment.
Technical Specifications
| Brand | CAML |
|---|---|
| Weight | ~2800kg |
| Altitude | ≤4000m (>2000m Derating) |
| Cell Type | LFP3.2V/314Ah |
| Dimension | 1100*1500*2100mm |
| Application | C&i Applications |
| Power Factor | -1~1 |
| Product Name | Caml 125Kw/261kwh All-in-one Bess for C&i Applications |
| Cooling Method | Aerosol |
| Power Output Kw | 125kW |
| Ac Access Method | 3W/3W+N |
| Ac Nominal Power | 125kW |
| Nominal Capacity | 261kWh |
| Ac Nominal Current | 180A |
| Ac Nominal Voltage | 400V |
| Battery Cycle Time | > 6000 times (>45°C) |
| Dc Nominal Voltage | 832V |
| Mppt Nominal Power | 4*15kW |
| Energy Capacity Kwh | 261kwh |
| Ac Nominal Frequency | 50Hz/60Hz |
| Ac Overload Capacity | 1.1times (long term), 1.2times (1min) |
| Mppt Module Quantity | 2 pcs |
| Nominal Output Power | 125kW |
| Battery Voltage Range | 728V-936V |
| Mppt Max Current Pv Side | 4*37.5A |
| Off Grid Nominal Voltage | 400V |
| Mppt Voltage Range Pv Side | 200V~650V |
| Off Grid Nominal Frequency | 50Hz/60Hz |
| Battery System Configuration | 261kWh/1P260S |
| Mppt Nominal Voltage Pv Side | 450V |
| Mppt Max Current Battery Side | 110A |
| Maximum Charge Discharge Power | 150kW |
| Mppt Voltage Range Battery Side | 650V~1000V |
| On Grid Off Grid Switching Time | <20mS |
| Mppt Nominal Current Battery Side | 830V |
| Off Grid Max Power Important Load | 137.5kW |
| Protection Level Temperature Range | -25°C ~ +50°C (>45°C Derating) |
| Off Grid Long Term Overload Capacity | 110% |
| Mppt Max Open Circuit Voltage Pv Side | 650V |
| Mppt Max Short Circuit Current Pv Side | 4*50A |
