Fluke 123B Industrial Handheld Oscilloscope — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹1,37,568/piece, MOQ 1 piece.
Product Overview
Fluke 123B Industrial Handheld Oscilloscope, sourced for institutional buyers and export houses, offers reliable performance for electrical testing and troubleshooting across diverse industrial applications.
Detailed Description

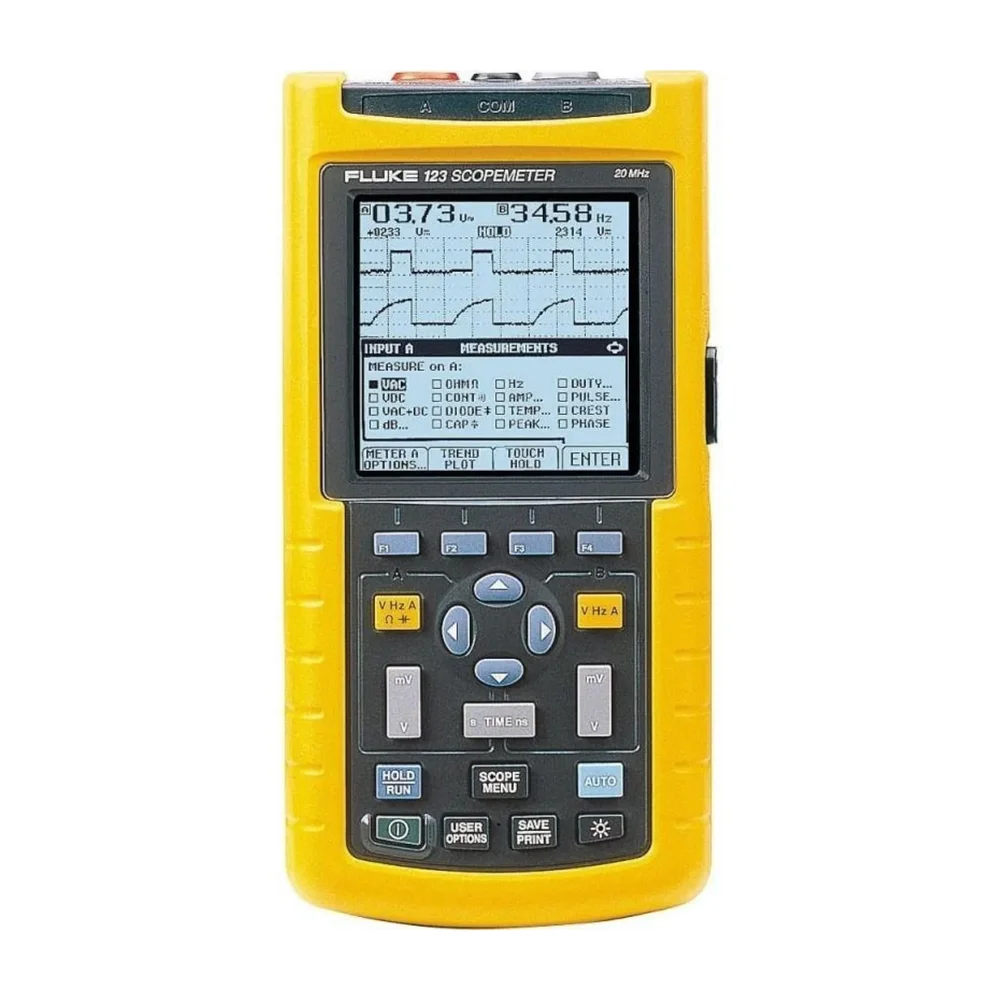

The Fluke 123B Industrial Handheld Oscilloscope, a 20 MHz, 2-channel ScopeMeter, is sourced for industrial applications requiring precise electrical and electronic system diagnostics. This IEC-certified instrument integrates a dual-input oscilloscope, a True-RMS digital multimeter, and a recorder into a single portable unit. It features a 5.7-inch Color TFT display, offering up to 4 GS/s (equivalent) sampling rate, and is rated for CAT IV 600 V safety. The device measures DC Voltage up to 750 V, AC Voltage (True RMS) up to 750 V, Resistance up to 30 MΩ, and Frequency up to 50 MHz, with continuity and duty cycle (2–98%) functionality. Peak measurements include Max, Min, and Peak-to-Peak, with current measurement capability via an optional clamp. Its robust design, with an IP51 enclosure rating, ensures reliability in operating temperatures from 0°C to +40°C. This Fluke 123B model is supplied through extensive supply networks to meet the demands of maintenance engineers, field service technicians, and institutional procurement teams across various industrial sectors. It is particularly suited for troubleshooting complex machinery, power electronics, and control systems in manufacturing plants, energy facilities, and large-scale infrastructure projects. The combined functionality of an oscilloscope, multimeter, and recorder makes it a versatile tool for diagnostic work, preventative maintenance, and system commissioning, catering to the needs of both small and large-scale enterprises seeking reliable test and measurement equipment. The Fluke 123B is sourced with verified IEC certification, assuring compliance with international electrical safety standards. Each unit comes with a rechargeable BP290 battery, battery charger/power adapter, shielded test leads, a ground lead, and a user manual. A carrying case is also included, depending on the kit configuration. The net weight of 1.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Test & Measurement |
| Product Type | Oscilloscopes |
| Price | ₹1,37,568 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Sourced Fluke 123B 20 MHz, 2-channel ScopeMeter for industrial diagnostics.
- Integrates dual-input oscilloscope, True-RMS multimeter, and recorder in one portable unit.
- Features a 5.7-inch Color TFT display with up to 4 GS/s (equivalent) sampling rate.
- IEC-certified with CAT IV 600 V safety rating for robust industrial use.
- Measures DC Voltage up to 750 V, AC Voltage (True RMS) up to 750 V, and Resistance up to 30 MΩ.
- Offers Frequency measurement up to 50 MHz, continuity, and 2–98% duty cycle functionality.
- Equipped for peak measurements (Max, Min, Peak-to-Peak) and current via optional clamp.
- Robust IP51-rated design ensures reliability in 0°C to +40°C operating temperatures.
Applications & Use Cases
- Manufacturing Plants: Troubleshooting complex machinery and control systems.
- Energy Facilities: Diagnostics of power electronics and critical infrastructure.
- Field Service Technicians: On-site system commissioning and preventative maintenance.
- Institutional Procurement: Supplying reliable test equipment for large-scale projects.
- Maintenance Engineers: Versatile tool for diagnostic work across industrial sectors.
Technical Specifications
| Item | Value |
|---|---|
| Type | Industrial ScopeMeter® Handheld Oscilloscope |
| Brand | Fluke |
| Model | 123B |
| Weight | 1.4 kg |
| Battery | Rechargeable Li-ion |
| Display | 5.7-inch Color TFT |
| Channels | 2 |
| Function | Range |
| Bandwidth | 20 MHz |
| Frequency | Up to 50 MHz |
| Continuity | Yes |
| Dc Voltage | Up to 750 V |
| Dimensions | 259 × 132 × 55 mm |
| Duty Cycle | 2–98% |
| Net Weight | 1.4 kg (including battery) |
| Resistance | Up to 30 MΩ |
| Sample Rate | 5 GSa/s |
| Display Size | 5.7 inch |
| Model Series | 123B |
| Safety Rating | CAT IV 600 V |
| Sampling Rate | Up to 4 GS/s (equivalent) |
| Enclosure Rating | IP51 |
| Peak Measurements | Max, Min, Peak-to-Peak |
| Current Measurement | With optional current clamp |
| Storage Temperature | –20°C to +60°C |
| Ac Voltage (true Rms) | Up to 750 V |
| Operating Temperature | 0°C to +40°C (battery operation) |
| Dimensions (l × W × H) | 259 × 132 × 55 mm |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Fluke 123B Industrial Handheld Oscilloscope?
The minimum order quantity (MOQ) for Fluke 123B Industrial Handheld Oscilloscope is 1 piece.
Who supplies Fluke 123B Industrial Handheld Oscilloscope?
Fluke 123B Industrial Handheld Oscilloscope is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Fluke 123B Industrial Handheld Oscilloscope?
Available payment terms for Fluke 123B Industrial Handheld Oscilloscope: Full Advance.
What is the price of Fluke 123B Industrial Handheld Oscilloscope?
Fluke 123B Industrial Handheld Oscilloscope is priced at ₹1,37,568 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
