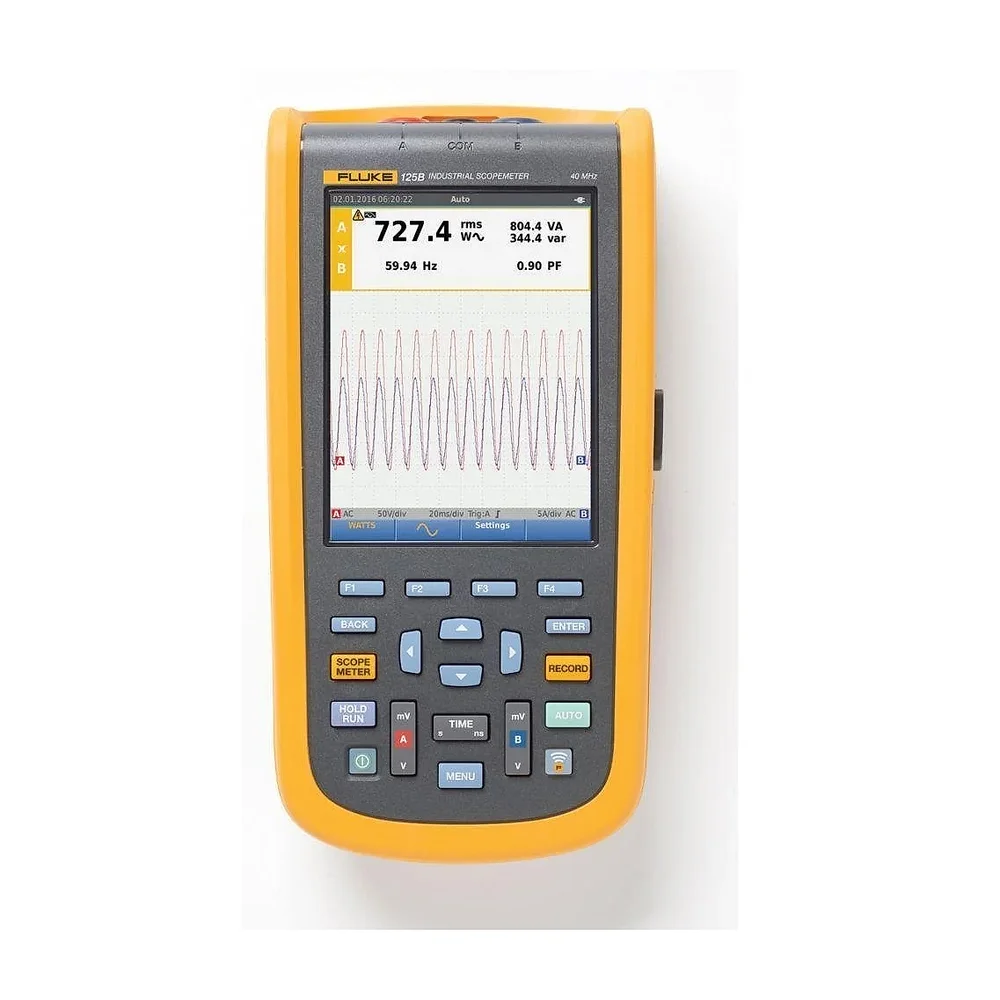

Fluke 1258S Industrial Scope Meter Test Tool | Tradoi
Electronics & Electrical › Test & Measurement
Fluke 1258S Industrial Scope Meter Test Tool — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹2,67,880/piece, MOQ 1 piece.
Product Overview
Fluke 1258S Industrial Scope Meter Test Tool, sourced for institutional buyers and export houses. This advanced scope meter is supplied for precise electrical and electronic system diagnostics across various industrial applications.
Detailed Description
The Fluke 125S Industrial ScopeMeter Test Tool, sourced for its robust performance, integrates a 40 MHz industrial handheld oscilloscope with a digital multimeter and specialized industrial measurement capabilities. This IEC-certified instrument features 2 isolated inputs and a maximum sampling rate of up to 1.25 GS/s equivalent sampling, displayed on a 240 × 240 pixel LCD with backlight. Its safety rating of 600 V CAT III ensures reliability in demanding environments. Key oscilloscope functions include a 40 ns glitch capture and multiple trigger modes, while the multimeter measures DC voltage up to 1000 V, AC voltage up to 750 V, and resistance up to 30 MΩ. The "S" version is supplied complete with the FlukeView software package and essential accessories for comprehensive documentation and analysis. This Fluke 125S ScopeMeter is supplied for institutional buyers, industrial maintenance contractors, electrical engineering firms, and technical training centers requiring precise diagnostics for industrial automation systems. It is particularly suited for troubleshooting PLCs, motors, variable frequency drives, and complex electrical control circuits in manufacturing plants, power generation facilities, and large commercial installations. Procurement managers and technical leads will find this tool valuable for ensuring operational uptime and conducting preventative maintenance across diverse industrial applications, supporting both field service technicians and in-house engineering teams. This Fluke 125S Industrial ScopeMeter Test Tool is certified to IEC standards, providing assurance of its design and performance for industrial applications.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Test & Measurement |
| Product Type | Oscilloscopes |
| Price | ₹2,67,880 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Integrates a 40 MHz industrial handheld oscilloscope with a digital multimeter.
- Features 2 isolated inputs and up to 1.25 GS/s equivalent sampling rate.
- IEC-certified instrument with a 600 V CAT III safety rating for demanding environments.
- Includes 40 ns glitch capture and multiple trigger modes for precise diagnostics.
- Measures DC voltage up to 1000 V, AC voltage up to 750 V, and resistance up to 30 MΩ.
- The 'S' version is supplied complete with FlukeView software for comprehensive analysis.
- Sourced by a Mohali, Punjab-based trader with a global supply network.
Applications & Use Cases
- Industrial Automation Systems: Troubleshooting PLCs, motors, and variable frequency drives.
- Manufacturing Plants: Diagnosing complex electrical control circuits.
- Power Generation Facilities: Conducting preventative maintenance and ensuring operational uptime.
- Technical Training Centers: Providing precise diagnostics for educational purposes.
- Field Service Technicians: Supporting on-site diagnostics and maintenance across diverse industrial applications.
Technical Specifications
| Brand | Fluke |
|---|---|
| Model | 125S |
| Memory | 20 screens/setups |
| Current | With optional current clamp |
| Channels | 2 isolated inputs |
| Function | Specification |
| True Rms | Yes |
| Bandwidth | 40 MHz |
| Frequency | Up to 70 MHz |
| Parameter | Specification |
| Time Base | 20 ns/div to 2 min/div |
| Ac Voltage | Up to 750 V |
| Continuity | Yes |
| Dc Voltage | Up to 1000 V |
| Duty Cycle | 2% to 98% |
| Input Type | Floating isolated inputs |
| Resistance | Up to 30 MΩ |
| Capacitance | 50 nF to 500 µF |
| Measurement | Range |
| Sample Rate | 500 MSa/s |
| Display Size | 5.7 inch |
| Display Type | LCD with backlight |
| Manufacturer | Fluke |
| Model Series | 1258S |
| Product Type | Industrial ScopeMeter Oscilloscope + Multimeter |
| Safety Rating | 600 V CAT III |
| Trigger Modes | Auto, Normal, Single, External |
| Glitch Capture | 40 ns |
| Waveform Capture | Single shot & repetitive |
| Input Sensitivity | 5 mV/div to 500 V/div |
| Display Resolution | 240 × 240 pixels |
| Maximum Ac Current | 20 A |
| Maximum Ac Voltage | 750 V |
| Maximum Dc Current | 20 A |
| Maximum Dc Voltage | 1000 V |
| Vertical Resolution | 8 divisions |
| Maximum Sampling Rate | Up to 1.25 GS/s equivalent sampling |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Fluke 1258S Industrial Scope Meter Test Tool?
The minimum order quantity (MOQ) for Fluke 1258S Industrial Scope Meter Test Tool is 1 piece.
Who supplies Fluke 1258S Industrial Scope Meter Test Tool?
Fluke 1258S Industrial Scope Meter Test Tool is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Fluke 1258S Industrial Scope Meter Test Tool?
Available payment terms for Fluke 1258S Industrial Scope Meter Test Tool: Full Advance.
What is the price of Fluke 1258S Industrial Scope Meter Test Tool?
Fluke 1258S Industrial Scope Meter Test Tool is priced at ₹2,67,880 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
