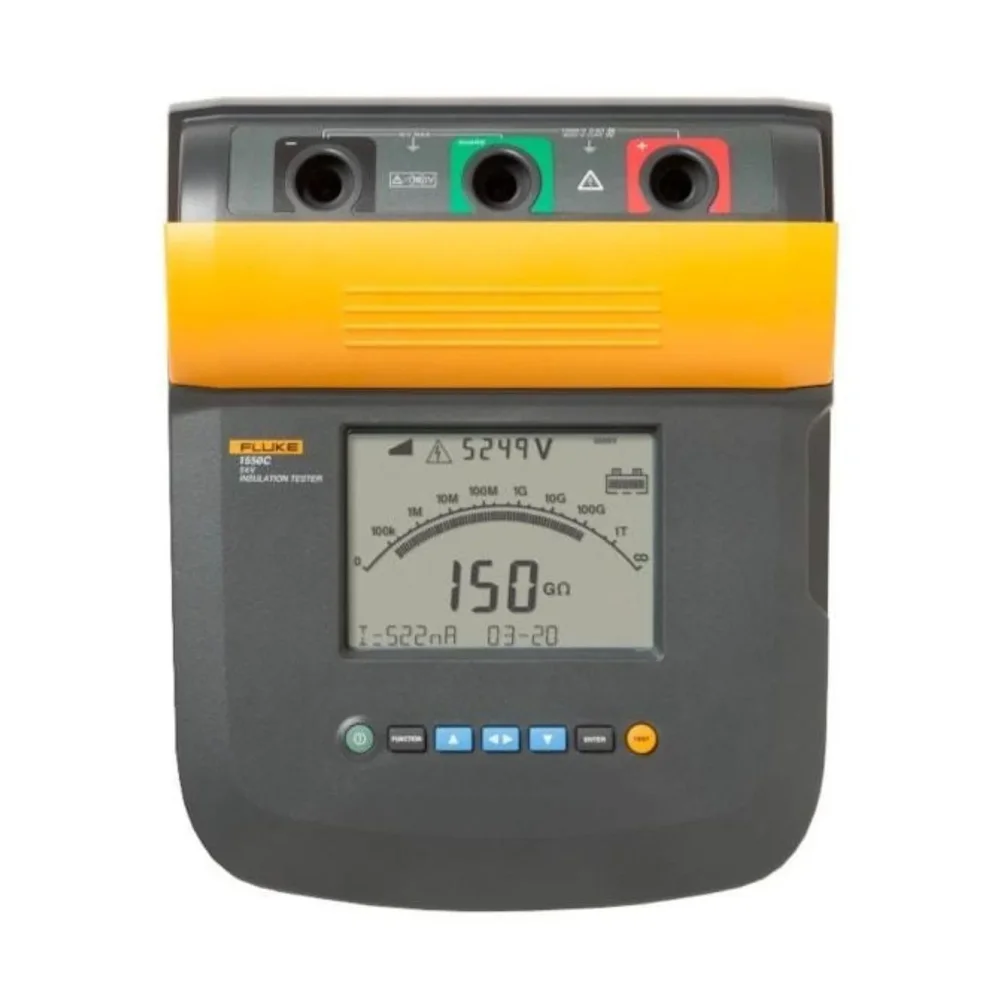

Fluke 1550C Fc 5 Kv Digital Insulation Resistance Tester — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹3,04,839/piece, MOQ 1 piece.
Product Overview
Fluke 1550C FC 5 kV Digital Insulation Resistance Tester, sourced for industrial maintenance, electrical contractors, and institutional buyers. This digital tester provides precise 5 kV insulation resistance measurements, essential for critical electrical system diagnostics.
Detailed Description
The Fluke 1550C FC 5 kV Digital Insulation Resistance Tester, a robust megohmmeter sourced for high-voltage electrical diagnostics, offers a maximum test voltage of 5,000 V DC. This instrument provides selectable test voltages at 250 V, 500 V, 1,000 V, 2,500 V, and 5,000 V, with fine voltage adjustment in 50 V steps from 250–1,000 V and 100 V steps above 1,000 V. It measures insulation resistance up to 2 TΩ, with a specified accuracy of ±5% in the primary range at 5 kV (5 MΩ to 1 TΩ). Key features include leakage current measurement from 1 nA to 2 mA, capacitance measurement from 0.01 µF to 15.00 µF, and an integrated timer (0–99 minutes). The unit also supports automatic DAR and PI calculations, a ramp function, and a guard terminal, all displayed on a 75 × 105 mm digital/analog LCD. This Fluke 1550C FC tester is supplied for institutional buyers in power generation, transmission, and distribution, as well as for large industrial facilities, electrical maintenance contractors, and export houses dealing in specialized test equipment. Its capabilities, including live-circuit warning (30–660 V AC/DC) and CAT IV 600 V / CAT III 1000 V safety rating, make it suitable for critical infrastructure assessments. The device features wireless connectivity via Fluke Connect™ for remote operation and real-time data trending, with memory for up to 99 test locations. Powered by a 12 V rechargeable lead-acid battery, it delivers more than 750 tests per charge, ensuring extended operational readiness across diverse field applications. The Fluke 1550C FC Digital Insulation Resistance Tester is traded across markets with verified compliance to IEC 61010-1, IEC 61010-2-030, IEC 61557-1, and IEC 61557-2 standards. Its IP40 ingress protection, operating temperature range of -20°C to +50°C, and a 3-year warranty underscore its reliability for demanding professional environments.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Test & Measurement |
| Price | ₹3,04,839 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Sourced Fluke 1550C FC 5 kV Digital Insulation Resistance Tester for high-voltage diagnostics.
- Offers selectable test voltages from 250 V to 5,000 V DC, with fine adjustment steps.
- Measures insulation resistance up to 2 TΩ with specified ±5% accuracy at 5 kV.
- Features leakage current measurement (1 nA to 2 mA) and capacitance measurement (0.01 µF to 15.00 µF).
- Includes automatic DAR and PI calculations, a ramp function, and a guard terminal.
- Equipped with Fluke Connect™ wireless connectivity for remote operation and data trending.
- Provides memory for up to 99 test locations and a 75 × 105 mm digital/analog LCD.
- Powered by a 12 V rechargeable lead-acid battery, delivering over 750 tests per charge.
Applications & Use Cases
- Power Generation & Distribution: Essential for assessing critical infrastructure and high-voltage equipment.
- Industrial Facilities: Supports electrical maintenance contractors in large industrial settings.
- Export Houses: Specialized test equipment for cross-market distribution to international buyers.
- Electrical Maintenance Contractors: Utilized for comprehensive diagnostics of electrical systems.
- Institutional Buyers: Supplied for rigorous testing in organizations requiring robust electrical safety.
Technical Specifications
| Brand | Fluke |
|---|---|
| Model | 1550C FC |
| Timer | 0–99 minutes |
| Memory | Up to 99 test locations |
| Weight | 3.7 kg |
| Battery | 12 V rechargeable lead-acid battery |
| Display | 75 × 105 mm digital/analog LCD |
| Warranty | 3 years |
| IP Rating | IP40 |
| Interface | USB |
| Standards | IEC 61010-1, IEC 61010-2-030, IEC 61557-1, IEC 61557-2 |
| Dimensions | 269 × 277 × 160 mm |
| Display Type | Digital |
| Fluke Series | 1500 Series |
| Power Source | Battery |
| Product Type | Digital Insulation Resistance Tester / Megohmmeter |
| Test Voltage | 5000 V DC |
| Data Trending | Real-time trending |
| Ramp Function | Yes |
| Safety Rating | CAT IV 600 V / CAT III 1000 V |
| Specification | Details |
| Guard Terminal | Yes |
| Pi Calculation | Yes, automatic |
| Dar Calculation | Yes, automatic |
| Ac Charger Input | 85–250 V AC, 50/60 Hz, 20 VA |
| Battery Capacity | More than 750 tests per charge |
| Maximum Altitude | 2,000 m |
| Measurement Type | Insulation |
| Remote Operation | Yes, through Fluke Connect |
| Resistance Range | 0–1000 MΩ |
| Timer Resolution | 1 minute setting / 1 second indication |
| Ingress Protection | IP40 |
| Voltage Adjustment | 50 V steps from 250–1,000 V; 100 V steps above 1,000 V |
| Resistance Accuracy | ±5% of reading in the primary specified range |
| Storage Temperature | -20°C to +65°C |
| Capacitance Accuracy | ±(15% of reading + 0.03 µF) |
| Live-circuit Warning | 30–660 V AC/DC |
| Maximum Test Voltage | 5,000 V DC |
| Leakage Current Range | 1 nA to 2 mA |
| Live Voltage Accuracy | ±(15% + 2 V) |
| Operating Temperature | -20°C to +50°C |
| Wireless Connectivity | Yes — Fluke Connect™ |
| Capacitance Measurement | 0.01 µF to 15.00 µF |
| Leakage Current Accuracy | ±(20% + 2 nA) |
| Selectable Test Voltages | 250 V, 500 V, 1,000 V, 2,500 V, 5,000 V |
| Maximum Insulation Resistance | 2 TΩ |
| Resistance Measurement Range At 5 Kv | 5 MΩ to 1 TΩ with specified accuracy |
