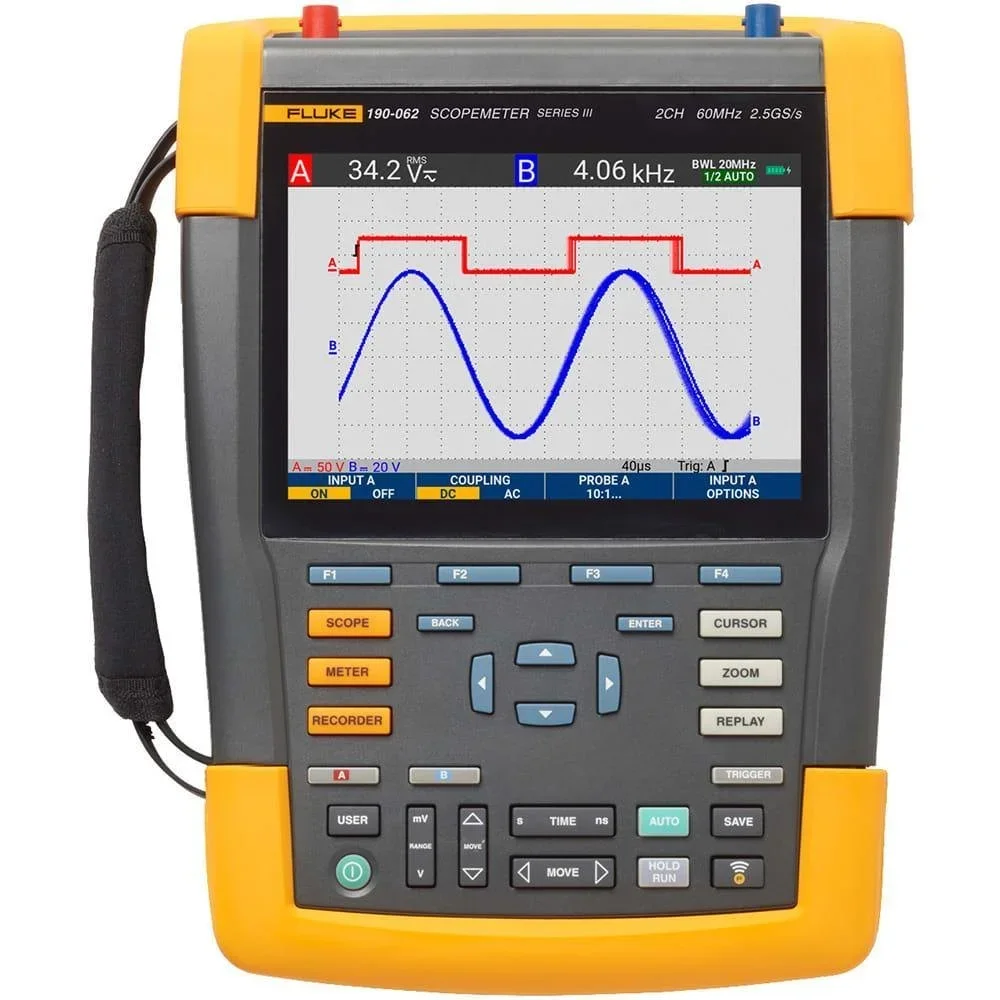

Fluke 190 062 Iii 60 Mhz 2 Channel Scope Meter Test Tool — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹3,40,256/piece, MOQ 1 piece.
Product Overview
The Fluke 190 062 III 60 MHz 2 Channel Scope Meter Test Tool, sourced for precision electrical diagnostics, is supplied for institutional buyers and export houses requiring reliable measurement instruments.
Detailed Description
The Fluke 190 062 III 60 MHz 2 Channel Scope Meter Test Tool, sourced through a robust supply network, offers comprehensive diagnostic capabilities for electrical and electronic systems. This portable oscilloscope features two isolated channels with a 60 MHz bandwidth and a maximum real-time sample rate of 625 MS/s per channel, ensuring precise signal capture. Key specifications include a fast 5.8 ns rise time, 8-bit vertical resolution, and an input sensitivity ranging from 2 mV/div to 100 V/div. Designed for demanding environments, it incorporates Bandwidth Limiters at 20 MHz and 10 kHz, Glitch Capture for approximately 8 ns events, and a robust safety rating of CAT IV 600 V / CAT III 1,000 V. The unit is powered by a BP290 rechargeable Li-ion battery, providing up to 4 hours of operating time, and is rated IP51 for ingress protection. This versatile Fluke ScopeMeter® is supplied for a range of professional applications, serving institutional buyers, electrical contractors, and maintenance teams across various sectors. Its integrated DMM function, with 5,000 counts resolution, supports measurements for DC/AC voltage, resistance, continuity, diode, current, and temperature with appropriate accessories, making it suitable for field service engineers, industrial automation specialists, and automotive diagnostics. The device's advanced trigger types, including Connect-and-View™, Edge, Delay, and Pulse Width, facilitate efficient troubleshooting. Features like Waveform Compare with automatic Pass/Fail testing, Digital Persistence, ScopeRecord™ Memory for 30,000 data points/channel, and TrendPlot™ for up to 22 days of recording, cater to detailed analysis requirements in R&D labs, repair workshops, and quality assurance departments. Reliability is paramount for test and measurement equipment traded across markets. This Fluke 190 062 III model is verified with IEC certification, underscoring its adherence to international electrical safety and performance standards.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Test & Measurement |
| Product Type | Oscilloscopes |
| Price | ₹3,40,256 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Features a 60 MHz bandwidth and two isolated channels for precise signal capture.
- Offers a maximum real-time sample rate of 625 MS/s per channel with 8-bit vertical resolution.
- Incorporates a robust safety rating of CAT IV 600 V / CAT III 1,000 V, suitable for demanding environments.
- Includes integrated DMM function with 5,000 counts resolution for comprehensive electrical measurements.
- Powered by a BP290 Li-ion battery, providing up to 4 hours of operating time, with an IP51 rating.
- Equipped with advanced trigger types like Connect-and-View™, Edge, Delay, and Pulse Width for efficient troubleshooting.
- Features Waveform Compare with automatic Pass/Fail testing and ScopeRecord™ Memory for 30,000 data points/channel.
- Verified with IEC certification, underscoring adherence to international electrical safety and performance standards.
Applications & Use Cases
- Field Service Engineers: For on-site diagnostics and troubleshooting of electrical and electronic systems.
- Industrial Automation Specialists: Utilized for maintenance and analysis of industrial control systems.
- R&D Labs: Supports detailed analysis and testing requirements in research and development settings.
- Electrical Contractors: Essential for comprehensive diagnostic capabilities in installation and repair projects.
- Automotive Diagnostics: Applied for precise signal capture and analysis in vehicle electrical systems.
Technical Specifications
| Brand | Fluke |
|---|---|
| Model | 190-062-III |
| Series | Fluke 190 Series III |
| Weight | Approx. 2.2 kg |
| Battery | BP290 rechargeable Li-ion |
| Display | Large full-color LCD |
| Channels | 2 Channel |
| Warranty | 3 years main instrument; 1 year accessories |
| Bandwidth | 60 MHz |
| Rise Time | 5.8 ns |
| Time Base | 10 ns/div to 4 s/div |
| Dimensions | Approx. 270 × 190 × 70 mm |
| Sample Rate | 190-062-III |
| Dmm Function | Yes |
| Display Size | 8.4 inch |
| Model Series | 190-062-III |
| Product Type | ScopeMeter® Portable Oscilloscope / Test Tool |
| Trendplot™ | Up to 22 days recording |
| Record Length | Up to 10,000 samples/channel |
| Safety Rating | CAT IV 600 V / CAT III 1,000 V |
| Specification | Details |
| Trigger Types | Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Pulse Width, N-Cycle |
| Dmm Resolution | 5,000 counts |
| Glitch Capture | Approximately 8 ns |
| Input Coupling | AC / DC |
| Input Impedance | 1 MΩ ±1%, approximately 15 pF |
| Battery Capacity | 2,400 mAh |
| Dmm Measurements | DC/AC voltage, AC+DC, resistance, continuity, diode, current and temperature with accessories |
| Waveform Compare | Yes, with automatic Pass/Fail testing |
| Input Sensitivity | 2 mV/div to 100 V/div direct |
| Bandwidth Limiters | 20 MHz and 10 kHz |
| Ingress Protection | IP51 |
| Input Architecture | Fully insulated/floating inputs |
| Number Of Channels | 2 isolated channels |
| Operating Altitude | Up to 2,000 m at CAT IV 600 V/CAT III 1,000 V |
| Scope Measurements | 7 cursor measurements / 30 automatic measurements |
| Digital Persistence | Yes |
| Vertical Resolution | 8-bit |
| Maximum Input Voltage | CAT III 1,000 V / CAT IV 600 V |
| Operating Temperature | 0°C to 40°C with battery; up to 50°C without battery |
| Scoperecord™ Memory | 30,000 data points/channel |
| Battery Operating Time | Up to approximately 4 hours |
| Maximum Real-time Sample Rate | 625 MS/s per channel |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Fluke 190 062 Iii 60 Mhz 2 Channel Scope Meter Test Tool?
The minimum order quantity (MOQ) for Fluke 190 062 Iii 60 Mhz 2 Channel Scope Meter Test Tool is 1 piece.
Who supplies Fluke 190 062 Iii 60 Mhz 2 Channel Scope Meter Test Tool?
Fluke 190 062 Iii 60 Mhz 2 Channel Scope Meter Test Tool is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Fluke 190 062 Iii 60 Mhz 2 Channel Scope Meter Test Tool?
Available payment terms for Fluke 190 062 Iii 60 Mhz 2 Channel Scope Meter Test Tool: Full Advance.
What is the price of Fluke 190 062 Iii 60 Mhz 2 Channel Scope Meter Test Tool?
Fluke 190 062 Iii 60 Mhz 2 Channel Scope Meter Test Tool is priced at ₹3,40,256 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
