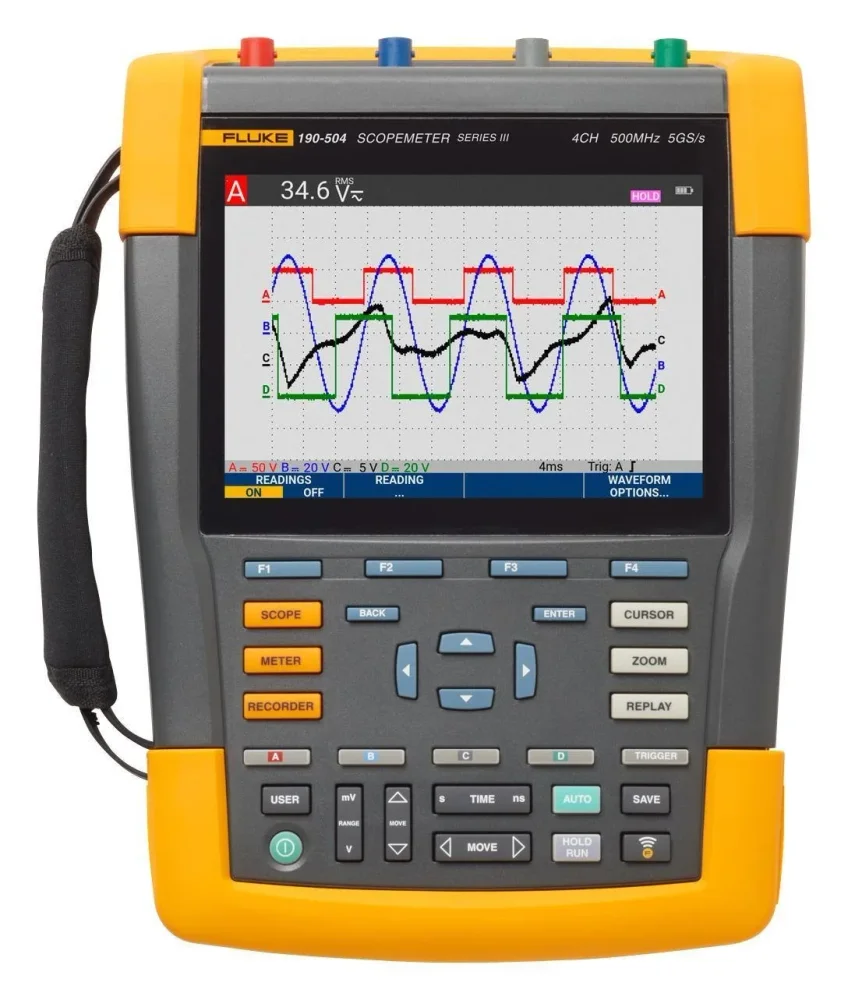

Fluke 190 504 Iii S 500 Mhz 4 Channel Scope Meter Test Tool — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹7,00,000/piece, MOQ 1 piece.
Product Overview
Sourced for precision diagnostics, the Fluke 190 504 III S 500 MHz 4 Channel Scope Meter Test Tool offers advanced signal analysis. Ideal for institutional buyers and export houses requiring high-frequency measurement and multi-channel capability in electrical and electronics testing.
Detailed Description
The Fluke 190-504-III-S ScopeMeter Test Tool, a 4-channel portable oscilloscope, offers a 500 MHz bandwidth and a 5 GS/s real-time sample rate for single-channel measurements. This Fluke 190 Series III instrument is sourced with an 8-bit vertical resolution and an input sensitivity ranging from 2 mV/div to 100 V/div. Key technical specifications include a 0.7 ns rise time, a 1 MΩ input impedance, and a record length of up to 10,000 samples per channel. Equipped with a DMM function providing 5,000 counts of resolution, it integrates comprehensive measurement capabilities with a large full-color LCD display and internal memory for setups and recordings. Connectivity is managed via a USB interface, powered by a rechargeable Li-ion battery, making it suitable for field and bench use. Its robust safety rating of CAT IV 600 V / CAT III 1,000 V and operating temperature range of 0°C to 50°C (without batteries) make it a reliable tool for demanding environments. Features like Connect-and-View™ triggering, glitch capture down to approximately 8 ns, and waveform compare with automatic Pass/Fail testing enhance its utility for fault finding and performance verification across diverse electrical systems. The Fluke 190-504-III-S is sourced with verified IEC certification, ensuring adherence to international electrical safety standards. This instrument is supplied with a 3-year warranty on the main unit, reflecting its robust design and expected operational longevity.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Test & Measurement |
| Product Type | Oscilloscopes |
| Price | ₹7,00,000 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Sourced Fluke 190-504-III-S ScopeMeter with 500 MHz bandwidth and 4 isolated channels.
- Features 5 GS/s real-time sample rate for single-channel measurements and 0.7 ns rise time.
- Equipped with an 8-bit vertical resolution and 2 mV/div to 100 V/div input sensitivity.
- Integrates a DMM function with 5,000 counts resolution for comprehensive testing.
- Robust CAT IV 600 V / CAT III 1,000 V safety rating, IEC certified for international standards.
- Offers Connect-and-View™ triggering and glitch capture down to approximately 8 ns.
- Supplied with a 3-year warranty on the main unit, reflecting operational longevity.
- Portable design with USB connectivity and rechargeable Li-ion battery for field and bench use.
Applications & Use Cases
- Industrial Maintenance: Fault finding and performance verification in complex electrical systems.
- Electronics Repair Services: Detailed analysis and troubleshooting of electronic circuits.
- Institutional Buyers: Testing and measurement in educational and research facilities.
- Export Houses: Global distribution to markets requiring high-standard test instrumentation.
- Electrical Contractors: On-site diagnostics and safety checks for installations.
Technical Specifications
| Brand | Fluke |
|---|---|
| Model | 190-504-III-S |
| Memory | Internal memory for setups, screens and recordings |
| Series | Fluke 190 Series III |
| Weight | Approx. 2.2 kg |
| Battery | Rechargeable Li-ion |
| Display | Large full-color LCD |
| True Rms | Yes |
| Warranty | 3 years on main instrument |
| Bandwidth | 500 MHz |
| Rise Time | 0.7 ns |
| Time Base | 1 ns/div to 4 s/div |
| Dimensions | Approx. 270 × 190 × 70 mm |
| Persistence | Digital persistence |
| Connectivity | USB interface |
| Dmm Function | Yes |
| Model Number | 190 |
| Product Type | ScopeMeter® Portable Oscilloscope / Test Tool |
| Record Length | Up to 10,000 samples/channel |
| Safety Rating | CAT IV 600 V / CAT III 1,000 V |
| Specification | Details |
| Trigger Types | Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Pulse Width, N-Cycle |
| Voltage Ac/dc | 1000 V |
| Dmm Resolution | 5,000 counts |
| Glitch Capture | Down to approximately 8 ns |
| Input Coupling | AC / DC |
| Input Impedance | 1 MΩ ±1%, approximately 15 pF |
| Measurement Type | True RMS |
| Waveform Compare | Yes, with automatic Pass/Fail testing |
| Input Sensitivity | 2 mV/div to 100 V/div direct; higher ranges with attenuating probes |
| Bandwidth Limiters | 20 MHz and 10 kHz |
| Maximum Ac Current | 10 A |
| Maximum Ac Voltage | 750 V |
| Maximum Dc Current | 20 A |
| Number Of Channels | 4 isolated channels |
| Operating Altitude | Up to 2,000 m at CAT IV 600 V / CAT III 1,000 V |
| Scope Measurements | Cursor and automatic measurements |
| Vertical Resolution | 8-bit |
| Maximum Input Voltage | CAT III 1,000 V / CAT IV 600 V |
| Operating Temperature | 0°C to 50°C without batteries; 0°C to 40°C with batteries |
| Maximum Real-time Sample Rate | 5 GS/s single channel; 2.5 GS/s dual channel; 1.25 GS/s four channel |
