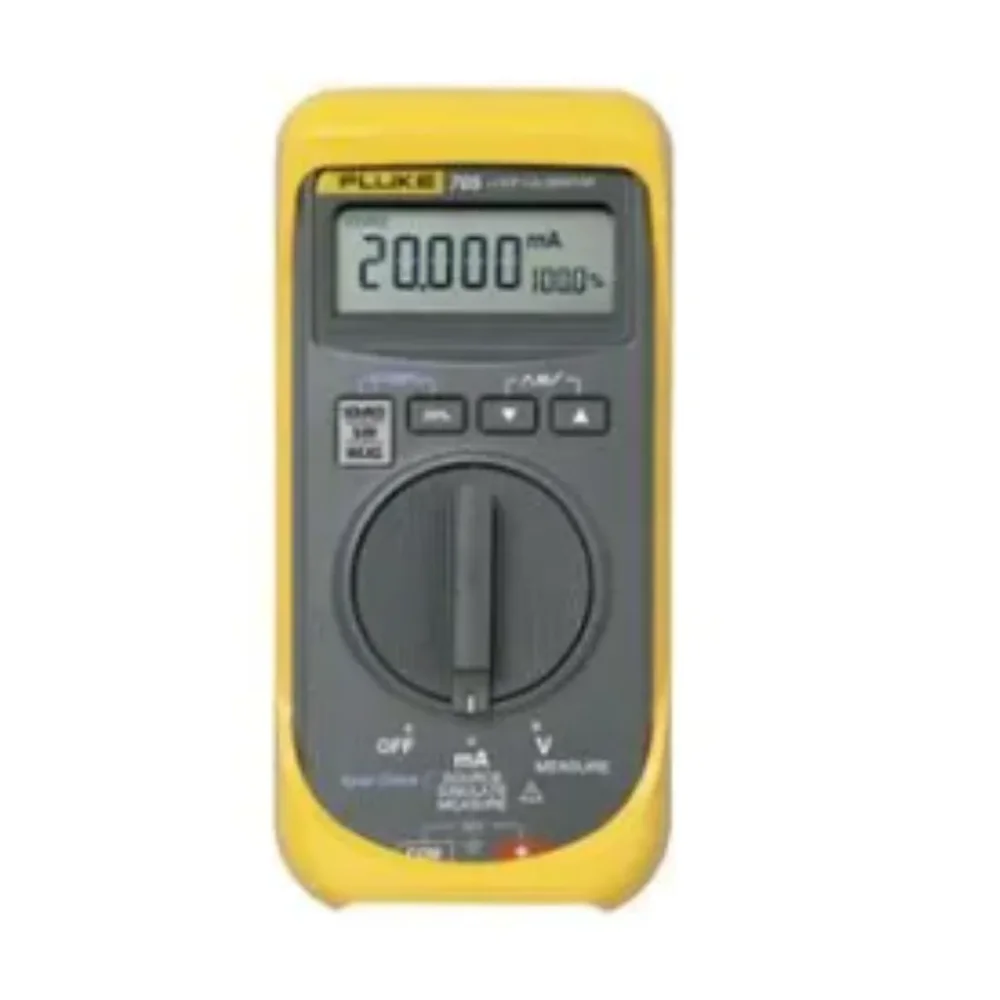

Fluke 705 Loop Calibrator, ₹79,195.5/piece | Tradoi
Electronics & Electrical › Test & Measurement
Fluke 705 Loop Calibrator — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹79,195.5/piece, MOQ 1 piece.
Product Overview
The Fluke 705 Loop Calibrator, sourced for its precision in mA loop testing, is ideal for institutional buyers and export houses requiring reliable process control instrumentation. This calibrator offers essential features for maintenance and troubleshooting in industrial settings.
Detailed Description
The Fluke 705 Loop Calibrator, Model 705, is a precision instrument sourced for accurate current and voltage measurements in industrial settings. This loop calibrator offers a current measurement range of 0 to 24 mA with a resolution of 0.001 mA and an accuracy of ±(0.02% of reading + 2 LSD). It supports current sourcing and simulation in both 0-20 mA and 4-20 mA ranges, maintaining an accuracy of ±(0.025% of reading + 2 LSD). Key features include a drive capability of 1000 Ω at 24 mA, an internal 24V loop supply while measuring mA, and DC voltage measurement up to 28V with 1 mV resolution. Output modes such as Source, Simulate, and Measure are available, alongside functions like Step, Auto Step, Slow Ramp, and Fast Ramp, including 25% steps for span checks. The device displays simultaneous mA and % of span, operates between -10°C and +55°C, and is powered by a single 9V battery providing approximately 18 hours of life in source mode. It is well-suited for institutional buyers in sectors such as oil and gas, pharmaceuticals, power generation, and manufacturing, where precise calibration of current loops is critical for operational integrity. Its robust design and comprehensive measurement capabilities make it an essential tool for ensuring the accuracy of process control systems. The Fluke 705 Loop Calibrator is a product that meets rigorous international standards, holding IEC certification. This ensures its reliability and performance for demanding industrial applications. Additionally, its safety and EMC compliance with CSA C22.2 No. 1010.1, EN50082-1, and EN55022 Class B further reinforces its suitability for professional use in diverse operational environments.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Test & Measurement |
| Product Type | Calibration Equipment |
| Price | ₹79,195.5 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Sourced Fluke 705 Loop Calibrator for precision current and voltage measurements.
- Offers 0 to 24 mA current measurement with 0.001 mA resolution and ±(0.02% + 2 LSD) accuracy.
- Supports current sourcing and simulation in 0-20 mA and 4-20 mA ranges with ±(0.025% + 2 LSD) accuracy.
- Features 1000 Ω drive capability at 24 mA and an internal 24V loop supply for mA measurement.
- Includes Source, Simulate, and Measure output modes with Step, Auto Step, Slow Ramp, and Fast Ramp functions.
- Displays simultaneous mA and % of span, powered by a 9V battery for 18 hours in source mode.
- IEC certified for reliability and performance in demanding industrial applications.
- Safety and EMC compliant with CSA C22.2 No. 1010.1, EN50082-1, and EN55022 Class B standards.
Applications & Use Cases
- Oil and Gas Sector: Critical for precise calibration of current loops in process control systems.
- Pharmaceuticals Industry: Ensures accuracy of instrumentation in sensitive manufacturing environments.
- Power Generation: Essential for maintaining operational integrity of control systems.
- Manufacturing Facilities: Supports accurate calibration of industrial automation and control equipment.
- Institutional Buyers: Ideal for organizations requiring robust and reliable loop calibration tools.
Technical Specifications
| Brand | Fluke |
|---|---|
| Model | 705 |
| Weight | 340 g |
| Battery | 1 × 9 V battery |
| Display | Simultaneous mA and % of span |
| Accuracy | 0.02 % |
| Warranty | 3 years |
| Operation | Source + measure |
| Dimensions | 152 × 70 × 41 mm |
| Loop Power | 24 V loop |
| Span Check | Yes |
| Battery Life | Approx. 18 hours in source mode |
| Display Type | LCD |
| Output Modes | Source, Simulate, Measure |
| Output Range | 0-24 mA |
| Power Source | Battery |
| Product Type | Loop Calibrator / mA Process Calibrator |
| Safety / Emc | CSA C22.2 No. 1010.1; EN50082-1; EN55022 Class B |
| Measure Range | 4-20 mA |
| Specification | Details |
| Step Function | 25% steps |
| Maximum Voltage | 30 V |
| Drive Capability | 1000 Ω @ 24 mA |
| Output Functions | Step, Auto Step, Slow Ramp, Fast Ramp |
| Voltage Accuracy | ±(0.025% of reading + 2 LSD) |
| Operating Altitude | Up to 3,000 m |
| Operating Humidity | 0–90% RH up to 35°C; 0–70% RH from 35–55°C |
| Voltage Resolution | 1 mV |
| Storage Temperature | -40°C to +60°C |
| Current Source Range | 0–20 mA or 4–20 mA |
| Internal Loop Supply | 24 V while measuring mA |
| External Loop Voltage | 12–30 V |
| Operating Temperature | -10°C to +55°C |
| Dc Voltage Measurement | 0–28 V DC |
| Current Source Accuracy | ±(0.025% of reading + 2 LSD) |
| Current Simulation Range | 0–20 mA or 4–20 mA |
| Current Measurement Range | 0 to 24 mA |
| Current Simulation Accuracy | ±(0.025% of reading + 2 LSD) |
| Current Measurement Accuracy | ±(0.02% of reading + 2 LSD) |
| Current Measurement Resolution | 0.001 mA |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Fluke 705 Loop Calibrator?
The minimum order quantity (MOQ) for Fluke 705 Loop Calibrator is 1 piece.
Who supplies Fluke 705 Loop Calibrator?
Fluke 705 Loop Calibrator is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Fluke 705 Loop Calibrator?
Available payment terms for Fluke 705 Loop Calibrator: Full Advance.
What is the price of Fluke 705 Loop Calibrator?
Fluke 705 Loop Calibrator is priced at ₹79,195.5 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
