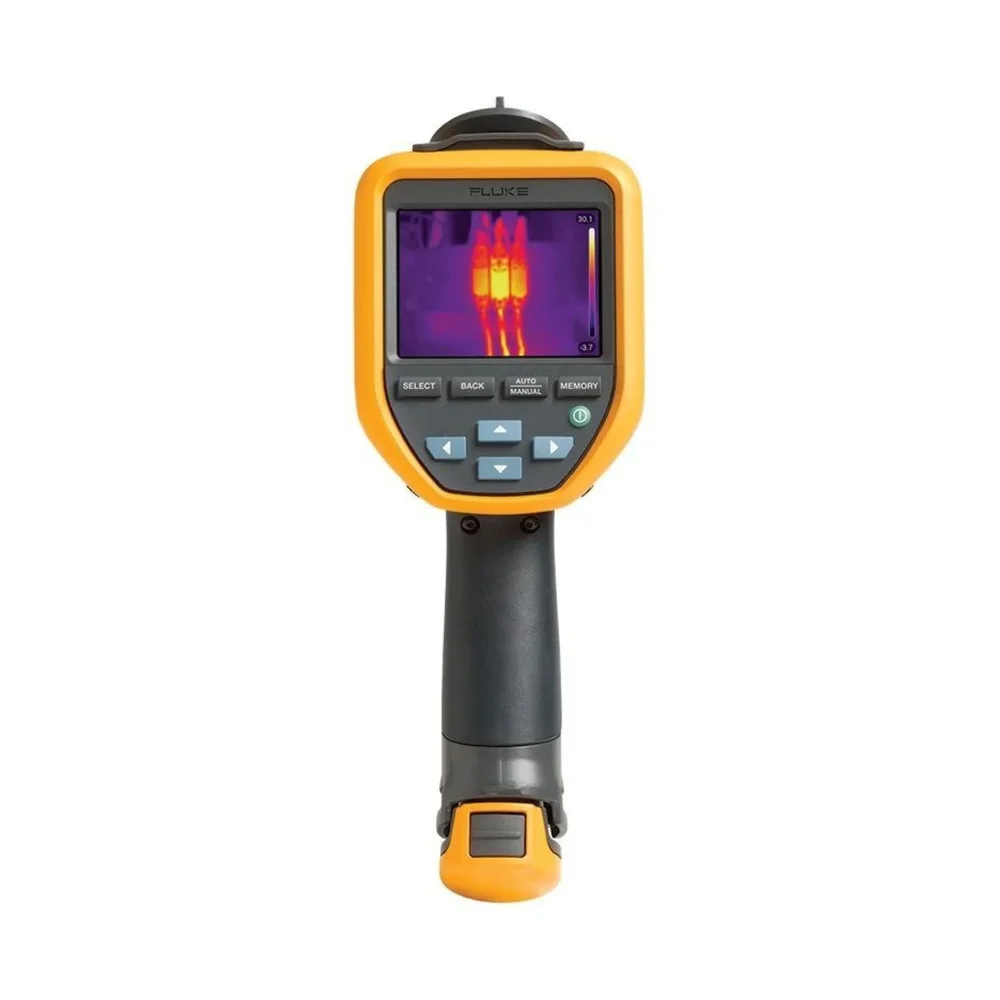

Fluke Tis20+ Thermal Imaging Camera | Tradoi
Electronics & Electrical › Test & Measurement
Fluke Tis20+ Thermal Imaging Camera — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹2,02,653/piece, MOQ 1 piece.
Product Overview
Fluke TiS20+ Thermal Imaging Camera, sourced for precise temperature measurement and detailed thermal analysis. Ideal for institutional buyers, export houses, and e-commerce resellers requiring reliable diagnostic tools across various industrial and commercial applications.
Detailed Description
The Fluke TiS20+ Thermal Imaging Camera, sourced for electrical, industrial, HVAC, and predictive maintenance applications, features a 120 x 90 pixel (10,800 pixels) IR resolution and an uncooled microbolometer detector. It offers a thermal sensitivity of ≤60 mK and a fixed focus system with a minimum focus distance of 50 cm. Key specifications include a 50° x 38° field of view, 7.6 mRad spatial resolution, and a 130:1 distance-to-spot ratio, enabling detection of abnormal heat patterns across a temperature range of -20°C to +150°C. The device maintains an accuracy of ±2°C or ±2% (whichever is greater) and supports adjustable emissivity correction and reflected temperature compensation. This thermal imager is supplied for professional use by maintenance engineers in manufacturing facilities, electrical contractors managing commercial building infrastructure, and HVAC technicians performing diagnostics on large-scale climate control systems. Its capabilities for hot/cold spot detection and center-point temperature measurement, combined with a 9 Hz frame rate, make it suitable for routine inspections and troubleshooting in sectors like power distribution, mechanical engineering, and facility management. The integration of a 3.5-inch LCD touchscreen with 320 x 240 pixel resolution, along with IR-Fusion™ AutoBlend (0–100% blending) and 6 color palettes, facilitates clear visual analysis of thermal data for institutional buyers and export houses. Connectivity features include Wi-Fi 802.11 b/g/n (2.4 GHz) and Fluke Connect™ support, enabling seamless data transfer and analysis via Fluke Connect Desktop Software. The camera stores images in JPEG / IS2 radiometric format, with 4 GB of internal memory and support for up to 32 GB external storage via Micro SD card. This model is certified to IEC standards, ensuring its compliance with international electrical safety and performance benchmarks for equipment traded across markets.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Test & Measurement |
| Price | ₹2,02,653 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Features a 120 x 90 pixel (10,800 pixels) IR resolution for detailed thermal imaging.
- Equipped with an uncooled microbolometer detector and ≤60 mK thermal sensitivity.
- Offers a fixed focus system with a 50 cm minimum focus distance and 50° x 38° field of view.
- Detects temperatures from -20°C to +150°C with ±2°C or ±2% accuracy.
- Integrates a 3.5-inch LCD touchscreen with IR-Fusion™ AutoBlend and 6 color palettes.
- Supports Wi-Fi connectivity and Fluke Connect™ for data transfer and analysis.
- Stores images in JPEG / IS2 radiometric format with 4 GB internal memory, expandable to 32 GB.
- Certified to IEC standards, ensuring compliance for equipment traded across markets.
Applications & Use Cases
- Maintenance Engineers: Routine inspections and troubleshooting in manufacturing facilities.
- Electrical Contractors: Managing commercial building infrastructure and power distribution.
- HVAC Technicians: Performing diagnostics on large-scale climate control systems.
- Institutional Buyers: Sourced for facility management and mechanical engineering sectors.
- Export Houses: Facilitating cross-market movement of certified electrical equipment.
Technical Specifications
| Brand | Fluke |
|---|---|
| Model | TiS20+ |
| Series | TiS20+ |
| Display | 3.5-inch LCD Touchscreen |
| Feature | Specification |
| Accuracy | ±2°C or ±2% (whichever is greater) |
| Software | Fluke Connect Desktop Software |
| Wireless | Wi-Fi 802.11 b/g/n (2.4 GHz) |
| Parameter | Specification |
| Focus Type | Fixed focus |
| Frame Rate | 9 Hz |
| Form Factor | Handheld gun |
| Pc Transfer | Mini USB |
| Focus System | Fixed Focus |
| Ir-fusion™ | AutoBlend 0–100% blending |
| Image Format | JPEG / IS2 radiometric |
| Manufacturer | Fluke |
| Product Type | Infrared Thermal Imaging Camera |
| Detector Type | Uncooled Microbolometer |
| Ir Resolution | 120 × 90 pixels (10,800 pixels) |
| Ir Resolution | 120 × 90 pixels |
| Color Palettes | 6 modes |
| Internal Memory | 4 GB |
| External Storage | Micro SD card support (up to 32 GB) |
| Fluke Connect™ | Supported |
| Protection Rating | IP54 |
| Temperature Range | −20°C to +150°C |
| Temperature Range | −20°C to +150°C |
| Display Resolution | 320 × 240 pixels |
| Field Of View (fov) | 50° × 38° |
| Emissivity Correction | Adjustable |
| Distance-to-spot Ratio | 130:1 |
| Minimum Focus Distance | 50 cm |
| Hot/cold Spot Detection | Yes |
| Spatial Resolution (ifov) | 7.6 mRad |
| Thermal Sensitivity (netd) | ≤60 mK |
| Temperature Measurement Mode | Center point + automatic hot/cold markers |
| Reflected Temperature Compensation | Yes |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Fluke Tis20+ Thermal Imaging Camera?
The minimum order quantity (MOQ) for Fluke Tis20+ Thermal Imaging Camera is 1 piece.
Who supplies Fluke Tis20+ Thermal Imaging Camera?
Fluke Tis20+ Thermal Imaging Camera is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Fluke Tis20+ Thermal Imaging Camera?
Available payment terms for Fluke Tis20+ Thermal Imaging Camera: Full Advance.
What is the price of Fluke Tis20+ Thermal Imaging Camera?
Fluke Tis20+ Thermal Imaging Camera is priced at ₹2,02,653 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
