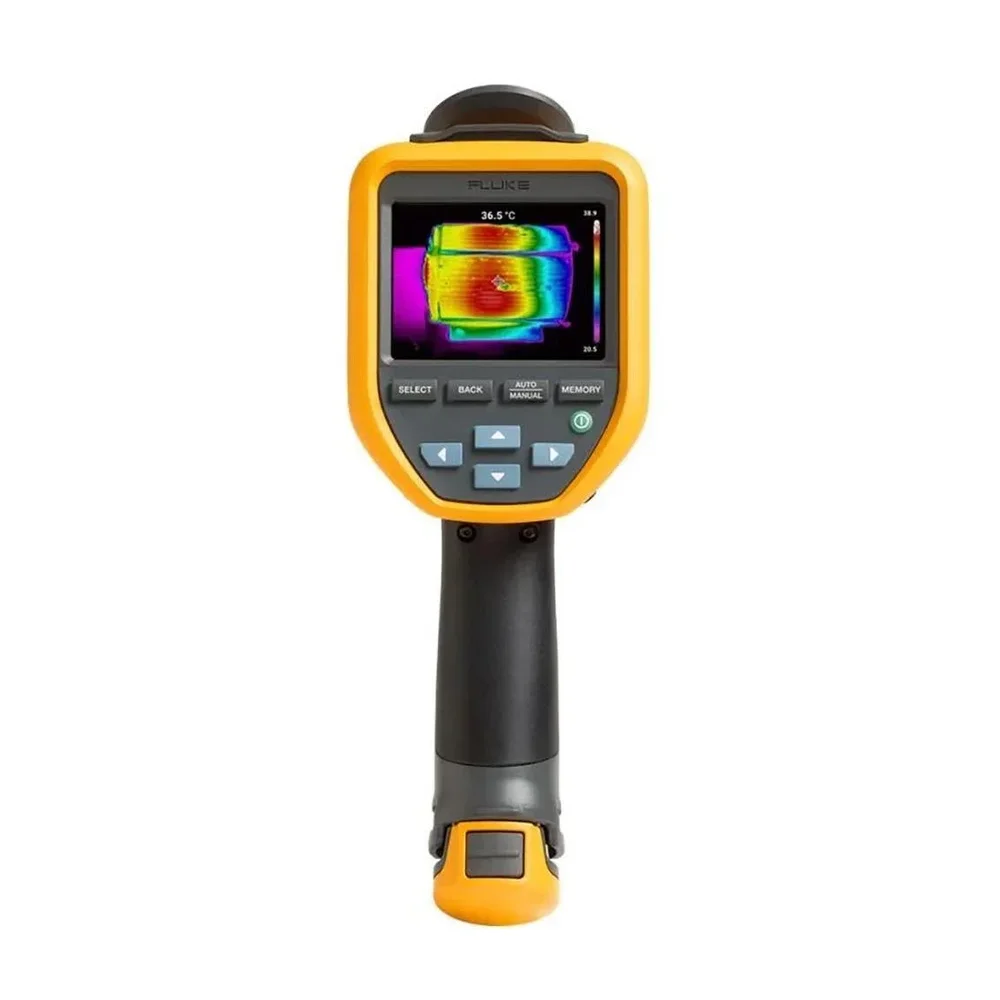

Fluke Tis55+ Thermal Imaging Camera | Tradoi
Electronics & Electrical › Test & Measurement
Fluke Tis55+ Thermal Imaging Camera — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹3,49,498/piece, MOQ 1 piece.
Product Overview
Fluke TiS55+ Thermal Imaging Camera, sourced for precise temperature analysis in industrial and electrical maintenance. Ideal for institutional buyers and export houses seeking reliable diagnostic tools across markets.
Detailed Description
The Fluke TiS55+ Thermal Imaging Camera, sourced for its 256 x 192 pixel (49,152 pixels) IR resolution and 40 mK thermal sensitivity, offers precise temperature measurement across a -20°C to 550°C range. This IEC certified device integrates a 5 MP visible light camera and a 3.5-inch touchscreen display, supporting IR-Fusion with AutoBlend and Picture-in-Picture functionalities. Key features include manual focus, 1.91 mrad spatial resolution, a 28° x 20° field of view, and a minimum focus distance of 0.15 m. With a frame rate of 9 Hz or 27 Hz (model dependent) and an IR spectral band of 8–14 µm, it is designed for detailed thermal analysis. This thermal imaging camera is a critical tool for institutional buyers, facility management companies, and maintenance contractors focused on predictive maintenance and troubleshooting electrical, mechanical, and HVAC systems. Its capabilities, including asset tagging via QR codes, voice annotation up to 60 seconds per image, and IR-PhotoNotes, support comprehensive data capture and reporting. The TiS55+ is Fluke Connect compatible, enabling wireless connectivity for seamless data transfer and analysis. With a robust design offering IP54 ingress protection and 2m drop resistance, it is suited for demanding industrial environments. Supplied with a rechargeable lithium-ion battery providing over 3.5 hours of continuous operation without Wi-Fi, the TiS55+ ensures extended field use. Internal memory stores approximately 500 images, expandable via a ≥4 GB microSD card, supporting BMP, JPEG, and radiometric IS2 image formats. Additional measurement features include 3 user-adjustable temperature spot markers and 3 adjustable measurement boxes with Min/Max/Average readings. The product is certified to IEC standards, ensuring compliance with international safety and performance benchmarks for electrical and electronic equipment.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Test & Measurement |
| Price | ₹3,49,498 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Sourced Fluke TiS55+ with 256 x 192 pixel IR resolution and 40 mK thermal sensitivity.
- Offers precise temperature measurement across a -20°C to 550°C range, suitable for diverse industrial needs.
- Integrates a 5 MP visible light camera and a 3.5-inch touchscreen display with IR-Fusion functionalities.
- Features manual focus, 1.91 mrad spatial resolution, and a 28° x 20° field of view.
- Supports asset tagging via QR codes, voice annotation, and IR-PhotoNotes for comprehensive data capture.
- Fluke Connect compatible, enabling wireless data transfer and analysis for seamless operations.
- Robust design with IP54 ingress protection and 2m drop resistance, ideal for demanding environments.
- Supplied with a rechargeable lithium-ion battery providing over 3.5 hours of continuous operation.
Applications & Use Cases
- Institutional Buyers: Critical for predictive maintenance and troubleshooting electrical systems.
- Facility Management Companies: Essential for monitoring mechanical and HVAC systems.
- Maintenance Contractors: Supports detailed thermal analysis for preventative maintenance tasks.
- Export Houses: Traded across markets for clients in UAE, Saudi Arabia, USA, and 9 other countries.
- Industrial Troubleshooting: Used for diagnosing issues in complex electrical and mechanical setups.
Technical Specifications
| Brand | Fluke |
|---|---|
| Focus | Manual focus |
| Model | TiS55+ |
| Series | TiS55+ |
| Weight | Approx. 0.885 kg, battery included |
| Battery | Rechargeable lithium-ion |
| Display | 3.5-inch touchscreen, 640 × 480 LCD |
| Accuracy | ±2°C or ±2%, whichever is greater |
| Warranty | 2 years standard |
| Ir-fusion | Yes — AutoBlend, 0–100% |
| Dimensions | Approx. 26.7 × 10.1 × 14.5 cm |
| Focus Type | Manual focus |
| Frame Rate | 9 Hz or 27 Hz, depending on model |
| Form Factor | Handheld gun |
| Auto Capture | Yes |
| Battery Life | ≥3.5 hours continuous without Wi-Fi |
| Product Type | Thermal Imaging Camera / Infrared Camera |
| Asset Tagging | Yes — QR-code based |
| Charging Time | ≤2.5 hours |
| Field Of View | 28° × 20° |
| Ir Resolution | 256 × 192 pixels (49,152 pixels) |
| Ir Resolution | 256x192 |
| Ir-photonotes | Yes |
| Image Formats | BMP, JPEG, radiometric IS2 |
| Specification | Details |
| Color Palettes | 6 standard palettes |
| Drop Resistance | Designed to withstand 2 m drop |
| Internal Memory | Approx. 500 images |
| External Storage | ≥4 GB microSD card |
| Ir Spectral Band | Approximately 8–14 µm |
| Voice Annotation | Yes, up to 60 seconds/image |
| Measurement Boxes | 3 adjustable rectangles with Min/Max/Average |
| Protection Rating | IP54 |
| Relative Humidity | 10–95%, non-condensing |
| Temperature Range | -20°C to 550°C |
| Temperature Range | -20°C to 550°C |
| Ingress Protection | IP54 |
| Storage Temperature | -20°C to +50°C |
| Thermal Sensitivity | 40 mK |
| Visible Light Camera | 5 MP |
| Operating Temperature | -10°C to +50°C |
| Wireless Connectivity | Yes |
| Minimum Focus Distance | 0.15 m |
| Fluke Connect Compatible | Yes |
| Picture-in-picture (pip) | Yes |
| Temperature Spot Markers | 3 user-adjustable |
| Ifov / Spatial Resolution | 1.91 mrad |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Fluke Tis55+ Thermal Imaging Camera?
The minimum order quantity (MOQ) for Fluke Tis55+ Thermal Imaging Camera is 1 piece.
Who supplies Fluke Tis55+ Thermal Imaging Camera?
Fluke Tis55+ Thermal Imaging Camera is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Fluke Tis55+ Thermal Imaging Camera?
Available payment terms for Fluke Tis55+ Thermal Imaging Camera: Full Advance.
What is the price of Fluke Tis55+ Thermal Imaging Camera?
Fluke Tis55+ Thermal Imaging Camera is priced at ₹3,49,498 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
