Fluke Tis75+ Thermal Imaging Camera — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹5,60,821/piece, MOQ 1 piece.
Product Overview

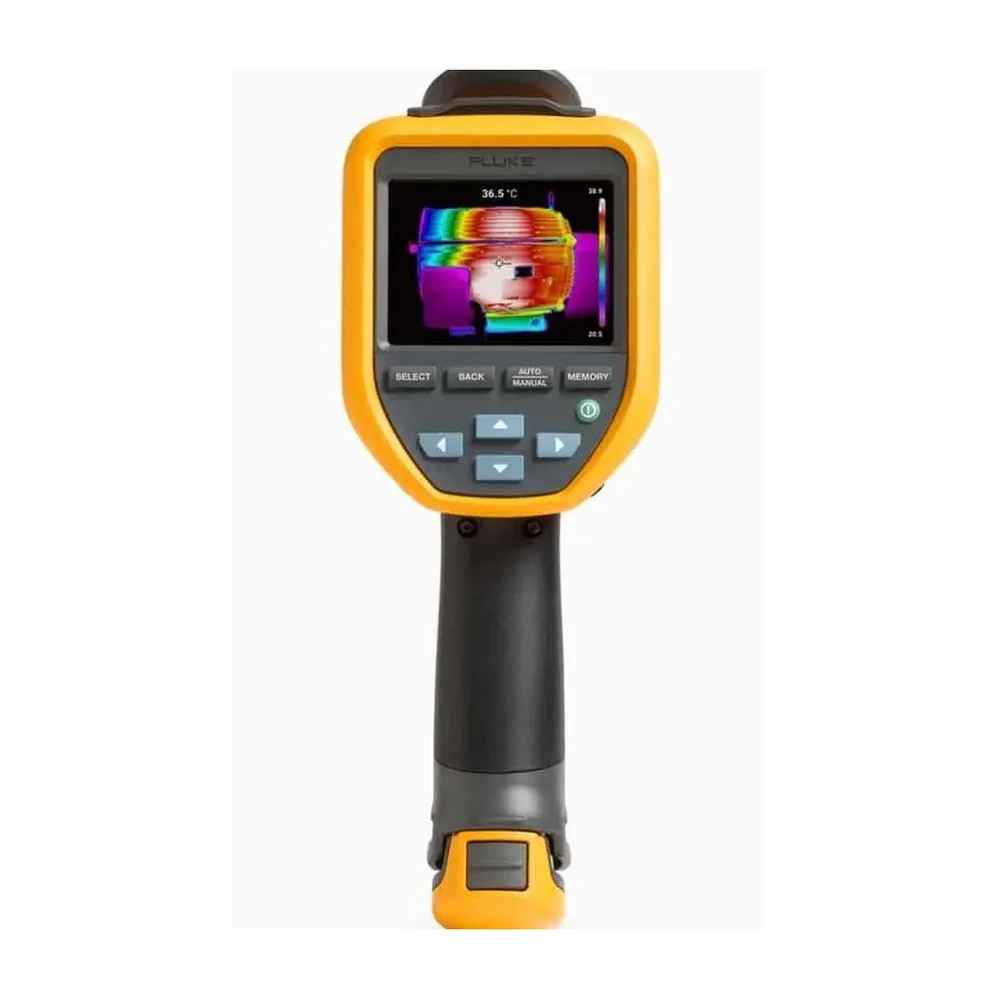

Fluke TiS75+ Thermal Imaging Camera, sourced for industrial inspections and maintenance. Ideal for institutional buyers and export houses requiring precise temperature measurements and detailed thermal analysis.
Detailed Description
The Fluke TiS75+ Thermal Imaging Camera, sourced through a robust supply network, delivers precise thermal diagnostics with a 384 x 288 (110,592 pixels) infrared resolution and a temperature measurement range from -20 °C to 550 °C. This advanced camera features a 3.5-inch (landscape) 320 x 240 LCD display, offering clear visual feedback for detailed analysis. Equipped with a 30 Hz frame rate and a 26° horizontal by 19° vertical field of view, it captures thermal data efficiently. The TiS75+ includes a manual focus system, a minimum focus distance of 0.15 m, and an IFOV (spatial resolution) of 1.31 mRad, ensuring sharp and accurate thermal images. Its 9 Hz frame rate option is available for specific regulatory requirements, while the standard 30 Hz provides fluid imaging. The camera supports multiple color palettes including Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale, and Grayscale Inverted, catering to diverse visualization needs. This thermal imaging camera is ideally suited for a range of professional applications, including preventive maintenance in industrial facilities, electrical inspections for commercial buildings, and HVAC system diagnostics for institutional buyers. It is a critical tool for facility managers, maintenance engineers, and electrical contractors who require reliable thermal data for troubleshooting and condition monitoring. The Fluke TiS75+ is particularly valuable for identifying hotspots, detecting insulation issues, and assessing equipment performance in sectors such as manufacturing, energy, and infrastructure, supporting proactive maintenance strategies and reducing downtime. Its robust design and intuitive interface make it suitable for field use by technical teams and inspection agencies. The Fluke TiS75+ Thermal Imaging Camera is certified to IEC standards, underscoring its adherence to international safety and performance benchmarks.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Test & Measurement |
| Product Type | Oscilloscopes |
| Price | ₹5,60,821 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Sourced Fluke TiS75+ Thermal Imaging Camera offers 384 x 288 (110,592 pixels) infrared resolution.
- Provides a wide temperature measurement range from -20 °C to 550 °C for diverse diagnostics.
- Features a 3.5-inch (landscape) 320 x 240 LCD display for clear visual feedback.
- Equipped with a 30 Hz frame rate and a 26° horizontal by 19° vertical field of view.
- Includes manual focus with a minimum focus distance of 0.15 m and 1.31 mRad IFOV.
- Supports multiple color palettes: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale, and Grayscale Inverted.
- Traded Fluke TiS75+ is certified to IEC standards, ensuring international safety benchmarks.
- Offered by a Mohali, Punjab-based trader with a robust supply network.
Applications & Use Cases
- Industrial Facilities: Essential for preventive maintenance and identifying hotspots in machinery.
- Commercial Buildings: Critical for electrical inspections and assessing HVAC system performance.
- Manufacturing & Energy Sectors: Supports proactive maintenance strategies and reduces downtime.
- Technical Teams & Inspection Agencies: Suitable for field use in condition monitoring and troubleshooting.
- Institutional Buyers: Ideal for facility managers and maintenance engineers requiring reliable thermal data.
Technical Specifications
| Brand | Fluke |
|---|---|
| Model | 190-062-III |
| Series | Fluke 190 Series III |
| Weight | Approx. 2.2 kg |
| Battery | BP290 rechargeable Li-ion |
| Display | Large full-color LCD |
| Accuracy | +-2 C |
| Model No | TiS75+ |
| Warranty | 3 years main instrument; 1 year accessories |
| Bandwidth | 60 MHz |
| Rise Time | 5.8 ns |
| Time Base | 10 ns/div to 4 s/div |
| Dimensions | Approx. 270 × 190 × 70 mm |
| Focus Type | Fixed focus |
| Form Factor | Handheld gun |
| Dmm Function | Yes |
| Product Type | ScopeMeter® Portable Oscilloscope / Test Tool |
| Trendplot™ | Up to 22 days recording |
| Ir Resolution | 256x192 |
| Record Length | Up to 10,000 samples/channel |
| Safety Rating | CAT IV 600 V / CAT III 1,000 V |
| Specification | Details |
| Trigger Types | Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Pulse Width, N-Cycle |
| Dmm Resolution | 5,000 counts |
| Glitch Capture | Approximately 8 ns |
| Input Coupling | AC / DC |
| Input Impedance | 1 MΩ ±1%, approximately 15 pF |
| Battery Capacity | 2,400 mAh |
| Dmm Measurements | DC/AC voltage, AC+DC, resistance, continuity, diode, current and temperature with accessories |
| Waveform Compare | Yes, with automatic Pass/Fail testing |
| Input Sensitivity | 2 mV/div to 100 V/div direct |
| Protection Rating | IP51 |
| Temperature Range | 0°C to 40°C |
| Bandwidth Limiters | 20 MHz and 10 kHz |
| Ingress Protection | IP51 |
| Input Architecture | Fully insulated/floating inputs |
| Number Of Channels | 2 isolated channels |
| Operating Altitude | Up to 2,000 m at CAT IV 600 V/CAT III 1,000 V |
| Scope Measurements | 7 cursor measurements / 30 automatic measurements |
| Digital Persistence | Yes |
| Vertical Resolution | 8-bit |
| Maximum Input Voltage | CAT III 1,000 V / CAT IV 600 V |
| Operating Temperature | 0°C to 40°C with battery; up to 50°C without battery |
| Scoperecord™ Memory | 30,000 data points/channel |
| Battery Operating Time | Up to approximately 4 hours |
| Maximum Real-time Sample Rate | 625 MS/s per channel |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Fluke Tis75+ Thermal Imaging Camera?
The minimum order quantity (MOQ) for Fluke Tis75+ Thermal Imaging Camera is 1 piece.
Who supplies Fluke Tis75+ Thermal Imaging Camera?
Fluke Tis75+ Thermal Imaging Camera is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Fluke Tis75+ Thermal Imaging Camera?
Available payment terms for Fluke Tis75+ Thermal Imaging Camera: Full Advance.
What is the price of Fluke Tis75+ Thermal Imaging Camera?
Fluke Tis75+ Thermal Imaging Camera is priced at ₹5,60,821 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
