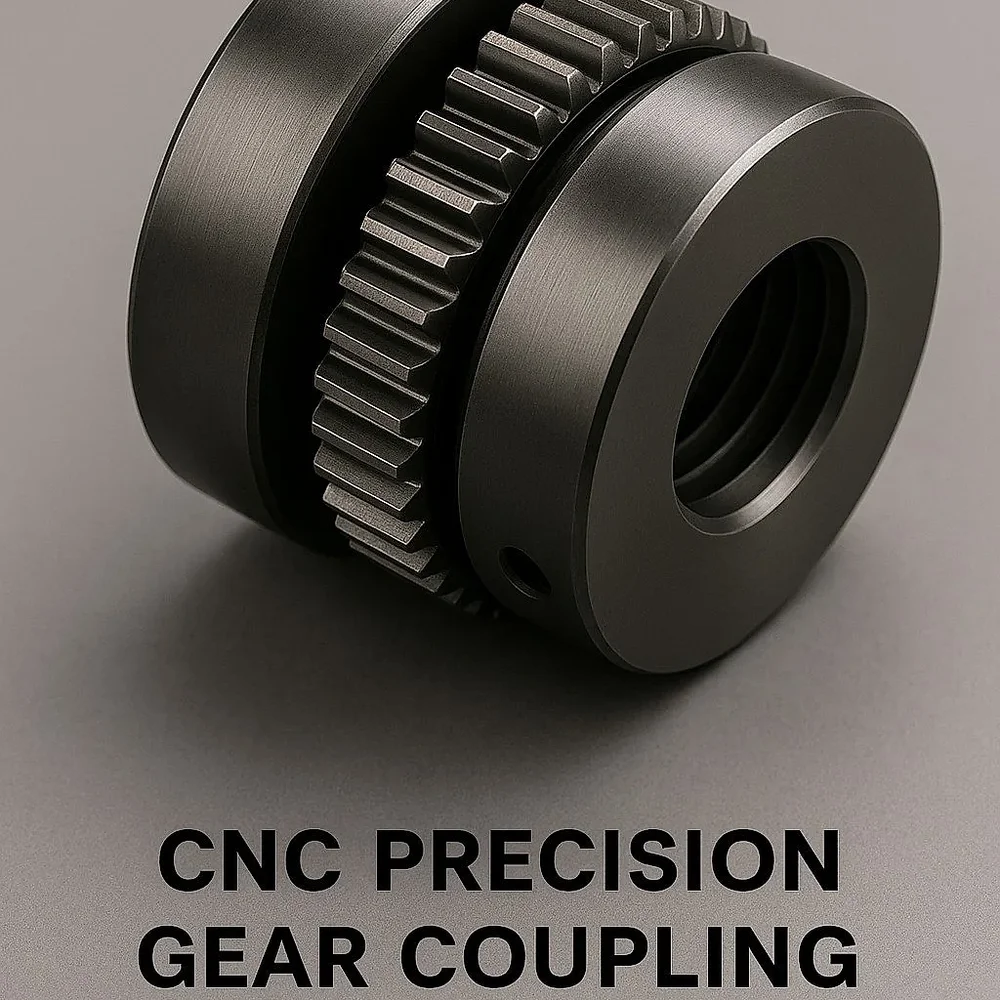

Mild Steel CNC Precision Gear Coupling (25-50mm Diameter) — manufactured in Tiruvallur, Tamil Nadu by VP Engineering. Tradoi-verified manufacturer at ₹50/piece, MOQ 1000 piece.
Product Overview
Precision-engineered Mild Steel Gear Couplings, manufactured with CNC turning processes to achieve a tight tolerance of ±0.02 mm. These components are designed for robust performance in industrial applications, accommodating turning diameters from 25 mm to 50 mm for critical power transmission needs.
Detailed Description
These CNC Precision Gear Couplings are made from Mild Steel, offering reliable performance with a tight tolerance of ±0.02 mm. Produced through advanced CNC turning, these components feature internal and external crowned teeth, ensuring high-torque transmission and accommodating turning diameters from 25 mm to 50 mm and lengths from 50 mm to 100 mm. Surface finishes include Ra 3.2 µm, Ground, Polished, and Black Oxide, providing enhanced durability and corrosion resistance. Designed for demanding industrial environments, these gear couplings are essential for sectors requiring precise power transmission and rotational alignment. Key applications include automotive manufacturing, hydraulic systems, and a wide array of automation equipment. They are critical for maintaining operational efficiency in industrial drives, conveyors, pumps, compressors, and robotics, where consistent performance and minimal backlash are paramount. The design supports bore sizes from 10 mm to 50 mm and outer diameters from 35 mm to 120 mm, with customisation available. Manufactured to exacting standards, these gear couplings are available with material options including EN8D, EN24, Alloy Steel, and Stainless Steel 304/316, allowing for selection based on specific load and environmental requirements. Hardness ranges from 30–55 HRC, with case hardening available for increased wear resistance. Torque capacities span from 20 Nm to 500 Nm, making them suitable for a broad spectrum of industrial machinery.
Product Details
| Category | Metals & Alloys |
|---|---|
| Sub-Category | Precision Components |
| Product Type | Precision Couplings |
| Price | ₹50 per piece |
| Minimum Order Quantity | 1000 piece |
| Unit | piece |
| Country of Origin | India |
Key Features
- CNC Precision Turned Components: Manufactured using advanced CNC turning processes for high accuracy and consistency.
- Mild Steel Construction: Made from Mild Steel (MS) for durability and cost-effectiveness in industrial settings.
- Tight Tolerance: Achieves a precision tolerance of ±0.02 mm, ensuring accurate fit and operational reliability.
- High-Torque Design: Features internal and external crowned teeth, engineered for efficient high-torque power transmission.
- Versatile Turning Diameter: Supports turning diameters ranging from 25 mm to 50 mm, suitable for various shaft sizes.
- Extended Turning Length: Components can be produced with turning lengths from 50 mm to 100 mm for diverse applications.
- Multiple Surface Finishes: Available with Ra 3.2 µm, Ground, Polished, and Black Oxide finishes for enhanced protection and performance.
- Broad Torque Capacity: Designed to handle torque capacities from 20 Nm to 500 Nm, accommodating industrial loads.
- Customizable Outer Diameter: Outer diameters from 35 mm to 120 mm are available, with customisation options to meet specific project needs.
- Material Options: Offered in EN8D, EN24, Alloy Steel, and Stainless Steel 304/316 to suit varying strength and corrosion resistance requirements.
Applications & Use Cases
- Automotive Manufacturing: For power transmission in vehicle assembly lines and component production machinery.
- Hydraulic Systems: Essential for connecting shafts in hydraulic pumps, motors, and control mechanisms.
- Automation Equipment: Critical for precise motion control and power transfer in automated assembly and processing lines.
- CNC Machines: Used in the drive systems of CNC lathes, milling machines, and machining centers for accurate operation.
- Industrial Drives: Integral components for connecting motors to gearboxes in heavy-duty industrial machinery.
- Conveyor Systems: Ensures smooth and reliable power transmission in material handling and logistics conveyors.
- Pumps and Compressors: Facilitates efficient power transfer in industrial pumping and air compression units.
- Robotics: Provides robust and precise connections in robotic arms and automated systems requiring high reliability.
Technical Specifications
| Application | Gearboxes |
|---|---|
| Torque Capacity | 20 Nm – 500 Nm |
| Type | Gear Coupling – External & Internal Gear |
| Hardness | 30–55 HRC |
| Material | Mild Steel(MS) |
| Bore Size | 10 mm – 50 mm |
| Tolerance | ±0.01 mm |
| Application | Automation |
| Thread Type | Metric Fine |
| Tooth Count | 20–45 teeth |
| Product Type | gear coupling |
| Design Feature | High-Torque Industrial Type |
| Surface Finish | Black Oxide |
| Turning Length | 50 to 100 mm |
| Material Options | Stainless Steel 304/316 |
| Turning Diameter | 25 to 50 mm |
| Machining Process | CNC Turning |
| Outer Diameter Od | 35 mm – 120 mm |
| Outer Diameter Od Customizable | True |
| Hardness Case Hardened Available | True |
Payment Terms
- Full Advance
About the Supplier
VP Engineering is a verified B2B supplier based in Tiruvallur, Tamil Nadu.
- Tradoi-verified seller
Frequently Asked Questions
What is the minimum order quantity for Mild Steel CNC Precision Gear Coupling (25-50mm Diameter)?
The minimum order quantity (MOQ) for Mild Steel CNC Precision Gear Coupling (25-50mm Diameter) is 1000 piece.
Who manufactures Mild Steel CNC Precision Gear Coupling (25-50mm Diameter)?
Mild Steel CNC Precision Gear Coupling (25-50mm Diameter) is manufactured by VP Engineering, a Tradoi-verified manufacturer based in Tiruvallur, Tamil Nadu.
What are the payment terms for Mild Steel CNC Precision Gear Coupling (25-50mm Diameter)?
Available payment terms for Mild Steel CNC Precision Gear Coupling (25-50mm Diameter): Full Advance.
What is the price of Mild Steel CNC Precision Gear Coupling (25-50mm Diameter)?
Mild Steel CNC Precision Gear Coupling (25-50mm Diameter) is priced at ₹50 per piece by VP Engineering. Minimum order quantity is 1000 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
How can I buy Mild Steel CNC Precision Gear Coupling (25-50mm Diameter) in bulk?
Mild Steel CNC Precision Gear Coupling (25-50mm Diameter) is available for bulk purchase directly from VP Engineering in Tiruvallur on Tradoi. Submit an RFQ or contact the supplier to discuss volumes above 1000 piece and negotiate pricing.
