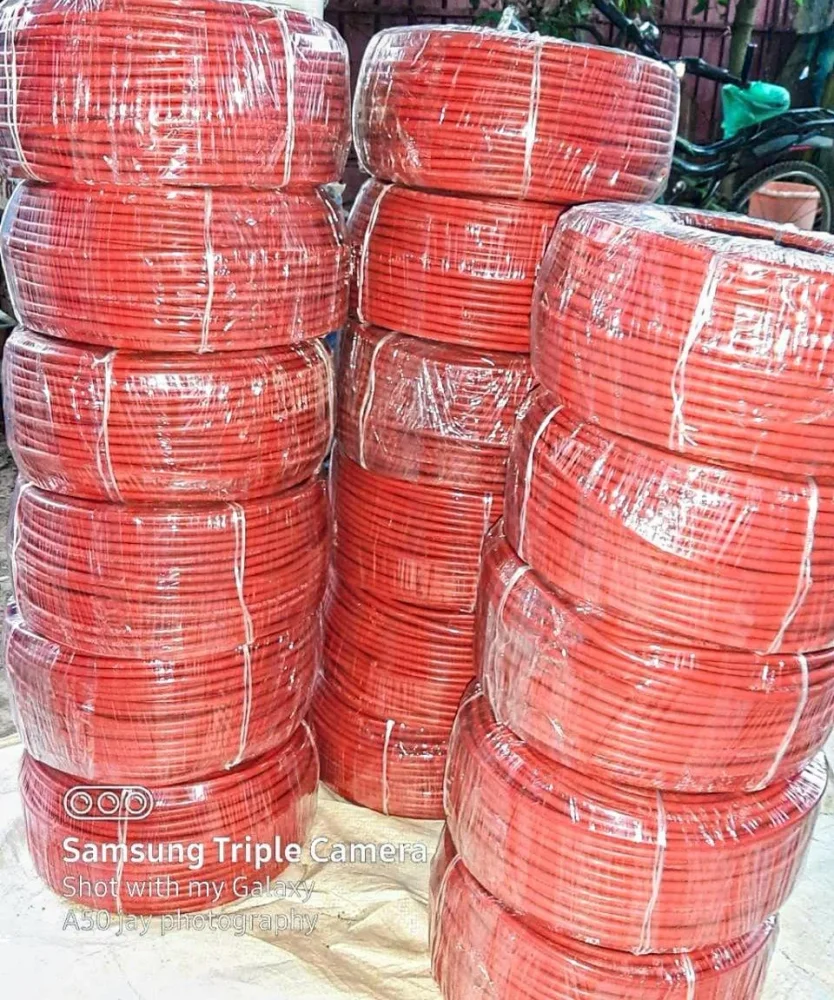

Setout Red Polymer Fire Trace System Tube | Tradoi
Construction & Building Materials › Fire Safety Systems
Setout Red Polymer Fire Trace System Tube — supplied from Chennai, Tamil Nadu by Setout Fire Controls. Tradoi-verified seller at ₹10,000/piece, MOQ 2 piece.
Product Overview
The Setout Red Polymer Fire Trace System Tube offers self-activated linear heat detection, designed for reliable fire suppression in critical environments. This CE certified tube operates at 16 bar, detecting heat at 68°C to protect assets in data centers, warehouses, and industrial facilities.
Detailed Description
The Setout Red Polymer Fire Trace System Tube is engineered for precise and self-activated linear heat detection, forming a critical component of fire suppression systems. With an operating pressure of 16 bar and a detection temperature of 68°C, this tube is filled with FK-5112 gas and Nitrogen, ensuring rapid response to thermal events. Its robust Polymer outer sheath and Polycarbonate material construction provide durability for installation inside hazardous areas and enclosures, making it suitable for new project installations. This fire detection tube is widely adopted across various B2B sectors requiring robust fire safety infrastructure. Key application areas include data centers, where early and localized fire detection is paramount to protect sensitive equipment, and industrial facilities, where machinery and processes pose specific fire risks. It is also suitable for commercial buildings, warehouses, and residential complexes, offering a versatile solution for fixed temperature detection systems. Procurement managers and safety officers seeking reliable, self-contained fire detection for critical assets will find this system highly effective. Certified with CE approval, this Fire Trace System tube meets stringent European safety and performance standards, assuring compliance and reliability for professional installations. The product is supplied and installed, providing a complete solution for integrating advanced fire detection capabilities into diverse operational environments.
Product Details
| Category | Construction & Building Materials |
|---|---|
| Sub-Category | Fire Safety Systems |
| Product Type | Fire Suppression Systems |
| Price | ₹10,000 per piece |
| Minimum Order Quantity | 2 piece |
| Unit | piece |
| Country of Origin | India |
Key Features
- Self-Activated System Compatibility — designed for autonomous operation without external power, enhancing reliability.
- Linear Heat Detection Method — provides continuous temperature monitoring along its length, pinpointing the exact location of heat build-up.
- Fixed Temperature Detection at 68°C — triggers an alarm and suppression at a precise thermal threshold for early fire response.
- Operating Pressure of 16 bar — ensures robust performance and consistent agent discharge under specified conditions.
- Polymer Outer Sheath Material — offers durability and protection for the detection tube, suitable for demanding environments.
- Filled with FK-5112 Gas & Nitrogen — utilizes a clean agent for effective fire suppression with minimal residue and environmental impact.
- Tube Length of 50 m — provides extensive coverage for protecting large or distributed assets within a single run.
- Panel Capacity for 2 Zones — allows for monitoring and managing fire detection across distinct areas.
- CE Certified — complies with European safety, health, and environmental protection standards, ensuring product quality and reliability.
Applications & Use Cases
- Data Centers: Critical for early fire detection and suppression to protect sensitive IT infrastructure and prevent data loss.
- Industrial Facilities: Essential for safeguarding machinery, production lines, and hazardous material storage areas from thermal events.
- Warehouses: Provides reliable fire protection for stored goods and inventory, minimizing damage and operational disruption.
- Commercial Buildings: Suitable for offices, retail spaces, and public areas requiring discreet and effective fire safety solutions.
- Residential Complexes: Integrates into building safety systems for enhanced fire detection in multi-dwelling units.
- Inside Hazardous Areas: Designed for safe and effective installation in environments with potential fire or explosion risks.
- Inside Enclosures: Ideal for protecting specific equipment cabinets, electrical panels, and machinery enclosures.
Technical Specifications
| Application Area | Data Centers |
|---|---|
| Detection Method | Linear Heat Detection |
| Operating Pressure | 16 bar |
| Approvals Standards | CE Certified |
| Brand | Setout |
| Color | Red |
| Material | Polycarbonate |
| Mounting | Inside enclosure |
| IP Rating | Not Applicable |
| System Type | Linear heat |
| Tube Length | 50 m |
| Installation | New project |
| Power Source | Filled with FK-5112 gas & Nitregon |
| Power Supply | Self Derect |
| Product Type | heat detector tube |
| Certification | CE |
| Mounting Type | Inside Hazardous area |
| Uv Resistance | No |
| Detection Type | Fixed temp |
| LED Indication | No |
| Panel Capacity | 2 zone |
| Max Zone Length | 100 m |
| Product Subtype | Panel fire Suppression system Tube |
| Service Offered | Supply and install |
| Alarm Temperature | 57°C |
| Cylinder Capacity | For all |
| Suppression Agent | clean agent |
| System Compatibility | Self Activated |
| Detection Temperature | 68°C |
| Outer Sheath Material | Polymer |
