Siemens 6Fc5610-0ba10-0aa1 Sinumerik 802D Cnc Operator Panel — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹3,15,204/piece, MOQ 1 piece.
Product Overview

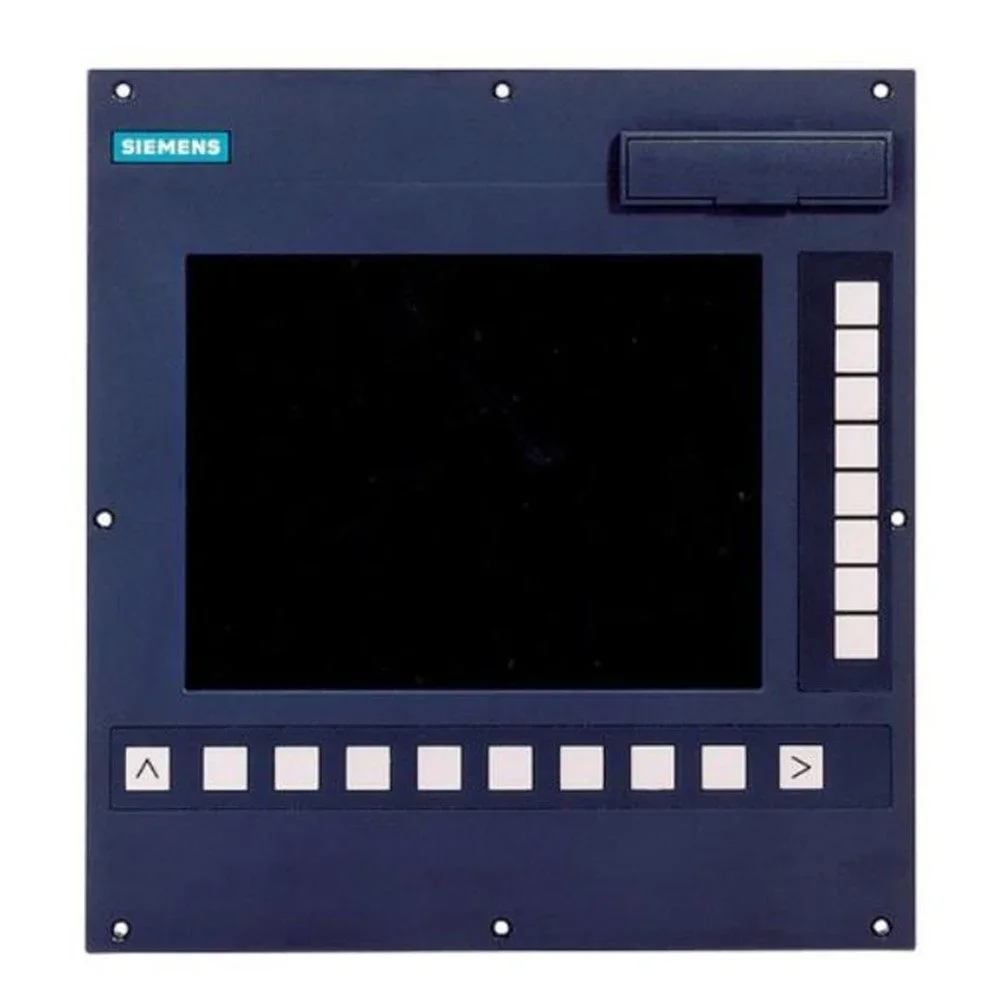

Siemens 6FC5610-0BA10-0AA1 Sinumerik 802D CNC Operator Panel, sourced for industrial automation and machinery upgrades. Ideal for institutional buyers and export houses seeking reliable CNC components.
Detailed Description
The Siemens 6FC5610-0BA10-0AA1 SINUMERIK 802D CNC Operator Panel, specifically the PCU210.2 model, is sourced for machine-tool applications requiring an integrated control solution. This unit is configured for 4 CNC axes and 1 spindle, featuring a 10.4-inch monochrome HMI display for operator interface and CNC visualization. It integrates a PLC and supports PROFIBUS and RS-232 communication, operating on a 24 V DC supply with a tolerance of +20% / -15% (20.4–28.8 V DC) and consuming approximately 50 W. Mechanical specifications include dimensions of 309.4 × 330 × 70 mm and a weight of approximately 4.9 kg. It is also suitable for retrofit applications in older CNC machines, providing a consolidated solution for CNC control, PLC functions, and human-machine interface. Typical operator functions supported include CNC program operation, machine status, alarm display, parameter entry, tool information, diagnostics, and both manual and automatic operation. This unit's specific configuration for 4 axes and 1 spindle makes it a targeted solution for precision machining environments. The Siemens 6FC5610-0BA10-0AA1 is traded across markets with verified IEC certification, ensuring compliance with international electrical safety standards.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | PLCs |
| Price | ₹3,15,204 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Sourced Siemens 6FC5610-0BA10-0AA1 SINUMERIK 802D CNC Operator Panel (PCU210.2).
- Integrated control solution for 4 CNC axes and 1 spindle machine-tool applications.
- Features a 10.4-inch monochrome HMI display for operator interface and CNC visualization.
- Includes an integrated PLC and supports PROFIBUS and RS-232 communication interfaces.
- Operates on a 24 V DC supply, consuming approximately 50 W, with IP54 degree of protection.
- Suitable for retrofit applications in older CNC machines, providing consolidated control.
- Supports CNC program operation, machine status, alarm display, and diagnostics.
- Traded across markets with verified IEC certification, ensuring international safety compliance.
Applications & Use Cases
- Machine Tool Industry: Integrated control for precision machining environments requiring 4 axes and 1 spindle.
- Industrial Automation: Retrofit applications for upgrading older CNC machines with modern control solutions.
- Manufacturing Units: Centralized control and HMI for CNC program operation and machine status monitoring.
- Export Houses: Supply of IEC-certified Siemens CNC panels to international markets including UAE, Saudi Arabia, and USA.
Technical Specifications
| Pcu | PCU210.2 |
|---|---|
| Brand | Siemens |
| Depth | Approx. 70 mm |
| Width | Approx. 330 mm |
| Height | Approx. 309.4 mm |
| Series | Sinumerik 802D |
| Weight | Approx. 4.9 kg |
| Spindle | 1 spindle |
| Cnc Axes | 4 axes |
| Parameter | Specification |
| Tolerance | +20% / -15% |
| Dimensions | Approx. 309.4 × 330 × 70 mm |
| Application | CNC machine tools |
| Hmi Display | 10.4-inch monochrome |
| Display Size | 10.4 Inch |
| Model Series | Basic |
| Product Type | CNC Operator Panel / PCU |
| Approx. Power | 50 W |
| Communication | PROFIBUS, RS-232 |
| Specification | Details |
| Article Number | 6FC5610-0BA10-0AA1 |
| Integrated Plc | Yes |
| Product Family | SINUMERIK 802D |
| Supply Voltage | 24 V DC |
| Supply Voltage | 24 V DC |
| Screen Diagonal | 15 in |
| Order No. / Mlfb | 6FC5610-0BA10-0AA1 |
| Permitted Voltage | 24 V DC +20% / -15% |
| Power Consumption | Approx. 50 W |
| Input Voltage Range | Approx. 20.4–28.8 V DC |
| Alternative Part No. | 6FC56100BA100AA1 |
| Degree Of Protection | IP54 |
| Communication Interface | RS232, PROFIBUS DP |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens 6Fc5610-0ba10-0aa1 Sinumerik 802D Cnc Operator Panel?
The minimum order quantity (MOQ) for Siemens 6Fc5610-0ba10-0aa1 Sinumerik 802D Cnc Operator Panel is 1 piece.
Who supplies Siemens 6Fc5610-0ba10-0aa1 Sinumerik 802D Cnc Operator Panel?
Siemens 6Fc5610-0ba10-0aa1 Sinumerik 802D Cnc Operator Panel is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens 6Fc5610-0ba10-0aa1 Sinumerik 802D Cnc Operator Panel?
Available payment terms for Siemens 6Fc5610-0ba10-0aa1 Sinumerik 802D Cnc Operator Panel: Full Advance.
What is the price of Siemens 6Fc5610-0ba10-0aa1 Sinumerik 802D Cnc Operator Panel?
Siemens 6Fc5610-0ba10-0aa1 Sinumerik 802D Cnc Operator Panel is priced at ₹3,15,204 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
