Siemens 6Se6400-3tc03-2cd3 Micromaster 4 Output Reactor — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹58,771/piece, MOQ 1 piece.
Product Overview

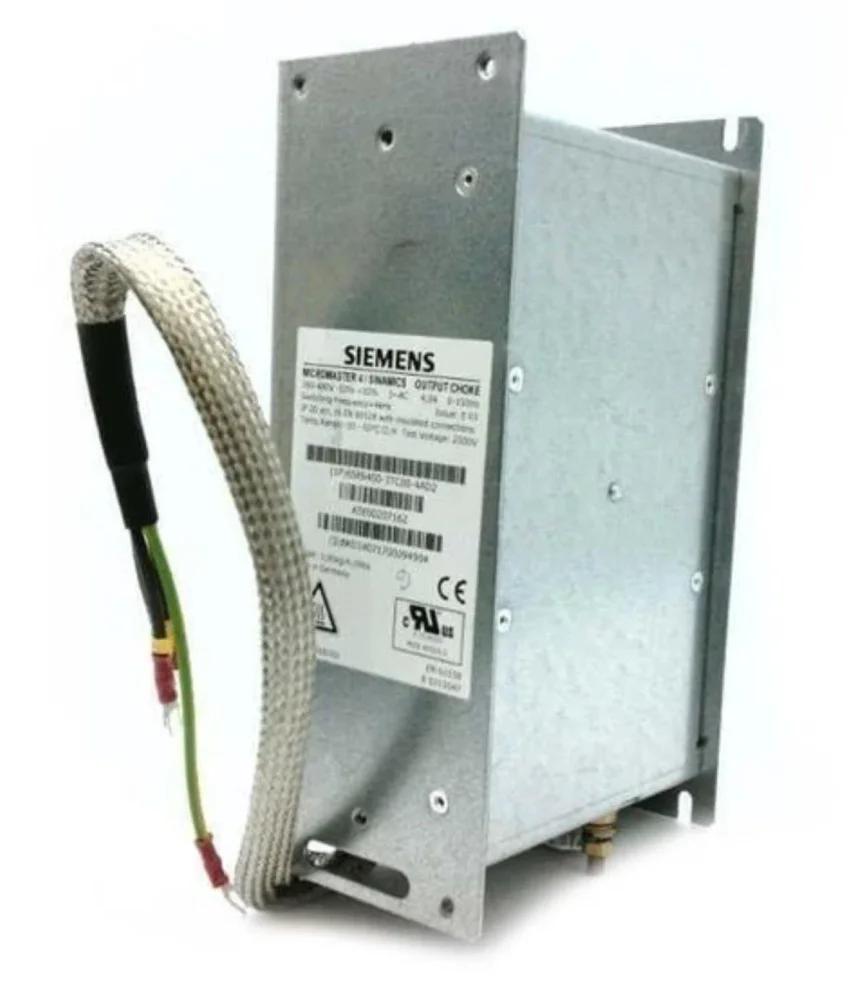

Siemens 6SE6400-3TC03-2CD3 Micromaster 4 Output Reactor, sourced for industrial automation and motor control applications. Essential for system integrators and MRO procurement seeking reliable power quality solutions.
Detailed Description
The Siemens 6SE6400-3TC03-2CD3 Micromaster 4 Output Reactor, a 3-phase AC output choke, is sourced for industrial applications requiring improved electrical conditions between frequency converters and motors. This specific model, with MLFB / Order No. 6SE6400-3TC03-2CD3, operates within a rated voltage range of 200–480 V AC and a rated current of 26 A. It features an inductance of 0.332 mH, a Frame Size C (FSC), and is designed for use with MICROMASTER 4 drives. Key specifications include a maximum cable length of 200 m at 400 V and 100 m at 480 V, with an approximate power loss of 65.3 W. Connection is via screw terminals, with an M5 stud for PE connection. This legacy product, originating from Germany, weighs approximately 5.6–6.6 kg and measures around 185 × 245 × 80 mm. This output reactor is supplied to a range of B2B buyers including industrial equipment resellers, MRO (Maintenance, Repair, and Operations) procurement teams for manufacturing facilities, and project contractors involved in upgrading or maintaining variable frequency drive (VFD) systems. It is particularly relevant for applications where longer motor cables are deployed, mitigating issues such as voltage spikes and harmonic distortion that can arise in such setups. Typical procurement contexts include spares for existing MICROMASTER 4 installations or integration into legacy system refurbishment projects. Its function is to sit between the VFD and the motor, ensuring stable power delivery and extending the operational life of connected machinery. This Siemens 6SE6400-3TC03-2CD3 Micromaster 4 Output Reactor is traded across markets with verified IEC certification, ensuring compliance with international electrical standards.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Motors & Drives |
| Product Type | Motor Electrical Spares |
| Price | ₹58,771 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Siemens 6SE6400-3TC03-2CD3 Micromaster 4 output reactor, sourced from Germany.
- 3-phase AC output choke with a rated voltage range of 200–480 V AC.
- Rated current of 26 amperes and an inductance of 0.332 mH.
- Designed for MICROMASTER 4 drives, compatible with Frame Size C (FSC).
- Supports maximum cable lengths of 200m at 400V and 100m at 480V.
- Features screw terminals for connection and an M5 stud for PE connection.
- IEC certified, ensuring compliance with international electrical standards.
- Supplied from Mohali, Punjab, for buyers across India and for export.
Applications & Use Cases
- Industrial Equipment Resellers: For stocking and distributing specialized electrical components.
- MRO Procurement Teams: For maintenance and repair of existing manufacturing facility infrastructure.
- Project Contractors: For upgrading or maintaining variable frequency drive (VFD) systems.
- Legacy System Refurbishment: Integrating into older MICROMASTER 4 installations.
- Long Cable Applications: Mitigating voltage spikes and harmonic distortion in extended motor cable setups.
Technical Specifications
| Brand | Siemens |
|---|---|
| Phase | 3-phase AC |
| Series | Micromaster 420 |
| Supply | 3-phase |
| Weight | Approx. 5.6–6.6 kg depending on catalog/source |
| IP Rating | IP55 |
| Parameter | Specification |
| Connection | Screw terminals |
| Dimensions | Approx. 185 × 245 × 80 mm |
| Frame Size | C (FSC) |
| Inductance | 0.332 mH |
| Power Loss | Approx. 65.3 W |
| Application | MICROMASTER 4 drives |
| Input Phase | Three Phase |
| Power Rating | 0.75 kW |
| Product Type | Output Choke / Output Reactor |
| Input Voltage | 200–480 V AC |
| Pe Connection | M5 stud |
| Pe Connection | M5 stud |
| Rated Current | 26 A |
| Rated Voltage | 200–480 V AC |
| Rated Current | 26 A |
| Specification | Details |
| Product Family | MICROMASTER 4 |
| Mlfb / Order No. | 6SE6400-3TC03-2CD3 |
| Country Of Origin | Germany |
| Product Lifecycle | Cancelled / legacy product |
| Maximum Power Loss | ~65.3 W |
| Input/output Voltage | 200–480 V AC |
| Maximum Cable Length At 400 V | 200 m |
| Maximum Cable Length At 480 V | 100 m |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens 6Se6400-3tc03-2cd3 Micromaster 4 Output Reactor?
The minimum order quantity (MOQ) for Siemens 6Se6400-3tc03-2cd3 Micromaster 4 Output Reactor is 1 piece.
Who supplies Siemens 6Se6400-3tc03-2cd3 Micromaster 4 Output Reactor?
Siemens 6Se6400-3tc03-2cd3 Micromaster 4 Output Reactor is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens 6Se6400-3tc03-2cd3 Micromaster 4 Output Reactor?
Available payment terms for Siemens 6Se6400-3tc03-2cd3 Micromaster 4 Output Reactor: Full Advance.
What is the price of Siemens 6Se6400-3tc03-2cd3 Micromaster 4 Output Reactor?
Siemens 6Se6400-3tc03-2cd3 Micromaster 4 Output Reactor is priced at ₹58,771 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
