Siemens Simatic 6Av2123-2mb03-0ax0 Hmi Basic Panels | Tradoi
Electronics & Electrical › Automation & Control
Siemens Simatic 6Av2123-2mb03-0ax0 Hmi Basic Panels — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹67,399/piece, MOQ 1 piece.
Product Overview
Siemens Simatic 6AV2123-2MB03-0AX0 HMI Basic Panels, sourced for industrial automation and control system integrators. These panels are supplied for efficient machine operation and process visualization across diverse market segments.
Detailed Description

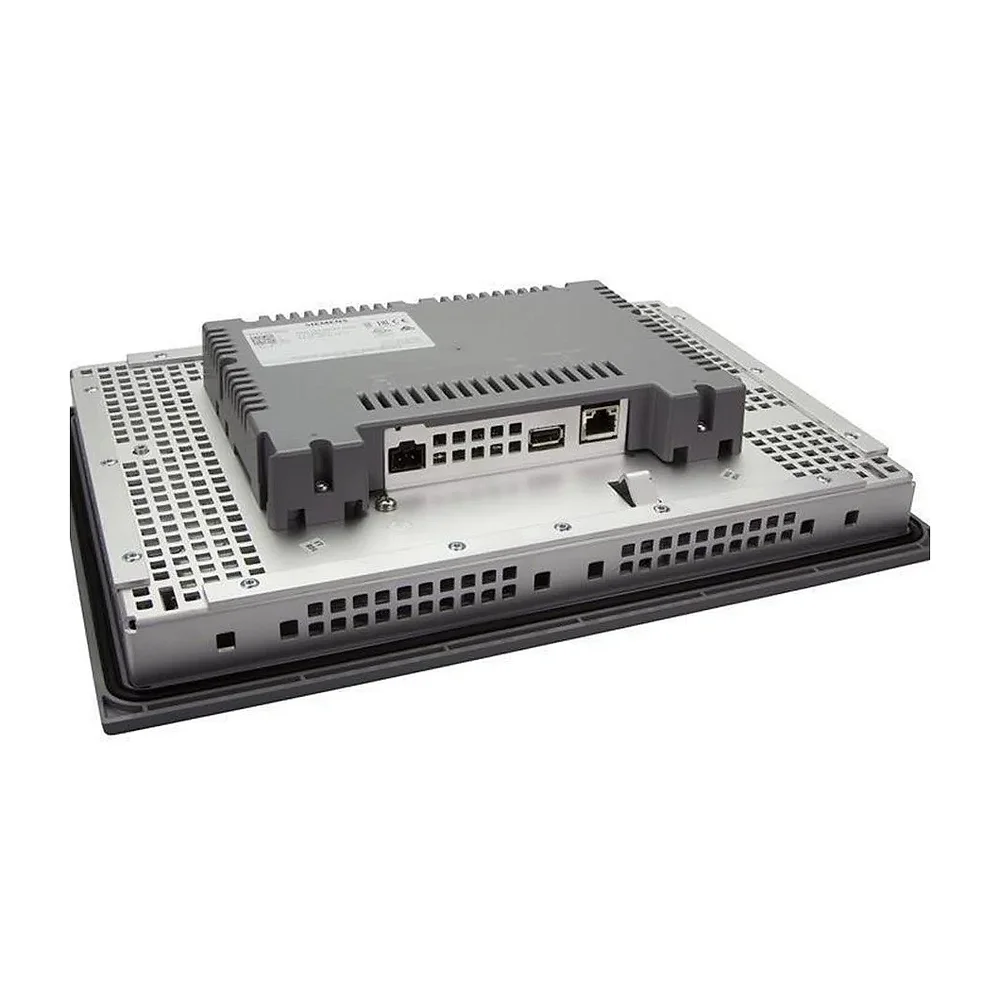

The Siemens Simatic 6AV2123-2MB03-0AX0 HMI Basic Panel, model KTP1200 Basic PN, is a 12-inch TFT widescreen display with a resolution of 1280 × 800 pixels across a 261.1 × 163.2 mm display area, capable of rendering 65,536 colors. Sourced for industrial applications, this panel features an analog resistive touchscreen and 10 programmable function keys, powered by an ARM processor with 10 MB of user memory. Communication is facilitated via a PROFINET / Industrial Ethernet (RJ45) interface, operating on a 24 V DC supply with a typical power consumption of 12.2 W. Its LED backlighting is dimmable, and the unit supports both portrait and landscape panel mounting. This HMI Basic Panel is supplied for integration into control systems for process automation, machine operation, and facility management. Its IP65 / NEMA 4X front protection (when properly installed) and 0°C to +50°C operating temperature range make it suitable for deployment in demanding industrial environments, including manufacturing plants, water treatment facilities, and energy distribution centers. The compact dimensions of 340 × 250 × 52 mm and a net weight of approximately 2.05 kg facilitate straightforward installation. The Siemens Simatic 6AV2123-2MB03-0AX0 HMI Basic Panel is traded across markets with verified IEC certification, ensuring adherence to international standards for electrical and electronic products. This certification underscores its suitability for deployment in diverse industrial settings where compliance and operational reliability are critical.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | HMIs |
| Price | ₹67,399 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Features a 12-inch TFT widescreen display with 1280 × 800 pixel resolution, rendering 65,536 colors.
- Equipped with an analog resistive touchscreen and 10 programmable function keys for industrial control.
- Powered by an ARM processor with 10 MB user memory, facilitating robust HMI operations.
- Integrated with a PROFINET / Industrial Ethernet (RJ45) interface for seamless communication.
- Operates on a 24 V DC supply with 12.2 W typical power consumption and dimmable LED backlighting.
- Offers IP65 / NEMA 4X front protection and an operating temperature range of 0°C to +50°C.
- Supports both portrait and landscape panel mounting, with compact dimensions of 340 × 250 × 52 mm.
- Sourced from a verified supply network, ensuring IEC certification for international deployment.
Applications & Use Cases
- Process Automation: Ideal for integrating into control systems within manufacturing plants.
- Machine Operation: Suitable for deployment in diverse industrial environments requiring HMI panels.
- Facility Management: Utilized in water treatment facilities and energy distribution centers.
- Industrial Integration: Supplied for control systems in demanding industrial settings.
- OEM and System Integrators: Traded for integration into custom industrial solutions across markets.
Technical Specifications
| Brand | Siemens |
|---|---|
| Model | KTP1200 Basic PN |
| Series | SIMATIC Basic Panel |
| Mounting | Panel mounting |
| Parameter | Specification |
| Processor | ARM processor |
| Net Weight | Approx. 2.05 kg |
| Part Number | 6AV2123-2MB03-0AX0 |
| User Memory | 10 MB |
| Backlighting | LED, dimmable |
| Display Area | 261.1 × 163.2 mm |
| Display Size | 12-inch TFT widescreen |
| Display Type | TFT Color |
| Manufacturer | Siemens |
| Function Keys | 10 programmable keys |
| Article Number | 6AV2123-2MB03-0AX0 |
| Product Family | SIMATIC HMI Basic Panels (2nd Generation) |
| Supply Voltage | 24 V DC (19.2–28.8 V DC) |
| Rear Protection | IP20 |
| Screen Diagonal | 12 in |
| Front Protection | IP65 / NEMA 4X (front, properly installed) |
| Number Of Colors | 65,536 |
| Touch Technology | Analog resistive touchscreen |
| Display Resolution | 1280 × 800 pixels |
| Current Consumption | 510 mA (typ.) |
| Degree Of Protection | IP65 |
| Mounting Orientation | Portrait or Landscape |
| Operating Temperature | 0°C to +50°C |
| Communication Interface | 1 × PROFINET / Industrial Ethernet (RJ45) |
| Dimensions (w × H × D) | 340 × 250 × 52 mm (approx.) |
| Typical Power Consumption | 12.2 W |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens Simatic 6Av2123-2mb03-0ax0 Hmi Basic Panels?
The minimum order quantity (MOQ) for Siemens Simatic 6Av2123-2mb03-0ax0 Hmi Basic Panels is 1 piece.
Who supplies Siemens Simatic 6Av2123-2mb03-0ax0 Hmi Basic Panels?
Siemens Simatic 6Av2123-2mb03-0ax0 Hmi Basic Panels is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens Simatic 6Av2123-2mb03-0ax0 Hmi Basic Panels?
Available payment terms for Siemens Simatic 6Av2123-2mb03-0ax0 Hmi Basic Panels: Full Advance.
What is the price of Siemens Simatic 6Av2123-2mb03-0ax0 Hmi Basic Panels?
Siemens Simatic 6Av2123-2mb03-0ax0 Hmi Basic Panels is priced at ₹67,399 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
