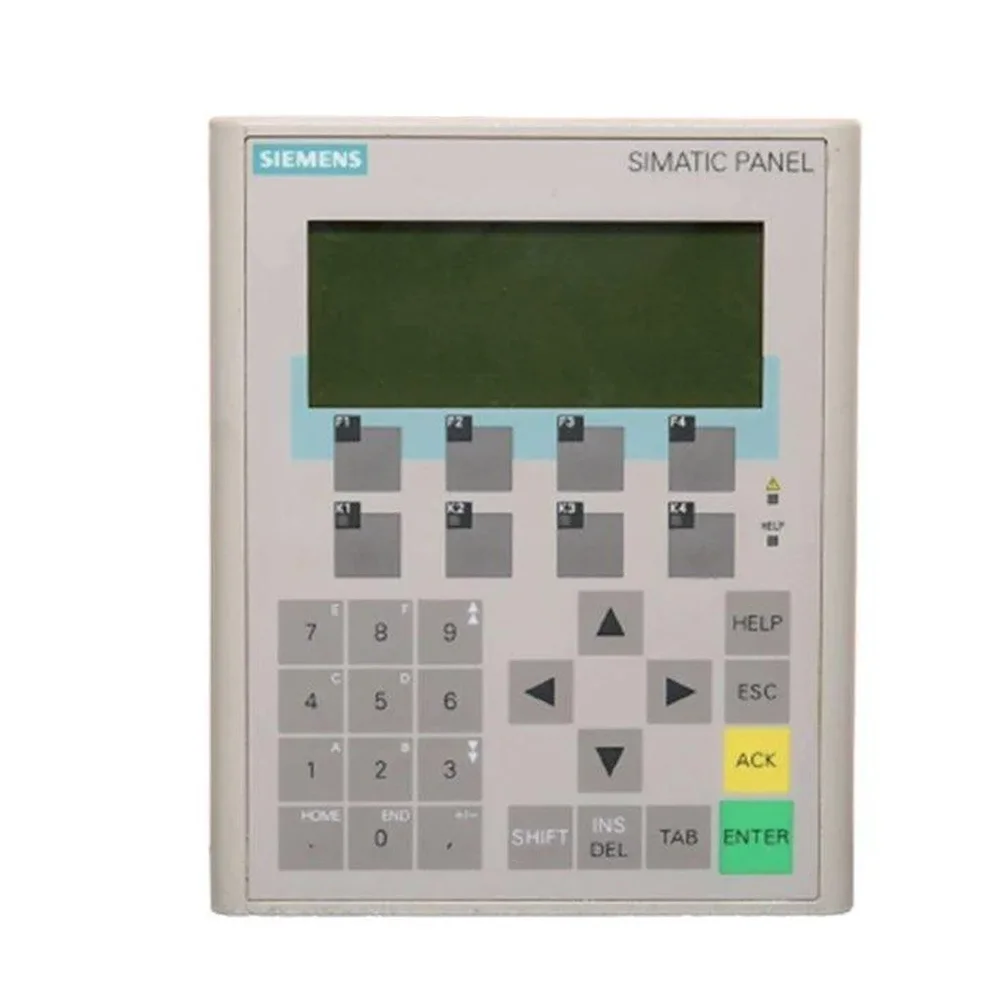

Siemens Simatic Op77a 6Av6641 0Ba11 0Ax1 Operator Panel — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹1,55,243/piece, MOQ 1 piece.
Product Overview
Siemens Simatic OP77A 6AV6641 0BA11 0AX1 Operator Panel, sourced for industrial automation and control system integrators. Supplied for cross-market distribution to meet specific operational interface needs.
Detailed Description
The Siemens Simatic OP77A Operator Panel, order number 6AV6641 0BA11 0AX1, is a monochrome STN LCD HMI featuring a 4.5-inch display with 160 x 64 pixel resolution and 2-color (Black/White) output. This unit is sourced for industrial automation applications, incorporating a membrane keyboard with 8 programmable function keys, 4 of which include LEDs for enhanced operational feedback. Powered by an ARM processor, it offers 256 KB of user memory (Flash/RAM) and communicates via MPI/PROFIBUS-DP interfaces at speeds up to 1.5 Mbit/s, utilizing RS-422/RS-485 physical connections. The backlight boasts an MTBF of approximately 100,000 hours at 25°C, ensuring durability. Configuration is managed through WinCC flexible 2004 Compact HSP or later. This operator panel is supplied for integration into diverse industrial environments, serving institutional buyers, system integrators, and export houses focused on machine operation, process visualization, and PLC operator interfacing. Its robust design and panel mounting capability make it suitable for control system upgrades in manufacturing facilities, infrastructure projects, and utility sectors. Typical applications include managing production lines, monitoring critical process parameters, and providing a direct human-machine interface for programmable logic controllers in sectors ranging from automotive and food processing to water treatment and energy management. Its compact dimensions (150 x 186 mm front, 135 x 171 mm mounting cutout, 38.5 mm overall depth) and light weight (approx. 0.5 kg) facilitate straightforward installation. The Siemens Simatic OP77A 6AV6641 0BA11 0AX1 Operator Panel is supplied with verified IEC certification, assuring adherence to international standards for electrical and electronic products. Operating on a 24 V DC supply with a rated current consumption of approximately 0.2 A, this unit is traded across markets for its consistent performance in demanding industrial settings.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | HMIs |
| Price | ₹1,55,243 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Monochrome 4.5-inch STN LCD HMI with 160 x 64 pixel resolution and 2-color output.
- Equipped with a membrane keyboard featuring 8 programmable function keys, 4 with LEDs.
- Powered by an ARM processor with 256 KB user memory (Flash/RAM) for industrial automation.
- Communicates via MPI/PROFIBUS-DP interfaces up to 1.5 Mbit/s using RS-422/RS-485 connections.
- Backlight boasts an MTBF of approximately 100,000 hours at 25°C, ensuring durability.
- Configurable using WinCC flexible 2004 Compact HSP or later for system integration.
- Supplied with verified IEC certification, assuring adherence to international standards.
- Operates on a 24 V DC supply with a rated current consumption of approximately 0.2 amperes.
Applications & Use Cases
- Manufacturing Facilities: Managing production lines and control system upgrades.
- Infrastructure Projects: Monitoring critical process parameters in diverse environments.
- Utility Sectors: Providing direct human-machine interface for programmable logic controllers.
- System Integrators: Integration into custom industrial automation solutions.
- Export Houses: Sourced for international distribution in automotive and food processing.
Technical Specifications
| Brand | Siemens |
|---|---|
| Model | SIMATIC OP77A |
| Memory | Flash / RAM |
| Series | SIMATIC OP77A |
| Weight | Approx. 0.5 kg |
| Mounting | Panel mounting |
| Backlight | Yes |
| Processor | ARM |
| Resolution | 160 × 64 pixels |
| User Memory | 256 KB |
| Display Size | 4.5 inch |
| Display Type | STN LCD, monochrome |
| Order Number | 6AV6641-0BA11-0AX1 |
| Product Type | Operator Panel / HMI |
| Overall Depth | 38.5 mm |
| Specification | Details |
| Article Number | 6AV6641-0BA11-0AX1 |
| Backlight Mtbf | Approx. 100,000 hours at 25°C |
| Display Colors | 2 — Black/White |
| Supply Voltage | 24 V DC |
| Mounting Cutout | 135 × 171 mm |
| Front Dimensions | 150 × 186 mm |
| Operating Method | Membrane keyboard / physical keys |
| Physical Interface | RS-422 / RS-485 |
| Degree Of Protection | IP65 |
| Typical Applications | Machine operation, process visualization and PLC operator interface |
| Configuration Software | WinCC flexible 2004 Compact HSP or later |
| Communication Interface | MPI / PROFIBUS-DP |
| Function Keys With Leds | 4 |
| Rated Current Consumption | Approx. 0.2 A |
| Programmable Function Keys | 8 |
| Maximum Communication Speed | 1.5 Mbit/s |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens Simatic Op77a 6Av6641 0Ba11 0Ax1 Operator Panel?
The minimum order quantity (MOQ) for Siemens Simatic Op77a 6Av6641 0Ba11 0Ax1 Operator Panel is 1 piece.
Who supplies Siemens Simatic Op77a 6Av6641 0Ba11 0Ax1 Operator Panel?
Siemens Simatic Op77a 6Av6641 0Ba11 0Ax1 Operator Panel is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens Simatic Op77a 6Av6641 0Ba11 0Ax1 Operator Panel?
Available payment terms for Siemens Simatic Op77a 6Av6641 0Ba11 0Ax1 Operator Panel: Full Advance.
What is the price of Siemens Simatic Op77a 6Av6641 0Ba11 0Ax1 Operator Panel?
Siemens Simatic Op77a 6Av6641 0Ba11 0Ax1 Operator Panel is priced at ₹1,55,243 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
