Siemens Simatic S7-300 6Es7314-6ch04-0ab0 Cpu — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹92,200/piece, MOQ 1 piece.
Product Overview
Siemens Simatic S7-300 6ES7314-6CH04-0AB0 CPU, sourced for industrial automation and control systems. Traded across markets for system integrators and large-scale project requirements.
Detailed Description

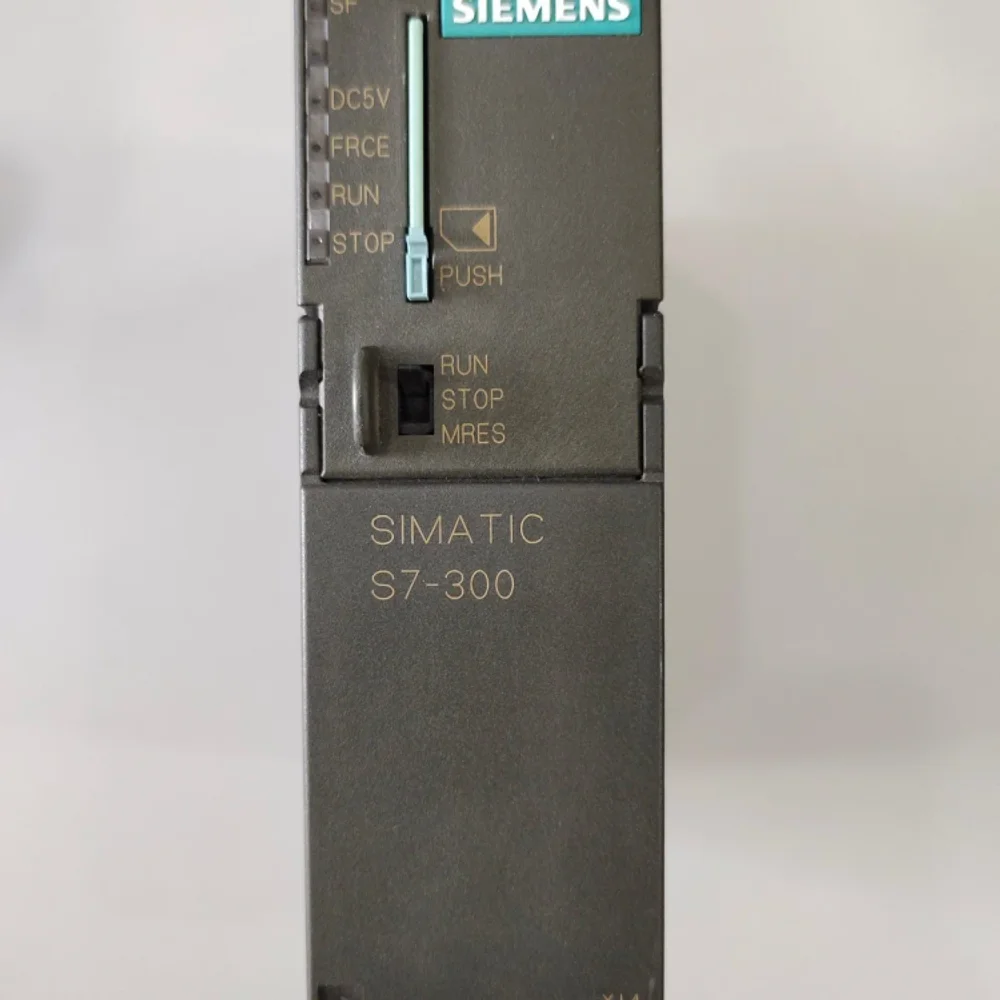

The Siemens Simatic S7-300 6ES7314-6CH04-0AB0 CPU is a compact CPU 314C-2 DP, identified by Siemens as a spare part. This unit integrates 24 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs, and a dedicated Pt100 temperature measurement input. It features four high-speed counters, each capable of up to 60 kHz, and operates with a 192 KB work memory. Communication is facilitated through integrated MPI and PROFIBUS DP interfaces, supporting programming, HMI interaction, and connection to distributed I/O and field devices. The CPU requires a Micro Memory Card and is powered by a 24 V DC supply, with a permissible range of 19.2–28.8 V DC. This compact CPU is widely sourced for industrial automation projects requiring integrated control and communication capabilities, particularly in sectors like manufacturing, process control, and infrastructure. It serves as a critical component for system integrators, maintenance departments in large-scale factories, and engineering firms managing upgrades or replacements of existing Siemens S7-300 installations. Its integrated I/O functionality reduces the need for additional signal modules, making it suitable for compact control solutions in machinery, material handling systems, and building management applications where space and wiring complexity are considerations. This Siemens Simatic S7-300 CPU 6ES7314-6CH04-0AB0 is supplied with IEC certification, ensuring compliance with international standards for electrical and electronic products.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | PLCs |
| Price | ₹92,200 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Compact CPU 314C-2 DP with integrated I/O, sourced for industrial automation.
- Features 24 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs.
- Includes a dedicated Pt100 temperature measurement input for precise control.
- Equipped with four high-speed counters, each supporting up to 60 kHz operations.
- Operates with a 192 KB work memory for robust program execution.
- Integrated MPI and PROFIBUS DP interfaces facilitate extensive communication.
- Requires a Micro Memory Card and operates on a 24 V DC supply.
- Supplied with IEC certification, ensuring compliance for electrical products traded globally.
Applications & Use Cases
- Manufacturing: Critical component for system integrators managing factory automation.
- Process Control: Utilized in industries requiring integrated control and communication capabilities.
- Infrastructure Projects: Key for engineering firms managing upgrades or replacements.
- Machinery & Material Handling: Ideal for compact control solutions where space is limited.
- Building Management: Suitable for systems requiring integrated I/O functionality.
Technical Specifications
| I²t | 0.7 A²s |
|---|---|
| Brand | Siemens |
| Series | S7-300 |
| Status | Spare Part |
| Cpu Type | Compact CPU |
| Firmware | V3.3 |
| Cpu Model | CPU 314C-2 DP |
| Parameter | Specification |
| Memory Card | Micro Memory Card required |
| Module Type | Compact CPU |
| Output Type | Relay |
| Work Memory | 192 KB |
| Power Supply | 24 V DC |
| Analog Inputs | 4 AI |
| Specification | Details |
| Analog Outputs | 2 AO |
| Digital Inputs | 24 DI |
| Product Family | SIMATIC S7-300 |
| Supply Voltage | 24 V DC |
| Digital Outputs | 16 DO |
| Front Connector | 2 × 40-pole |
| Order No. / Mlfb | 6ES7314-6CH04-0AB0 |
| Permissible Range | 19.2–28.8 V DC |
| Temperature Input | 1 × Pt100 |
| High-speed Counters | 4 × 60 kHz |
| Programming Software | STEP 7 V5.5 + SP1 or later, or STEP 7 V5.3 + SP2 with HSP 203 |
| Rated Supply Voltage | 24 V DC |
| Integrated Profibus Dp | Yes |
| Typical Inrush Current | 5 A |
| Communication Interface | PROFIBUS DP, MPI |
| Integrated Mpi Interface | Yes |
| Number Of Digital Inputs | 16 |
| Typical No-load Current Consumption | 150 mA |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens Simatic S7-300 6Es7314-6ch04-0ab0 Cpu?
The minimum order quantity (MOQ) for Siemens Simatic S7-300 6Es7314-6ch04-0ab0 Cpu is 1 piece.
Who supplies Siemens Simatic S7-300 6Es7314-6ch04-0ab0 Cpu?
Siemens Simatic S7-300 6Es7314-6ch04-0ab0 Cpu is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens Simatic S7-300 6Es7314-6ch04-0ab0 Cpu?
Available payment terms for Siemens Simatic S7-300 6Es7314-6ch04-0ab0 Cpu: Full Advance.
What is the price of Siemens Simatic S7-300 6Es7314-6ch04-0ab0 Cpu?
Siemens Simatic S7-300 6Es7314-6ch04-0ab0 Cpu is priced at ₹92,200 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
