Siemens Simatic S7-300 6Es7314-6eh04-0ab0 Cpu — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹2,59,354/piece, MOQ 1 piece.
Product Overview
Siemens Simatic S7-300 6ES7314-6EH04-0AB0 CPU, sourced for industrial automation and control systems. Traded across markets for system integrators, plant engineers, and maintenance teams requiring reliable PLC components.
Detailed Description

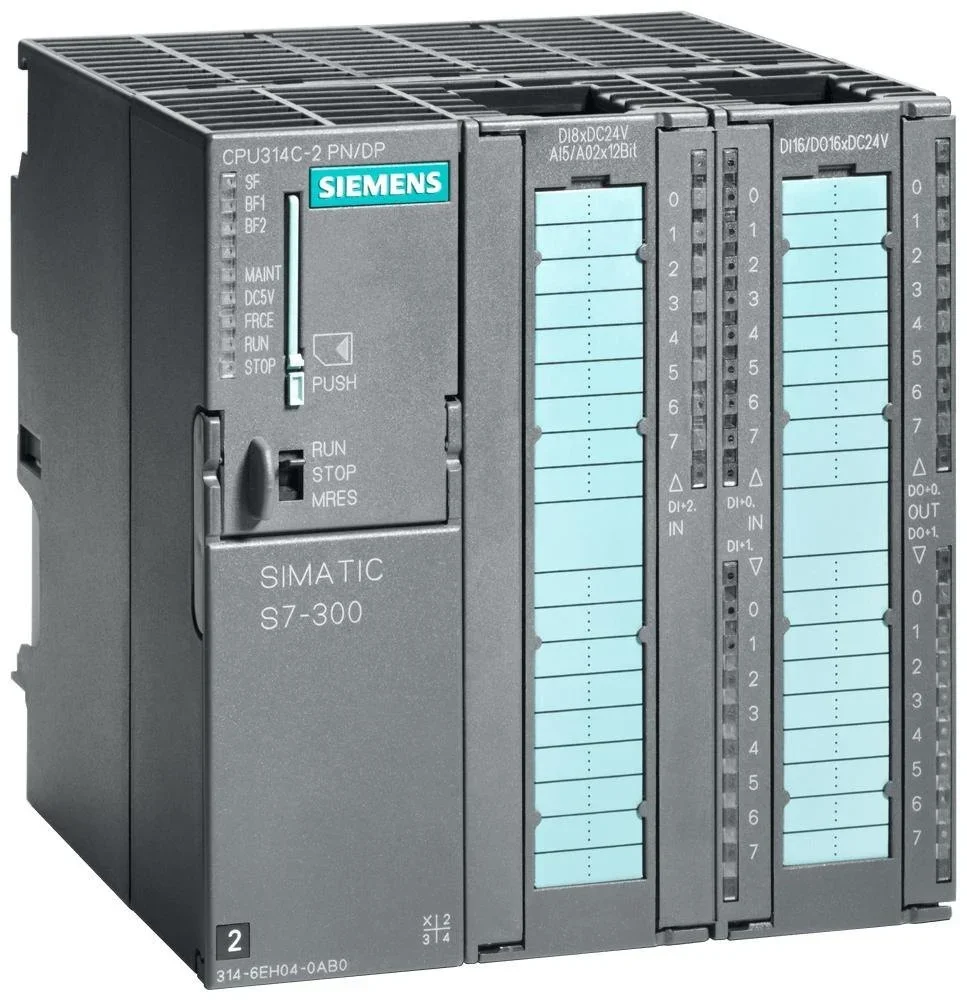

The Siemens SIMATIC S7-300 CPU 314C-2 PN/DP (Order No. 6ES7314-6EH04-0AB0) is a compact CPU integrating digital, analog, and temperature input functions alongside high-speed counters. This unit features 192 KB of work memory and supports load memory up to 8 MB via a Micro Memory Card (MMC). It is equipped with 24 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs, and a dedicated Pt100 temperature input. Communication is facilitated through an integrated MPI/PROFIBUS DP interface, supporting speeds up to 12 Mbit/s, and a PROFINET Ethernet interface with a 2-port integrated switch, capable of PROFINET Isochronous Mode. Operating on a 24 V DC supply, this CPU has a power loss of approximately 14 W and a net weight of 0.785 kg. This CPU is sourced for industrial automation integrators, panel builders, and maintenance departments in manufacturing facilities requiring robust and compact PLC solutions. Its integrated I/O and communication capabilities make it suitable for applications in process control, machine automation, and distributed control systems across sectors such as automotive, food and beverage, and material handling. The inclusion of high-speed counters, up to 60 kHz, supports precise control tasks in packaging machinery and production lines. It is programmed using STEP 7 V5.5 or higher with HSP 191, making it a reliable component for system upgrades and new installations traded across various industrial markets. This Siemens SIMATIC S7-300 CPU is supplied with verified IEC certification, ensuring its adherence to international standards for electrical and electronic products. This certification confirms the product's compliance with safety and performance benchmarks, providing assurance for institutional buyers and export houses integrating these components into larger systems.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | PLCs |
| Price | ₹2,59,354 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Compact Siemens SIMATIC S7-300 CPU 314C-2 PN/DP (6ES7314-6EH04-0AB0) with 192 KB work memory.
- Integrated 24 digital inputs, 16 digital outputs, 4 analog inputs, and a Pt100 temperature input.
- Features MPI/PROFIBUS DP and PROFINET Ethernet interfaces with a 2-port switch for versatile communication.
- Supports up to 8 MB load memory via Micro Memory Card (MMC) for expanded program storage.
- Equipped with high-speed counters up to 60 kHz for precise industrial control tasks.
- Operates on a 24 V DC supply, designed for DIN Rail mounting in industrial panels.
- Programmed using STEP 7 V5.5 or higher with HSP 191 for seamless integration and upgrades.
- Supplied with verified IEC certification, ensuring adherence to international electrical standards.
Applications & Use Cases
- Industrial Automation Integrators: For developing robust and compact PLC solutions in diverse projects.
- Manufacturing Facilities: Ideal for process control, machine automation, and distributed control systems.
- Automotive Sector: Employed in production lines requiring precise control and integrated I/O capabilities.
- Food and Beverage Industry: Suitable for packaging machinery and production line automation with high-speed counters.
- Export Houses: Reliable component for integration into larger systems for international markets like UAE and USA.
Technical Specifications
| Brand | Siemens |
|---|---|
| Model | CPU 314C-2 PN/DP |
| Backup | Via MMC |
| Series | S7-300 |
| Firmware | V3.3 |
| Net Weight | Approx. 0.785 kg |
| Power Loss | Approx. 14 W |
| Load Memory | Up to 8 MB via Micro Memory Card (MMC) |
| Module Type | Compact CPU |
| Output Type | Relay |
| Work Memory | 192 KB |
| Product Type | Compact CPU / PLC |
| Analog Inputs | 4 AI |
| Mounting Type | DIN Rail Mount |
| Specification | Details |
| Analog Outputs | 2 AO |
| Commodity Code | 85371091 |
| Digital Inputs | 24 DI |
| Inrush Current | Approx. 5 A |
| Profinet Ports | 2-port integrated switch |
| Product Family | SIMATIC S7-300 |
| Supply Voltage | 24 V DC |
| Digital Outputs | 16 DO |
| Front Connector | 2 × 40-pin |
| No-load Current | Approx. 190 mA |
| Order No. / Mlfb | 6ES7314-6EH04-0AB0 |
| Country Of Origin | Germany |
| Profibus Dp Speed | Up to 12 Mbit/s |
| Temperature Input | 1 × Pt100 |
| High-speed Counters | 4 counters, up to 60 kHz |
| Programming Software | STEP 7 V5.5 or higher with HSP 191 |
| Communication Interface | MPI, PROFINET |
| Number Of Digital Inputs | 16 |
| Permissible Supply Range | 19.2–28.8 V DC |
| Profinet Isochronous Mode | Yes |
| Rated Current Consumption | 850 mA |
| 1st Communication Interface | MPI / PROFIBUS DP |
| 2nd Communication Interface | Ethernet PROFINET |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens Simatic S7-300 6Es7314-6eh04-0ab0 Cpu?
The minimum order quantity (MOQ) for Siemens Simatic S7-300 6Es7314-6eh04-0ab0 Cpu is 1 piece.
Who supplies Siemens Simatic S7-300 6Es7314-6eh04-0ab0 Cpu?
Siemens Simatic S7-300 6Es7314-6eh04-0ab0 Cpu is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens Simatic S7-300 6Es7314-6eh04-0ab0 Cpu?
Available payment terms for Siemens Simatic S7-300 6Es7314-6eh04-0ab0 Cpu: Full Advance.
What is the price of Siemens Simatic S7-300 6Es7314-6eh04-0ab0 Cpu?
Siemens Simatic S7-300 6Es7314-6eh04-0ab0 Cpu is priced at ₹2,59,354 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
