Siemens Simatic S7-300 6Es7315-2fj14-0ab0 Cpu — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹1,92,880/piece, MOQ 1 piece.
Product Overview
Siemens Simatic S7-300 6ES7315-2FJ14-0AB0 CPU, a robust programmable logic controller sourced for industrial automation and process control. Ideal for system integrators, plant engineers, and institutional buyers requiring reliable, high-performance CPU modules for complex applications.
Detailed Description

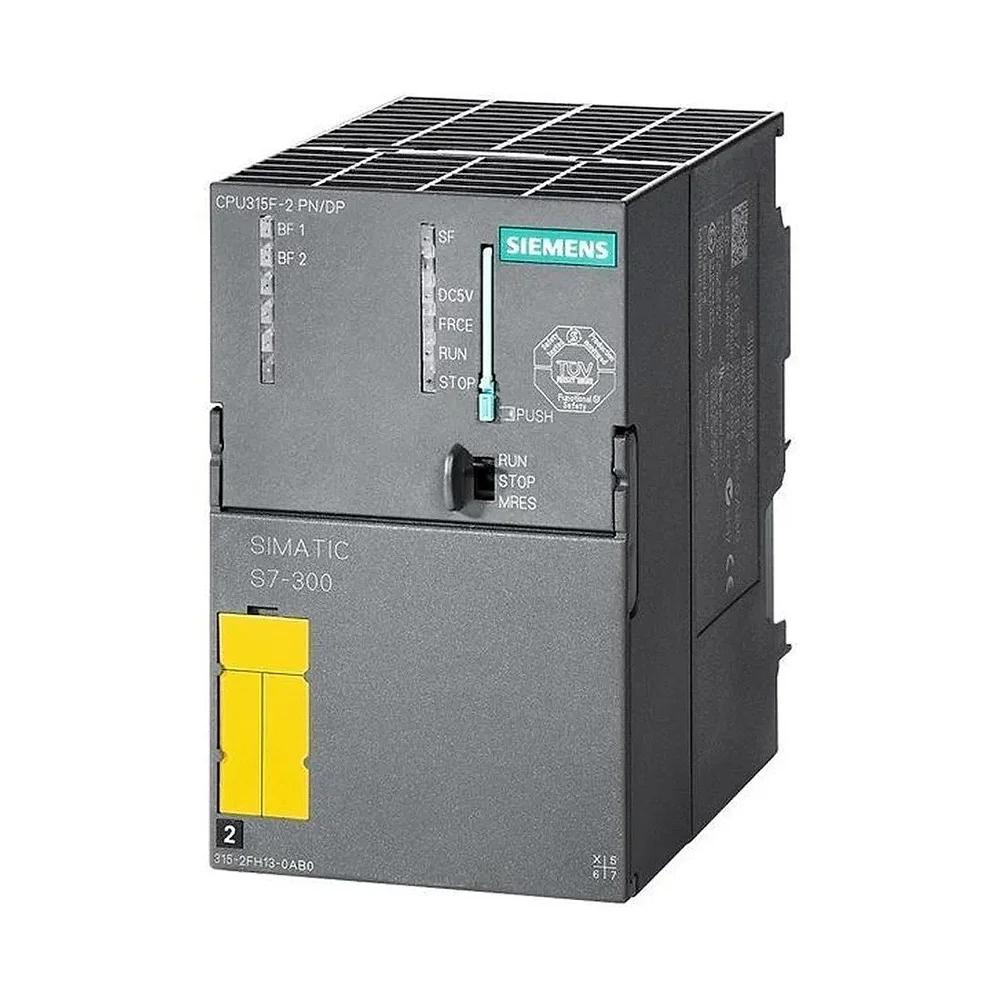

The Siemens SIMATIC S7-300 CPU 315F-2 PN/DP (Order No. 6ES7315-2FJ14-0AB0) is a fail-safe CPU engineered for both standard and safety-related automation applications. This unit integrates MPI/PROFIBUS DP and PROFINET Ethernet communication, featuring a 2-port PROFINET switch and 512 KB of integrated work memory. It requires a SIMATIC Micro Memory Card (MMC) for load memory, supporting capacities up to 8 MB for program and data backup. Key electrical specifications include a rated supply voltage of 24 V DC (20.4–28.8 V DC permitted range), a rated current consumption of 750 mA, and a typical power loss of 4.65 W. The CPU supports isochronous mode via PROFIBUS DP or PROFINET, with firmware V3.2 and programming via STEP 7 V5.5 or higher, alongside Distributed Safety V5.4 SP4 for safety engineering. Its dual capability for standard and safety-related automation makes it suitable for projects involving machine safety, emergency stop systems, and protective functions, while also managing conventional PLC tasks. The integrated communication interfaces facilitate seamless integration into complex industrial networks, serving institutional buyers and export houses that deal with advanced control system deployments. This Siemens SIMATIC S7-300 CPU 315F-2 PN/DP is supplied with IEC certification, ensuring its adherence to international standards for electrical and electronic products.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | PLCs |
| Price | ₹1,92,880 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Fail-safe CPU 315F-2 PN/DP (6ES7315-2FJ14-0AB0) for standard and safety automation.
- Integrated MPI/PROFIBUS DP and PROFINET Ethernet with 2-port switch.
- Features 512 KB work memory, expandable via SIMATIC Micro Memory Card up to 8 MB.
- Operates on 24 V DC supply (20.4–28.8 V DC) with 750 mA current consumption.
- Supports isochronous mode via PROFIBUS DP or PROFINET for precise control.
- Firmware V3.2, programmable with STEP 7 V5.5+ and Distributed Safety V5.4 SP4.
- DIN Rail Mountable module with Relay output type.
- Sourced from Mohali, Punjab, with IEC certification for international standards.
Applications & Use Cases
- Machine Safety Systems: Implementing emergency stop and protective functions.
- Industrial Automation: Managing conventional PLC tasks in complex networks.
- Process Control: Deploying advanced control systems for institutional buyers.
- Export Houses: Supplying certified automation components to UAE, USA, and beyond.
- Critical Infrastructure: Integrating into safety-related automation projects.
Technical Specifications
| I²t | 1 A²·s |
|---|---|
| Brand | Siemens |
| Series | SIMATIC S7-300 |
| Status | Spare part / phase-out |
| Cpu Type | Fail-Safe CPU |
| Firmware | V3.2 according to Siemens current datasheet |
| Cpu Model | CPU 315F-2 PN/DP |
| Operation | Typical execution time |
| Parameter | Specification |
| Dimensions | Approx. 40 × 125 × 130 mm |
| Net Weight | Approx. 0.379 kg |
| Application | Standard + safety-related automation |
| Load Memory | SIMATIC Micro Memory Card |
| Maximum Mmc | 8 MB |
| Module Type | Fail-Safe CPU |
| Output Type | Relay |
| Programming | STEP 7 V5.5 or higher |
| Work Memory | 512 KB |
| Power Supply | 24 V DC |
| 1st Interface | MPI / PROFIBUS DP |
| 2nd Interface | Ethernet PROFINET |
| Bit Operation | 0.05 µs |
| Mounting Type | DIN Rail Mount |
| Specification | Details |
| Inrush Current | Approx. 4 A |
| Profinet Ports | 2-port integrated switch |
| Product Family | SIMATIC S7-300 |
| Supply Voltage | 24 V DC |
| Word Operation | 0.09 µs |
| Mains Buffering | 5 ms |
| No-load Current | Approx. 150 mA |
| Isochronous Mode | Yes, via PROFIBUS DP or PROFINET |
| Memory Expansion | Not possible |
| Order No. / Mlfb | 6ES7315-2FJ14-0AB0 |
| Profibus Dp Speed | Up to 12 Mbit/s |
| Safety Engineering | Distributed Safety V5.4 SP4 |
| Typical Power Loss | 4.65 W |
| Rated Supply Voltage | 24 V DC |
| Fixed-point Arithmetic | 0.12 µs |
| Communication Interface | Ethernet, PROFINET |
| Permitted Voltage Range | 20.4–28.8 V DC |
| Number Of Digital Inputs | 16 |
| Floating-point Arithmetic | 0.45 µs |
| Rated Current Consumption | 750 mA |
| Recommended External Protection | 2 A minimum |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens Simatic S7-300 6Es7315-2fj14-0ab0 Cpu?
The minimum order quantity (MOQ) for Siemens Simatic S7-300 6Es7315-2fj14-0ab0 Cpu is 1 piece.
Who supplies Siemens Simatic S7-300 6Es7315-2fj14-0ab0 Cpu?
Siemens Simatic S7-300 6Es7315-2fj14-0ab0 Cpu is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens Simatic S7-300 6Es7315-2fj14-0ab0 Cpu?
Available payment terms for Siemens Simatic S7-300 6Es7315-2fj14-0ab0 Cpu: Full Advance.
What is the price of Siemens Simatic S7-300 6Es7315-2fj14-0ab0 Cpu?
Siemens Simatic S7-300 6Es7315-2fj14-0ab0 Cpu is priced at ₹1,92,880 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
