Siemens Simatic S7-300 6Es7317-2ek14-0ab0 Cpu — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹1,49,649/piece, MOQ 1 piece.
Product Overview
Siemens Simatic S7-300 6ES7317-2EK14-0AB0 CPU, sourced for industrial automation and control systems. Supplied for system integrators, plant engineers, and export houses requiring reliable PLC components.
Detailed Description

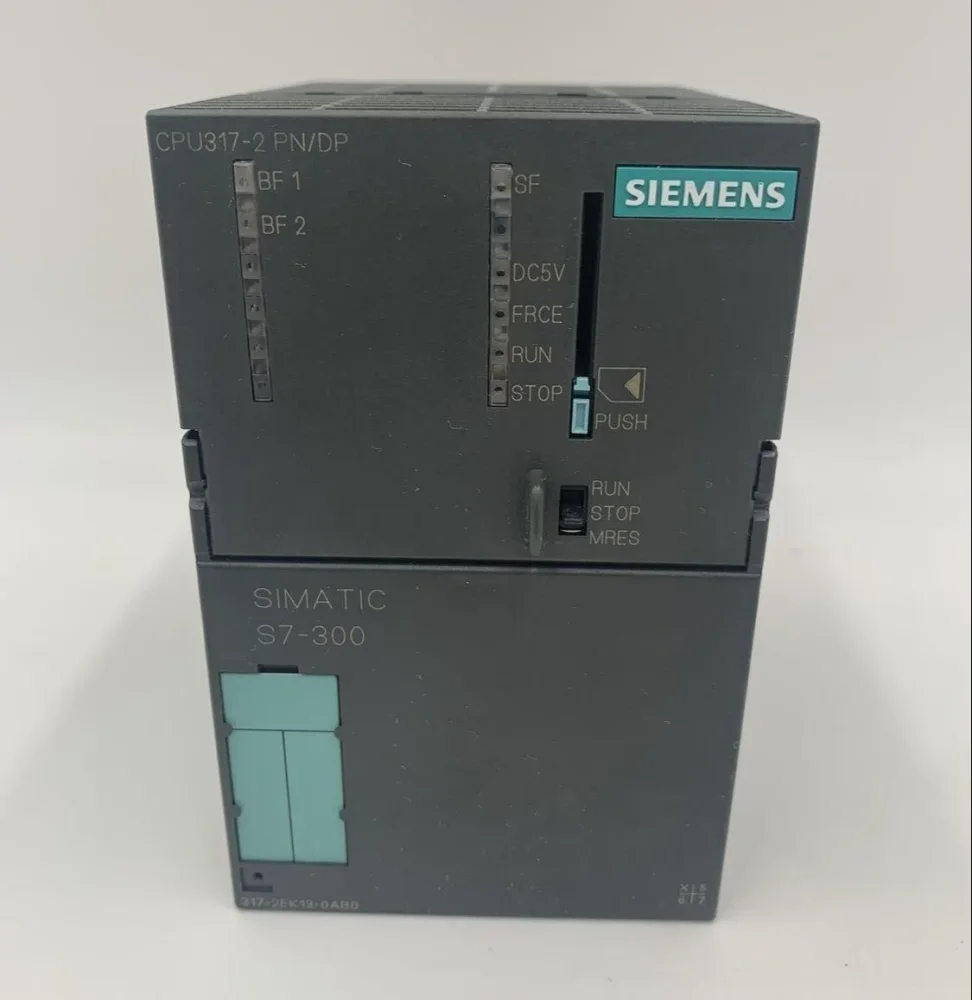

The Siemens SIMATIC S7-300 CPU 317-2 PN/DP (Order No. 6ES7317-2EK14-0AB0) is a standard CPU featuring 1 MB (1,024 KB) integrated work memory and support for a SIMATIC Micro Memory Card (MMC) up to 8 MB for load memory and program/data backup. This CPU is equipped with a 1st interface for MPI/PROFIBUS DP, supporting speeds up to 12 Mbit/s with an integrated DP master, and a 2nd interface for Ethernet PROFINET, including an integrated 2-port switch. It supports isochronous mode via both PROFIBUS DP and PROFINET, operates on a 24 V DC supply voltage (20.4–28.8 V DC permitted range) with a rated current consumption of 750 mA, and runs on Firmware V3.2, programmable with STEP 7 V5.5 or higher. The unit has a net weight of 0.380 kg and is currently available as a spare part. This CPU is sourced for industrial automation integrators, system modernization projects in manufacturing facilities, and institutional buyers requiring robust programmable logic controllers for process control. Its dual interface capabilities make it suitable for upgrading existing PROFIBUS DP networks or integrating into modern PROFINET-based systems, serving sectors from automotive and food processing to water treatment plants. With an integrated work memory of 1,024 KB and retentive data area up to 256 KB, it handles complex control tasks. Typical execution times include 0.025 µs for bit operations and 0.16 µs for floating-point arithmetic, supporting up to 8,192 bytes of input/output address area and 65,536 digital inputs/outputs. This Siemens SIMATIC S7-300 CPU is supplied with IEC certification, ensuring compliance with international standards for electrical and electronic equipment. It is designed for reliable operation within its specified voltage range, with a typical power loss of 4.65 W and recommended external protection of 2 A minimum. The unit supports up to 3 expansion units, providing flexibility for diverse application requirements within industrial control environments.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | PLCs |
| Price | ₹1,49,649 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Siemens SIMATIC S7-300 CPU 317-2 PN/DP (6ES7317-2EK14-0AB0) with 1 MB work memory.
- Integrated MPI/PROFIBUS DP interface (12 Mbit/s) and Ethernet PROFINET with 2-port switch.
- Supports SIMATIC Micro Memory Card (MMC) up to 8 MB for load memory and backup.
- Operates on 24 V DC supply voltage (20.4–28.8 V DC permitted range) with IEC certification.
- Firmware V3.2, programmable with STEP 7 V5.5 or higher, supporting isochronous mode.
- Handles complex control tasks with 0.025 µs bit operations and 0.16 µs floating-point arithmetic.
- Supports up to 8,192 bytes I/O address area and 65,536 digital inputs/outputs.
- Designed for DIN Rail Mount, with a net weight of 0.380 kg and 4.65 W typical power loss.
Applications & Use Cases
- Industrial Automation Integrators: For robust programmable logic controllers in process control.
- Manufacturing Facilities: System modernization projects requiring dual interface capabilities.
- Automotive Sector: Upgrading existing PROFIBUS DP networks or integrating into PROFINET systems.
- Food Processing & Water Treatment Plants: Reliable operation in diverse industrial control environments.
- Institutional Buyers: Sourcing spare parts for existing SIMATIC S7-300 installations.
Technical Specifications
| I²t | 1 A²·s |
|---|---|
| Brand | Siemens |
| Series | S7-300 |
| Status | Spare part / product cancelled |
| Cpu Type | Standard CPU |
| Firmware | V3.2 |
| Cpu Model | CPU 317-2 PN/DP |
| Operation | Typical Execution Time |
| Parameter | Specification |
| Net Weight | 0.380 kg |
| Load Memory | SIMATIC Micro Memory Card (MMC) |
| Maximum Mmc | 8 MB |
| Module Type | CPU Module |
| Output Type | Relay |
| Work Memory | 1 MB (1,024 KB) |
| 1st Interface | MPI / PROFIBUS DP |
| 2nd Interface | Ethernet PROFINET |
| Analog Inputs | 4,096 |
| Bit Operation | 0.025 µs |
| Mounting Type | DIN Rail Mount |
| Rated Voltage | 24 V DC |
| Specification | Details |
| Analog Outputs | 4,096 |
| Digital Inputs | 65,536 |
| Inrush Current | Approx. 4 A |
| Product Family | SIMATIC S7-300 |
| Supply Voltage | 24 V DC |
| Word Operation | 0.03 µs |
| Digital Outputs | 65,536 |
| Mmc Load Memory | Yes |
| Mains Buffering | 5 ms |
| No-load Current | Approx. 150 mA |
| Profinet Switch | Integrated 2-port switch |
| Permitted Range | 20.4–28.8 V DC |
| Isochronous Mode | Yes, via PROFIBUS DP or PROFINET |
| Memory Parameter | Specification |
| Order No. / Mlfb | 6ES7317-2EK14-0AB0 |
| Profibus Dp Speed | Up to 12 Mbit/s |
| Input Address Area | 8,192 bytes |
| Typical Power Loss | 4.65 W |
| Output Address Area | 8,192 bytes |
| Program/data Backup | Via MMC |
| Retentive Data Area | Up to 256 KB |
| Integrated Dp Master | 1 |
| Programming Software | STEP 7 V5.5 or higher |
| Central Analog Inputs | 256 |
| Work Memory Expansion | No |
| Central Analog Outputs | 256 |
| Central Digital Inputs | 1,024 |
| Expandable Work Memory | No |
| Fixed-point Arithmetic | 0.04 µs |
| Integrated Work Memory | 1,024 KB |
| Central Digital Outputs | 1,024 |
| Communication Interface | PROFINET |
| Number Of Digital Inputs | 16 |
| Floating-point Arithmetic | 0.16 µs |
| Rated Current Consumption | 750 mA |
| Recommended External Protection | 2 A minimum |
