Siemens Simatic S7-300 6Es7317-2ek14-0ab0 Cpu | Tradoi
Electronics & Electrical › Automation & Control
Siemens Simatic S7-300 6Es7317-2ek14-0ab0 Cpu — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹2,12,041/piece, MOQ 1 piece.
Product Overview
Siemens Simatic S7-300 6ES7317-2EK14-0AB0 CPU, sourced for industrial automation and control systems. Supplied for system integrators, plant operators, and maintenance teams requiring reliable PLC components.
Detailed Description

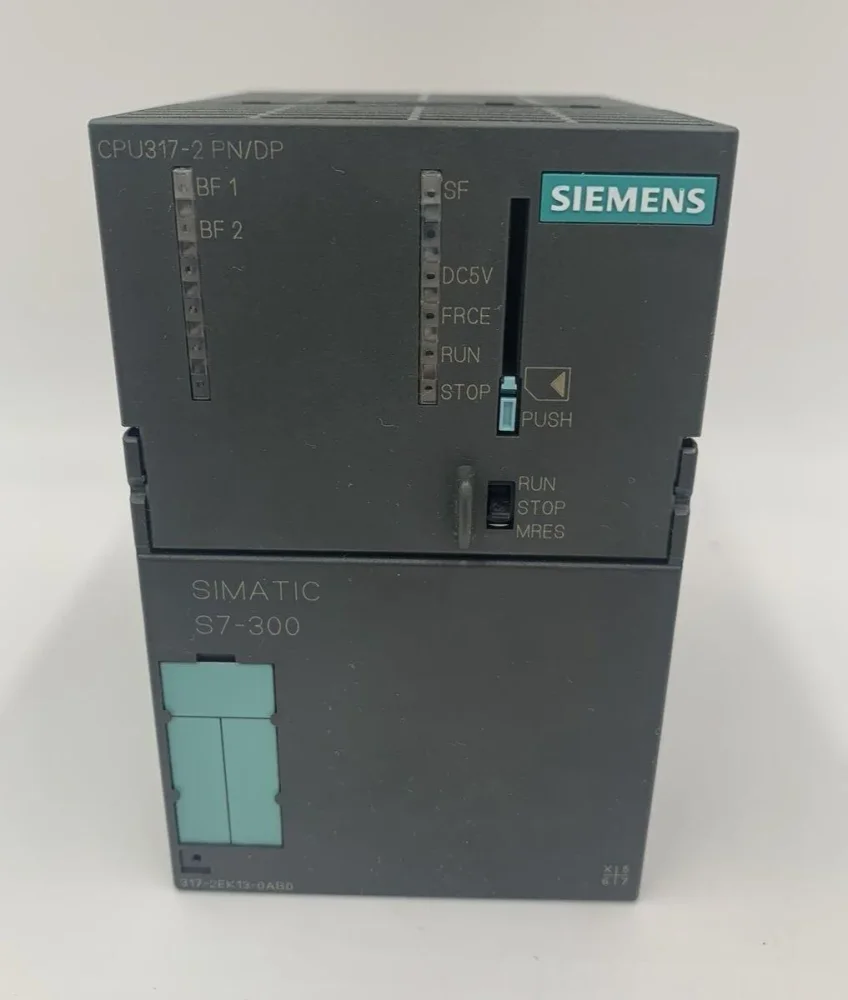

The Siemens SIMATIC S7-300 CPU 317-2 PN/DP, with order number 6ES7317-2EK14-0AB0, is a central processing unit engineered for robust industrial automation. This CPU features 1 MB of integrated work memory and supports up to 8 MB of load memory via a Micro Memory Card (MMC), which is required for operation. It integrates both an MPI/PROFIBUS DP interface, supporting speeds up to 12 Mbit/s, and a PROFINET interface with a 2-port integrated switch. Designed for efficiency, it operates on a 24 V DC supply within a permissible range of 20.4–28.8 V DC, consuming approximately 750 mA rated current and 4.65 W power loss. The unit supports isochronous mode via both PROFIBUS DP and PROFINET, with bit operation times of approximately 0.025 µs and word operation times of 0.03 µs. Programming requires STEP 7 V5.5 or higher, with firmware V3.2 specified. This CPU is sourced for diverse industrial applications, including PLC control, machine automation, and process control systems. Its capabilities make it suitable for upgrading existing SIMATIC S7-300 installations or for new deployments in sectors such as manufacturing, infrastructure, and utilities, where precise control and network integration are paramount. The unit’s compact design allows for mounting within a standard SIMATIC S7-300 rack, facilitating integration into established control architectures. The Siemens SIMATIC S7-300 CPU 317-2 PN/DP (6ES7317-2EK14-0AB0) is supplied with IEC certification, providing assurance of its adherence to international standards for electrical and electronic products. This certification is crucial for buyers who trade across markets and require components that meet rigorous safety and performance benchmarks.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | PLCs |
| Price | ₹2,12,041 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Siemens SIMATIC S7-300 CPU 317-2 PN/DP (6ES7317-2EK14-0AB0) with 1 MB work memory.
- Integrated MPI/PROFIBUS DP and PROFINET interfaces with 2-port switch for network integration.
- Supports up to 8 MB load memory via required Micro Memory Card (MMC).
- Operates on 24 V DC supply, consuming 4.65 W power loss, suitable for industrial environments.
- Supports isochronous mode via PROFIBUS DP and PROFINET for precise control.
- Requires STEP 7 V5.5 or higher for programming, with firmware V3.2 specified.
- Sourced from Mohali, Punjab with IEC certification for international trade compliance.
Applications & Use Cases
- Industrial Automation: Essential for robust PLC control systems in manufacturing and process industries.
- Machine Automation: Integrates into complex machinery for precise and efficient operation.
- Process Control Systems: Suitable for managing and optimizing continuous industrial processes.
- Infrastructure & Utilities: Deployed in critical infrastructure for reliable control and monitoring.
- System Upgrades: Ideal for modernizing existing SIMATIC S7-300 installations across various sectors.
Technical Specifications
| Brand | Siemens |
|---|---|
| Model | CPU 317-2 PN/DP |
| Backup | Via MMC; maintenance-free |
| Series | S7-1200 |
| Weight | Approx. 0.380 kg |
| Firmware | V3.2 |
| Mounting | SIMATIC S7-300 rack |
| Power Loss | Approx. 4.65 W |
| Load Memory | Up to 8 MB via Micro Memory Card (MMC) |
| Memory Card | Micro Memory Card required |
| Module Type | CPU Module |
| Output Type | Relay |
| Work Memory | 1 MB / 1,024 KB |
| Product Type | Central Processing Unit (CPU) |
| Specification | Details |
| Inrush Current | Approx. 4 A |
| Profinet Ports | 2-port integrated switch |
| Product Family | SIMATIC S7-300 |
| Supply Voltage | 24 V DC |
| No-load Current | Approx. 150 mA |
| Isochronous Mode | Yes, via PROFIBUS DP or PROFINET |
| Mpi/dp Interface | 1 × MPI/PROFIBUS DP, up to 12 Mbit/s |
| Order No. / Mlfb | 6ES7317-2EK14-0AB0 |
| Bit Operation Time | Approx. 0.025 µs |
| Maximum Cpu Blocks | 2,048 total DB/FC/FB blocks, subject to MMC capacity |
| Profinet Interface | 1 × Ethernet PROFINET |
| Typical Application | Industrial automation, PLC control, machine automation and process control |
| Word Operation Time | Approx. 0.03 µs |
| Programming Software | STEP 7 V5.5 or higher |
| Fixed-point Operation | Approx. 0.04 µs |
| Communication Interface | PROFIBUS DP, Ethernet, PROFINET |
| Floating-point Operation | Approx. 0.16 µs |
| Number Of Digital Inputs | 16 |
| Permissible Supply Range | 20.4–28.8 V DC |
| Rated Current Consumption | Approx. 750 mA |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens Simatic S7-300 6Es7317-2ek14-0ab0 Cpu?
The minimum order quantity (MOQ) for Siemens Simatic S7-300 6Es7317-2ek14-0ab0 Cpu is 1 piece.
Who supplies Siemens Simatic S7-300 6Es7317-2ek14-0ab0 Cpu?
Siemens Simatic S7-300 6Es7317-2ek14-0ab0 Cpu is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens Simatic S7-300 6Es7317-2ek14-0ab0 Cpu?
Available payment terms for Siemens Simatic S7-300 6Es7317-2ek14-0ab0 Cpu: Full Advance.
What is the price of Siemens Simatic S7-300 6Es7317-2ek14-0ab0 Cpu?
Siemens Simatic S7-300 6Es7317-2ek14-0ab0 Cpu is priced at ₹2,12,041 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
