Siemens Simatic S7-300 6Es7318-3el01-0ab0 Cpu — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹3,22,322/piece, MOQ 1 piece.
Product Overview
Siemens Simatic S7-300 6ES7318-3EL01-0AB0 CPU, sourced for industrial automation and control systems. Traded across markets for system integrators, plant engineers, and institutional buyers requiring reliable PLC solutions.
Detailed Description

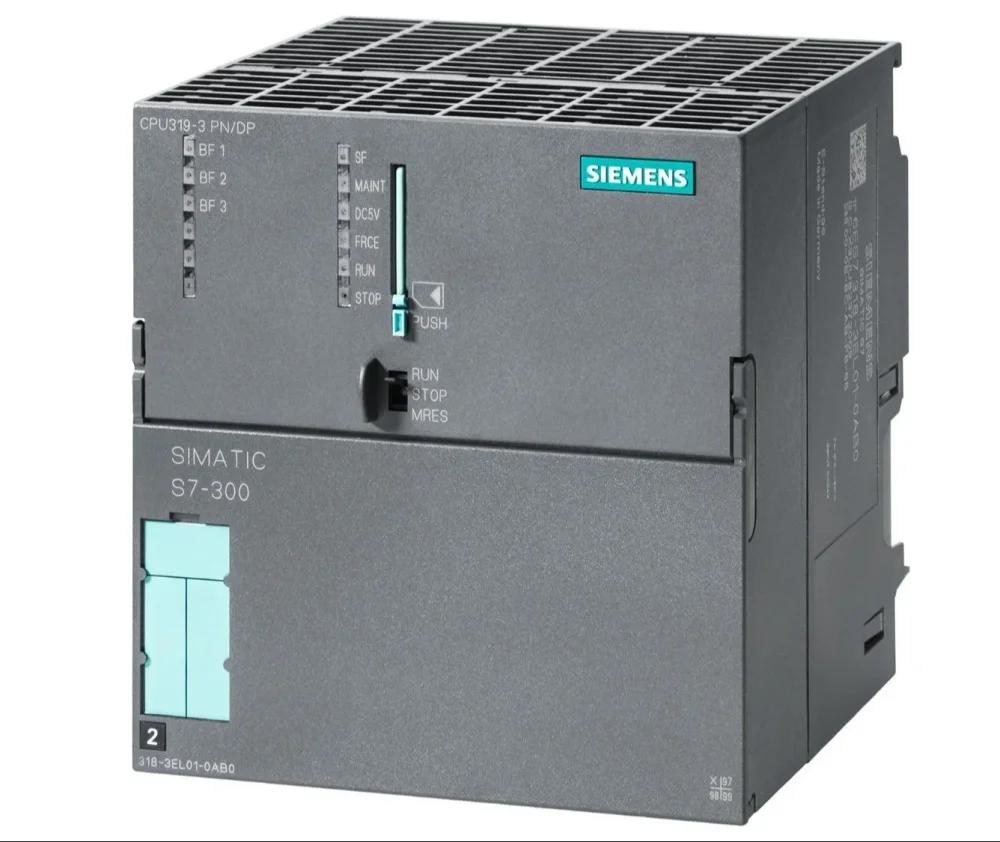

The Siemens SIMATIC S7-300 CPU 319-3 PN/DP (Order No. 6ES7318-3EL01-0AB0), a standard CPU, is sourced for its robust performance in industrial automation. This unit features 2 MB of integrated work memory, expandable via a SIMATIC Micro Memory Card (MMC) up to 8 MB for load memory. It integrates three interfaces: a primary MPI/PROFIBUS DP port supporting speeds up to 12 Mbit/s, and two PROFINET interfaces, one with a 2-port integrated switch and another with a single port. Operating on a 24 V DC power supply, this CPU supports programming in LAD, FBD, and STL with STEP 7 V5.5 or higher firmware (V3.2). Its operational speed, with bit operations at 0.004 µs and floating-point arithmetic at 0.016 µs, makes it suitable for complex control tasks. This CPU is a critical component for system integrators, industrial automation solution providers, and maintenance departments in manufacturing facilities requiring reliable control for large-scale operations. It is particularly suited for applications with extensive programs, high I/O counts, and demanding processing requirements, such as those found in process automation, discrete manufacturing, and infrastructure projects. The capacity to manage up to 8 KB input and output address areas, alongside 65,536 digital I/Os and 4,096 analog I/Os, positions it for comprehensive system control in diverse industrial environments. As a spare part, it supports the continuity of operations for existing S7-300 installations. This Siemens SIMATIC S7-300 CPU is verified with IEC certification, ensuring its compliance with international standards for electrical and electronic products. This certification underscores its suitability for integration into various industrial control systems where reliability and adherence to established norms are paramount.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | PLCs |
| Price | ₹3,22,322 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Sourced Siemens SIMATIC S7-300 CPU 319-3 PN/DP (6ES7318-3EL01-0AB0) with 2 MB work memory.
- Integrates MPI/PROFIBUS DP and two PROFINET interfaces for versatile connectivity.
- Supports programming in LAD, FBD, and STL with STEP 7 V5.5+ firmware (V3.2).
- Operates reliably on a 24 V DC power supply, suitable for industrial environments.
- Features high-speed bit operations at 0.004 µs for complex control tasks.
- Manages up to 8 KB I/O address areas, 65,536 digital, and 4,096 analog I/Os.
- Verified with IEC certification, ensuring compliance with international standards.
- Supplied from Mohali, Punjab, for buyers across India and globally.
Applications & Use Cases
- System Integrators: For robust control in large-scale industrial automation projects.
- Industrial Automation Solution Providers: Integrating reliable control for complex systems.
- Manufacturing Facilities: Critical spare part for maintaining existing S7-300 installations.
- Process Automation: Ideal for applications with extensive programs and high I/O counts.
- Discrete Manufacturing: Suited for demanding processing requirements in production lines.
Technical Specifications
| Brand | Siemens |
|---|---|
| Memory | Specification |
| Series | S7-300 |
| Cpu Type | Standard CPU |
| Firmware | V3.2 |
| Mounting | S7-300 rack |
| Cpu Model | CPU 319-3 PN/DP |
| Operation | Typical Time |
| Parameter | Specification |
| Net Weight | Approx. 0.550 kg |
| Load Memory | SIMATIC Micro Memory Card (MMC) |
| Load Memory | MMC |
| Maximum Mmc | 8 MB |
| Module Type | CPU Module |
| Output Type | Relay |
| Work Memory | 2 MB |
| Work Memory | 2 MB |
| Power Supply | 24 V DC |
| 1st Interface | MPI / PROFIBUS DP |
| 2nd Interface | PROFINET |
| 3rd Interface | PROFINET |
| Analog Inputs | Up to 4,096 |
| Bit Operation | 0.004 µs |
| Specification | Details |
| Analog Outputs | Up to 4,096 |
| Digital Inputs | Up to 65,536 |
| Inrush Current | Approx. 4 A |
| Profinet Ports | 1 port |
| Product Family | SIMATIC S7-300 |
| Product Status | Spare part / discontinued |
| Program Backup | Via MMC |
| Supply Voltage | 24 V DC |
| Word Operation | 0.008 µs |
| Digital Outputs | Up to 65,536 |
| Isochronous Mode | Yes |
| Order No. / Mlfb | 6ES7318-3EL01-0AB0 |
| Profibus Dp Speed | Up to 12 Mbit/s |
| Input Address Area | Up to 8 KB |
| Typical Power Loss | Approx. 6 W |
| Output Address Area | Up to 8 KB |
| Integrated Dp Master | Yes |
| Programming Software | STEP 7 V5.5 or higher |
| Rated Supply Voltage | 24 V DC |
| Programming Languages | LAD, FBD, STL |
| Work Memory Expansion | Not possible |
| Fixed-point Arithmetic | 0.008 µs |
| Communication Interface | PROFINET, MPI |
| Permitted Voltage Range | 20.4–28.8 V DC |
| Number Of Digital Inputs | 16 |
| Floating-point Arithmetic | 0.016 µs |
| Typical Current Consumption | Approx. 1 A |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens Simatic S7-300 6Es7318-3el01-0ab0 Cpu?
The minimum order quantity (MOQ) for Siemens Simatic S7-300 6Es7318-3el01-0ab0 Cpu is 1 piece.
Who supplies Siemens Simatic S7-300 6Es7318-3el01-0ab0 Cpu?
Siemens Simatic S7-300 6Es7318-3el01-0ab0 Cpu is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens Simatic S7-300 6Es7318-3el01-0ab0 Cpu?
Available payment terms for Siemens Simatic S7-300 6Es7318-3el01-0ab0 Cpu: Full Advance.
What is the price of Siemens Simatic S7-300 6Es7318-3el01-0ab0 Cpu?
Siemens Simatic S7-300 6Es7318-3el01-0ab0 Cpu is priced at ₹3,22,322 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
