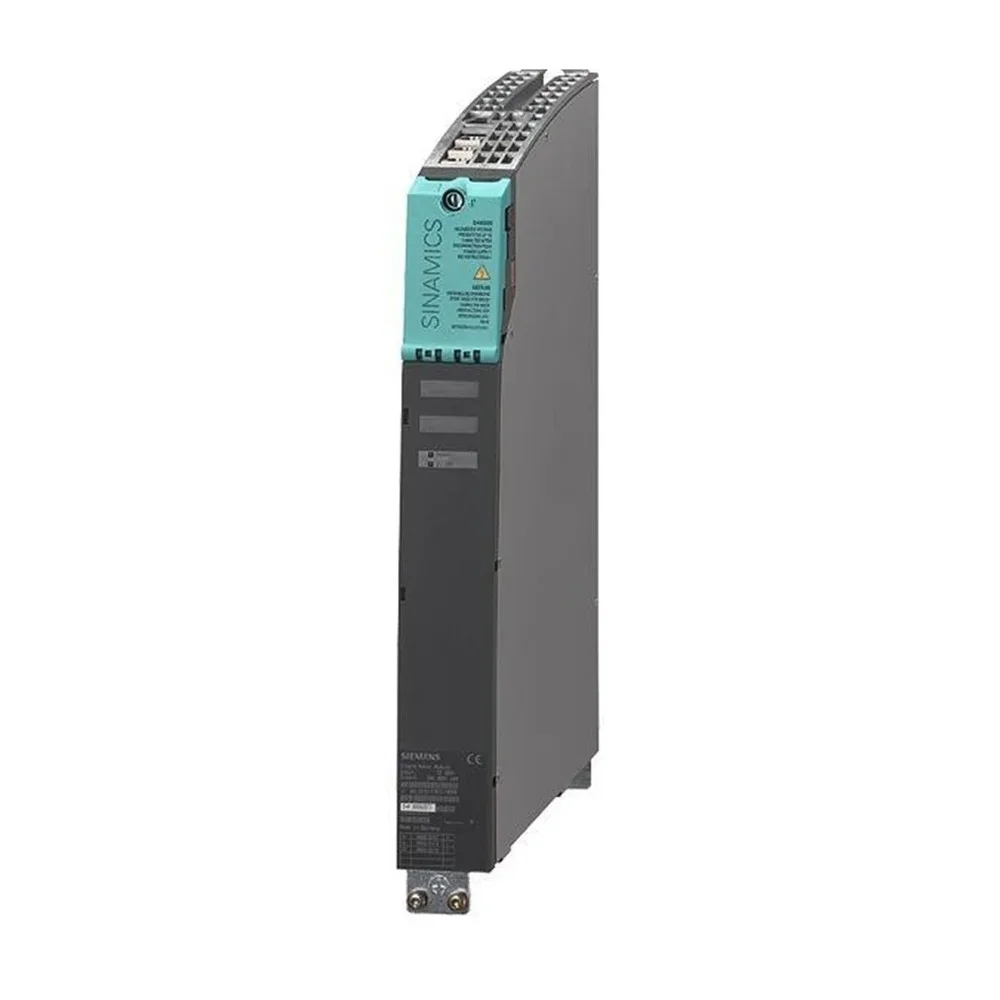

Siemens Sinamics S120 6Sl3320-1te32-6aa3 Single Motor Module — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹4,90,424/piece, MOQ 1 piece.
Product Overview
Siemens Sinamics S120 6SL3320-1TE32-6AA3 Single Motor Module, sourced for industrial automation and motion control applications. Available through our extensive supply network for system integrators and export houses.
Detailed Description
The Siemens Sinamics S120 6SL3320-1TE32-6AA3 Single Motor Module, sourced for industrial applications, operates with a 600 V DC nominal input voltage and delivers a 3-phase 400 V AC rated output. This inverter module, part of the SINAMICS S120 product family, features a rated output current of 260 supports a maximum output current of 375 A. It is rated for 132 kW at 400 V (IL) and 110 kW at 400 V (IH), or 200 hp at 460 V (IL/IH). Designed with internal air cooling and a chassis frame size, it integrates via DRIVE-CLiQ communication and supports extended Safety Integrated functions, making it suitable for SINAMICS S120-supported AC motors and servo applications within a common DC-link system. This active product is supplied for high-performance machine and motion control systems, finding utility across various industrial segments. Institutional buyers, system integrators, and export houses procuring for automation projects will find this module applicable for control cabinet and chassis mounting. Its specifications, including a DC-link voltage range of 510–720 V DC and base load currents of 250 A (IL) and 233 A (IH), cater to the precise demands of manufacturing facilities, process industries, and infrastructure development projects requiring robust motor control solutions. Reliability is assured with this Siemens Sinamics S120 Single Motor Module, which meets the stringent requirements of IEC standards. This certification provides a verified benchmark for performance and safety in industrial electrical equipment, supporting procurement decisions for critical operational environments.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Motors & Drives |
| Product Type | Servo Drives |
| Price | ₹4,90,424 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Operates with a 600 V DC nominal input voltage for industrial power systems.
- Delivers a 3-phase 400 V AC rated output, suitable for AC motors.
- Features a rated output current of 260 amperes and a maximum output current of 375 amperes.
- Rated for 132 kW at 400 V (IL) and 110 kW at 400 V (IH) for robust performance.
- Integrates via DRIVE-CLiQ communication, supporting extended Safety Integrated functions.
- Designed with internal air cooling and a chassis frame size for control cabinet mounting.
- Adheres to IEC standards, providing a verified benchmark for performance and safety.
- Supplied from Mohali, Punjab, by a trader serving buyers across India and 11 export countries.
Applications & Use Cases
- Manufacturing Facilities: For precise control of SINAMICS S120-supported AC motors.
- Process Industries: Utilized in high-performance machine and motion control systems.
- Infrastructure Development: Applicable for robust motor control solutions in critical environments.
- Automation Projects: Procured by institutional buyers and system integrators for control cabinet integration.
- Export Houses: Sourced for international distribution to UAE, Saudi Arabia, USA, and other markets.
Technical Specifications
| Brand | Siemens |
|---|---|
| Model | Single Motor Module |
| Output | 3-phase AC |
| Series | Sinamics G120 |
| Control | Via SINAMICS S120 Control Unit |
| Cooling | Internal air cooling |
| Mounting | Control cabinet / chassis mounting |
| IP Rating | IP20 |
| Frame Size | Chassis |
| Motor Type | Suitable for SINAMICS S120-supported AC motors/servo applications |
| Input Phase | Three Phase |
| Order Number | 6SL3320-1TE32-6AA3 |
| Power Rating | 132 kW |
| Product Type | Single Motor Module / Inverter Module |
| Communication | DRIVE-CLiQ |
| Input Voltage | 600 V DC nominal |
| Rated Current | 260 A |
| Specification | Details |
| Product Family | SINAMICS S120 |
| Product Status | Active Product |
| S6 Current (40%) | 285 A |
| Safety Functions | Extended Safety Integrated functions supported |
| Typical Application | High-performance machine and motion control |
| Base Load Current Ih | 233 A |
| Base Load Current Il | 250 A |
| Rated Output Current | 260 A |
| Rated Output Voltage | 3-phase 400 V |
| Dc-link Configuration | Common DC-link system |
| Dc-link Voltage Range | 510–720 V DC |
| Communication Protocol | PROFINET |
| Maximum Output Current | 375 A |
| Rated Power At 400 V, Ih | 110 kW |
| Rated Power At 400 V, Il | 132 kW |
| Rated Power At 460 V, Ih | 200 hp |
| Rated Power At 460 V, Il | 200 hp |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens Sinamics S120 6Sl3320-1te32-6aa3 Single Motor Module?
The minimum order quantity (MOQ) for Siemens Sinamics S120 6Sl3320-1te32-6aa3 Single Motor Module is 1 piece.
Who supplies Siemens Sinamics S120 6Sl3320-1te32-6aa3 Single Motor Module?
Siemens Sinamics S120 6Sl3320-1te32-6aa3 Single Motor Module is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens Sinamics S120 6Sl3320-1te32-6aa3 Single Motor Module?
Available payment terms for Siemens Sinamics S120 6Sl3320-1te32-6aa3 Single Motor Module: Full Advance.
What is the price of Siemens Sinamics S120 6Sl3320-1te32-6aa3 Single Motor Module?
Siemens Sinamics S120 6Sl3320-1te32-6aa3 Single Motor Module is priced at ₹4,90,424 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
