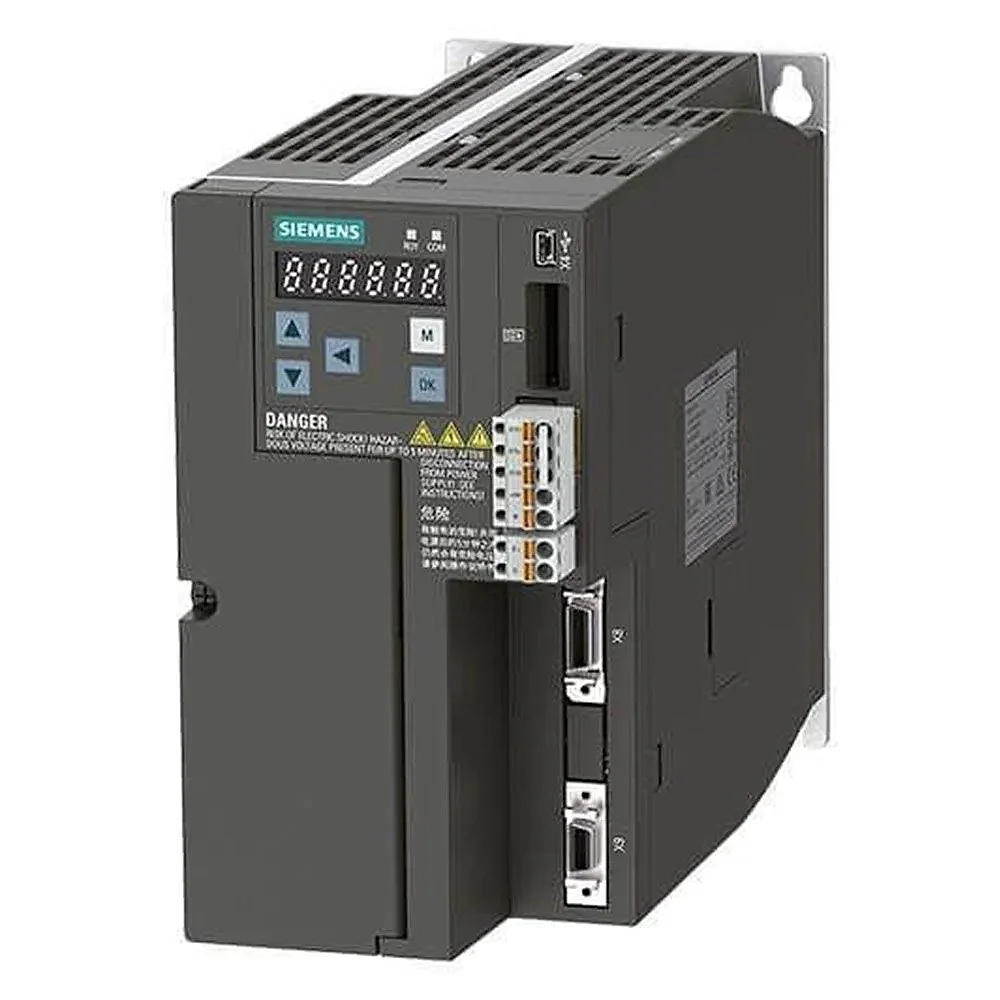

Siemens Sinamics V90 6Sl3210-5fe15-0uf0 Servo Drive | Tradoi
Electronics & Electrical › Motors & Drives
Siemens Sinamics V90 6Sl3210-5fe15-0uf0 Servo Drive — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹66,136/piece, MOQ 1 piece.
Product Overview
Siemens Sinamics V90 6SL3210-5FE15-0UF0 Servo Drive, sourced for industrial automation and motion control applications. Ideal for system integrators, OEMs, and maintenance departments seeking reliable drive solutions.
Detailed Description
The Siemens Sinamics V90 6SL3210-5FE15-0UF0 servo drive, sourced for industrial automation applications, is engineered for precise motor control, supporting a 5.0 kW motor with a 380–480 V 3-phase AC input. This active product, rated for a 15.8 A input and 12.6 A rated output current, features PROFINET communication for seamless integration into existing control architectures. Operating within a 0–45°C range and cooled by an integrated fan, the unit offers an output frequency of 0–330 Hz, with a maximum output current of 37.8 A. Its compact dimensions (140 × 260 × 240 mm) and IP20 / UL Open Type protection rating make it suitable for various enclosed panel installations. Its robust specifications, including 4 standard digital inputs and 2 digital outputs, support applications requiring high-accuracy positioning and speed control. Procurement channels include bulk supply for project-based requirements in factory automation, as well as cross-market movement for inventory stocking by specialized electrical and electronics resellers serving the industrial segment. The Siemens Sinamics V90 6SL3210-5FE15-0UF0 servo drive is compliant with IEC standards, ensuring product integrity and operational safety.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Motors & Drives |
| Product Type | Servo Drives |
| Price | ₹66,136 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Sourced Siemens Sinamics V90 6SL3210-5FE15-0UF0 servo drive for industrial automation.
- Supports 5.0 kW motors with 380–480 V 3-phase AC input; rated 15.8 A input, 12.6 A output.
- Features PROFINET communication for seamless integration into control architectures.
- Operates within 0–45°C, cooled by an integrated fan, with 0–330 Hz output frequency.
- Compact 140 × 260 × 240 mm dimensions and IP20 / UL Open Type protection rating.
- Includes 4 standard digital inputs and 2 digital outputs for precise control.
- Compliant with IEC standards, ensuring product integrity and operational safety.
- Traded from Mohali, Punjab, with cross-market movement to UAE, Saudi Arabia, USA, and 9 more countries.
Applications & Use Cases
- Factory Automation: Used for high-accuracy positioning and speed control in industrial machinery.
- Electrical & Electronics Resellers: Inventory stocking for specialized industrial segments.
- Project-Based Requirements: Bulk supply for large-scale industrial automation projects.
- Cross-Market Supply: Exported to international markets for diverse industrial needs.
Technical Specifications
| Brand | Siemens |
|---|---|
| Model | V90 Servo Drive |
| Phase | Three Phase |
| Series | Sinamics V90 |
| Cooling | Fan cooled |
| Model No | 6SL3210-5FE15-0UF0 |
| Order No. | 6SL3210-5FE15-0UF0 |
| Frame Size | FSC |
| Net Weight | Approx. 5.65 kg |
| Temperature | −40 to +70°C |
| Control Mode | Position, Speed, Torque |
| Input Supply | 3-phase AC |
| Power Rating | 5 kW |
| Product Type | Servo Drive / Servo Converter |
| Communication | PROFINET |
| Feedback Type | Absolute Encoder |
| Input Voltage | 380–480 V AC (+10% / −15%) |
| Specification | Details |
| Product Family | SINAMICS V90 |
| Digital Outputs | 2 |
| Input Frequency | 45–66 Hz |
| Output Frequency | 0–330 Hz |
| Protection Rating | IP20 / UL Open Type |
| Rated Motor Power | 5.0 kW |
| Rated Input Current | 15.8 A |
| Standards/approvals | CE, KC, cULus, EAC, C-Tick/RCM |
| Storage Temperature | −40 to +70°C |
| Rated Output Current | 12.6 A |
| Installation Altitude | Up to 1,000 m |
| Operating Temperature | 0–45°C |
| Maximum Output Current | 37.8 A |
| Communication Interface | PROFINET |
| Standard Digital Inputs | 4 |
| Dimensions (w × H × D) | 140 × 260 × 240 mm |
| Maximum Relative Humidity | 90% during operation |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens Sinamics V90 6Sl3210-5fe15-0uf0 Servo Drive?
The minimum order quantity (MOQ) for Siemens Sinamics V90 6Sl3210-5fe15-0uf0 Servo Drive is 1 piece.
Who supplies Siemens Sinamics V90 6Sl3210-5fe15-0uf0 Servo Drive?
Siemens Sinamics V90 6Sl3210-5fe15-0uf0 Servo Drive is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens Sinamics V90 6Sl3210-5fe15-0uf0 Servo Drive?
Available payment terms for Siemens Sinamics V90 6Sl3210-5fe15-0uf0 Servo Drive: Full Advance.
What is the price of Siemens Sinamics V90 6Sl3210-5fe15-0uf0 Servo Drive?
Siemens Sinamics V90 6Sl3210-5fe15-0uf0 Servo Drive is priced at ₹66,136 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
