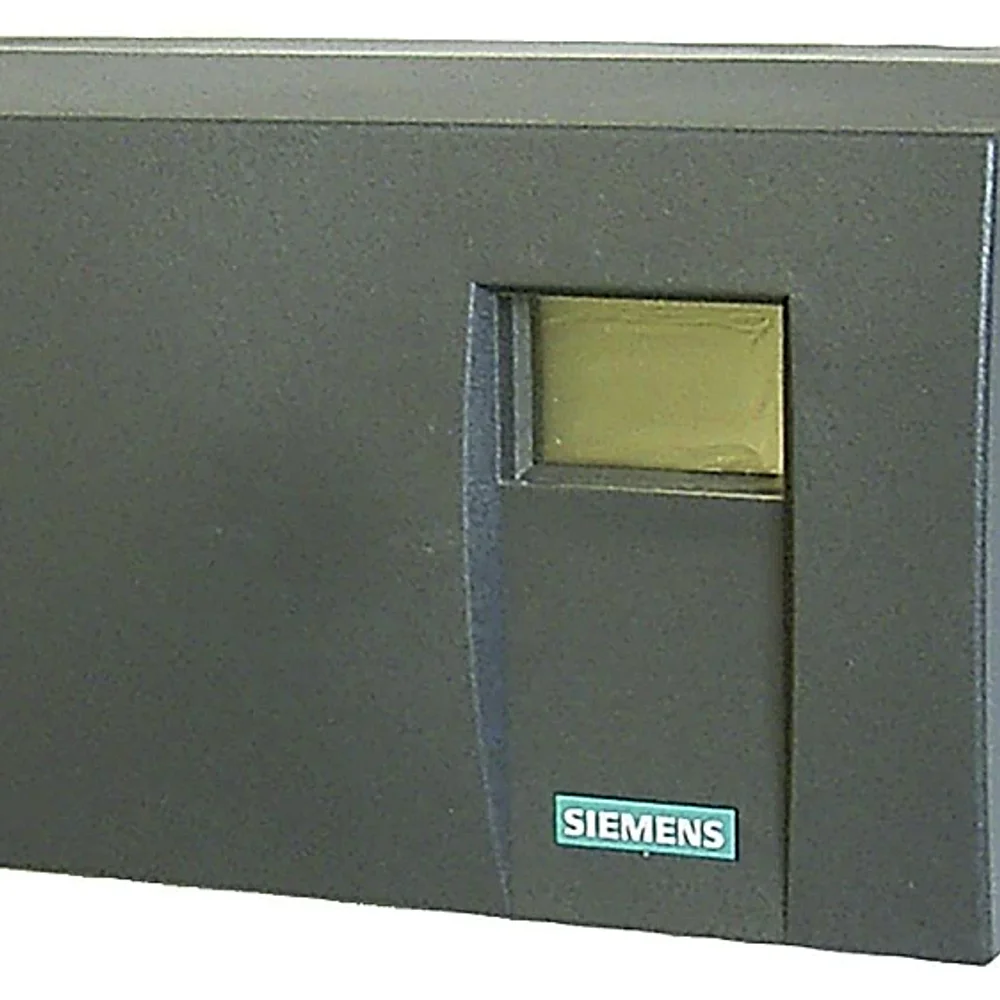

Siemens Sipart Ps2 6Dr5010-0ng00-0aa0 Smart Electropneumatic Positioner — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹83,567/piece, MOQ 1 piece.
Product Overview
Siemens Sipart PS2 6DR5010-0NG00-0AA0 Smart Electropneumatic Positioner, sourced for industrial automation and process control applications. This advanced positioner is supplied for institutional buyers and export houses requiring precise valve control.
Detailed Description
The Siemens Sipart PS2 Smart Electropneumatic Positioner, model 6DR5010-0NG00-0AA0, is engineered for precise control of single-acting pneumatic linear and part-turn actuators. This active product from the SIPART PS2 family features a 4–20 mA input signal, non-contacting (NCS) position detection, and a durable polycarbonate enclosure. It is configured without explosion protection (nEx), with M20 × 1.5 electrical and G 1/4 pneumatic connections. With an IEC certification, this positioner ensures reliable operation, depressurizing the actuator in case of electrical auxiliary power loss. It offers a linear actuator stroke range of 3–130 mm and a part-turn range of 30–160° for applicable actuators, operating with a pneumatic supply pressure of 1.4–7 bar and maintaining an IP66 / NEMA 4X protection rating. Its specifications, including a position resolution of ≤ 0.05% and a transmission error of ≤ 0.2%, make it suitable for applications requiring high accuracy and consistent performance in demanding operational environments, with an operating temperature range of approximately −30 to +80°C. The unit’s robust design and specific connectivity options facilitate integration into existing control systems and new installations, supporting efficient actuator management. Each Siemens Sipart PS2 Smart Electropneumatic Positioner, 6DR5010-0NG00-0AA0, is supplied with verified IEC certification, assuring compliance with international electrical standards. This active product, originating from France, weighs 0.9 kg and adheres to ISO 8573-1 Class 3 air quality standards. The inclusion of IEC certification underscores its suitability for deployment in regulated industrial settings where adherence to stringent safety and performance benchmarks is paramount.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | Process Controllers |
| Price | ₹83,567 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Precisely controls single-acting pneumatic linear and part-turn actuators.
- Features a 4–20 mA input signal for seamless integration into control systems.
- Equipped with non-contacting (NCS) position detection for wear-free operation.
- Constructed with a durable polycarbonate enclosure, ensuring IP66 / NEMA 4X protection.
- Sourced with IEC certification, guaranteeing compliance with international electrical standards.
- Depressurizes the actuator in case of electrical auxiliary power loss for safety.
- Offers a linear actuator stroke range of 3–130 mm and part-turn range of 30–160°.
- Operates reliably within a wide temperature range of −30 to +80°C.
Applications & Use Cases
- Industrial Automation: For precise control in automated process lines and systems.
- Process Control: Essential for regulating flow and pressure in chemical and petrochemical plants.
- HVAC Systems: Used in large-scale climate control for accurate damper and valve positioning.
- Water Treatment Facilities: Critical for managing valve operations in municipal and industrial water systems.
- Power Generation: Supports efficient actuator management in power plants for reliable operation.
Technical Specifications
| Brand | Siemens |
|---|---|
| Model | SIPART PS2 Smart |
| Action | Single-acting |
| Booster | Not included |
| Enclosure | Polycarbonate |
| Fail-safe | Depressurizes actuator in case of loss of electrical auxiliary power |
| Parameter | Specification |
| Net Weight | 0.9 kg |
| Protection | IP66 / NEMA 4X |
| Air Quality | ISO 8573-1 Class 3 |
| Input Signal | 4–20 mA |
| Product Type | Smart Electropneumatic Positioner |
| Actuator Type | Pneumatic linear & part-turn actuators |
| Communication | 4–20 mA, non-HART |
| Limit Monitor | Not included |
| Mounting Type | Linear |
| Option Module | Not included |
| Specification | Details |
| Commodity Code | 90328100 |
| Product Family | SIPART PS2 |
| Product Status | Active |
| Manometer Block | Not included |
| Part-turn Range | 30–160° for applicable actuators |
| Positioner Type | Electro pneumatic |
| Mlfb / Order No. | 6DR5010-0NG00-0AA0 |
| Position Sensing | Non-contacting NCS |
| Country Of Origin | France |
| Protection Rating | IP66 / NEMA 4X |
| Digital I/o Module | Not included |
| Position Detection | NCS – non-contacting / wear-free |
| Transmission Error | ≤ 0.2% |
| Position Resolution | ≤ 0.05% |
| Analog Output Module | Not included |
| Controller Scan Time | 10 ms |
| Explosion Protection | Without explosion protection (nEx) |
| Pneumatic Connection | G 1/4 |
| Electrical Connection | M20 × 1.5 |
| Operating Temperature | Approx. −30 to +80°C, configuration dependent |
| Linear Actuator Stroke | 3–130 mm |
| Pneumatic Supply Pressure | 1.4–7 bar |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens Sipart Ps2 6Dr5010-0ng00-0aa0 Smart Electropneumatic Positioner?
The minimum order quantity (MOQ) for Siemens Sipart Ps2 6Dr5010-0ng00-0aa0 Smart Electropneumatic Positioner is 1 piece.
Who supplies Siemens Sipart Ps2 6Dr5010-0ng00-0aa0 Smart Electropneumatic Positioner?
Siemens Sipart Ps2 6Dr5010-0ng00-0aa0 Smart Electropneumatic Positioner is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens Sipart Ps2 6Dr5010-0ng00-0aa0 Smart Electropneumatic Positioner?
Available payment terms for Siemens Sipart Ps2 6Dr5010-0ng00-0aa0 Smart Electropneumatic Positioner: Full Advance.
What is the price of Siemens Sipart Ps2 6Dr5010-0ng00-0aa0 Smart Electropneumatic Positioner?
Siemens Sipart Ps2 6Dr5010-0ng00-0aa0 Smart Electropneumatic Positioner is priced at ₹83,567 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
