Siemens Sipart Ps2 6Dr5010-0ng10-0aa0 Smart Electropneumatic Positioner — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹64,052/piece, MOQ 1 piece.
Product Overview

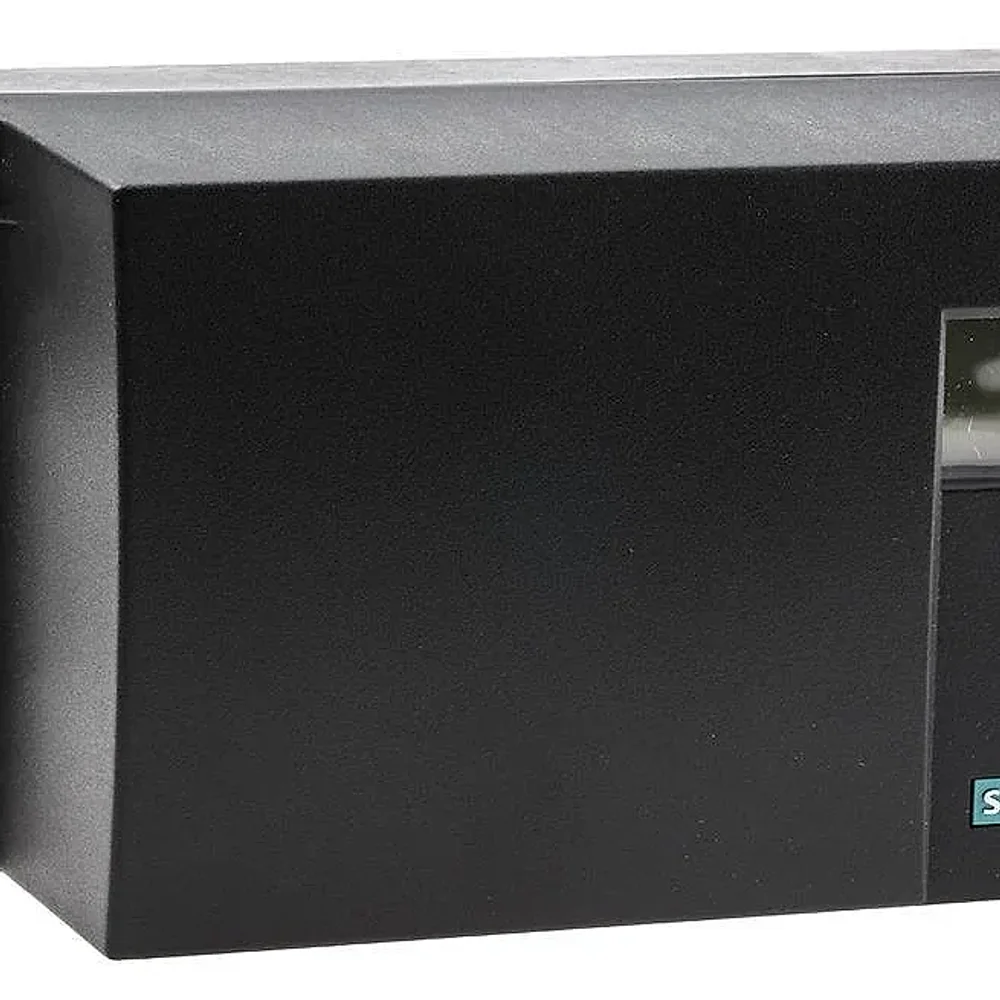

Siemens Sipart PS2 6DR5010-0NG10-0AA0 Smart Electropneumatic Positioner, sourced for industrial automation and process control applications. Ideal for institutional buyers and export houses requiring precise valve actuation.
Detailed Description
The Siemens Sipart PS2 6DR5010-0NG10-0AA0 Smart Electropneumatic Positioner is sourced for precise control of pneumatic linear and part-turn actuators, operating as a single-acting unit with a 4–20 mA input signal. This specific model features non-contacting, wear-free position detection, housed in a durable polycarbonate casing with IP66 / NEMA 4X protection. It includes a digital I/O module with one digital input and three digital outputs, two of which are configurable for minimum/maximum limit monitoring, and one dedicated for fault indication. Electrical connections are M20 × 1.5, and pneumatic connections are G 1/4, designed to depressurize the actuator on loss of electrical auxiliary power, ensuring fail-safe operation. This Sipart PS2 positioner is supplied for industrial automation integrators, MRO procurement teams, and plant maintenance departments requiring robust control solutions for process instrumentation. Its capabilities support applications involving linear actuators with strokes from 3–130 mm and part-turn angles from 30–160°, with extended rotation up to 180° available on request. With a pneumatic supply pressure range of 1.4–7 bar and an input current of 4–20 mA, it is suitable for environments demanding high position resolution (≤ 0.05%) and low transmission error (≤ 0.2%), with a controller scan time of 10 ms. The unit is designed for air quality conforming to ISO 8573-1 Class 3, supporting operational temperatures typically up to +80°C. All Siemens Sipart PS2 6DR5010-0NG10-0AA0 units traded through our network are verified to IEC standards, ensuring compliance with international electrical safety and performance benchmarks. This certification confirms the product's suitability for deployment in a range of industrial settings where adherence to established norms is critical for operational reliability and system integrity.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | Process Controllers |
| Price | ₹64,052 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Sourced Siemens Sipart PS2 6DR5010-0NG10-0AA0 Smart Electropneumatic Positioner for precise control.
- Features non-contacting, wear-free position detection for enhanced durability.
- Housed in a durable polycarbonate casing with IP66 / NEMA 4X protection.
- Equipped with a digital I/O module, including one digital input and three digital outputs.
- Designed for fail-safe operation, depressurizing the actuator upon power loss.
- Supports linear actuators with strokes from 3–130 mm and part-turn angles from 30–160°.
- Operates with a 4–20 mA input signal and pneumatic supply pressure of 1.4–7 bar.
- Verified to IEC standards, ensuring compliance with international electrical safety benchmarks.
Applications & Use Cases
- Industrial Automation Integrators: For robust control solutions in process instrumentation.
- MRO Procurement Teams: Sourced for reliable replacement and system upgrades.
- Plant Maintenance Departments: Ensuring operational reliability and system integrity in industrial settings.
- Process Industries: Utilized for high-resolution control of pneumatic actuators.
- Export Markets: Traded across India, UAE, Saudi Arabia, USA, and 9 other countries.
Technical Specifications
| Hart | No |
|---|---|
| Brand | Siemens |
| Model | SIPART PS2 Smart |
| Action | Single-acting |
| Booster | Not included |
| Housing | Polycarbonate |
| Model No | 6DR5010-0NG10-0AA0 |
| Enclosure | Weatherproof |
| Fail-safe | Depressurizes actuator on loss of electrical auxiliary power |
| Parameter | Specification |
| Net Weight | 0.900 kg |
| Protection | IP66 / NEMA 4X |
| Air Quality | ISO 8573-1 Class 3 |
| Input Signal | 4–20 mA |
| Product Type | Smart Electropneumatic Positioner |
| Actuator Type | Pneumatic linear & part-turn actuators |
| Digital Input | 1 |
| Input Current | 4–20 mA |
| Mounting Type | Rotary |
| Option Module | Not included |
| Specification | Details |
| Product Family | SIPART PS2 |
| Product Status | Active |
| Digital Outputs | 3 |
| Manometer Block | Not included |
| Part-turn Angle | 30–160° for 6DR50/51 configurations |
| Positioner Type | Electro pneumatic |
| Supply Pressure | 1.4 bar |
| Fault Indication | 1 digital output |
| Limit Monitoring | 2 outputs configurable for minimum/maximum limits |
| Mlfb / Order No. | 6DR5010-0NG10-0AA0 |
| Extended Rotation | Up to 180° on request |
| Digital I/o Module | Included |
| Position Detection | NCS – non-contacting / wear-free |
| Transmission Error | ≤ 0.2% |
| Position Resolution | ≤ 0.05% |
| Storage Temperature | −40 to +80°C |
| Controller Scan Time | 10 ms |
| Explosion Protection | Without explosion protection |
| Pneumatic Connection | G 1/4 |
| Electrical Connection | M20 × 1.5 |
| Operating Temperature | Configuration dependent; typically up to +80°C |
| Linear Actuator Stroke | 3–130 mm |
| Equivalent Maximum Load | 440 Ω |
| Pneumatic Supply Pressure | 1.4–7 bar |
| Maximum Load Voltage At 20 Ma | 8.8 V |
| Typical Load Voltage At 20 Ma | 8.25 V |
| Minimum Current To Maintain Operation | ≥3.8 mA |
Payment Terms
- Full Advance
About the Supplier
Autonex Security Systems is a verified B2B supplier based in Mohali, Punjab.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for Siemens Sipart Ps2 6Dr5010-0ng10-0aa0 Smart Electropneumatic Positioner?
The minimum order quantity (MOQ) for Siemens Sipart Ps2 6Dr5010-0ng10-0aa0 Smart Electropneumatic Positioner is 1 piece.
Who supplies Siemens Sipart Ps2 6Dr5010-0ng10-0aa0 Smart Electropneumatic Positioner?
Siemens Sipart Ps2 6Dr5010-0ng10-0aa0 Smart Electropneumatic Positioner is supplied by Autonex Security Systems, a Tradoi-verified trader based in Mohali, Punjab.
What are the payment terms for Siemens Sipart Ps2 6Dr5010-0ng10-0aa0 Smart Electropneumatic Positioner?
Available payment terms for Siemens Sipart Ps2 6Dr5010-0ng10-0aa0 Smart Electropneumatic Positioner: Full Advance.
What is the price of Siemens Sipart Ps2 6Dr5010-0ng10-0aa0 Smart Electropneumatic Positioner?
Siemens Sipart Ps2 6Dr5010-0ng10-0aa0 Smart Electropneumatic Positioner is priced at ₹64,052 per piece by Autonex Security Systems. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
