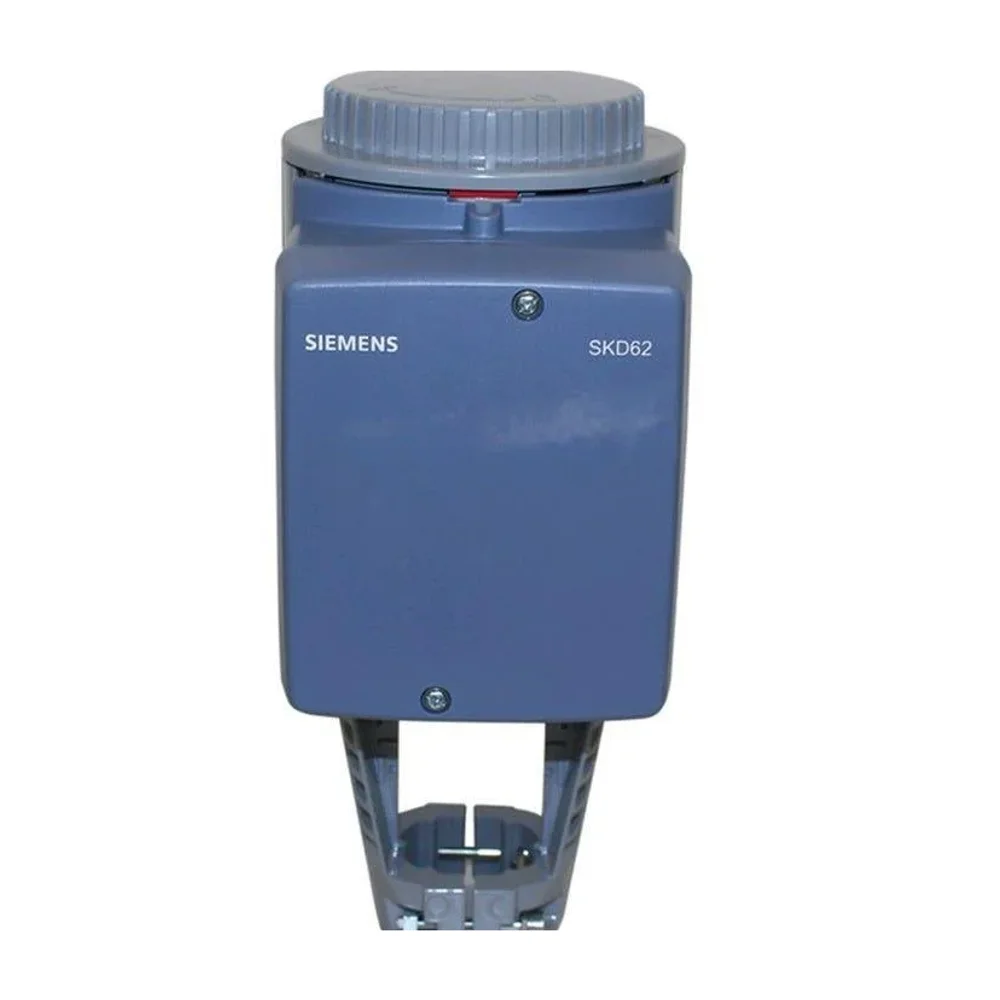

Siemens Skd62 Electrohydraulic Valve Actuator | Tradoi
Electronics & Electrical › Automation & Control
Siemens Skd62 Electrohydraulic Valve Actuator — supplied from Mohali, Punjab by Autonex Security Systems. Tradoi-verified trader at ₹72,864/piece, MOQ 1 piece.
Product Overview
Siemens SKD62 Electrohydraulic Valve Actuator, sourced for industrial automation and process control applications. Ideal for institutional buyers and export houses requiring precise flow regulation components.
Detailed Description
The Siemens SKD62 Electrohydraulic Valve Actuator, sourced for building automation and HVAC control, delivers precise proportional control with a positioning force of 1,000 N and a nominal stroke of 20 mm. Operating on 24 V AC (±20%) at 50/60 Hz, it integrates seamlessly via 0–10 V DC or 4–20 mA control signals. Key features include a fail-safe function with spring return, completing in 15 seconds, and electronic, travel-dependent overload protection. Its robust die-cast aluminium housing ensures durability, compatible with Siemens valves and suitable third-party valves via retrofit kits for direct mounting. This electrohydraulic actuator is supplied for institutional buyers, facility management companies, and system integrators involved in large-scale commercial and industrial HVAC projects. It is particularly suited for applications requiring reliable temperature and airflow regulation in heating, ventilation, and air-conditioning systems, commonly employed with globe and control valves. Its manual override and position feedback capabilities (variant-dependent) make it a fit for complex building management systems where precise environmental control and operational flexibility are critical. The Siemens SKD62 actuator is supplied with IEC certification, ensuring adherence to international standards for electrical and electronic products. This certification provides assurance for trade across markets and facilitates procurement for projects requiring globally recognized compliance.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Automation & Control |
| Product Type | Process Controllers |
| Price | ₹72,864 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- Electrohydraulic proportional control with 1,000 N positioning force and 20 mm nominal stroke.
- Operates on 24 V AC (±20%) at 50/60 Hz, integrating with 0–10 V DC or 4–20 mA signals.
- Features a fail-safe spring return function, completing in 15 seconds.
- Equipped with electronic, travel-dependent overload protection for enhanced durability.
- Housed in robust die-cast aluminium, compatible with Siemens and third-party valves via retrofit kits.
- Supplied with IEC certification, ensuring adherence to international electrical standards.
Applications & Use Cases
- Building Automation: Precise temperature and airflow regulation in HVAC systems.
- Facility Management: Reliable control for large-scale commercial and industrial HVAC projects.
- System Integrators: Integration into complex building management systems requiring environmental control.
- Commercial & Industrial HVAC: Used with globe and control valves for heating, ventilation, and air-conditioning.
Technical Specifications
| Brand | Siemens |
|---|---|
| Model | SKD62 |
| Housing | Die-cast aluminium |
| Voltage | 24 v |
| Mounting | Direct valve mounting |
| Frequency | 50/60 Hz |
| Structure | Control |
| Action Type | Single Acting |
| Motion Type | Rotary |
| Applications | Heating, ventilation and air-conditioning control |
| Closing Time | Approximately 15 seconds |
| Control Mode | On/Off |
| Opening Time | Approximately 30 seconds |
| Product Type | Electrohydraulic Valve Actuator |
| Actuator Type | Electrohydraulic, proportional |
| Specification | Details |
| Spring Return | Yes |
| Control Signal | 0–10 V DC / 4–20 mA |
| Nominal Stroke | 20 mm (3/4 inch) |
| Product Family | Acvatix / Flowrite |
| Product Status | Active Product |
| Manual Override | Yes |
| Typical Control | HVAC / building automation |
| Operating Voltage | 24 V AC ±20% |
| Position Feedback | Available depending on variant |
| Positioning Force | 1,000 N |
| Power Consumption | Approx. 18 VA / 12 W |
| Fail-safe Function | Yes |
| Spring-return Time | 15 seconds |
| Typical Valve Type | Globe / control valves |
| Overload Protection | Electronic, travel-dependent shutoff at end position |
| Valve Compatibility | Siemens valves with 20 mm stroke and suitable third-party valves with retrofit kit |
