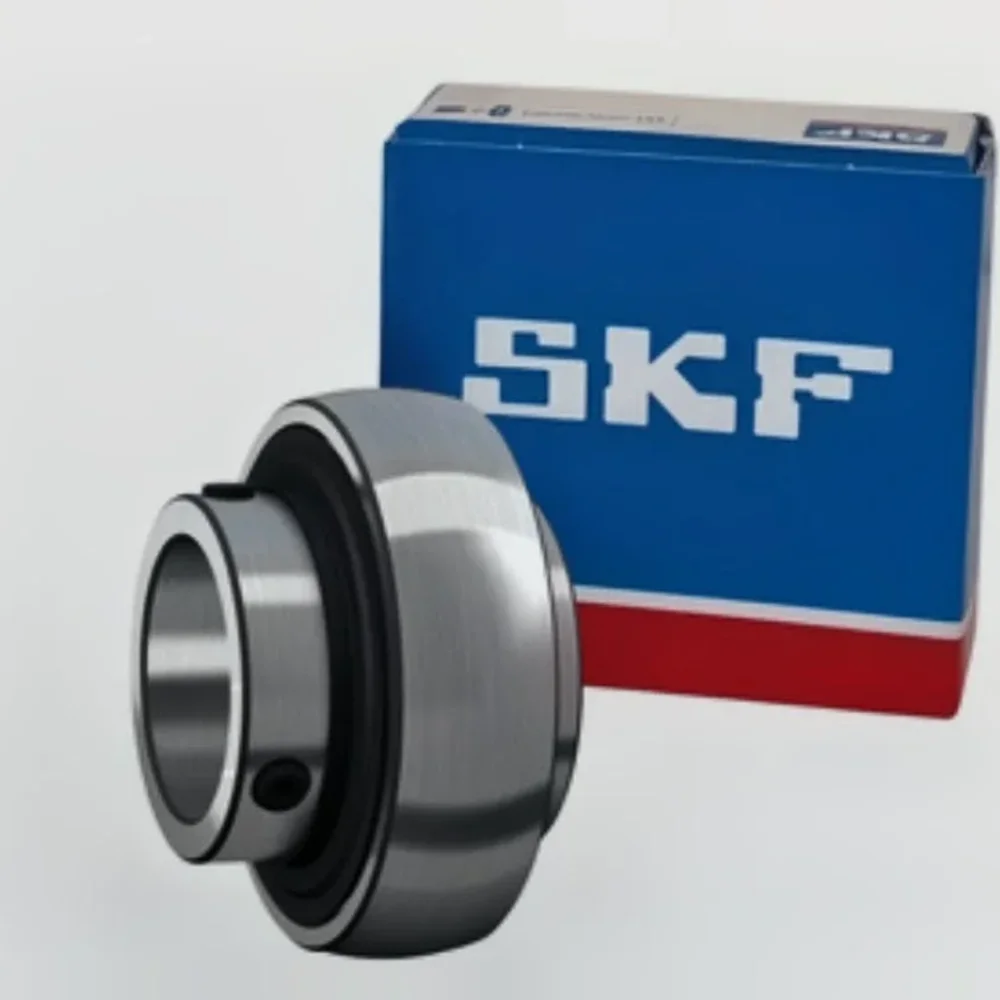

SKF Uc 206 Insert Bearing, ₹1,242/piece | Tradoi
Industrial Supplies & Tools › Power Transmission, Valves & Bearings
SKF Uc 206 Insert Bearing — distributed from New Delhi, Delhi by Axis Sales Corp. Tradoi-verified distributor at ₹1,242/piece, MOQ 1 piece.
Product Overview
The SKF Uc 206 insert bearing features a 30.00 mm bore diameter and a dynamic load rating of 19.5 kN, designed for robust performance in industrial machinery. It incorporates a reliable locking mechanism with two set screws on the extended inner ring, ensuring secure shaft attachment.
Detailed Description
The SKF Uc 206 insert bearing is engineered for reliable operation, featuring a 30.00 mm bore diameter and a 62.00 mm outer diameter. With a width of 38.10 mm and an outer ring width of 18.00 mm, this bearing is designed for compact yet powerful applications. It offers a dynamic load rating of 19.5 kN and a static load rating of 11.4 kN, making it suitable for demanding industrial environments. The bearing is equipped with a robust locking mechanism, utilizing two set screws on the extended inner ring for secure mounting, and includes standard contact seals with flingers on both sides to protect against contaminants. This insert bearing is widely stocked for use in various industrial sectors, including agricultural machinery, material handling systems, and general manufacturing equipment. It is a critical component for power transmission applications where reliable shaft support and efficient load distribution are essential. Procurement managers and maintenance engineers frequently source such bearings for routine replacements and new equipment builds, valuing consistency and performance in their supply chain. Each SKF Uc 206 bearing weighs approximately 0.32 kg, reflecting its solid construction and material integrity. These bearings are supplied to meet the rigorous demands of continuous operation, ensuring long-term durability and reduced downtime in critical applications.
Product Details
| Category | Industrial Supplies & Tools |
|---|---|
| Sub-Category | Power Transmission, Valves & Bearings |
| Product Type | Ball Bearings |
| Price | ₹1,242 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Country of Origin | India |
Key Features
- 30.00 mm Bore Diameter: Ensures precise fit for standard industrial shafts, facilitating easy integration into existing systems.
- 19.5 kN Dynamic Load Rating: Capable of handling significant operational forces, suitable for machinery with continuous motion and varying loads.
- 11.4 kN Static Load Rating: Provides stability and support under stationary heavy loads, preventing deformation and ensuring structural integrity.
- Two Set Screws on Extended Inner Ring: Offers a secure and reliable locking mechanism, minimizing slippage and enhancing operational safety.
- 62.00 mm Outer Diameter: Standard dimension for compatibility with various housing units and mounting configurations.
- 38.10 mm Width: Compact design for efficient space utilization within machinery assemblies.
- Standard Contact Seal and Flinger on Both Sides: Protects internal components from dust, moisture, and contaminants, extending bearing service life.
Applications & Use Cases
- Agricultural Machinery: Used in cultivators, harvesters, and tractors for shaft support in demanding outdoor conditions.
- Material Handling Systems: Essential for conveyors, forklifts, and automated storage and retrieval systems requiring reliable load bearing.
- General Manufacturing Equipment: Integrated into various production line machinery, including textile, packaging, and food processing units.
- Power Transmission Units: Critical for gearboxes, pumps, and motors to ensure smooth rotation and efficient power transfer.
- Construction Equipment: Applied in smaller construction machinery components where robust bearing support is needed.
Technical Specifications
| Width | 38.1 mm |
|---|---|
| Bore Diameter | 30 mm |
| Outer Diameter | 62 mm |
| Static Load Rating | 11.4 kN |
| Dynamic Load Rating | 19.5 kN |
| Brand | SKF |
| Seals | Standard contact seal and flinger on both sides |
| Weight | 0.32 kg |
| Model Number | Uc 206 |
| Outer Ring Width | 18.00 mm |
| Locking Mechanism | Two set screws on the extended inner ring |
Payment Terms
- Full Advance
About the Supplier
Axis Sales Corp. is a verified B2B supplier based in New Delhi, Delhi.
- Tradoi-verified seller
- Certifications: iec
Frequently Asked Questions
What is the minimum order quantity for SKF Uc 206 Insert Bearing?
The minimum order quantity (MOQ) for SKF Uc 206 Insert Bearing is 1 piece.
Who supplies SKF Uc 206 Insert Bearing?
SKF Uc 206 Insert Bearing is supplied by Axis Sales Corp., a Tradoi-verified distributor based in New Delhi, Delhi.
What are the payment terms for SKF Uc 206 Insert Bearing?
Available payment terms for SKF Uc 206 Insert Bearing: Full Advance.
What is the price of SKF Uc 206 Insert Bearing?
SKF Uc 206 Insert Bearing is priced at ₹1,242 per piece by Axis Sales Corp. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
