5.1-5.9GHz Dual Linear Sector Antenna 16dBi Gain | Tradoi
Electronics & Electrical › Telecom Equipment
5.1-5.9GHz Dual Linear Sector Antenna 16dBi Gain — manufactured in Bengaluru (Bangalore) Urban, Karnataka by Telimart India Pvt. Ltd. Tradoi-verified manufacturer at ₹1/piece, MOQ 1 piece.
Product Overview

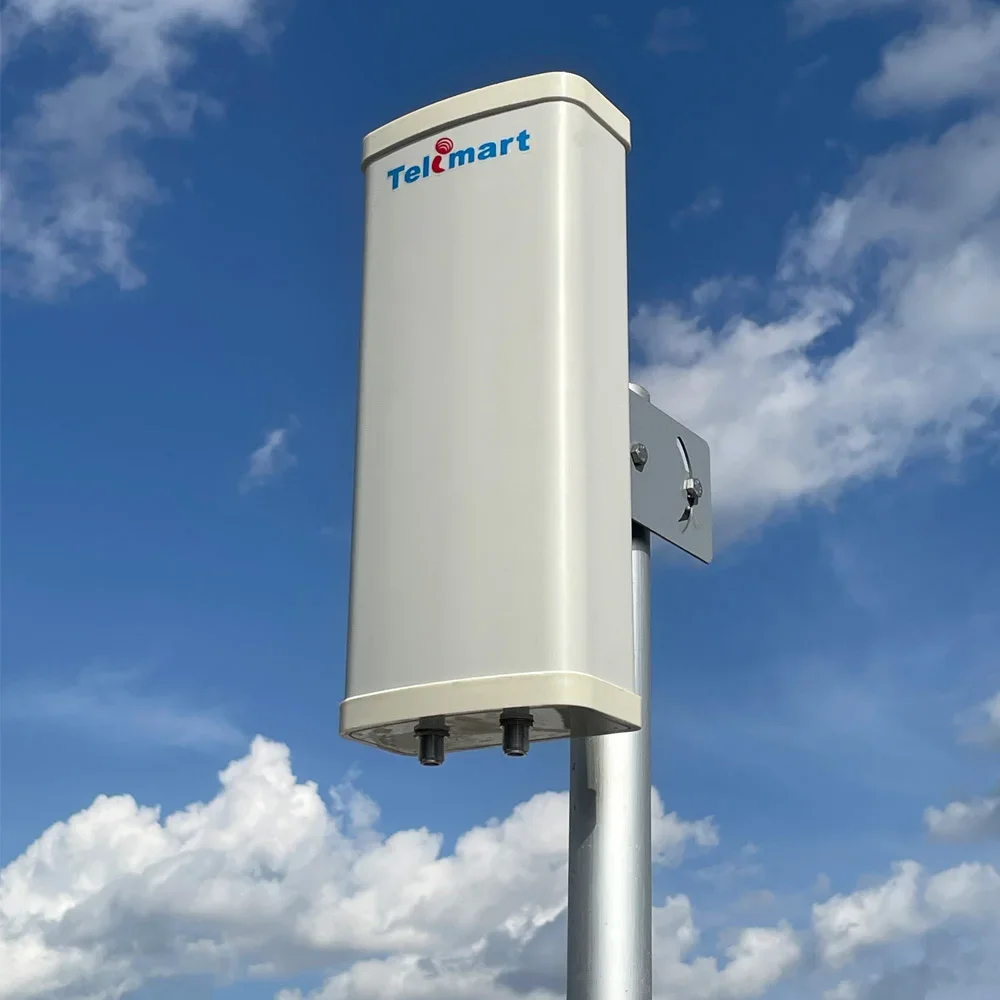

A sector antenna operating across the 5.1-5.9GHz frequency range, delivering 2 × 16 ± 0.5 dBi gain with dual-linear polarization, suitable for high-capacity wireless network deployments requiring precise coverage.
Detailed Description
This sector antenna is engineered for robust performance within the 5100 – 5900 MHz frequency band, offering a gain of 2 × 16 ± 0.5 dBi. It features dual-linear polarization and a horizontal beamwidth of 120 ± 5 ° with a vertical beamwidth of 8 ± 1 °, ensuring focused signal distribution. Designed with an impedance of 50 Ohm and N-Type Female connectors, it supports reliable integration into existing network infrastructures. This antenna is well-suited for urban and suburban deployments where sectorized coverage is essential for managing client density and minimizing interference. Its specifications support applications in last-mile connectivity, campus-wide Wi-Fi, and surveillance system backhauls. Each unit is produced with DC Ground lightning protection, enhancing system resilience and operational safety in varied environmental conditions. The design prioritizes signal integrity with a VSWR of 1.5: 1 (Typ) and port-to-port isolation greater than 30 dB, ensuring stable and efficient data transmission.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Telecom Equipment |
| Product Type | Telecom Antennas |
| Price | ₹1 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Country of Origin | India |
Key Features
- Frequency Range: Operates efficiently across 5100 – 5900 MHz, supporting a broad spectrum of wireless communication standards.
- Gain: Provides 2 × 16 ± 0.5 dBi gain, enhancing signal strength and reach for extended coverage areas.
- Polarization: Features dual-linear polarization, enabling 2x2 MIMO configurations for improved data throughput and link stability.
- Horizontal Beamwidth: Offers a 120 ± 5 ° horizontal beamwidth, ideal for sectorized coverage in point-to-multipoint networks.
- Vertical Beamwidth: Delivers an 8 ± 1 ° vertical beamwidth, ensuring precise signal targeting and reduced interference.
- Impedance: Standard 50 Ohm impedance for seamless compatibility with common RF equipment and cabling.
- VSWR: Maintains a low VSWR of 1.5: 1 (Typ) and 1.8: 1 (Max), minimizing signal reflection and maximizing power transfer.
- Port-to-Port Isolation: Achieves greater than 30 dB port-to-port isolation, crucial for reducing crosstalk in MIMO systems.
- Max Power Input: Rated for a maximum power input of 50 Watts, accommodating various transmitter power levels.
- Connector Type: Equipped with N-Type Female connectors, providing a robust and widely compatible interface for RF cables.
Applications & Use Cases
- Telecommunication Networks: Enhancing cellular backhaul and small cell deployments in high-density areas.
- Enterprise Wireless Networks: Providing robust outdoor Wi-Fi coverage for large campuses and industrial sites.
- Video Surveillance Systems: Establishing reliable wireless links for IP camera networks and security infrastructure.
- Smart City Infrastructure: Supporting connectivity for IoT devices, public Wi-Fi hotspots, and sensor networks.
Technical Specifications
| Gain | 2 × 16 ± 0.5 dBi |
|---|---|
| Impedance | 50 Ohm |
| Antenna Type | Sector |
| Polarization | Dual Linear |
| Connector Type | N Type Female |
| Frequency Range | 5100 – 5900 MHz |
| Beamwidth Vertical | 8 ± 1 ° |
| Beamwidth Horizontal | 120 ± 5 ° |
| Vswr | 1.5 : 1 (Typ) 1.8 : 1 (Max) |
| Max Power Input | 50 Watts |
| Cross Polarization | > 22 dB |
| Front To Back Ratio | > 26 dB |
| Lightning Protection | DC Ground |
| Port To Port Isolation | > 30 dB |
