Outdoor Feeder Pillar Panel — manufactured in Kuwadva Gidc, Gujarat by Electro Control Systems India Pvt. Ltd. Tradoi-verified manufacturer at ₹50,000/piece, MOQ 1 piece.
Product Overview

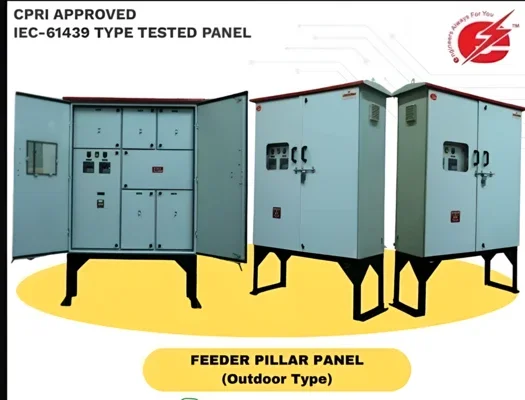

Feeder Pillar Panels are robust outdoor electrical enclosures designed for power distribution. They are free-standing, IP55 rated, and feature multiple compartments for efficient power management, including incomer, outgoing feeders, busbars, and metering.
Detailed Description
This Feeder Pillar Panel is an outdoor, free-standing electrical enclosure engineered for reliable power distribution. It is IP55 rated for protection against dust and water ingress, making it suitable for various outdoor environments. The panel is constructed from CRCA sheet with available thicknesses of 2.0mm and 3.15mm, and features a durable powder coating finish applied after a 7-tank precoating process. The panel offers front and rear access doors and is available in welded, modular, and draw-out designs. Internal compartments include incomer, outgoing feeders, busbars, cable alley, and metering sections. Key components such as MCCB, SFU, Changeover, ACB, and MCB are integrated. Metering features include digital panel meters and indication lamps. Busbars are available in EC grade copper and aluminum flat bar, with internal wiring using FR/FRLS single-core copper flexible wire (0.75 sq.mm to 25 sq.mm). Hardware includes SS 304 nut bolts, PU gaskets, door hinges, and lifting hooks. The panel is CPRI APPROVED and IEC-61439 TYPE TESTED, ensuring high standards of safety and performance.
Product Details
| Category | Energy & Power |
|---|---|
| Sub-Category | Power Distribution & Switchgear |
| Product Type | Feeder Pillars |
| Price | ₹50,000 per piece |
| Minimum Order Quantity | 1 pieces |
| Unit | piece |
| Country of Origin | India |
Key Features
- IP55 rated for outdoor use
- Constructed from CRCA sheet (2.0mm, 3.15mm thickness options)
- Free-standing mounting type
- Front and rear access doors
- Available in welded, modular, and draw-out designs
- Bottom cable entry location
- Multiple compartments: incomer, outgoing feeders, busbars, cable alley, metering
- Equipped with MCCB, SFU, Changeover, ACB, MCB components
- Metering features: digital panel meters, indication lamps
- Busbars made of EC grade copper or aluminum flat bar
- Internal wiring: FR/FRLS single-core copper flexible wire (0.75 sq.mm to 25 sq.mm)
- Powder coating finish with 7-tank precoating process
- SS 304 nut bolts, PU gaskets, door hinges, lifting hooks
- CPRI APPROVED and IEC-61439 TYPE TESTED certification
- Light grey colour
- Assembled equipment, packaged loose
Applications & Use Cases
- Outdoor power distribution in industrial and commercial settings to ensure reliable and safe electricity supply.
- Housing electrical switchgear and control equipment for protection against environmental factors.
- Managing power supply to multiple outgoing feeders from a single incomer source in various installations.
Technical Specifications
| Door Type | Front Access |
|---|---|
| IP Rating | Ip55 |
| Busbar Material | Copper |
| Form | assembled equipment |
| Type | Panel |
| Colour | light grey |
| Hardware | lifting hooks |
| Packaging | Loose |
| Thickness | 3.15mm |
| Components | MCB |
| Design Type | draw-out |
| Compartments | Metering |
| Product Name | Feeder Pillar Panel (outdoor Type) |
| Certification | IEC |
| Material Type | CRCA sheet |
| Mounting Type | free-standing |
| Coating Finish | powder coating |
| Busbar Material | aluminum flat bar |
| Metering Features | indication lamps |
| Precoating Process | 7-tank |
| Cable Entry Location | Bottom |
| Internal Wiring Size | 25 sq.mm |
| Internal Wiring Rating | FRLS |
| Internal Wiring Material | single-core copper flexible wire |
