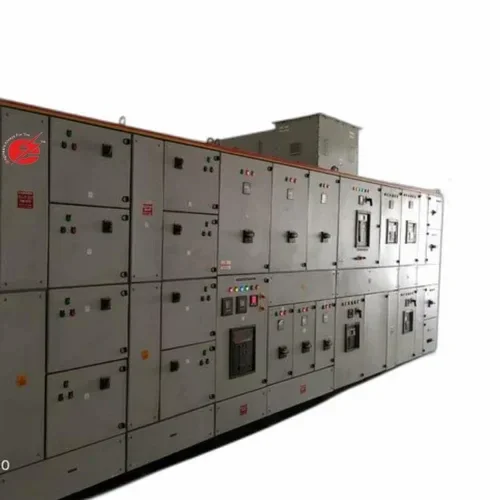

Indoor Outdoor MCC Panel

Price and Order

• Tracked Order
• Private Contact
• Tradoi-Verified Seller

Get Quotes · Chat Now

Specifications

From the Seller's Listing

Trade and Delivery

Description

Manufactured from 2.0mm CRCA sheet, these MCC Panels are designed for both indoor and outdoor applications, offering robust centralized motor control. Available with IP42/45 ratings, they support diverse power management needs for industrial and infrastructure projects.

Key Features

• Constructed from 2.0mm CRCA sheet — provides robust structural integrity and long-term durability for industrial use.
• Available in indoor and outdoor configurations — offers versatility for deployment in diverse environmental conditions with IP42/45 protection.
• Features free-standing structure with front and rear openable compartments — ensures easy access for maintenance and inspection.
• Supports multiple design options: welded, modular, and draw-out — allows for flexible integration into various plant layouts and operational needs.
• Equipped with MCCB or ACB for incoming power management — provides reliable circuit protection and control for main power feeds.
• Outgoing feeders support DOL, FASD, ATS, soft starters, and VFD configurations — adaptable for a motor control applications.
• Internal wiring uses FR/FRLS single-core copper flexible wire (0.75 to 255 sq. mm) — ensures safe, high-performance electrical connections.
• Busbars made from EC grade copper or aluminum flat bar — designed for efficient power distribution with specified derating factors.
• Finished with a 7-tank precoating process and powder coating — enhances corrosion resistance and extends product lifespan.
• Includes SS 304 nut bolts, PU gaskets, and lifting hooks — ensures secure assembly, environmental sealing, and ease of installation.

Applications

• Manufacturing facilities: For centralized control of motors in production lines and machinery.
• Processing plants: Managing motor operations in chemical, food, or material processing environments.
• Infrastructure projects: Power distribution and motor control in large-scale public and private developments.
• Industrial automation systems: Integrating motor control into complex automated processes.
• HVAC systems in large buildings: Controlling motors for ventilation, heating, and cooling units.
• Water treatment plants: Managing pump and motor operations for water purification and distribution.

Detailed Description

These MCC (Motor Control Center) Panels are made in-house from high-grade 2.0mm CRCA sheet, ensuring durability and structural integrity for demanding industrial environments. Available in both indoor and outdoor configurations with an IP42/45 rating, they feature a free-standing structure with front and rear openable compartments for ease of maintenance. Design options include welded, modular, and draw-out types, accommodating various operational requirements. Incoming power management is facilitated by MCCB or ACB, while outgoing feeders support DOL, FASD, ATS, soft starters, and VFD configurations. Internal wiring uses FR/FRLS single-core copper flexible wire, ranging from 0.75 to 255 sq. mm, with busbars crafted from EC grade copper or aluminum flat bar, ensuring reliable power distribution. Designed for centralized motor control, these MCC Panels are critical capital equipment for sectors requiring precise and robust power distribution. Typical buyers include large-scale manufacturing units, processing plants, and infrastructure development firms undertaking significant industrial or public works projects. Their configurable nature, supporting various feeder types and power management options, makes them suitable for complex automation and control systems where reliability and safety are paramount. Procurement teams often look for such panels to integrate into new facility constructions or upgrade existing electrical infrastructure, ensuring compliance with operational standards and efficiency requirements. Each panel is finished using a 7-tank precoating process followed by powder coating, providing enhanced corrosion resistance and a grey aesthetic. Components like SS 304 nut bolts, PU gaskets, and robust door hinges contribute to the overall durability and operational lifespan. Lifting hooks are integrated for safe and efficient installation. Metering is facilitated by digital panel meters and indicator lamps, providing clear operational status.
