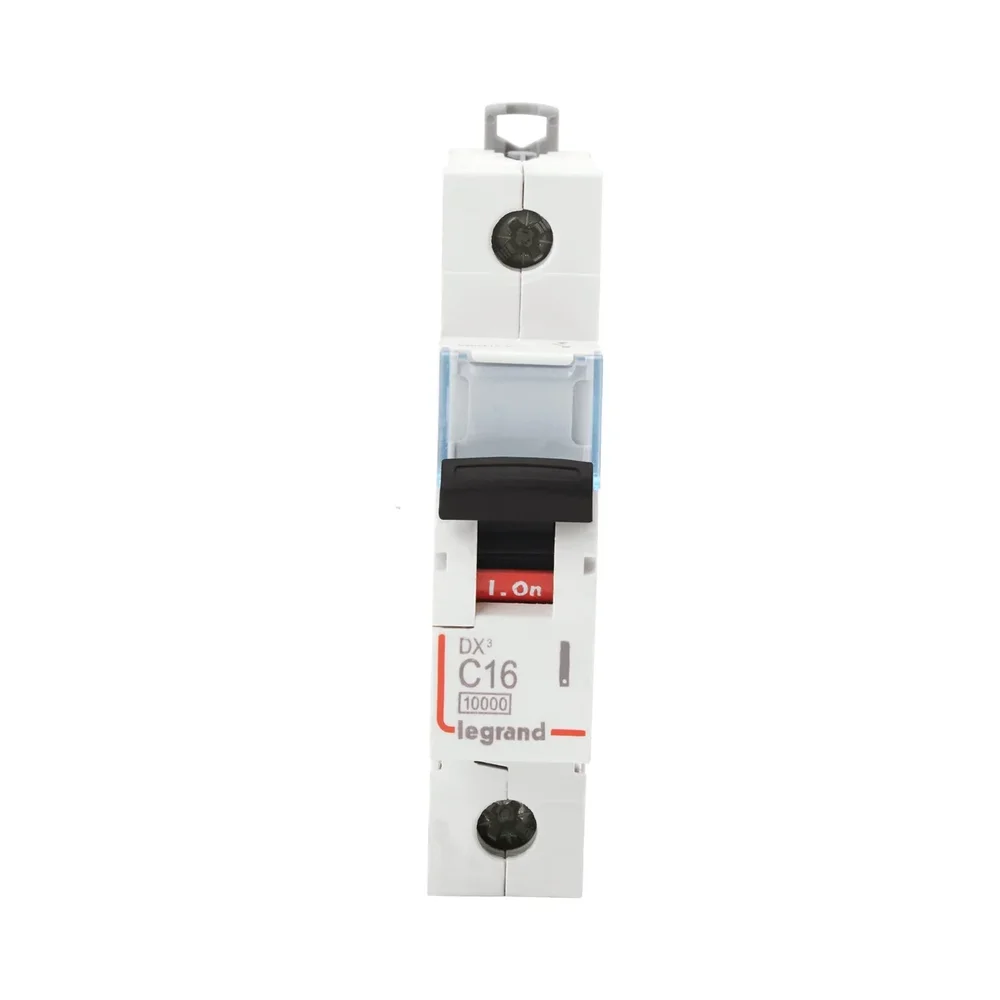

Legrand DX3 1P C16 10kA Single Phase MCB | Tradoi
Electronics & Electrical › Circuit Protection
Legrand DX3 1P C16 10kA Single Phase MCB — wholesale supply from Mumbai, Maharashtra by Shravan Industrial Solutions. Tradoi-verified wholesaler at ₹516/piece, MOQ 10 piece.
Product Overview
Polycarbonate Legrand DX3 1P C16 MCB, rated for 6A current and 240V, offers 10kA breaking capacity for single-phase electrical circuit protection. Designed for DIN Rail mounting, this IP20 rated miniature circuit breaker ensures reliable performance in commercial and industrial installations.
Detailed Description
The Legrand DX3 1P C16 Miniature Circuit Breaker is a robust electrical protection component, featuring a 1-pole configuration for single-phase systems. Constructed from durable polycarbonate, it is engineered to provide reliable overcurrent and short-circuit protection with a current rating of 6A and a rated voltage of 240V. This MCB boasts a breaking capacity of 10kA (10000A) and a C tripping curve, making it suitable for applications requiring precise circuit isolation. This standardized component is typically supplied in bulk to electrical contractors, panel builders, and facility management companies for new installations, upgrades, and maintenance projects. Its DIN Rail mounting type simplifies integration into standard electrical distribution boards and control panels, catering to the needs of commercial buildings, light industrial units, and residential complexes requiring robust and compliant circuit protection solutions. The IP20 protection class, according to IEC/EN 60529 Standard, ensures protection against solid objects, making it suitable for enclosed environments. Engineered to meet stringent safety and performance criteria, this Legrand MCB adheres to the IEC 60898-1 Standard with an energy limitation class of 3. This compliance underscores its suitability for critical electrical infrastructure where consistent performance and adherence to international safety norms are paramount for operational integrity and personnel safety.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Circuit Protection |
| Product Type | MCBs |
| Price | ₹516 per piece |
| Minimum Order Quantity | 10 piece |
| Unit | piece |
| Country of Origin | India |
Key Features
- 1-Pole Configuration: Designed for single-phase electrical systems, providing dedicated circuit protection.
- 6A Current Rating: Precisely calibrated for circuits requiring a 6 Ampere current threshold.
- 10kA Breaking Capacity: Offers robust protection against high fault currents up to 10,000 Amperes.
- 240V Rated Voltage: Suitable for standard 240 Volt AC electrical supply networks.
- C Tripping Curve: Provides delayed thermal tripping for overload protection and instantaneous magnetic tripping for short-circuit protection.
- Polycarbonate Body Material: Ensures durability and electrical insulation for enhanced safety and longevity.
- DIN Rail Mounting: Facilitates quick and secure installation into standard electrical distribution boards.
- IP20 Protection Class: Offers protection against solid objects larger than 12.5mm, as per IEC/EN 60529 Standard.
- Energy Limitation Class 3: Complies with IEC 60898-1 Standard, indicating effective energy limitation during short circuits.
Applications & Use Cases
- Commercial Building Electrification: Essential for circuit protection in offices, retail spaces, and hospitality venues.
- Industrial Control Panels: Integrated into machinery and process control systems for equipment safety.
- Residential Electrical Distribution: Used in modern homes and apartment complexes for reliable circuit isolation.
- Electrical Contractor Projects: Standard component for new installations and upgrades in various construction projects.
- Facility Management & Maintenance: Utilized for replacement and maintenance of existing electrical infrastructure.
Technical Specifications
| Mounting Type | Din Rail |
|---|---|
| Rated Voltage | 240 V |
| Current Rating | 6 A |
| Tripping Curve | C |
| Number Of Poles | 1p |
| Protection Class | IP20 According To IEC/EN 60529 Standard |
| Breaking Capacity | 10000 a |
| Brand | Legrand |
| Model | DX3 |
| Phase | Single Phase |
| IP Rating | IP20 |
| Product Type | Legrand MCB |
| Body Material | Polycarbonate |
| Tripping Curve | C16 |
| Energy Limitation Class | 3 According To IEC 60898-1 Standard |
Payment Terms
- Full Advance
About the Supplier
Shravan Industrial Solutions is a verified B2B supplier based in Mumbai, Maharashtra.
- Tradoi-verified seller
View Shravan Industrial Solutions supplier profile on Tradoi
Frequently Asked Questions
What is the minimum order quantity for Legrand DX3 1P C16 10kA Single Phase MCB?
The minimum order quantity (MOQ) for Legrand DX3 1P C16 10kA Single Phase MCB is 10 piece.
Who supplies Legrand DX3 1P C16 10kA Single Phase MCB?
Legrand DX3 1P C16 10kA Single Phase MCB is offered by Shravan Industrial Solutions, a Tradoi-verified wholesaler based in Mumbai, Maharashtra.
What are the payment terms for Legrand DX3 1P C16 10kA Single Phase MCB?
Available payment terms for Legrand DX3 1P C16 10kA Single Phase MCB: Full Advance.
What is the price of Legrand DX3 1P C16 10kA Single Phase MCB?
Legrand DX3 1P C16 10kA Single Phase MCB is priced at ₹516 per piece by Shravan Industrial Solutions. Minimum order quantity is 10 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
How can I buy Legrand DX3 1P C16 10kA Single Phase MCB in bulk?
Legrand DX3 1P C16 10kA Single Phase MCB is available for bulk purchase directly from Shravan Industrial Solutions in Mumbai on Tradoi. Submit an RFQ or contact the supplier to discuss volumes above 10 piece and negotiate pricing.
