Pcbmaker 5040 60K 3-Axis Cnc Machine — manufactured in Bengaluru, Karnataka by Akriti Precision Systems Pvt. Ltd. Tradoi-verified manufacturer at ₹7,35,000/piece, MOQ 1 piece, lead time 15 days.
Product Overview

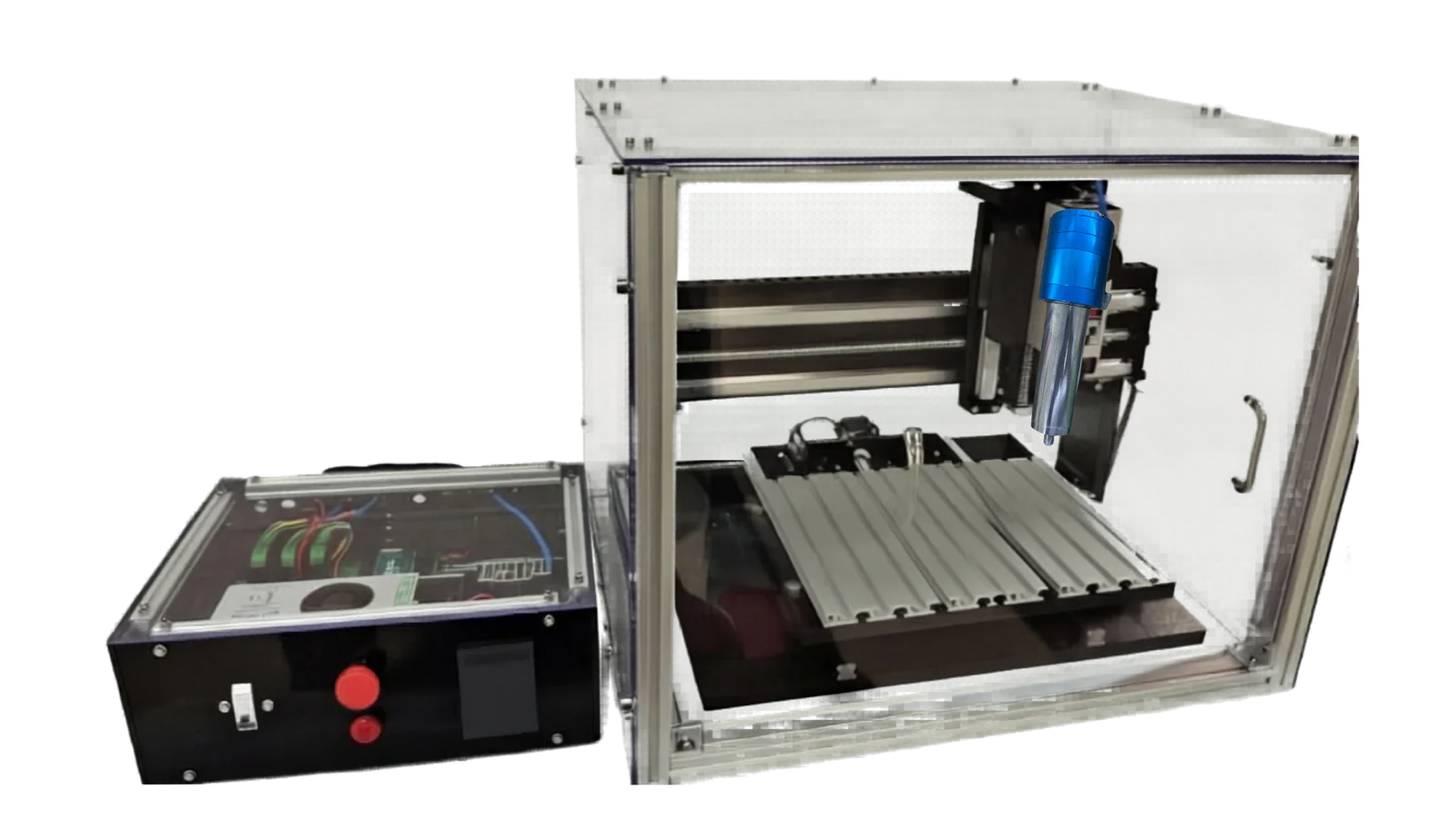

The Pcbmaker 5040 60K is a 3-axis PCB CNC machine featuring a 60,000 RPM water-cooled spindle and a 500 x 400 mm working area, designed for high-speed drilling and routing of printed circuit boards with certified runout under 10 microns.
Detailed Description
The Pcbmaker 5040 60K is a robust 3-axis PCB CNC machine, engineered for precision and speed in printed circuit board fabrication. It features a high-speed 60,000 RPM, 1.5 KW water-cooled spindle with certified runout under 10 microns, ensuring fine-detail drilling and routing. The machine offers a generous 500 x 400 mm working area, supported by a composite (carbon fiber/fiberglass) superstructure mounted on a Tata Steel mild steel base, backed by a lifetime warranty on composite parts. Motion is precisely controlled by Hiwin/THK 16mm rolled ball screws and 20mm linear guides on all axes, achieving a maximum travel speed of 5 M/min and repeat positioning accuracy certified under 50 microns. This machine is ideal for PCB manufacturing units, electronics R&D labs, and prototyping facilities requiring both larger board processing capabilities and high-precision operations. The included Flatcam and Gsender/UGS software facilitate seamless workflow from Gerber/Excellon files to Gcode, catering to professional environments focused on efficient and accurate PCB production. All core components, including Nema 24/34 stepper motors, the machine control box, drivers, power supply, and VFD, are made in India. The manufacturing process operates under an ISO 9001 quality management system, ensuring consistent product standards. The machine is CE certified, confirming compliance with European safety, health, and environmental protection requirements.
Product Details
| Category | Machinery & Equipment |
|---|---|
| Sub-Category | Machine Tools |
| Product Type | Milling Machines |
| Price | ₹7,35,000 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Monthly Capacity | 5 units |
| Lead Time | 15 days |
| HSN/SAC Code | 84592100 |
| Country of Origin | India |
| Warranty | 1 Years Comprehensive Warranty |
Key Features
- 60,000 RPM Spindle Speed: High-speed 1.5 KW (2hp) water-cooled spindle for rapid and precise drilling and routing operations.
- 500 x 400 mm Working Area: Accommodates larger PCBs and panelized jobs, enhancing productivity for batch operations.
- Composite Superstructure with Lifetime Warranty: Carbon fiber/fiberglass frame on a Tata Steel mild steel base, offering durability and stability without sagging or corrosion.
- Certified Spindle Runout <10 Microns: Ensures exceptional accuracy for fine-detail work and consistent hole quality.
- Industrial-Grade Motion System: Features Hiwin/THK 16mm rolled ball screws and 20mm linear guides for smooth, accurate 3-axis motion.
- Made-in-India Core Components: Nema 24/34 stepper motors, control box, drivers, power supply, and VFD sourced locally for reliability and support.
- Push-Button Manual Tool Change: Facilitates fast batch operations with a 3.175mm collet, reducing setup time and cost of ownership.
- Comprehensive Software Included: Flatcam (Gerber/Excellon to Gcode) and Gsender/UGS for machine control, supporting standard file formats.
- ISO 9001 & CE Certified: Manufactured under an ISO 9001 quality management system and compliant with CE standards for safety and quality.
Applications & Use Cases
- PCB Manufacturing Units: For high-volume production and prototyping of printed circuit boards.
- Electronics R&D Laboratories: Precision drilling and routing for new circuit design and development.
- Educational Institutions: Practical training and project work in electronics and mechatronics engineering.
- Specialized Electronics Workshops: Producing intricate and fine-detail PCBs for niche applications.
- Batch Panel Production: Efficient processing of multiple smaller boards on a single larger panel.
Technical Specifications
| Table Size X | 500 Mm |
|---|---|
| Table Size Y | 400 Mm |
| Spindle Power | 1.5 KW |
| Spindle Speed | 60 ,000 RPM |
| Number Of Axes | 3_axis |
| Brand | Akriti Precision Systems |
| Chassis | Carbon Fiber / Fiber Glass Superstructure - Mounted on Mild Steel Base - Open Type |
| Warranty | 1 Year on All Parts (Extendable up to 10 Years), Plus Lifetime Warranty on the Composite Superstructure |
| Controller | Arduino-based |
| Collet Size | 3.175Mm |
| Power Input | Single Phase, 220V/110v, 16a |
| File Formats | Excellon, Gerber, Gcode |
| Machine Type | 3 Axis |
| Model Number | 5040 60K |
| Base Material | Tata Steel Mild Steel |
| Certification | ISO 9001 |
| Motion System | Hiwin/thk 16Mm Rolled Ball Screws and 20Mm Linear Guides |
| Z Axis Travel | 100 MM |
| Coolant System | Water Cooled |
| Machine Type 2 | Other |
| Working Area X | 500 MM |
| Working Area Y | 400 MM |
| Controller Type | Arduino Controller |
| Max Travel Speed | 5 M/min |
| Tool Change Type | Manual |
| Machine Footprint | 900 x 900 MM |
| Software Included | Flatcam (Gerber/Excellon → Gcode) & Gsender/Ugs (Machine Control) |
| Minimum Track Width | 0.100 Mm |
| Control Box Footprint | 610 x 450 MM |
| Drilling Speed Stepper | 30–40 Holes/min |
| Superstructure Material | Composite (Carbon Fiber/fiberglass) |
| Spindle Runout Certified | <10 Microns |
| Spindle Country Of Origin | India |
| Drilling Speed Servo Upgrade | 80–100/Min |
| Country Of Origin Core Components | India |
| Repeat Positioning Accuracy Certified | <50 Microns |
Bulk Pricing
| Quantity | Price |
|---|---|
| 3+ piece | ₹6,85,000 per piece |
Payment Terms
- Full Advance
About the Supplier
Akriti Precision Systems Pvt. Ltd. is a verified B2B supplier based in Bengaluru, Karnataka.
- Tradoi-verified seller
- Certifications: iso_9001, company_incorporation, iec, dpiit_startup, ce_marking
View Akriti Precision Systems Pvt. Ltd. supplier profile on Tradoi
Frequently Asked Questions
What is the minimum order quantity for Pcbmaker 5040 60K 3-Axis Cnc Machine?
The minimum order quantity (MOQ) for Pcbmaker 5040 60K 3-Axis Cnc Machine is 1 piece.
Who manufactures Pcbmaker 5040 60K 3-Axis Cnc Machine?
Pcbmaker 5040 60K 3-Axis Cnc Machine is manufactured by Akriti Precision Systems Pvt. Ltd., a Tradoi-verified manufacturer based in Bengaluru, Karnataka.
What are the payment terms for Pcbmaker 5040 60K 3-Axis Cnc Machine?
Available payment terms for Pcbmaker 5040 60K 3-Axis Cnc Machine: Full Advance.
What is the lead time for Pcbmaker 5040 60K 3-Axis Cnc Machine?
The lead time for Pcbmaker 5040 60K 3-Axis Cnc Machine is 15 days.
What is the price of Pcbmaker 5040 60K 3-Axis Cnc Machine?
Pcbmaker 5040 60K 3-Axis Cnc Machine is priced at ₹7,35,000 per piece by Akriti Precision Systems Pvt. Ltd.. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
