Pcbproto 5040 Duo 3-Axis Cnc Machine — manufactured in Bengaluru, Karnataka by Akriti Precision Systems Pvt. Ltd. Tradoi-verified manufacturer at ₹5,30,000/piece, MOQ 1 piece, lead time 15 days.
Product Overview

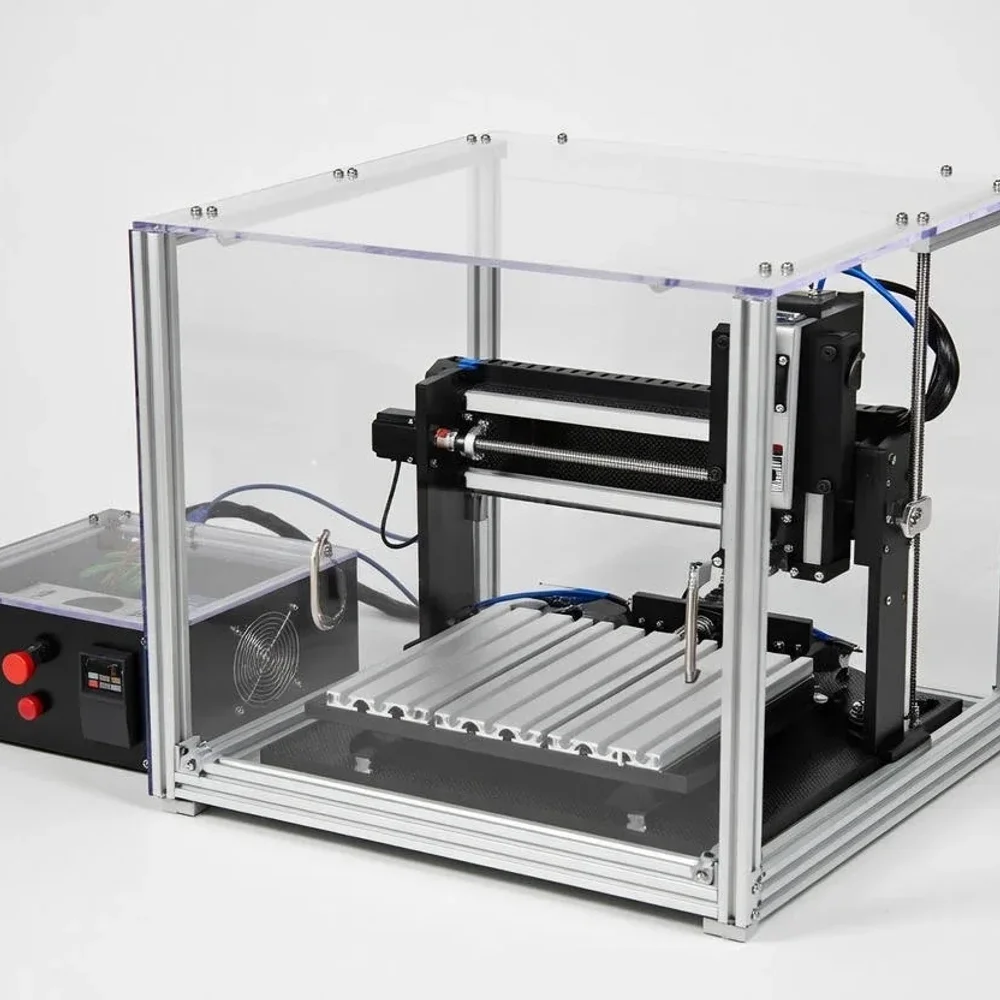

The Pcbproto 5040 Duo is a 3-axis desktop PCB prototyping machine featuring a 0.73 kW (1 hp) Teknomotor spindle and an integrated 10W laser. It offers a 500x400 mm working area, 24,000 rpm spindle speed, and <50 micron certified repeat positioning accuracy, ideal for electronics prototyping and mixed material work.
Detailed Description
The Pcbproto 5040 Duo is a versatile 3-axis desktop PCB prototyping machine, engineered for precision mechanical milling and high-accuracy laser etching. It integrates a 0.73 kW (1 hp) Teknomotor spindle, capable of up to 24,000 rpm, with an air-cooled design, alongside a 10W optical output laser operating at 450 nm. The machine provides a generous 500x400 mm working area and achieves a maximum travel speed of 4 m/min across all axes. Control is managed via an Arduino system, compatible with Windows 10/11, ensuring reliable operation for complex prototyping tasks. It supports materials including ABS, polycarbonate, acrylic, various composites, wood, MDF, PCB, epoxy, and graphite. Its dual functionality makes it particularly valuable for projects involving both mechanical shaping and intricate laser processes on materials like high-power PCBs, analog, and digital circuit boards. The desktop/tabletop form factor ensures easy integration into existing workspaces, catering to engineers and designers focused on efficient product development cycles. The Pcbproto 5040 Duo comes with a 1-year full parts warranty , with extended warranty options available for up to 10 years. and a lifetime warranty on its composite superstructure, ensuring long-term operational reliability. Accessories included are a comprehensive set of PCB drilling bits (0.3–1.2mm dia), PCB engraving bits, a routing endmill, ER16 collets, T-nuts, spanner, connector cable, stock mounting bolts/nuts, and composite stock holders, providing immediate readiness for diverse prototyping needs.
Product Details
| Category | Machinery & Equipment |
|---|---|
| Sub-Category | Machine Tools |
| Product Type | CNC Machining Centres |
| Price | ₹5,30,000 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Monthly Capacity | 5 units |
| Lead Time | 15 days |
| HSN/SAC Code | 84592100 |
| Country of Origin | India |
| Warranty | 1 Years Comprehensive Warranty |
Key Features
- 3-Axis Desktop Prototyping Machine: Compact form factor with simultaneous 3-axis motion for precise milling and etching operations.
- 500x400 mm Working Area: Provides ample space for larger PCB designs and mixed material projects.
- 0.73 kW (1 hp) Teknomotor Spindle: Italian-made spindle with up to 24,000 rpm for high-speed, accurate material removal.
- Integrated 10W Laser: 450 nm diode laser for high-accuracy etching and cutting of various non-metallic materials.
- Air-Cooled Spindle: Ensures consistent performance and extended operational life without external liquid cooling systems.
- Arduino Control System: Operates via USB with Windows 10/11, offering a user-friendly interface for machine control.
- High Repeat Positioning Accuracy: Certified <50 microns, ensuring consistent and reliable results for intricate designs.
- Wide Material Compatibility: Processes ABS, polycarbonate, acrylic, composites, wood, MDF, PCB, epoxy, and graphite.
- 1-Year Full Parts Warranty: Comprehensive coverage for all machine components, ensuring peace of mind.
- Lifetime Composite Superstructure Warranty: Guarantees the durability and structural integrity of the machine chassis.
Applications & Use Cases
- Electronics R&D Labs: For rapid prototyping and iteration of high-power, analog, and digital PCBs.
- Educational Institutions: Ideal for engineering students and researchers in electronics and mechatronics.
- Custom Electronics Design Houses: Facilitates quick turnaround for bespoke circuit board development.
- Mixed Material Prototyping: Suitable for projects requiring both mechanical milling and laser etching on diverse substrates.
- Product Development Teams: Accelerates design validation and functional testing of electronic components.
Technical Specifications
| Table Size X | 500 mm |
|---|---|
| Table Size Y | 400 mm |
| Spindle Power | 0.73 kW / 1 hp |
| Spindle Speed | 24000 rpm |
| Number Of Axes | 3 |
| Cooling | air-cooled |
| Warranty | 1 year full parts warranty |
| Laser Power | 10W |
| Machine Type | Desktop Tabletop |
| Control System | Arduino |
| Spindle Origin | teknomotor, italy |
| Laser Wavelength | 450 nm |
| Max Travel Speed | 4 m/min |
| Lifetime Warranty | composite superstructure |
| Material Supported | Abs, Polycarbonate, Acrylic, Composites, carbon fiber, Fiberglass, Aramid, Wood, Mdf, Pcb, Epoxy, Graphite |
| Accessories Included | pcb drilling bits: 0.3–1.2mm dia collection, 10 pcs (3.175mm shaft), pcb engraving bits: 0.1mm tip, 30° angle, 2 pcs, routing endmill: 2mm dia flat-end, 1 pc, er16 collets: 3mm, 4mm, 6mm dia (3 pcs), 10× t-nuts, spanner, connector cable, 8× stock mounting bolts/nuts, 4× composite stock holders |
Bulk Pricing
| Quantity | Price |
|---|---|
| 4+ piece | ₹4,95,000 per piece |
Payment Terms
- Full Advance
About the Supplier
Akriti Precision Systems Pvt. Ltd. is a verified B2B supplier based in Bengaluru, Karnataka.
- Tradoi-verified seller
- Certifications: iso_9001, company_incorporation, iec, dpiit_startup, ce_marking
View Akriti Precision Systems Pvt. Ltd. supplier profile on Tradoi
Frequently Asked Questions
What is the minimum order quantity for Pcbproto 5040 Duo 3-Axis Cnc Machine?
The minimum order quantity (MOQ) for Pcbproto 5040 Duo 3-Axis Cnc Machine is 1 piece.
Who manufactures Pcbproto 5040 Duo 3-Axis Cnc Machine?
Pcbproto 5040 Duo 3-Axis Cnc Machine is manufactured by Akriti Precision Systems Pvt. Ltd., a Tradoi-verified manufacturer based in Bengaluru, Karnataka.
What are the payment terms for Pcbproto 5040 Duo 3-Axis Cnc Machine?
Available payment terms for Pcbproto 5040 Duo 3-Axis Cnc Machine: Full Advance.
What is the lead time for Pcbproto 5040 Duo 3-Axis Cnc Machine?
The lead time for Pcbproto 5040 Duo 3-Axis Cnc Machine is 15 days.
What is the price of Pcbproto 5040 Duo 3-Axis Cnc Machine?
Pcbproto 5040 Duo 3-Axis Cnc Machine is priced at ₹5,30,000 per piece by Akriti Precision Systems Pvt. Ltd.. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
