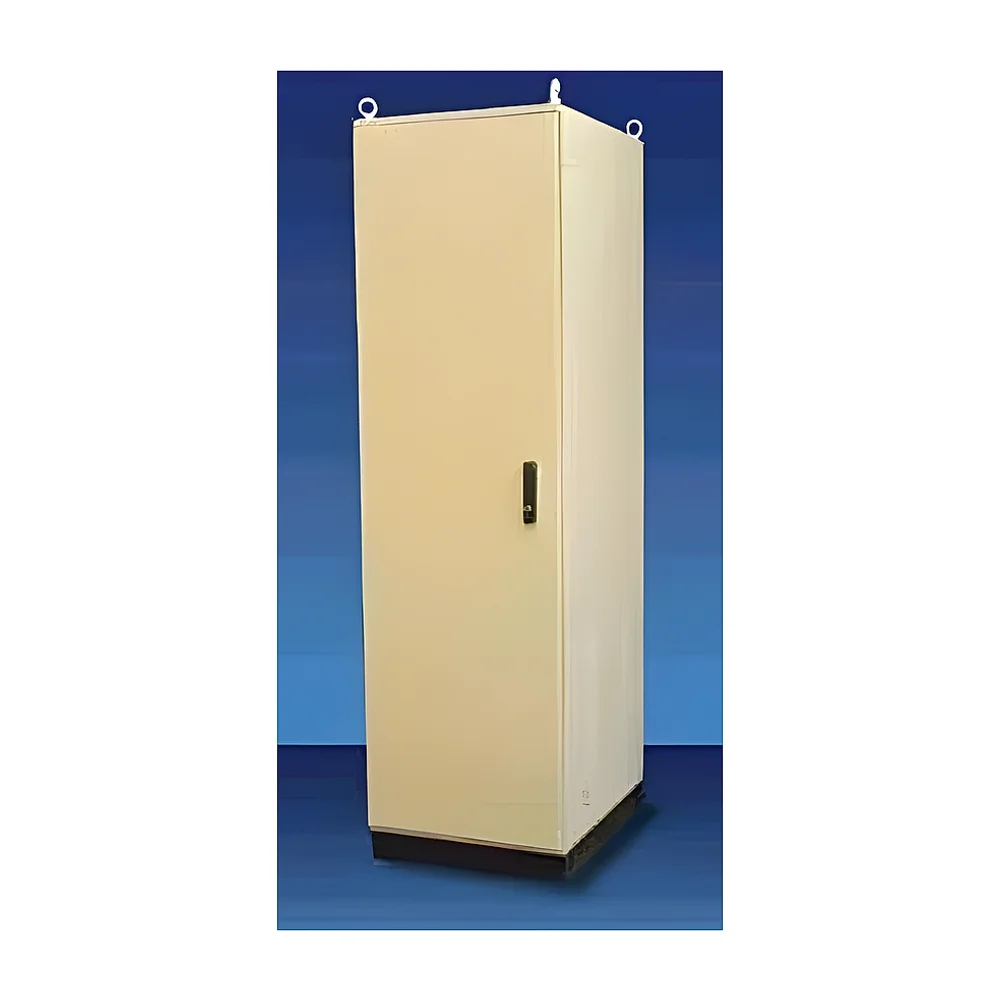

Steel Networking Rack

Price and Order

• Tracked Order
• Private Contact
• Tradoi-Verified Seller

Get Quotes · Chat Now

Specifications

From the Seller's Listing

Trade and Delivery

Description

Manufactured from mild steel, this Networking Rack offers high RFI shielding with 30-55 dB signal attenuation across 1 MHz - 1000 MHz, ensuring robust performance for critical telecom and data infrastructure.

Key Features

• High RFI Shielding: Provides 30-55 dB signal attenuation across 1 MHz - 1000 MHz, critical for protecting sensitive electronic equipment from electromagnetic interference.
• Robust Load Capacity: Engineered to support an equipment load of up to 900 kgs, accommodating heavy networking and telecom hardware.
• Seismic Resistance: Passed Zone 3 seismic testing and meets Zone 4 requirements, ensuring structural integrity and equipment safety in high-risk areas.
• Durable Mild Steel Construction: Made from mild steel, offering long-term durability and structural stability for demanding industrial and data center applications.
• Advanced Gasket System: Features combination elastomer gaskets for effective radiation and environmental sealing, with optional Be-Cu material for enhanced shielding.
• Secure Locking Mechanism: Equipped with a 3-point locking system to ensure unauthorized access prevention and secure enclosure of valuable equipment.
• Reinforced Door Design: Doors are constructed from 1.5mm electro zinc plated sheet steel with yellow chromate passivation and strong hinges for enhanced security and longevity.
• Multiple Height Options: Available in 30U, 36U, and 42U heights to suit various space and equipment density requirements.
• Configurable Dimensions: Offered in 600mm width and depths of 600mm, 800mm, or 1000mm for flexible integration into diverse infrastructure layouts.

Applications

• Data Centers: For housing servers, switches, and other critical networking equipment requiring high RFI protection and seismic stability.
• Telecommunication Exchanges: Essential for securing sensitive telecom infrastructure and ensuring signal integrity in high-frequency environments.
• Industrial Control Rooms: Used to protect automation and control systems from electromagnetic interference and environmental factors.
• Network Infrastructure Deployment: Suitable for large-scale network build-outs where robust and shielded enclosures are necessary.
• Government and Defense Installations: For secure housing of communication and data processing equipment in sensitive environments.
• Broadcasting and Media Facilities: To protect audio/video routing and processing equipment from external signal interference.

Detailed Description

This Networking Rack, made from mild steel, is engineered for high RFI shielding, providing 30-55 dB signal attenuation within a frequency range of 1 MHz to 1000 MHz. It features combination elastomer gaskets for both radiation and environmental sealing, with an optional Be-Cu gasket material for enhanced performance. The rack is designed with a robust 3-point locking system and doors made from 1.5mm electro zinc plated sheet steel with yellow chromate passivation and strong hinges, ensuring secure and reliable operation. Available in heights of 30U, 36U, and 42U, with widths of 600mm and depths of 600mm, 800mm, or 1000mm, it accommodates diverse installation requirements. Designed for demanding B2B environments, these racks are ideal for data centers, telecommunication exchanges, and industrial control rooms where signal integrity and equipment protection are paramount. Procurement managers in IT infrastructure, network deployment, and industrial automation sectors will find these racks suitable for housing sensitive electronic equipment, ensuring operational continuity and compliance with stringent environmental standards. The high load rating and seismic resistance make them a reliable choice for critical installations requiring long-term stability. With an equipment load capacity of 900 kgs, these racks are built to support substantial hardware configurations. They have successfully passed seismic testing for Zone 3 and meet Zone 4 seismic requirements, providing enhanced safety and resilience in earthquake-prone regions. The durable construction and advanced shielding capabilities ensure a secure and stable environment for high-value networking and telecom assets.
