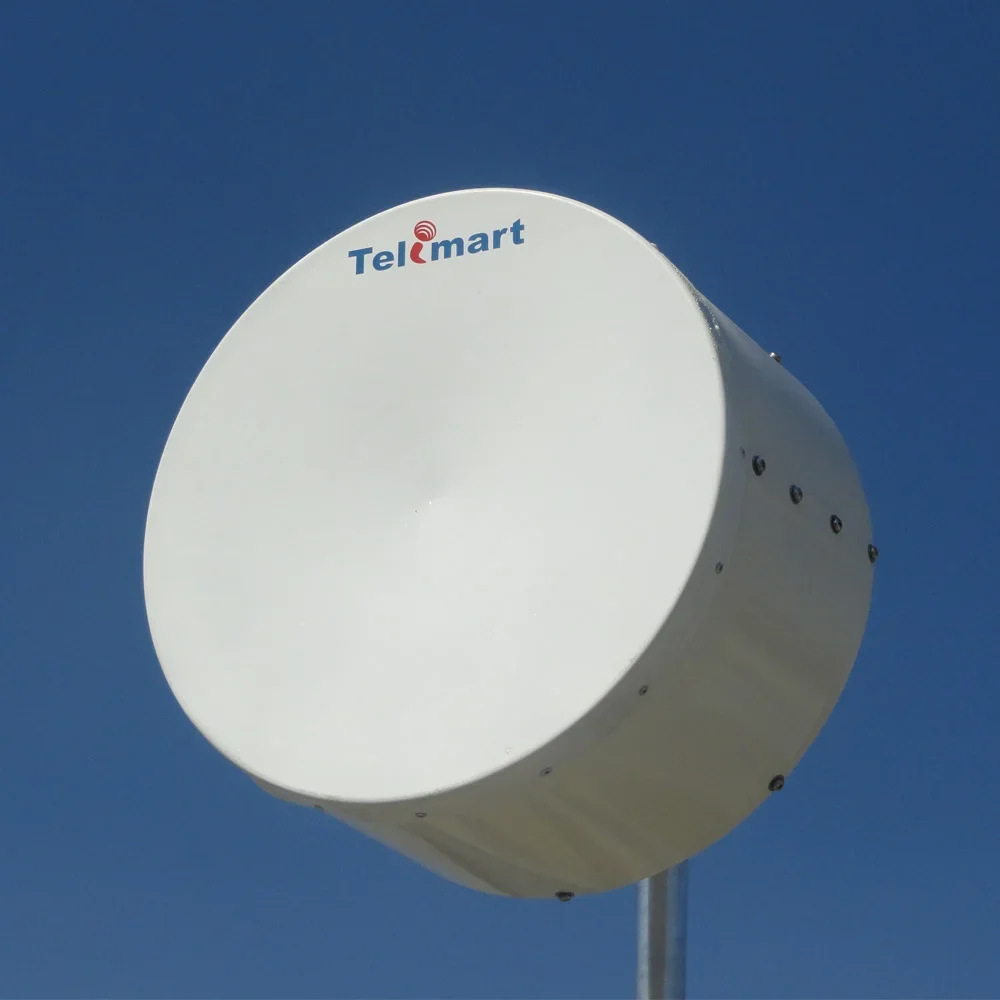

4.9-5.9 GHz 26dBi Parabolic MIMO Dish Antenna — manufactured in Bengaluru (Bangalore) Urban, Karnataka by Telimart India Pvt. Ltd. Tradoi-verified manufacturer at ₹1/piece, MOQ 1 piece.
Product Overview
A high-performance 26 dBi 2x2 MIMO parabolic dish antenna, engineered for reliable wireless communication across the 4.9 – 5.9 GHz frequency range, ideal for point-to-point and point-to-multipoint network deployments requiring stable, high-gain links.
Detailed Description
This 2x2 MIMO parabolic dish antenna is designed for robust wireless communication, operating efficiently within the 4.9 – 5.9 GHz (4900 – 5900 MHz) frequency band. It delivers a substantial gain of 2 × 26 ± 0.5 dBi, ensuring strong signal propagation and reception over long distances. Key specifications include a VSWR maximum of 1.5:1, a stable 50 Ohm impedance, and N(F) connector type for secure connections. The antenna features a precise beamwidth of 9 ± 0.5 degrees horizontally and vertically, with linear V & H polarization, making it suitable for focused directional links. It supports the deployment of high-capacity wireless backhaul links, long-range point-to-point connections, and robust wireless distribution systems in challenging environments. Its design ensures minimal interference and consistent performance, crucial for maintaining service level agreements in commercial and industrial settings. With a front-to-back ratio exceeding 32 dB and cross-polarization isolation greater than 22 dB, this antenna minimizes unwanted signal interference, enhancing network stability and data integrity. The port-to-port isolation of over 30 dB further ensures optimal MIMO performance, supporting high throughput and reliable data transmission for critical business operations.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Telecom Equipment |
| Product Type | Telecom Antennas |
| Price | ₹1 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Country of Origin | India |
Key Features
- Frequency Range: 4.9 – 5.9 GHz (4900 – 5900 MHz) — optimized for licensed and unlicensed band operations.
- Gain: 2 × 26 ± 0.5 dBi — provides high signal amplification for extended range and link stability.
- Antenna Type: Parabolic MIMO — combines directional focus with multiple-input multiple-output technology for enhanced data rates.
- VSWR Max: 1.5: 1 — indicates excellent impedance matching for efficient power transfer and minimal signal reflection.
- Beamwidth: 9 ± 0.5 degree (Horizontal & Vertical) — ensures precise signal targeting and reduced interference.
- Polarization: Linear V & H — supports vertical and horizontal polarization for robust signal diversity.
- Port-to-Port Isolation: > 30 dB — critical for maintaining distinct MIMO streams and maximizing throughput.
- Max Power Input: 50 Watts — capable of handling significant power for high-performance transmission.
- Impedance: 50 Ohm — standard impedance for compatibility with common RF equipment.
- Connector Type: N(F) — industry-standard female N-type connector for reliable and secure cable connections.
Applications & Use Cases
- Wireless Backhaul Networks: Establishing high-capacity, long-distance links for ISPs and telecom operators.
- Point-to-Point Wireless Bridges: Creating dedicated, high-speed connections between buildings or sites.
- Enterprise Wireless Infrastructure: Extending corporate networks across campuses or remote facilities.
- Industrial Wireless Communication: Reliable data transmission in challenging industrial environments.
- Video Surveillance Backbones: Supporting high-bandwidth video feeds over long distances for security systems.
- Rural Broadband Deployment: Delivering internet access to underserved areas with robust, directional links.
Technical Specifications
| Gain | 2 × 26 ± 0.5 dBi |
|---|---|
| Impedance | 50 Ohm |
| Antenna Type | Parabolic |
| Frequency Range | 4900 – 5900 MHz |
| Beamwidth Vertical | 9 ± 0.5 degree |
| Beamwidth Horizontal | 9 ± 0.5 degree |
| Vswr Max | 1.5 : 1 |
| Polarization | Linear V & H |
| Connector Type | N(F) |
| Max Power Input | 50 Watts |
| Cross Polarization | > 22 dB |
| Front To Back Ratio | > 32 dB |
| Port To Port Isolation | > 30 dB |
