5.1-5.9GHz 19dBi 60 Degree H&V Polarized Sector... | Tradoi
Electronics & Electrical › Telecom Equipment

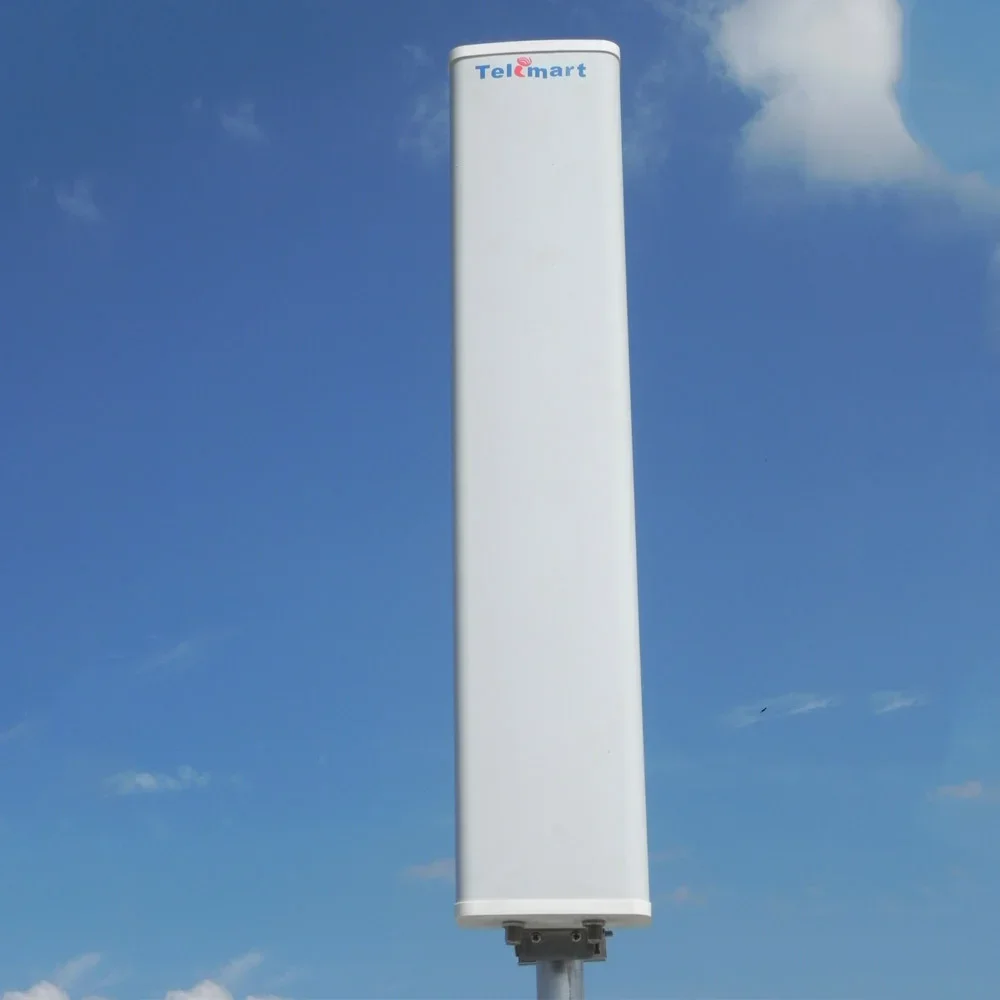

5.1-5.9GHz 19dBi 60 Degree H&V Polarized Sector Antenna — manufactured in Bengaluru (Bangalore) Urban, Karnataka by Telimart India Pvt. Ltd. Tradoi-verified manufacturer at ₹1/piece, MOQ 1 piece.
Product Overview
A high-performance sector antenna operating across the 5.1-5.9GHz frequency range, delivering 19dBi gain with 60-degree horizontal and vertical polarization. This antenna is engineered for robust wireless network deployments requiring stable, directional signal coverage.
Detailed Description
This sector antenna is designed for reliable wireless communication within the 5.1-5.9GHz (5100 – 5900 MHz) frequency band, offering a gain of 2 × 19 ± 0.5 dBi. It features H & V polarization and a horizontal beamwidth of 60 ± 5 @ 3dB (120 ± 5 @ 6dB), alongside a vertical beamwidth of 6 ± 1 @ 3dB (4 ± 1 @ 6dB). The unit is manufactured with a typical VSWR of 1.5:1 and a maximum power input of 50 Watts, ensuring stable operation in demanding environments. Impedance is maintained at 50 Ohm, with N-Type Female connectors for secure integration. Its specifications support applications requiring high isolation and minimal interference, making it suitable for dense urban or rural network build-outs where spectral efficiency is critical. The robust design ensures consistent performance for long-term operational reliability. Key performance metrics include a port-to-port isolation greater than 30 dB, a front-to-back ratio exceeding 26 dB, and cross-polarization greater than 22 dB. Integrated DC Ground lightning protection enhances system resilience against electrical surges, safeguarding connected equipment and ensuring continuous service availability.
Product Details
| Category | Electronics & Electrical |
|---|---|
| Sub-Category | Telecom Equipment |
| Product Type | Telecom Antennas |
| Price | ₹1 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Country of Origin | India |
Key Features
- Frequency Range: Operates across 5100 – 5900 MHz, supporting a broad spectrum of wireless applications.
- Gain: Provides 2 × 19 ± 0.5 dBi gain, enhancing signal strength and reach for extended coverage.
- Horizontal Beamwidth: Features a 60 ± 5 @ 3dB (120 ± 5 @ 6dB) horizontal beamwidth, ideal for focused sector coverage.
- Vertical Beamwidth: Offers a 6 ± 1 @ 3dB (4 ± 1 @ 6dB) vertical beamwidth, optimizing signal distribution in elevation.
- Polarization: Supports H & V polarization, enabling 2x2 MIMO configurations for improved data throughput.
- VSWR: Maintains a typical VSWR of 1.5:1 (Max 1.8:1), ensuring efficient power transfer and minimal signal reflection.
- Impedance: Standard 50 Ohm impedance for compatibility with common RF equipment and cabling.
- Max Power Input: Rated for a maximum power input of 50 Watts, suitable for various transmitter power levels.
- Connector Type: Equipped with N-Type Female connectors, providing robust and widely compatible interfaces.
- Lightning Protection: Includes DC Ground lightning protection, safeguarding the antenna and connected devices from electrical surges.
Applications & Use Cases
- Telecommunication Infrastructure: Deployments in cellular backhaul and fixed wireless access networks.
- Enterprise Campus Networks: Providing high-capacity wireless connectivity across large corporate or educational campuses.
- Industrial Wireless Systems: For robust data transmission in factory automation and remote monitoring.
- Public Safety Networks: Supporting critical communication infrastructure for emergency services.
- Smart City Deployments: Enabling connectivity for IoT devices and smart urban infrastructure.
Technical Specifications
| Gain | 2 × 19 ± 0.5 dBi |
|---|---|
| Impedance | 50 Ohm |
| Antenna Type | Sector |
| Connector Type | N Type Female |
| Frequency Range | 5100 – 5900 MHz |
| Beamwidth Vertical | 4 ± 1 @ 6dB |
| Beamwidth Horizontal | 120 ± 5 @ 6dB |
| Vswr | 1.5 : 1 (Typ) 1.8 : 1 (Max) |
| Polarization | H & V |
| Max Power Input | 50 Watts |
| Cross Polarization | > 22 dB |
| Front To Back Ratio | > 26 dB |
| Lightning Protection | DC Ground |
| Port To Port Isolation | > 30 dB |
Payment Terms
- Full Advance
About the Supplier
Telimart India Pvt. Ltd. is a verified B2B supplier based in Bengaluru (Bangalore) Urban, Karnataka.
- Tradoi-verified seller
Frequently Asked Questions
What is the minimum order quantity for 5.1-5.9GHz 19dBi 60 Degree H&V Polarized Sector Antenna?
The minimum order quantity (MOQ) for 5.1-5.9GHz 19dBi 60 Degree H&V Polarized Sector Antenna is 1 piece.
Who manufactures 5.1-5.9GHz 19dBi 60 Degree H&V Polarized Sector Antenna?
5.1-5.9GHz 19dBi 60 Degree H&V Polarized Sector Antenna is manufactured by Telimart India Pvt. Ltd., a Tradoi-verified manufacturer based in Bengaluru (Bangalore) Urban, Karnataka.
What are the payment terms for 5.1-5.9GHz 19dBi 60 Degree H&V Polarized Sector Antenna?
Available payment terms for 5.1-5.9GHz 19dBi 60 Degree H&V Polarized Sector Antenna: Full Advance.
What is the price of 5.1-5.9GHz 19dBi 60 Degree H&V Polarized Sector Antenna?
5.1-5.9GHz 19dBi 60 Degree H&V Polarized Sector Antenna is priced at ₹1/piece by Telimart India Pvt. Ltd.. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
