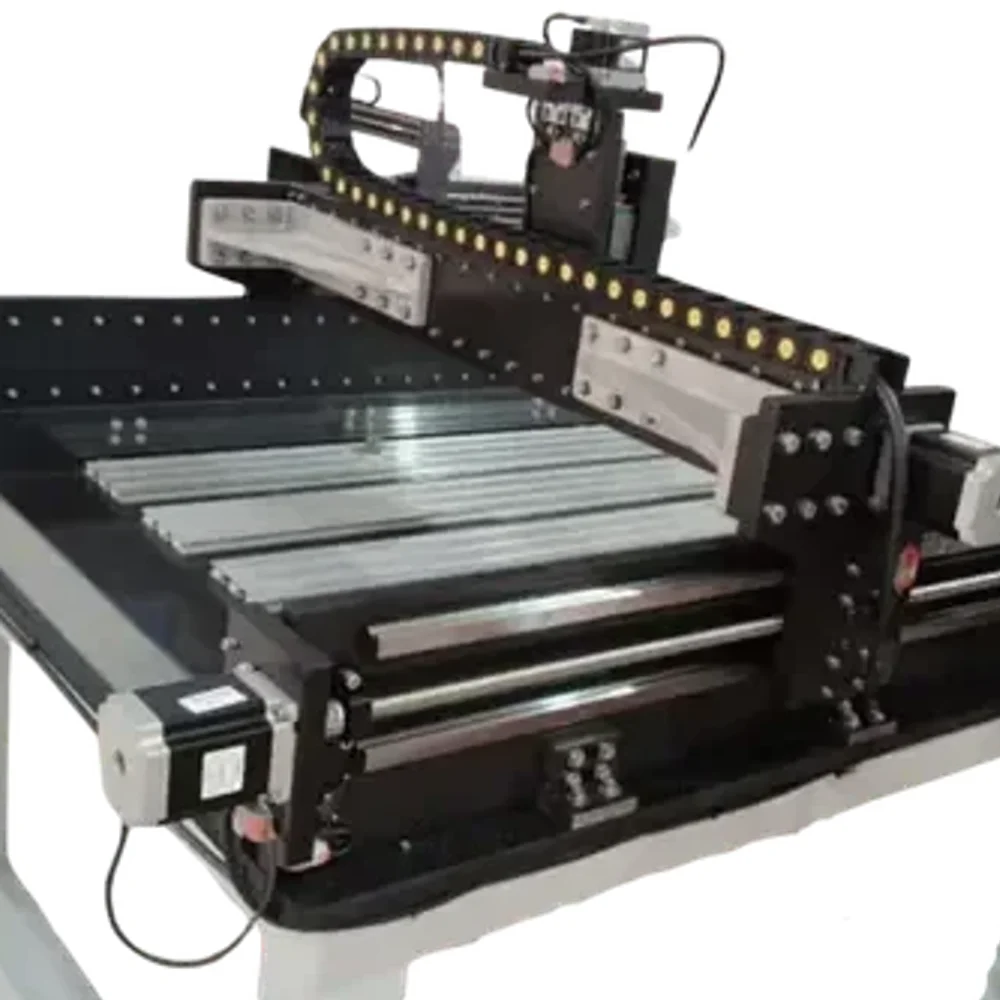

Carboncut 6040 3-Axis Cnc Machine, ₹6,10,000/piece | Tradoi

Product Overview

The Carboncut 6040 is a 3-axis desktop CNC machine engineered with a pioneering composite (carbon fiber/fiber glass) superstructure chassis, eliminating common metal-frame issues like sagging and corrosion. It features an integrated waterbath for dust containment and a 2.2 kW Teknomotor spindle for continuous 24/7 operation.

Detailed Description

The Carboncut 6040 is a 3-axis desktop CNC machine, purpose-built for precision machining of carbon fiber, fiberglass, and other composites. It features a unique composite (carbon fiber/fiber glass) superstructure chassis, backed by a lifetime warranty against sagging, hogging, rust, and corrosion, which addresses common durability issues found in traditional metal-frame CNCs. Powering its operations is a 2.2 kW (3 Hp) Teknomotor (Italy) spindle, capable of up to 24,000 RPM with less than 10 micron tested runout, rated for continuous 24/7 production. Precision motion is ensured by Hiwin/THK 20mm ball screws and 25mm linear guides on all axes, driven by Japanese-made Tamagawa Nema 34 stepper motors. An embedded base-plate waterbath allows for material submersion during machining, effectively containing harmful dust from composites without requiring heavy-duty vacuum systems. The machine offers a working area of 600 x 400 mm (X x Y) with 150 mm Z-axis travel, and operates with a LinuxCNC controller on a desktop PC with a 22" Full HD monitor, keyboard, and mouse, providing automatic spindle speed control and mist cooling via G-code. It supports materials beyond composites, such as Aramid, EN Steel, Aluminium, Copper, Brass, Bronze, Plastics, Acrylic, Wood, MDF, and PCB, making it suitable for diverse engineering and fabrication applications requiring high precision and material versatility. Its robust construction and continuous operation rating cater to demanding production environments where uptime and material integrity are critical. Manufactured with up to 75% Made-in-India components and zero Chinese parts, this machine is built for precision and durability. It ships fully assembled as a plug-and-play unit and is backed by a 1-year warranty on all parts ,with extended warranty options available for up to 10 years. and a lifetime warranty on its composite superstructure.

Product Details

Key Features

• Composite Superstructure Chassis: Pioneering carbon fiber/fiber glass frame eliminates sagging, hogging, rust, and corrosion common in metal-frame CNCs, backed by a lifetime warranty.
• Integrated Waterbath: Embedded base-plate water bath allows material submersion during machining, containing harmful composite dust without heavy-duty vacuum systems.
• High-Speed Spindle: Features a 2.2 kW (3 Hp) Teknomotor (Italy) spindle, reaching up to 24,000 RPM with <10 micron tested runout, rated for continuous 24/7 operation.
• Precision Motion System: Equipped with Hiwin/THK 20mm ball screws and 25mm linear guides on all axes, driven by Japanese-made Tamagawa Nema 34 stepper motors for accurate movement.
• LinuxCNC Controller: Desktop PC-based control with a 22" Full HD monitor, keyboard, and mouse, offering automatic spindle speed control and mist cooling via G-code.
• Generous Working Area: Provides a 600 x 400 mm (X x Y) working area with 150 mm Z-axis travel, suitable for part sizes.
• Multi-Material Capability: Supports machining of Carbon Fiber, Fiber Glass, Aramid, EN Steel, Aluminium, Copper, Brass, Bronze, Plastics, Acrylic, Wood, MDF, and PCB.
• Made-in-India Components: Incorporates up to 75% Made-in-India components with zero Chinese parts, ensuring robust supply chain and quality control.
• CE Certified: Product meets European safety, health, and environmental protection requirements.

Applications & Use Cases

• Aerospace Component Manufacturing: Precision machining of carbon fiber and composite parts for lightweight aircraft structures and drones.
• Automotive Prototyping and Production: Fabrication of composite and metal components for performance vehicles and electric mobility solutions.
• Sports Equipment Manufacturing: Milling of carbon fiber and fiberglass for high-performance sporting goods like bicycle frames, rackets, and marine parts.
• Electronics and PCB Fabrication: High-accuracy routing and drilling of PCBs, plastics, and acrylics for electronic enclosures and circuit boards.
• Research and Development Facilities: Versatile machining for material testing, rapid prototyping, and experimental part creation across various engineering disciplines.
• Tool and Die Making: Precision machining of softer metals like aluminium, copper, brass, and bronze for molds, dies, and fixtures.
• Educational and Training Institutions: Hands-on learning and project work for engineering students and vocational trainees in CNC operation and composite fabrication.

Technical Specifications

Bulk Pricing

Payment Terms

• Full Advance

About the Supplier

Akriti Precision Systems Pvt. Ltd. is a verified B2B supplier based in Bengaluru, Karnataka.

• Tradoi-verified seller
• Certifications: iso_9001, company_incorporation, iec, dpiit_startup, ce_marking

View Akriti Precision Systems Pvt. Ltd. supplier profile on Tradoi
