Product Overview

The Akriti Carboncut 6040 Pro is a 4-axis CNC machine featuring a 2.2 KW / 3 HP Teknomotor spindle, designed for precision machining of diverse materials including carbon fiber, steel, and plastics, ideal for manufacturing and tool room applications.

Detailed Description

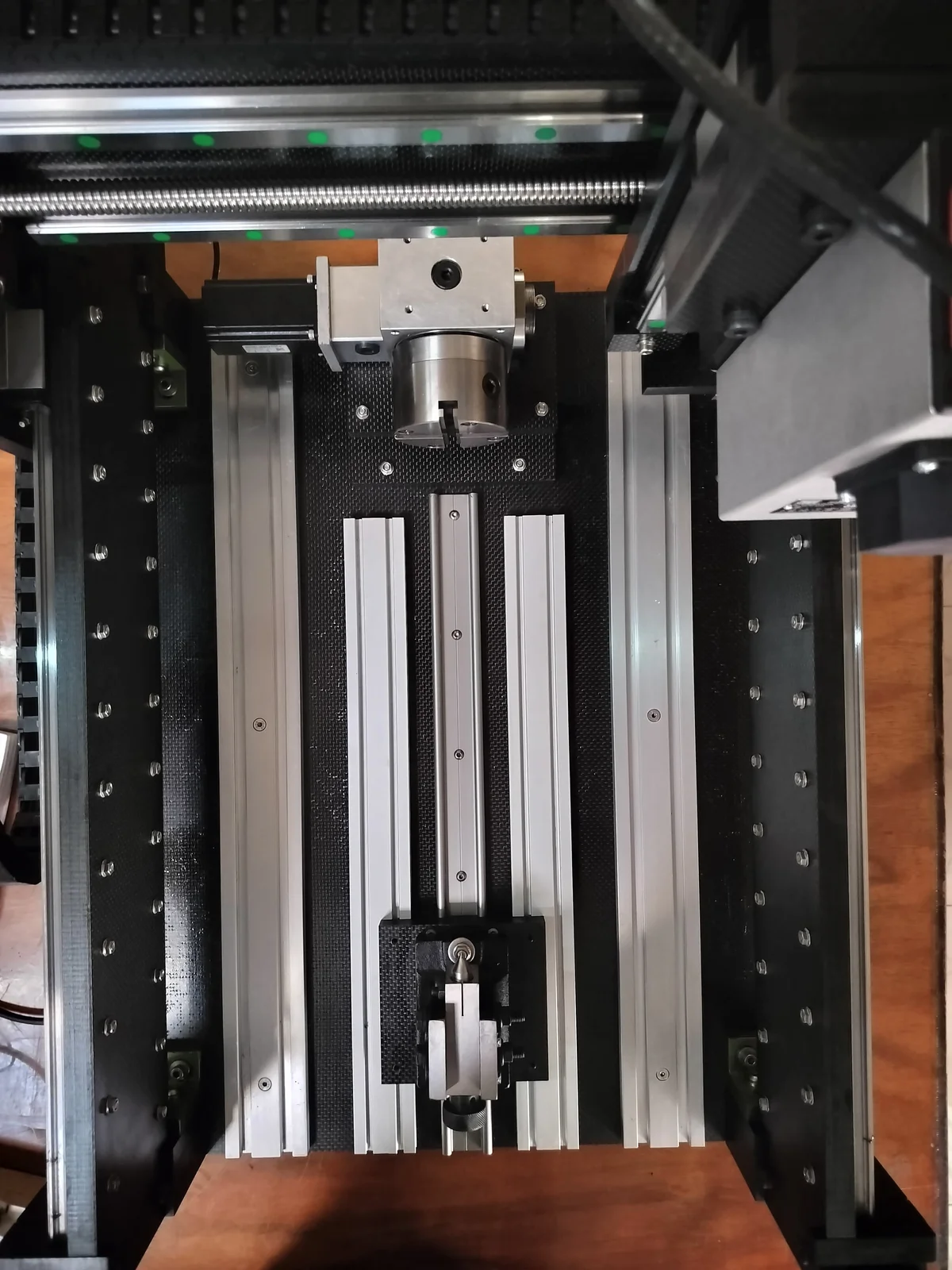

The Akriti Carboncut 6040 Pro is a robust 4-axis CNC machine, engineered for high-precision manufacturing and tool room operations. It features a 2.2 KW / 3 HP Teknomotor (Italy) spindle capable of up to 24,000 RPM with less than 10 micron tested runout, rated for 24/7 operation. The machine boasts a 600 x 400 mm working area, 150 mm Z-axis travel, and a 350 mm usable A-axis length with less than 5 arcmin backlash precision. Its pioneering composite (carbon fiber/fiber glass) superstructure chassis comes with a lifetime warranty against sagging, hogging, rust, and corrosion, ensuring long-term stability and accuracy. Motion is driven by Hiwin/THK 20mm ball screws and 25mm linear guides, coupled with Japanese Tamagawa NEMA 34 stepper motors on all axes, providing a repeat accuracy of 10-20 microns.The system includes dual solenoid-controlled mist cooling via G-code and offers flexible control via a LinuxCNC PC-based controller or a standalone button/MPG controller. It supports materials including Carbon Fiber, Fiber Glass, Aramid, EN Steel, Aluminium, Copper, Brass, Bronze, Plastics, Acrylic, Wood, MDF, and PCB. This machine is specifically suited for industries requiring high-precision machining of complex geometries, such as aerospace component manufacturing, automotive prototyping, medical device production, and custom tooling for various industrial sectors. It serves job shops, R&D facilities, and educational institutions focused on advanced manufacturing techniques. The simultaneous 4-axis motion with full interpolation makes it particularly effective for cylindrical and multi-sided parts, addressing the needs of businesses that demand intricate part production and high material versatility. Manufactured with up to 75% Made-in-India components and zero Chinese parts, this machine is supplied fully assembled and plug-and-play. It comes with a 1-year warranty on all parts, with extended warranty options available for up to 10 years.

Product Details

Key Features

• 4-Axis Simultaneous Machining: Enables complex cylindrical and multi-sided part production with full interpolation and less than 5 arcmin backlash precision on the A-axis.
• High-Speed Italian Spindle: Features a 2.2 KW / 3 HP Teknomotor spindle (Italy) with up to 24,000 RPM and less than 10 micron runout, rated for continuous 24/7 operation.
• Composite Superstructure Chassis: Pioneering carbon fiber/fiber glass frame with a lifetime warranty against sagging, hogging, rust, and corrosion for enduring stability.
• Versatile Material Compatibility: Processes a broad spectrum of materials including Carbon Fiber, EN Steel, Aluminium, Brass, Plastics, Wood, MDF, and PCB.
• Integrated Mist Cooling: Solenoid-controlled dual mist cooling system managed via G-code for efficient thermal management during machining.
• Flexible Control Options: Includes a LinuxCNC PC-based controller (22" Full HD monitor) or a standalone button/MPG controller with USB input for operational adaptability.
• High Precision Stock Holding: Features a 125mm 4-jaw chuck with a variable height tailstock (80–108mm) for secure rotary axis work.
• Made-in-India Components: Incorporates up to 75% Made-in-India components with zero Chinese parts, supporting local manufacturing.
• ISO 9001 & CE Certified: Produced under an ISO 9001 quality management system and CE certified for international compliance and quality assurance.

Applications & Use Cases

• Aerospace Component Manufacturing: Precision machining of lightweight and high-strength materials like carbon fiber and aluminium for aircraft parts.
• Automotive Prototyping & Tooling: Creation of intricate molds, dies, and prototype parts from various metals and plastics for the automotive industry.
• Medical Device Production: Fabrication of complex, high-tolerance components for medical instruments and implants.
• Custom Tool Rooms: Versatile machining for bespoke tooling, jigs, and fixtures required in diverse manufacturing setups.
• R&D and Educational Institutions: Advanced machining capabilities for research projects, material testing, and vocational training in CNC operations.
• Electronics Manufacturing: Precision milling of PCBs and small electronic enclosures from plastics and composites.

Technical Specifications

Bulk Pricing

Payment Terms

• Full Advance

About the Supplier

Akriti Precision Systems Pvt. Ltd. is a verified B2B supplier based in Bengaluru, Karnataka.

• Tradoi-verified seller
• Certifications: iso_9001, company_incorporation, iec, dpiit_startup, ce_marking
