Majestic 9060 Pro 4-Axis Cnc Machine — manufactured in Bengaluru, Karnataka by Akriti Precision Systems Pvt. Ltd. Tradoi-verified manufacturer at ₹9,50,000/piece, MOQ 1 piece, lead time 15 days.
Product Overview

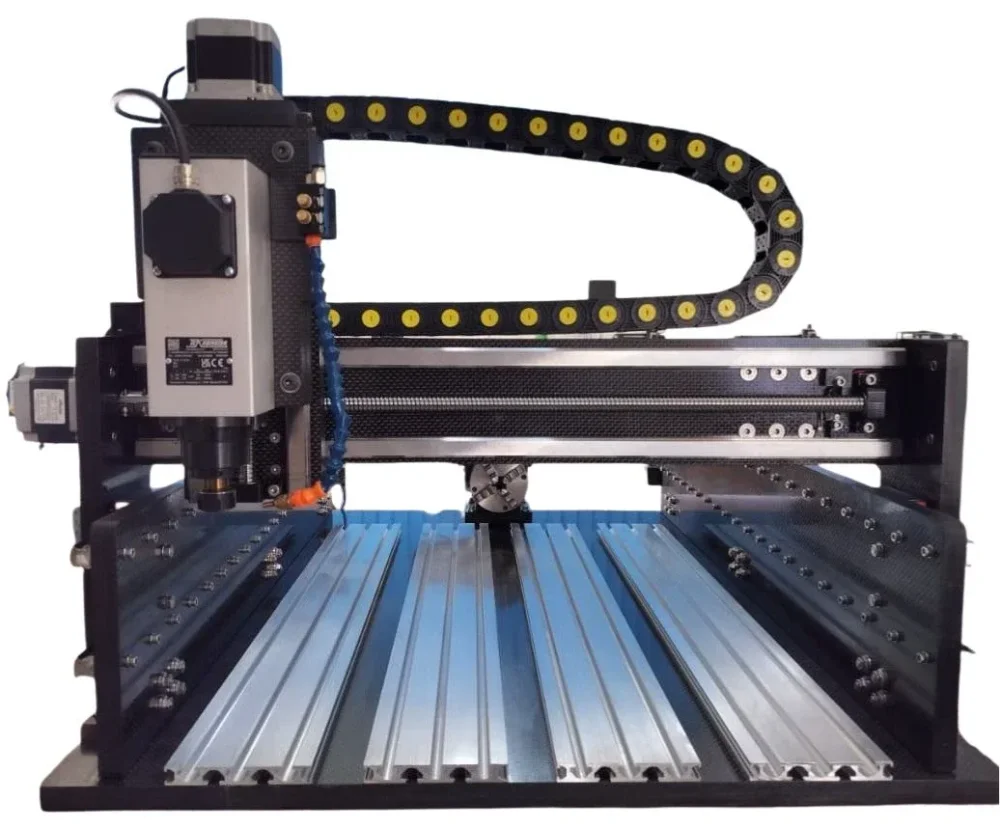

The Akriti Precision Systems Majestic 9060 Pro is a 4-axis CNC machine featuring a 900 x 600 mm working area and a robust carbon fiber/fiberglass composite superstructure, designed for continuous 24/7 operation in industrial settings. It integrates Italian Teknomotor spindle and Japanese Tamagawa NEMA 34 steppers for precision.
Detailed Description
The Akriti Precision Systems Majestic 9060 Pro is a high-precision 4-axis CNC machine, engineered for demanding industrial applications. It features a generous 900 x 600 mm working area with 150 mm Z-axis travel, complemented by a 650 mm usable length for the 4th axis. Powering its operations is a 2.2 kW (3 HP) Teknomotor spindle from Italy, capable of up to 24,000 RPM with an ER20 collet, driven by Japanese Tamagawa NEMA 34 stepper motors. The machine's structural integrity is ensured by a carbon fiber/fiberglass composite superstructure, backed by a lifetime warranty, and it boasts up to 75% India-made components, ensuring reliability and local support. Precision is maintained with Hiwin/THK 25mm linear guides and 20mm ball screws, achieving a repeat accuracy of 15–25 microns. This CNC machine is ideally suited for manufacturing units requiring high-throughput machining of soft materials such as plastics, acrylic, wood, and MDF. It serves job shops, prototyping facilities, and educational institutions that demand simultaneous 4-axis motion with full interpolation for complex part geometries. Its 24/7 continuous operation rating makes it a reliable asset for production lines where uptime is critical, catering to sectors like signage, furniture manufacturing, model making, and custom fabrication. It includes a LinuxCNC PC-based controller with a full HD monitor, keyboard, and mouse, alongside automatic VFD control via G-code. The cooling system combines air cooling with G-code controlled mist cooling via a solenoid valve, ensuring optimal spindle performance. The machine is supplied with a 125mm 4-jaw chuck and a variable-height tailstock (80–108mm) for the 4th axis, and operates under an ISO 9001 quality management system, holding CE certification for compliance.
Product Details
| Category | Machinery & Equipment |
|---|---|
| Sub-Category | Machine Tools |
| Product Type | CNC Machining Centres |
| Price | ₹9,50,000 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Monthly Capacity | 5 units |
| Lead Time | 15 days |
| HSN/SAC Code | 84592100 |
| Country of Origin | India |
| Warranty | 1 Years Comprehensive Warranty |
Key Features
- 4-Axis Simultaneous Motion: Enables complex machining with full interpolation for intricate part geometries.
- 900 x 600 mm Working Area: Provides a large envelope for diverse projects, accommodating bigger workpieces.
- Carbon Fiber/Fiberglass Composite Superstructure: Offers a lifetime warranty against sagging, rust, and corrosion, ensuring long-term durability.
- 2.2 kW (3 HP) Teknomotor Spindle (Italy): Delivers high-speed machining up to 24,000 RPM with ER20 collet for efficient material removal.
- Tamagawa NEMA 34 Stepper Motors (Japan): Ensures precise and reliable motion control for consistent machining accuracy.
- Hiwin/THK 25mm Linear Guides & 20mm Ball Screws: Guarantees high rigidity and smooth, accurate movement with minimal backlash.
- 15–25 Microns Repeat Accuracy: Achieves exceptional precision for critical applications and consistent part quality.
- 24/7 Continuous Operation Rated: Engineered for demanding production environments requiring constant uptime.
- Automatic VFD Control Via G-code: Streamlines operation and optimizes spindle speed for various machining tasks.
- ISO 9001 & CE Certified: Manufactured under a certified quality management system, meeting international safety and quality standards.
Applications & Use Cases
- Woodworking and Furniture Manufacturing: Precision routing, carving, and cutting of wood, MDF, and plywood components.
- Plastic and Acrylic Fabrication: Detailed machining of plastic sheets and acrylic for signage, displays, and custom parts.
- Prototyping and Model Making: Creation of intricate prototypes and scale models with high accuracy and surface finish.
- Educational and Research Institutions: Training and development in advanced manufacturing and CNC programming.
- Custom Fabrication Shops: Production of bespoke components and artistic designs requiring multi-axis capabilities.
- Signage and Display Production: Cutting and engraving of various materials for indoor and outdoor signage.
Technical Specifications
| Machine Type | Other |
|---|---|
| Table Size X | 900 mm |
| Table Size Y | 600 mm |
| Spindle Power | 3 HP |
| Spindle Speed | 24000 rpm |
| Control System | Other |
| Number Of Axes | 4 |
| Brand | AKRITI |
| Warranty | Lifetime Warranty |
| Chuck Type | 125mm 4-Jaw Chuck |
| Motor Type | NEMA 34 steppers |
| Tool Taper | ER20 |
| Motor Brand | Tamagawa |
| Power Phase | Single Phase |
| Vfd Control | Automatic VFD Control Via G-code |
| Chassis Type | Composite Superstructure |
| Guides Brand | Hiwin/THK |
| Product Name | Majestic 9060 Pro 4-Axis Cnc |
| Spindle Type | High Speed Spindle |
| Certification | CE |
| Power Voltage | 220V/110V |
| Spindle Brand | Teknomotor |
| Z Axis Travel | 150 mm |
| Cooling System | Air Cooling + Mist Cooling With Solenoid Valve, G-code Controlled |
| Tailstock Type | Variable-height Tailstock (80–108Mm) |
| Repeat Accuracy | 15–25 microns |
| Ball Screws Size | 20 mm |
| Chassis Material | carbon fiber/fiberglass composite |
| Max Travel Speed | 4 m/min |
| Operation Rating | 24/7 Continuous Operation Rated |
| Tool Change Type | Manual Tool Change (MTC) |
| Motion Capability | Simultaneous 4-Axis Motion With Full Interpolation |
| Linear Guides Size | 25 mm |
| Machine Footprint X | 1300 mm |
| Machine Footprint Y | 1050 mm |
| Power Plug Required | 16A |
| Spindle Suitability | soft materials like plastics, acrylic, wood, mdf etc. |
| Rated For Operations | 24/7 Ops |
| 4th Axis Usable Length | 650 mm |
| Manufacturing Location | Bangalore, Karnataka, India |
| Control Box Footprint X | 610 mm |
| Control Box Footprint Y | 450 mm |
| Motor Country Of Origin | Japan |
| Spindle Country Of Origin | Italy |
| Z Axis Travel Customizable | Yes |
| Made In India Parts Percentage | Upto 75% |
| Country Of Origin Components Percentage | up to 75% India-made |
Bulk Pricing
| Quantity | Price |
|---|---|
| 3+ piece | ₹8,85,000 per piece |
Payment Terms
- Full Advance
About the Supplier
Akriti Precision Systems Pvt. Ltd. is a verified B2B supplier based in Bengaluru, Karnataka.
- Tradoi-verified seller
- Certifications: iso_9001, company_incorporation, iec, dpiit_startup, ce_marking
View Akriti Precision Systems Pvt. Ltd. supplier profile on Tradoi
Frequently Asked Questions
What is the minimum order quantity for Majestic 9060 Pro 4-Axis Cnc Machine?
The minimum order quantity (MOQ) for Majestic 9060 Pro 4-Axis Cnc Machine is 1 piece.
Who manufactures Majestic 9060 Pro 4-Axis Cnc Machine?
Majestic 9060 Pro 4-Axis Cnc Machine is manufactured by Akriti Precision Systems Pvt. Ltd., a Tradoi-verified manufacturer based in Bengaluru, Karnataka.
What are the payment terms for Majestic 9060 Pro 4-Axis Cnc Machine?
Available payment terms for Majestic 9060 Pro 4-Axis Cnc Machine: Full Advance.
What is the lead time for Majestic 9060 Pro 4-Axis Cnc Machine?
The lead time for Majestic 9060 Pro 4-Axis Cnc Machine is 15 days.
What is the price of Majestic 9060 Pro 4-Axis Cnc Machine?
Majestic 9060 Pro 4-Axis Cnc Machine is priced at ₹9,50,000 per piece by Akriti Precision Systems Pvt. Ltd.. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
