Orthocut 4030 3-Axis Cnc Machine — manufactured in Bengaluru, Karnataka by Akriti Precision Systems Pvt. Ltd. Tradoi-verified manufacturer at ₹3,85,000/piece, MOQ 1 piece, lead time 15 days.
Product Overview

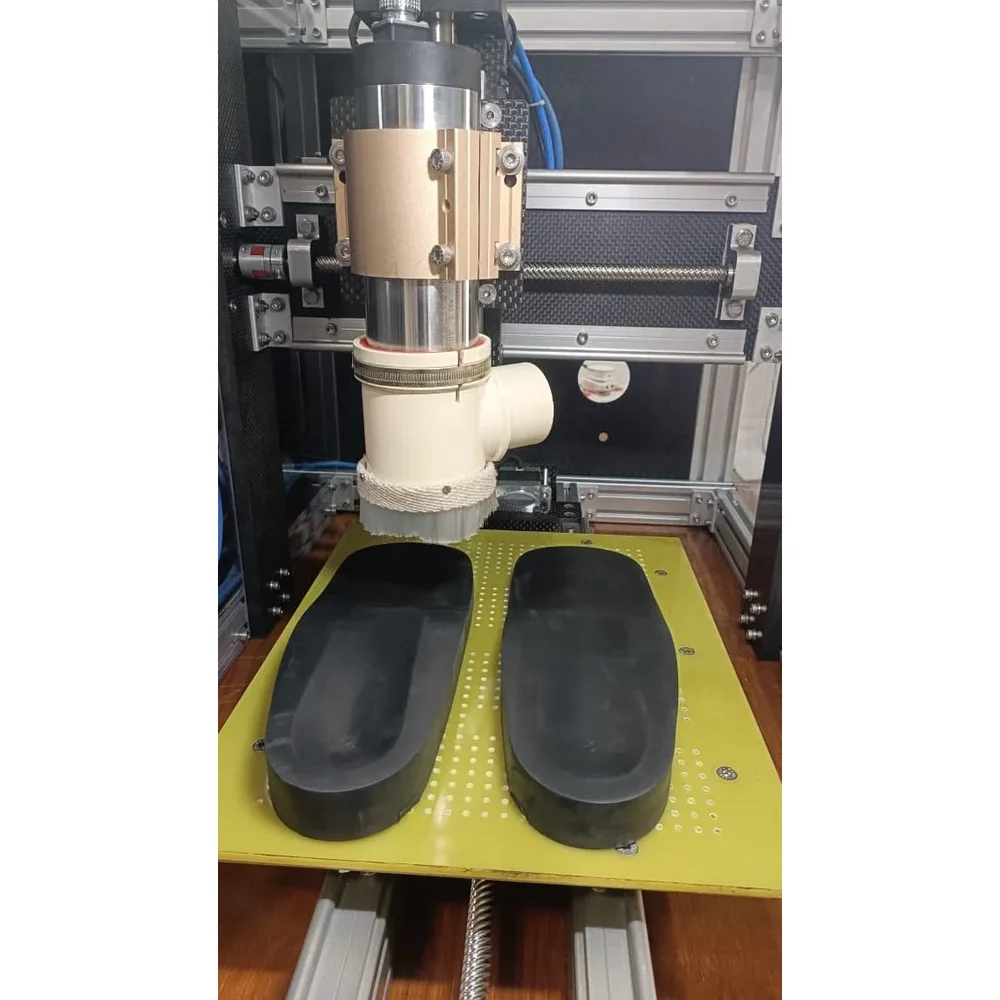

The Orthocut 4030 is a purpose-built 3-axis CNC machine from Akriti Precision Systems, engineered for precision custom insole and orthotic manufacturing. It supports materials like Silicone, EVA, Rubber, and ABS, delivering a finished pair of insoles in 12–15 minutes, ideal for high-efficiency production.
Detailed Description
The Orthocut 4030 is a dedicated 3-axis CNC machine, made in India by Akriti Precision Systems, designed for precision custom insole and orthotic manufacturing. It features a working area of 400 x 300 mm with a 100 mm Z-axis travel (customizable), and a maximum travel speed of 4 m/min. The machine is equipped with a 24,000 RPM, 2.2 kW/2 hp air-cooled spindle, certified for 24/7 continuous operation on soft materials. It supports various materials including Silicone, EVA, all types of Rubber, and ABS, processing a pair of insoles in an estimated 12–15 minutes. The system is compatible with common 3D file formats like Step, STL, and STP, and integrates with any CAD/CAM software generating G-code, such as Solidworks, Catia, and Autodesk Fusion. Workholding is managed by a vacuum bed, and dust is evacuated via a vacuum system (pump/collector not included). Power input is single phase, 220V/110V, requiring a 16A plug. The machine comes fully assembled and plug-and-play, including 5 milling bits, 3 collets, a spindle spanner, and a connector cable. Its high precision and rapid machining capabilities make it suitable for businesses requiring efficient, on-demand production of patient-specific or custom-fit footwear components. The robust design and continuous operation certification ensure reliability for demanding production environments, catering to both small-batch customization and higher volume manufacturing needs within the orthotics and footwear industries. Akriti Precision Systems operates under an ISO 9001 quality management system, ensuring consistent manufacturing standards. The Orthocut 4030 machine itself holds CE certification, affirming its compliance with European safety, health, and environmental protection requirements.
Product Details
| Category | Machinery & Equipment |
|---|---|
| Sub-Category | Machine Tools |
| Product Type | CNC Machining Centres |
| Price | ₹3,85,000 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Monthly Capacity | 5 units |
| Lead Time | 15 days |
| HSN/SAC Code | 84592100 |
| Country of Origin | India |
| Warranty | 1 Years Comprehensive Warranty |
Key Features
- Purpose-built 3-Axis CNC: Engineered specifically for custom insole and orthotic manufacturing, ensuring optimal geometry and fit.
- High-Speed Spindle: Features a 24,000 RPM, 2.2 kW/2 hp air-cooled spindle for efficient machining of soft materials.
- Continuous Operation: Certified for 24/7 continuous operation, supporting high-volume production demands without interruption.
- Versatile Material Support: Processes Silicone, EVA, all types of Rubber, and ABS, offering flexibility for various insole types.
- Rapid Machining Time: Produces a finished pair of custom insoles in an estimated 12–15 minutes, enhancing production efficiency.
- Broad Software Compatibility: Supports Step, STL, STP, and other 3D formats, integrating with standard CAD/CAM software like Solidworks and Fusion.
- Vacuum Workholding & Dust Evacuation: Includes a vacuum bed for secure material stock and a vacuum dust evacuation system for a clean workspace.
- ISO 9001 Certified Manufacturing: Produced under an ISO 9001 quality management system, ensuring consistent product quality.
- CE Certified: Complies with European safety, health, and environmental protection standards for reliable operation.
Applications & Use Cases
- Orthotic Laboratories: For precision manufacturing of custom orthotics and insoles directly from 3D foot scans.
- Podiatry Clinics: Enabling in-house production of patient-specific insoles for immediate fitting and improved patient care.
- Sports Medicine Facilities: Creating performance-enhancing or injury-preventing custom insoles for athletes.
- Rehabilitation Centers: Fabricating therapeutic insoles tailored to individual patient needs for improved mobility and comfort.
Technical Specifications
| Dust System | Vacuum Dust Evacuation (Collector Not Included) |
|---|---|
| Power Input | Single Phase, 220V/110v, 16a Plug Required |
| Workholding | Vacuum Bed (Vacuum Pump Not Included) |
| Manufacturer | Akriti Precision Systems |
| Product Name | Orthocut 4030 — 3-Axis Cnc for Custom Insole Manufacturing |
| Working Area | 400 X 300 Mm |
| Certification | ISO 9001 & CE |
| Spindle Power | 2.2Kw/2hp |
| Spindle Speed | 24,000 Rpm |
| Z Axis Travel | 100 Mm (Customizable) |
| Included Items | 5X Milling Bits (3Mm, 4Mm, 10Mm Corning Bits) 3X Collets — Er16/20/25 Depending on Spindle (3Mm, 4Mm, 10Mm) Spindle Spanner and Connector Cable |
| Max Travel Speed | 4 M/min (X, Y & Z) |
| Country Of Origin | India |
| Machine Footprint | 750 X 750 Mm |
| Materials Supported | Silicone, Eva, Rubber (All Types), Abs |
| Continuous Operation | Yes — Certified for 24/7 Operation |
| File Formats Supported | Step, Stl, Stp, and Other Common 3D Formats |
| Software Compatibility | Any Cad/cam Software That Generates Gcode (Solidworks, Catia, Autodesk Fusion, Etc.) |
| Estimated Machining Time | 12–15 Minutes Per Pair of Insoles |
Bulk Pricing
| Quantity | Price |
|---|---|
| 3+ piece | ₹3,60,000 per piece |
Payment Terms
- Full Advance
About the Supplier
Akriti Precision Systems Pvt. Ltd. is a verified B2B supplier based in Bengaluru, Karnataka.
- Tradoi-verified seller
- Certifications: iso_9001, company_incorporation, iec, dpiit_startup, ce_marking
View Akriti Precision Systems Pvt. Ltd. supplier profile on Tradoi
Frequently Asked Questions
What is the minimum order quantity for Orthocut 4030 3-Axis Cnc Machine?
The minimum order quantity (MOQ) for Orthocut 4030 3-Axis Cnc Machine is 1 piece.
Who manufactures Orthocut 4030 3-Axis Cnc Machine?
Orthocut 4030 3-Axis Cnc Machine is manufactured by Akriti Precision Systems Pvt. Ltd., a Tradoi-verified manufacturer based in Bengaluru, Karnataka.
What are the payment terms for Orthocut 4030 3-Axis Cnc Machine?
Available payment terms for Orthocut 4030 3-Axis Cnc Machine: Full Advance.
What is the lead time for Orthocut 4030 3-Axis Cnc Machine?
The lead time for Orthocut 4030 3-Axis Cnc Machine is 15 days.
What is the price of Orthocut 4030 3-Axis Cnc Machine?
Orthocut 4030 3-Axis Cnc Machine is priced at ₹3,85,000 per piece by Akriti Precision Systems Pvt. Ltd.. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
