Pcbmaker 4030 40K 3-Axis Cnc Machine — manufactured in Bengaluru, Karnataka by Akriti Precision Systems Pvt. Ltd. Tradoi-verified manufacturer at ₹5,45,000/piece, MOQ 1 piece, lead time 15 days.
Product Overview

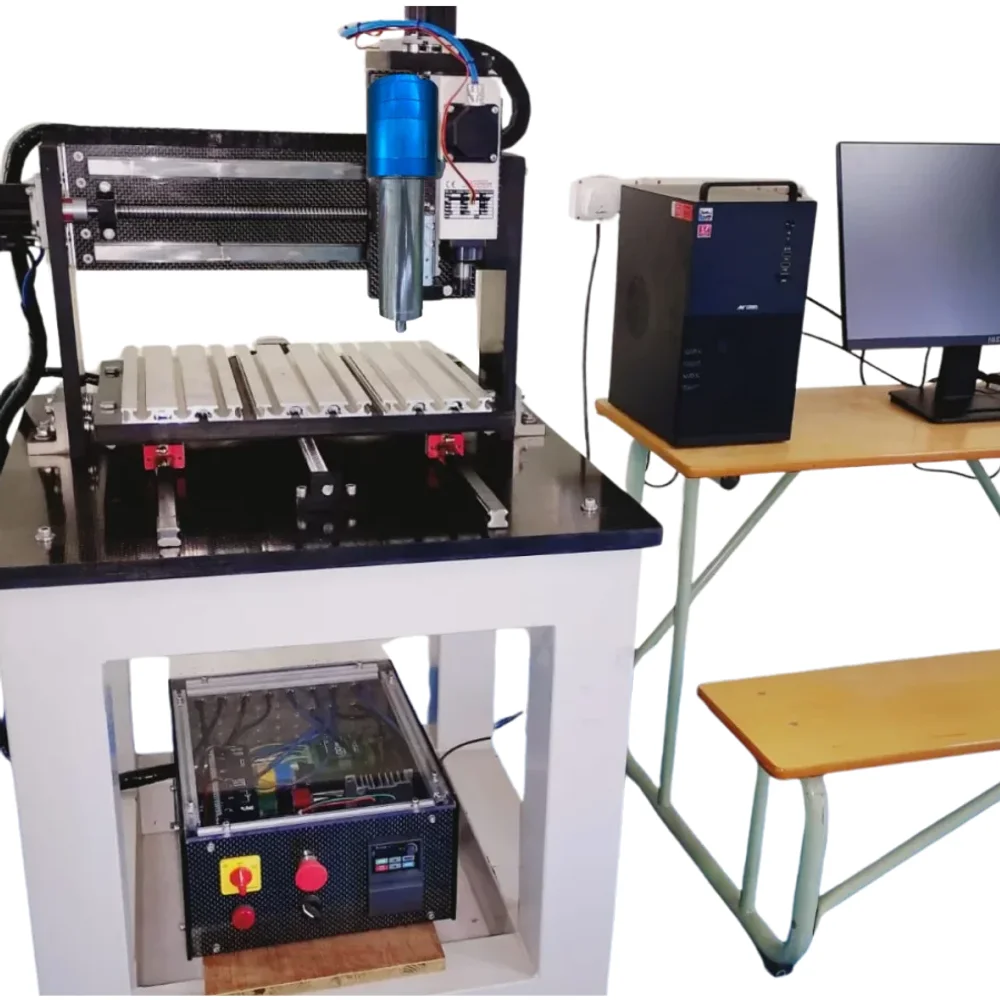

A 3-Axis PCB CNC Machine engineered for precision drilling and routing, featuring a 40,000 RPM, 1 kW water-cooled spindle. This machine offers a working area of 400 x 300 mm and a Z-axis travel of 100 mm, ideal for high-speed processing of single-layer prototypes to dual-layer boards.
Detailed Description
This 3-Axis PCB CNC Machine is purpose-built for precision drilling and routing of printed circuit boards, from single-layer prototypes to complex dual-layer high-power, analog, and digital boards. It integrates a 40,000 RPM, 1 kW water-cooled spindle, ensuring the speed and accuracy required for consistent batch processing. The machine provides a working area of 400 x 300 mm with a Z-axis travel of 100 mm, supported by an industrial-grade motion system featuring Hiwin/THK 16mm rolled ball screws and 20mm linear guides for smooth, accurate simultaneous 3-axis motion. Designed for electronics manufacturing units, R&D laboratories, and educational institutions requiring in-house PCB fabrication capabilities, this machine supports rapid prototyping and small-to-medium batch production. It is suitable for businesses focused on developing custom electronic hardware, embedded systems, and specialized control boards, offering a reliable solution for precise material removal and hole drilling on various PCB substrates. The manual tool change (MTC) system enables efficient batch operations while contributing to a lower overall cost of ownership. Manufactured with up to 75% Made-in-India parts, including NEMA 24/34 stepper motors, machine control box, drivers, power supply, and VFD, this equipment operates under an ISO 9001 quality management system. It comes with a 1-year warranty on all parts, with extended warranty options available for up to 10 years, and a lifetime warranty on its composite superstructure, ensuring long-term operational reliability.
Product Details
| Category | Machinery & Equipment |
|---|---|
| Sub-Category | Machine Tools |
| Product Type | CNC Machining Centres |
| Price | ₹5,45,000 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Monthly Capacity | 5 units |
| Lead Time | 15 days |
| HSN/SAC Code | 84592100 |
| Country of Origin | India |
| Warranty | 1 Years Comprehensive Warranty |
Key Features
- 40,000 RPM, 1 kW Water-Cooled Spindle — Delivers high-speed precision for consistent PCB drilling and routing.
- 400 x 300 mm Working Area — Accommodates PCB sizes for prototyping and batch production.
- 100 mm Z-Axis Travel (Customizable) — Provides flexibility for various board thicknesses and material processing.
- 5 m/min Max Travel Speed (X, Y & Z) — Ensures efficient and rapid movement across all axes for faster job completion.
- Arduino-Based Controller — Offers robust and user-friendly machine control compatible with Windows 10/11 PCs.
- Manual Tool Change (MTC) System — Facilitates quick tool swaps, optimizing workflow for batch operations.
- Industrial-Grade Motion System — Features Hiwin/THK 16mm rolled ball screws and 20mm linear guides for accurate 3-axis motion.
- Lifetime Warranty on Composite Superstructure — Guarantees structural integrity against sagging, hogging, rust, or corrosion.
- 1 Year Warranty on All Parts (Extendable up to 10 Years) — Provides comprehensive coverage and long-term support for components.
Applications & Use Cases
- Electronics Manufacturing: In-house fabrication of single-layer and dual-layer PCBs for product development.
- R&D Laboratories: Rapid prototyping of custom circuit boards for experimental and testing purposes.
- Educational Institutions: Practical training and project work in electronics design and manufacturing.
- Embedded Systems Development: Production of specialized control boards and custom hardware components.
- Industrial Automation: Creation of bespoke PCBs for control panels and integrated systems.
Technical Specifications
| Machine Type | Other |
|---|---|
| Spindle Power | 1 kW |
| Spindle Speed | 40 ,000 rpm |
| Warranty | 1 year on all parts (extendable up to 10 years), plus lifetime warranty on the composite superstructure |
| Controller | Arduino-based |
| Z Axis Travel | 100 mm (Customizable) |
| Working Area X | 400 mm |
| Working Area Y | 300 mm |
| Max Travel Speed | 5 m/min (X, Y & Z) |
| Tool Change Type | Manual |
Bulk Pricing
| Quantity | Price |
|---|---|
| 3+ piece | ₹5,10,000 per piece |
Payment Terms
- Full Advance
About the Supplier
Akriti Precision Systems Pvt. Ltd. is a verified B2B supplier based in Bengaluru, Karnataka.
- Tradoi-verified seller
- Certifications: iso_9001, company_incorporation, iec, dpiit_startup, ce_marking
View Akriti Precision Systems Pvt. Ltd. supplier profile on Tradoi
Frequently Asked Questions
What is the minimum order quantity for Pcbmaker 4030 40K 3-Axis Cnc Machine?
The minimum order quantity (MOQ) for Pcbmaker 4030 40K 3-Axis Cnc Machine is 1 piece.
Who manufactures Pcbmaker 4030 40K 3-Axis Cnc Machine?
Pcbmaker 4030 40K 3-Axis Cnc Machine is manufactured by Akriti Precision Systems Pvt. Ltd., a Tradoi-verified manufacturer based in Bengaluru, Karnataka.
What are the payment terms for Pcbmaker 4030 40K 3-Axis Cnc Machine?
Available payment terms for Pcbmaker 4030 40K 3-Axis Cnc Machine: Full Advance.
What is the lead time for Pcbmaker 4030 40K 3-Axis Cnc Machine?
The lead time for Pcbmaker 4030 40K 3-Axis Cnc Machine is 15 days.
What is the price of Pcbmaker 4030 40K 3-Axis Cnc Machine?
Pcbmaker 4030 40K 3-Axis Cnc Machine is priced at ₹5,45,000 per piece by Akriti Precision Systems Pvt. Ltd.. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
