Pcbmaker 4030 60K 3-Axis Cnc Machine — manufactured in Bengaluru, Karnataka by Akriti Precision Systems Pvt. Ltd. Tradoi-verified manufacturer at ₹6,45,000/piece, MOQ 1 piece, lead time 15 days.
Product Overview

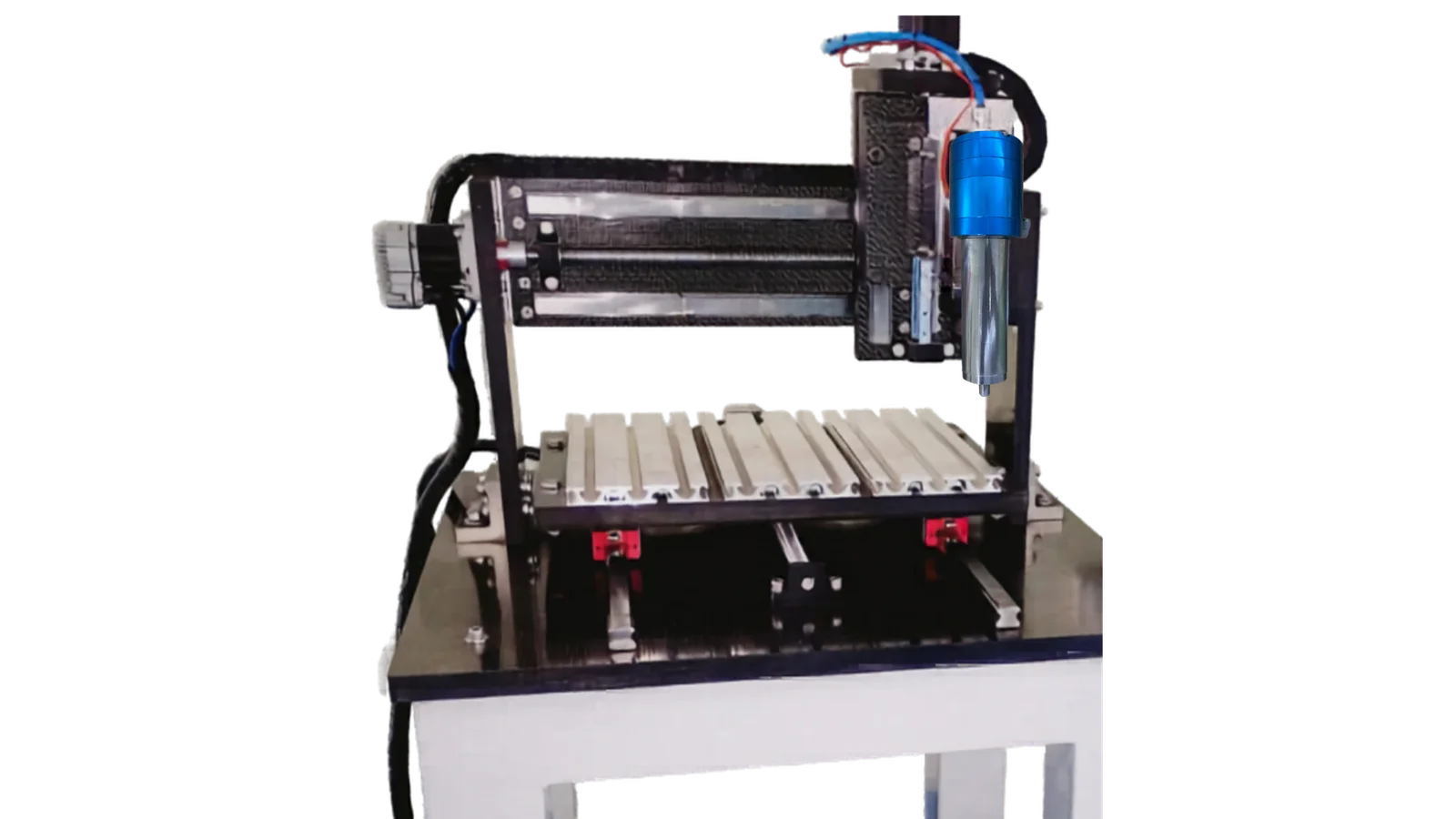

The Pcbmaker 4030 60K is a 3-axis PCB CNC machine featuring a 60,000 RPM, 1.5 kW water-cooled spindle for high-speed precision drilling and routing of single and dual-layer PCBs. Built with a carbon fiber/fiberglass composite superstructure, it offers a working area of 400 x 300 mm, ideal for demanding electronics manufacturing and prototyping.
Detailed Description
The Pcbmaker 4030 60K is a robust 3-axis PCB CNC machine engineered for high-speed precision drilling and routing of printed circuit boards. It integrates a powerful 60,000 RPM, 1.5 kW (2 hp) water-cooled spindle, ensuring tighter runout and faster processing for intricate detail work and accelerated cycle times. The machine features a generous working area of 400 x 300 mm with 100 mm Z-axis travel, supported by an industrial-grade motion system with Hiwin/THK 16mm rolled ball screws and 20mm linear guides on all axes for smooth, accurate simultaneous 3-axis motion. Its innovative composite superstructure, made from carbon fiber and fiberglass, is mounted on a Tata Steel mild steel base, providing exceptional rigidity, resistance to sag, hog, rust, and corrosion. It is particularly suited for producing high-power, analog, and digital boards, enabling rapid iteration and production of single and dual-layer PCBs. Each unit is supplied fully assembled and plug-and-play, including a comprehensive set of PCB drilling bits, engraving bits, a routing endmill, ER16 collets, and essential mounting hardware. The machine is backed by a 1-year warranty on all parts, with extended warranty options available for up to 10 years, with a lifetime warranty specifically on the composite superstructure, underscoring its durable construction and long-term reliability.
Product Details
| Category | Machinery & Equipment |
|---|---|
| Sub-Category | Machine Tools |
| Product Type | CNC Machining Centres |
| Price | ₹6,45,000 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Monthly Capacity | 5 units |
| Lead Time | 15 days |
| HSN/SAC Code | 84592100 |
| Country of Origin | India |
| Warranty | 1 Years Comprehensive Warranty |
Key Features
- 60,000 RPM, 1.5 kW (2 hp) Water-Cooled Spindle: Delivers high-speed processing and tighter runout for precision PCB drilling and routing.
- 400 x 300 mm Working Area: Provides ample space for fabricating single and dual-layer PCBs, accommodating various board sizes.
- Carbon Fiber/Fiberglass Composite Superstructure: Ensures exceptional rigidity, resistance to rust, corrosion, sagging, and hogging, backed by a lifetime warranty.
- Industrial-Grade Motion System: Features Hiwin/THK 16mm rolled ball screws and 20mm linear guides for accurate and smooth 3-axis motion.
- Push-Button Manual Tool Change: Facilitates fast batch operations and reduces the cost of ownership with a 3.175mm collet.
- Arduino-Based Control System: Offers reliable machine control via USB connection to Windows 10/11 PCs, with included FlatCAM and Gsender/UGS software.
- Certified Spindle Runout <10 Microns: Guarantees superior precision for fine detail work and consistent hole quality.
- Repeat Positioning Accuracy <50 Microns: Ensures high consistency and reliability for repetitive manufacturing tasks.
- Made-in-India Core Components: Utilizes locally sourced NEMA 24/34 stepper motors, control box, drivers, power supply, and VFD.
Applications & Use Cases
- Electronics Manufacturing: For high-speed, precision drilling and routing of PCBs in production environments.
- R&D and Prototyping Labs: Ideal for rapid iteration and development of new electronic circuits and board designs.
- Educational Institutions: Suitable for teaching advanced CNC machining principles and PCB fabrication techniques.
- Custom Board Fabrication: Supports the creation of specialized high-power, analog, and digital PCBs.
- Small to Medium Scale Production: Enables efficient batch processing for single and dual-layer PCB requirements.
Technical Specifications
| Machine Type | Other |
|---|---|
| Spindle Power | 1.5 kW/2 hp |
| Spindle Speed | 60 ,000 rpm |
| Tool Changer Capacity | 1 |
| Material | carbon fiber/fiberglass |
| Warranty | 1 year on all parts (extendable up to 10 years), plus lifetime warranty on the composite superstructure |
| Z Axis Travel | 100 mm |
| Control System | Arduino |
| Working Area X | 400 mm |
| Working Area Y | 300 mm |
| Max Travel Speed | 5 m/min |
Bulk Pricing
| Quantity | Price |
|---|---|
| 3+ piece | ₹6,00,000 per piece |
Payment Terms
- Full Advance
About the Supplier
Akriti Precision Systems Pvt. Ltd. is a verified B2B supplier based in Bengaluru, Karnataka.
- Tradoi-verified seller
- Certifications: iso_9001, company_incorporation, iec, dpiit_startup, ce_marking
View Akriti Precision Systems Pvt. Ltd. supplier profile on Tradoi
Frequently Asked Questions
What is the minimum order quantity for Pcbmaker 4030 60K 3-Axis Cnc Machine?
The minimum order quantity (MOQ) for Pcbmaker 4030 60K 3-Axis Cnc Machine is 1 piece.
Who manufactures Pcbmaker 4030 60K 3-Axis Cnc Machine?
Pcbmaker 4030 60K 3-Axis Cnc Machine is manufactured by Akriti Precision Systems Pvt. Ltd., a Tradoi-verified manufacturer based in Bengaluru, Karnataka.
What are the payment terms for Pcbmaker 4030 60K 3-Axis Cnc Machine?
Available payment terms for Pcbmaker 4030 60K 3-Axis Cnc Machine: Full Advance.
What is the lead time for Pcbmaker 4030 60K 3-Axis Cnc Machine?
The lead time for Pcbmaker 4030 60K 3-Axis Cnc Machine is 15 days.
What is the price of Pcbmaker 4030 60K 3-Axis Cnc Machine?
Pcbmaker 4030 60K 3-Axis Cnc Machine is priced at ₹6,45,000 per piece by Akriti Precision Systems Pvt. Ltd. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
