Pcbmaker 5040 40K 3-Axis Cnc Machine — manufactured in Bengaluru, Karnataka by Akriti Precision Systems Pvt. Ltd. Tradoi-verified manufacturer at ₹6,35,000/piece, MOQ 1 piece, lead time 15 days.
Product Overview

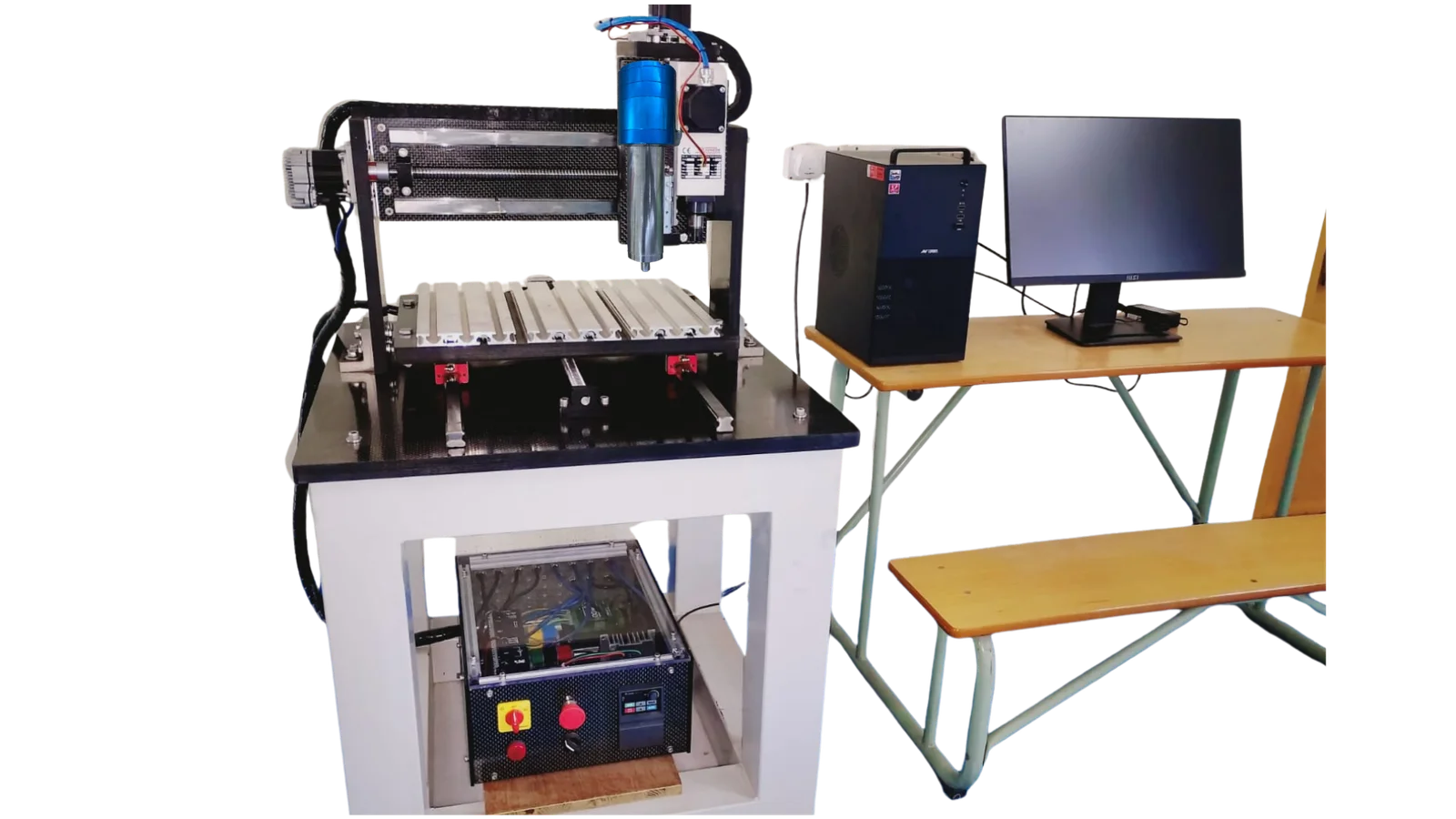

The Pcbmaker 5040 40K is a 3-axis PCB CNC machine featuring a 40,000 RPM, 1Kw water-cooled spindle and a 500 x 400 mm working area, designed for precision drilling and routing of larger PCBs or panelized jobs. It incorporates a carbon fiber/fiberglass composite superstructure on a Tata Steel mild steel base, ensuring durability and stability.
Detailed Description
The Pcbmaker 5040 40K is a robust 3-axis PCB CNC machine, engineered for high-precision drilling and routing applications. It features a powerful 40,000 RPM, 1Kw India-made water-cooled spindle with certified runout under 20 microns, ensuring exceptional accuracy for intricate PCB designs. The machine offers a generous 500 x 400 mm working area, accommodating larger boards, panelized jobs, or multiple boards in a single setup, supported by a Z-axis travel of 100 mm. Its industrial-grade motion system, comprising Hiwin/THK 16mm rolled ball screws and 20mm linear guides on all axes, facilitates smooth and accurate simultaneous 3-axis motion with a repeat positioning accuracy of less than 50 microns. The innovative chassis combines a carbon fiber/fiberglass composite frame mounted on a Tata Steel mild steel base, providing a lifetime warranty on composite parts against sagging, hogging, rust, or corrosion. This machine is ideal for electronics manufacturing units, R&D laboratories, educational institutions, and prototyping shops requiring precise and reliable PCB fabrication capabilities. Its larger working area makes it suitable for small to medium-batch production of printed circuit boards, enabling efficient processing of complex layouts and panelized designs. The manual tool change (MTC) system supports fast batch operations, contributing to a lower overall cost of ownership, while the inclusion of Flatcam and Gsender/UGS software ensures seamless integration with standard Gerber, Excellon, and Gcode file formats. With up to 75% Made-in-India parts, including NEMA 24/34 stepper motors and the machine control box, it offers a zero-Chinese component solution for domestic manufacturing needs. Manufactured in India, this Pcbmaker 5040 40K machine operates under an ISO 9001 quality management system, ensuring consistent product standards. It also holds CE certification, affirming its compliance with European safety, health, and environmental protection requirements.
Product Details
| Category | Machinery & Equipment |
|---|---|
| Sub-Category | Machine Tools |
| Product Type | CNC Machining Centres |
| Price | ₹6,35,000 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Monthly Capacity | 5 units |
| Lead Time | 15 days |
| HSN/SAC Code | 84592100 |
| Country of Origin | India |
| Warranty | 1 Years Comprehensive Warranty |
Key Features
- 3-Axis CNC Control: Enables precise simultaneous motion across X, Y, and Z axes for complex PCB designs.
- High-Speed Spindle: Features a 40,000 RPM, 1Kw water-cooled spindle with certified runout under 20 microns for fine detail and accuracy.
- Large Working Area: Provides a 500 x 400 mm table, suitable for bigger PCBs, panelized jobs, or multiple boards per setup.
- Composite Superstructure: Carbon fiber/fiberglass frame on a Tata Steel mild steel base, offering lifetime warranty on composite parts against rust and corrosion.
- Industrial-Grade Motion System: Equipped with Hiwin/THK 16mm rolled ball screws and 20mm linear guides for smooth, accurate movement.
- Precision Accuracy: Certified repeat positioning accuracy of less than 50 microns, ensuring consistent results.
- Manual Tool Change (MTC): Facilitates quick tool swaps for efficient batch processing and reduced operational costs.
- Made-in-India Components: Up to 75% of parts, including motors and control box, are India-made with zero Chinese components.
- Comprehensive Software Included: Comes with Flatcam (Gerber/Excellon to Gcode) and Gsender/UGS for machine control.
- ISO 9001 & CE Certified: Manufactured under an ISO 9001 quality management system and compliant with CE standards.
Applications & Use Cases
- Electronics Manufacturing Units: For high-precision drilling and routing of printed circuit boards in production environments.
- R&D Laboratories: Ideal for prototyping and developing new electronic circuits with intricate designs.
- Educational Institutions: Suitable for teaching PCB fabrication and CNC machining principles to students.
- Prototyping Shops: Enables rapid creation of functional PCB prototypes for product development.
- Small to Medium Batch Production: Efficiently handles larger boards or panelized jobs for specialized electronic components.
Technical Specifications
| Machine Type | Other |
|---|---|
| Table Size X | 500 Mm |
| Table Size Y | 400 Mm |
| Spindle Power | 1 Kw |
| Spindle Speed | 40 ,000 Rpm |
| Number Of Axes | 3 |
| Brand | AKRITI |
| Warranty | 1 Year on All Parts |
| Controller | Arduino-based |
| Collet Type | ER11 |
| Power Input | Single Phase, 220V/110v, 16a |
| File Formats | Excellon, Gerber, Gcode |
| Model Number | 5040 40K |
| Certification | CE |
| Motion System | Hiwin/thk 16Mm Rolled Ball Screws and 20Mm Linear Guides |
| Z Axis Travel | 100 Mm |
| Coolant System | Water Cooled |
| Drilling Speed | 30–40 Holes/min (Stepper) |
| Spindle Runout | <20 Microns |
| Chassis Material | Carbon Fiber/fiberglass Frame Mounted on a Tata Steel Mild Steel Base |
| Max Travel Speed | 5 M/min |
| Tool Change Type | Manual Tool Change (Mtc) |
| Country Of Origin | India |
| Machine Footprint | 900 X 900 Mm |
| Software Included | Flatcam & Gsender/ugs |
| Minimum Track Width | 0.100 Mm |
| Repeat Positioning Accuracy | <50 Microns |
| Warranty Composite Superstructure | Lifetime |
| Country Of Origin Parts Percentage | up to 75% |
Bulk Pricing
| Quantity | Price |
|---|---|
| 3+ piece | ₹5,95,000 per piece |
Payment Terms
- Full Advance
About the Supplier
Akriti Precision Systems Pvt. Ltd. is a verified B2B supplier based in Bengaluru, Karnataka.
- Tradoi-verified seller
- Certifications: iso_9001, company_incorporation, iec, dpiit_startup, ce_marking
View Akriti Precision Systems Pvt. Ltd. supplier profile on Tradoi
Frequently Asked Questions
What is the minimum order quantity for Pcbmaker 5040 40K 3-Axis Cnc Machine?
The minimum order quantity (MOQ) for Pcbmaker 5040 40K 3-Axis Cnc Machine is 1 piece.
Who manufactures Pcbmaker 5040 40K 3-Axis Cnc Machine?
Pcbmaker 5040 40K 3-Axis Cnc Machine is manufactured by Akriti Precision Systems Pvt. Ltd., a Tradoi-verified manufacturer based in Bengaluru, Karnataka.
What are the payment terms for Pcbmaker 5040 40K 3-Axis Cnc Machine?
Available payment terms for Pcbmaker 5040 40K 3-Axis Cnc Machine: Full Advance.
What is the lead time for Pcbmaker 5040 40K 3-Axis Cnc Machine?
The lead time for Pcbmaker 5040 40K 3-Axis Cnc Machine is 15 days.
What is the price of Pcbmaker 5040 40K 3-Axis Cnc Machine?
Pcbmaker 5040 40K 3-Axis Cnc Machine is priced at ₹6,35,000 per piece by Akriti Precision Systems Pvt. Ltd.. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
