Pcbproto 4030 3-Axis Cnc Machine, ₹3,60,000/piece | Tradoi
Machinery & Equipment › Machine Tools

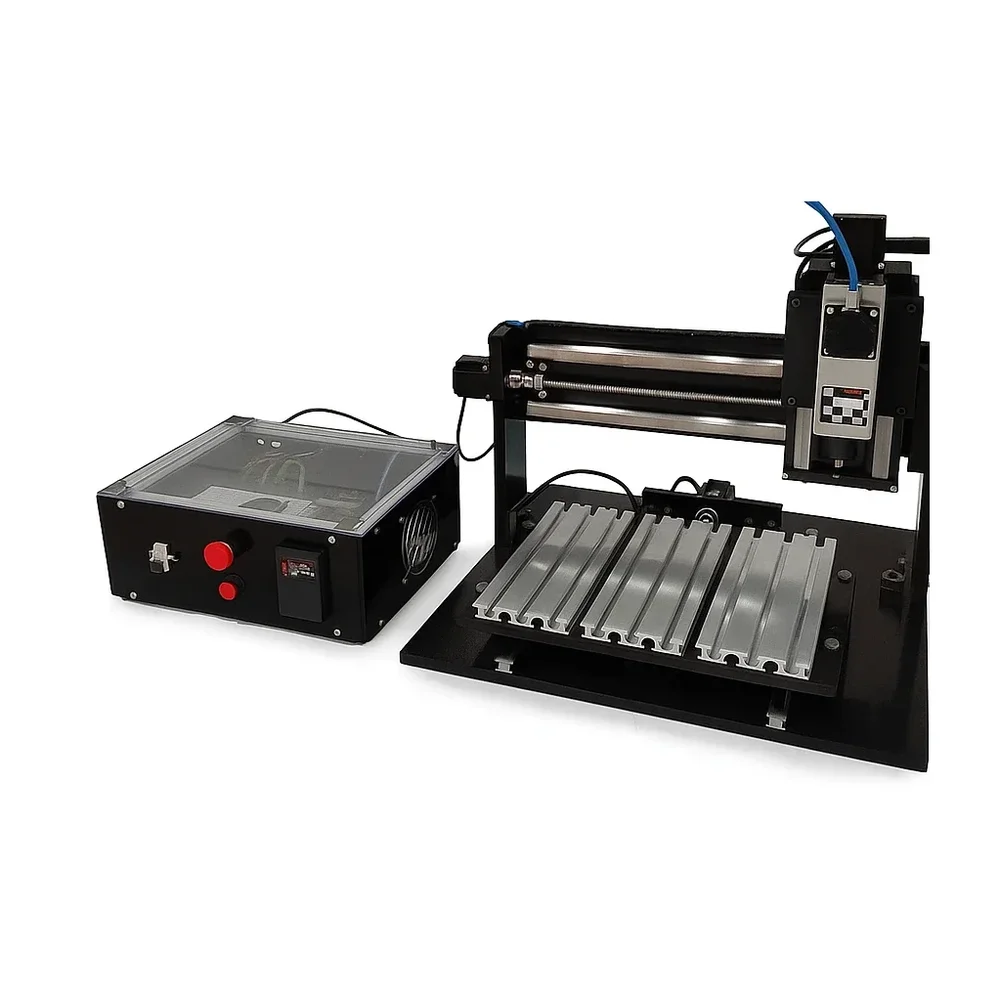

Pcbproto 4030 3-Axis Cnc Machine — manufactured in Bengaluru, Karnataka by Akriti Precision Systems Pvt. Ltd. Tradoi-verified manufacturer at ₹3,60,000/piece, MOQ 1 piece, lead time 15 days.
Product Overview
The Pcbproto 4030 3-Axis CNC machine offers high-speed PCB prototyping with a 400x300mm working area, supporting Excellon and Gerber file import. Ideal for electronics R&D, rapid prototyping, and small batch production, featuring up to 80% Made-in-India parts and a 24,000 RPM spindle.
Detailed Description
The Pcbproto 4030 3-Axis CNC machine is engineered for high-speed PCB prototyping, featuring a generous 400x300mm working area and 100mm Z-axis travel. This desktop/tabletop unit is built with a durable Carbon Fiber / Fiberglass Composite Superstructure, ensuring stability and precision. It supports simultaneous 3-axis motion with full interpolation and achieves a maximum travel speed of 4 M/min. Equipped with a Teknomotor (Italy) 0.73 Kw / 1 Hp spindle capable of up to 24,000 RPM, it delivers a certified repeat positioning accuracy of less than 50 microns. The machine handles single and dual-layer PCBs, supporting Excellon, Gerber, and G-code file formats, and is controlled via an Arduino system compatible with Windows 10/11. This CNC prototyping machine is designed for electronics R&D laboratories, educational institutions, and small to medium-sized enterprises engaged in rapid PCB development and low-volume manufacturing. It is particularly suited for applications involving high-power, analog, and digital PCBs, as well as prototyping with materials like ABS, polycarbonate, acrylic, carbon fiber, and various woods. Its plug-and-play design with single-phase input (220V/110V, 16 Amp) simplifies installation, making it accessible for diverse operational environments without requiring 3-phase power. Manufactured with up to 80% Made-in-India parts, this machine comes with a 1-year full parts warranty and a lifetime warranty on its composite superstructure. with extended warranty options available for up to 10 years, providing long-term operational assurance. The product is ISO 9001 and CE certified, affirming its adherence to international quality and safety standards.
Product Details
| Category | Machinery & Equipment |
|---|---|
| Sub-Category | Machine Tools |
| Product Type | CNC Machining Centres |
| Price | ₹3,60,000 per piece |
| Minimum Order Quantity | 1 piece |
| Unit | piece |
| Monthly Capacity | 5 units |
| Lead Time | 15 days |
| HSN/SAC Code | 84592100 |
| Country of Origin | India |
| Warranty | 1 Years Comprehensive Warranty |
Key Features
- 400x300mm Working Area: Provides ample space for prototyping and small batch production of PCBs and other materials.
- 3-Axis Simultaneous Motion: Offers full interpolation for complex geometries and precise machining operations.
- 24,000 RPM Spindle: High-speed Teknomotor (Italy) spindle for efficient drilling, engraving, and routing of various materials.
- 0.73 Kw / 1 Hp Motor Power: Delivers robust performance for continuous operation in prototyping and light manufacturing.
- Sub-50 Micron Repeat Positioning Accuracy: Ensures high precision and consistency for critical PCB trace and hole alignment.
- Single/Dual Layer PCB Support: Versatile for common PCB prototyping requirements, handling both single and dual-layer designs.
- Excellon / Gerber / G-code File Compatibility: Directly imports industry-standard design files for seamless workflow integration.
- Carbon Fiber / Fiberglass Composite Chassis: Provides a stable, rigid, and durable desktop/tabletop machine superstructure.
- Single-Phase 220V/110V Input: Simplifies installation with standard power outlets, eliminating the need for 3-phase power.
- ISO 9001 & CE Certified: Complies with international quality management and European safety standards for reliable operation.
Applications & Use Cases
- Electronics R&D Labs: For rapid prototyping and testing of new PCB designs and electronic circuits.
- Educational Institutions: Used in engineering and vocational training for hands-on PCB fabrication and CNC machining.
- Small Batch PCB Production: Enables in-house manufacturing of low-volume specialized PCBs for niche applications.
- Analog and Digital PCB Prototyping: Specifically designed to handle the precision requirements of various PCB types.
- Custom Component Fabrication: Machining of non-metallic parts from ABS, acrylic, wood, and composite materials.
- Product Development Workshops: Creating functional prototypes for consumer electronics, industrial controls, and IoT devices.
Technical Specifications
| Table Size | 400 × 300 Mm |
|---|---|
| Motor Power | 1 Hp |
| Power Source | Single Phase |
| Table Size X | 400 mm |
| Table Size Y | 300 mm |
| Spindle Speed | 24000 Rpm |
| Number Of Axes | 3 |
| Warranty Period | up to 10 Years (Optional Extended Warranty & Maintenance Contracts) |
| Automation Grade | Cnc |
| Material Capacity | Wood |
| Price | ₹3,60,000 (+ Gst + Shipping) |
| File Formats | Excellon / Gerber / G-code |
| Machine Type | Cnc Milling Machine |
| Product Name | Pcbproto 4030 3-Axis – Pcb Prototyping Cnc High-speed Pcb Prototyping Cnc Machine With a 400×300Mm Working Area, Supporting Excellon and Gerber File Import. Ideal for Electronics R&d, Pcb Prototyping, and Small Batch Production, With up to 80% Made-in-india Parts. Starting Price: ₹3,60,000 (+ Gst + Shipping) — Heavy Customization Available Key Specs Working Area: 400 × 300 Mm Z-axis Travel: 100 Mm (Customizable) Machine Footprint: 750 × 750 Mm | Control Box: 610 × 450 Mm Chassis: Carbon Fiber / Fiberglass Composite Superstructure — Desktop/tabletop Type Machine Movement: Moving Bed / Fixed Gantry, Simultaneous 3-Axis Motion With Full Interpolation Max Travel Speed: 4 M/min (X, Y & Z) Pcb-specific Capabilities Applications: High-power Pcb, Analog Pcb, Digital Pcb Drill Holes/min (Stepper): 30–40 (Depends on Spindle Retract Height & Hole Spacing) Drill Holes/min (Servo Upgrade): 80–100 Minimum Track Width: 0.100 Mm Layers Supported: Single / Dual Layer Pcb File Formats: Excellon / Gerber / G-code Software: Flatcam (Converts Excellon/gerber to G-code) & Gsender/ugs (Machine Control) Spindle Origin: Teknomotor, Italy Power: 0.73 Kw / 1 Hp, up to 24,000 Rpm Tool Change: Manual (Mtc), Er20 Collet Runout: <20 Microns Certified, <10 Microns Tested Control: Manual Spindle Control (Vfd) Cooling: Air-cooled Spindle Motion System Drive: Hiwin/thk 16Mm Rolled Ball Screw (All Axes) Guides: Hiwin/thk 20Mm Linear Guide & Block Motors: Nema 23 & 24 Stepper Motors, Made in India Accuracy Certified Repeat Positioning Accuracy: <50 Microns Tested Repeat Positioning Accuracy: 15–25 Microns (0.015–0.025 Mm) Measured With Mitutoyo Calibrated Instruments Controller Arduino Controller — Operates Via Usb With Any Windows 10/11 Laptop or Desktop Control Pc Optional (Laptop/desktop With Monitor, Keyboard & Mouse) Other Controller Options Available Power & Installation Single-phase Input, 220V/110v, 16 Amp Plug Point — No 3-Phase Needed Ships Fully Assembled, Plug & Play; Installation Optional (Extra Cost) Materials Supported Pcb (All Types), Abs, Polycarbonate, Acrylic, Carbon Fiber, Fiberglass, Aramid, Wood, Mdf, Epoxy, Graphite. Warranty & Support 1 Year Full Parts Warranty Lifetime Warranty on Composite Superstructure Optional Extended Warranty & Maintenance Contracts up to 10 Years Iso 9001 & Ce Certified Accessories Included Pcb Drilling Bits: 0.3–1.2Mm Dia Collection, 10 Pcs (3.175Mm Shaft) Pcb Engraving Bits: 0.1Mm Tip, 30° Angle, 2 Pcs Routing Endmill: 2Mm Dia Flat-end, 1 Pc Er16 Collets: 3Mm, 4Mm, 6Mm Dia (3 Pcs) 10× T-nuts, Spanner, Connector Cable, 8× Stock Mounting Bolts/nuts, 4× Composite Stock Holders |
| Z Axis Travel | 100 Mm |
| Control System | Arduino Controller |
| Chassis Material | Carbon Fiber / Fiberglass Composite Superstructure |
| Layers Supported | Single / Dual Layer Pcb |
| Machine Movement | Moving Bed / Fixed Gantry, Simultaneous 3-Axis Motion With Full Interpolation |
| Max Travel Speed | 4 M/min (X, Y & Z) |
| Machine Footprint | 750 × 750 Mm |
| Material Capacity | Graphite |
| Machine Type Detail | Desktop/tabletop Type |
| Minimum Track Width | 0.100 Mm |
| Control Box Footprint | 610 × 450 Mm |
| Drill Holes Per Min Servo | 80–100 |
| Drill Holes Per Min Stepper | 30–40 |
Bulk Pricing
| Quantity | Price |
|---|---|
| 3+ piece | ₹3,35,000 per piece |
Payment Terms
- Full Advance
About the Supplier
Akriti Precision Systems Pvt. Ltd. is a verified B2B supplier based in Bengaluru, Karnataka.
- Tradoi-verified seller
- Certifications: iso_9001, company_incorporation, iec, dpiit_startup, ce_marking
View Akriti Precision Systems Pvt. Ltd. supplier profile on Tradoi
Frequently Asked Questions
What is the minimum order quantity for Pcbproto 4030 3-Axis Cnc Machine?
The minimum order quantity (MOQ) for Pcbproto 4030 3-Axis Cnc Machine is 1 piece.
Who manufactures Pcbproto 4030 3-Axis Cnc Machine?
Pcbproto 4030 3-Axis Cnc Machine is manufactured by Akriti Precision Systems Pvt. Ltd., a Tradoi-verified manufacturer based in Bengaluru, Karnataka.
What are the payment terms for Pcbproto 4030 3-Axis Cnc Machine?
Available payment terms for Pcbproto 4030 3-Axis Cnc Machine: Full Advance.
What is the lead time for Pcbproto 4030 3-Axis Cnc Machine?
The lead time for Pcbproto 4030 3-Axis Cnc Machine is 15 days.
What is the price of Pcbproto 4030 3-Axis Cnc Machine?
Pcbproto 4030 3-Axis Cnc Machine is priced at ₹3,60,000 per piece by Akriti Precision Systems Pvt. Ltd. Minimum order quantity is 1 piece. Pricing may vary with order volume — contact the supplier on Tradoi to confirm bulk rates.
